Nickel aminoguanidine diperchlorate


I was recently inspired by Dr L to try some experimentation with transition metal perchlorates and aminoguanidine following on from the thread on copper and lithium hexamine perchlorates, titled ‘LL8 from Dr. Liptakov’.
Having nickel perchlorate hexahydrate at hand I thought that would be a good start.
There is not a lot of information on this compound, but I did find a link to patent EP2450330A2 in another thread on SM.
Firstly, I wanted to check my basic workings in case I have missed something. The patent calls for 1.36 g of aminoguanidine bicarbonate slurried with 10 mL of dH2O to be reacted with 1.4 g of nickel perchlorate hexahydrate dissolved in 1 mL of dH2O.

Based on my calculations that is a vast excess of aminoguanidine bicarbonate.

1 C2H8N4O3 + 1 Ni(ClO4)2.6(H2O) --> 1 CO2 + 1 CN4H6Ni(ClO4)2 + 7 H2O
compound | mm | #M | m (g)
C2H8N4O3 | 136.1 | 0.009992652 |1.36
Ni(ClO4)2.6(H2O) | 365 | 0.003835616 | 1.4
CN4H6Ni(ClO4)2 | 332 | 0.003835616 | 1.273424658

Surely more like 3.5 g of nickel perchlorate hexahydrate would be required?

Molar ratios aside, I decided to try and replicate the patent first to see if I could get the reaction to work.

The above mentioned two solutions were mixed, heated and taken to a boil for approximately 5 minutes then left to cool for 4 hours.

Small needle like dark orange crystals of presumably nickel aminoguanidine diperchlorate were present as was a fine metallic precipitate present as a sheen on top of the reaction mixture. The fine precipitate is not metallic nickel as it is not magnetic. It also dissolves readily in concentrated hydrochloric acid to form a straw-coloured solution. I am guessing it may be nickel oxyhydroxide? Given this is forming when aminoguanidine bicarbonate is in great excess, maybe yields cannot be improved, but this will be tested soon.

The yield was 0.51 g or 4%, which is what they reported in the patent. Later in the week when I have time, I will try again with a stoichiometric amount of nickel perchlorate hexahydrate.

I have also tried reacting aminoguanidine bicarbonate with perchloric acid then adding nickel perchlorate, but no reaction occurs. The pH must be adjusted to greater than 8 before a reaction occurs and then it proceeds as described above.

I have not yet accurately measured friction or impact sensitivity, but both seem low on initial testing. It is very flame/heat sensitive and detonates confined from about 5 to 10 mg of mass.

Once I have the reaction better optimised I will do some tests on its performance and report back.
In the meantime any insight on my questions above (repeated below for clarity) would be greatly appreciated.

1. Have I missed something in my workings or is aminoguanidine bicarbonate in great excess in the reaction as reported by the patent?
2. What is the fine black sheeny side product?

Thanks in advance for any assistance.
If anyone is interested I can post more detail on my reactions to date.
More to come following some performance testing.

Edit
typo in reaction scheme

[Edited on 13-2-2022 by B(a)P]
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 858
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 13-2-2022 at 18:57


All of those reactions call for excess bicarbonate. I don’t know why, I am not educated in chemistry. Though, I would have expected your yield to be much better. When ammonium perchlorate is used ammonia raises the PH of the solution.

Remember it’s bicarbonate, your formula shows mono carbonate.

[Edited on 14-2-2022 by MineMan]
View user's profile View All Posts By User
katyushaslab
Hazard to Self
**




Posts: 81
Registered: 19-1-2021
Member Is Offline

Mood: precipitating

[*] posted on 15-2-2022 at 01:59


I think Microtek would be the person to ask about this, maybe he can share his procedure?

He references using this material in this post: https://www.sciencemadness.org/whisper/viewthread.php?tid=15...
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 18-2-2022 at 14:00


I tried the reaction again, but this time with stoichiometric amounts and the yield was much better (68%). The reaction also did not produce the previous unwanted side product. Still plenty of yield optimising required. One of the issues is that the product is very soluble in water so I am going to start trying some different solvents.
Strange that the patent had such an obvious error.....
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 858
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 18-2-2022 at 18:11


Quote: Originally posted by B(a)P
I tried the reaction again, but this time with stoichiometric amounts and the yield was much better (68%). The reaction also did not produce the previous unwanted side product. Still plenty of yield optimising required. One of the issues is that the product is very soluble in water so I am going to start trying some different solvents.
Strange that the patent had such an obvious error.....


That’s a good idea. Please keep us updated. From watching videos my understanding is that it is not only soluble but in time the water destroys the product and a black mass results. You don’t want that, we don’t want that, nobody, I mean nobody wants that!!!
View user's profile View All Posts By User
Microtek
International Hazard
*****




Posts: 638
Registered: 23-9-2002
Member Is Offline

Mood: No Mood

[*] posted on 24-2-2022 at 10:30


Regarding the molar ratios, remember that it bis(aminoguanidine)nickel diperchlorate so you need two moles of AQ per mole of nickel perchlorate. I don't know why you say that the product is very soluble in water, mine is not, although it does react with water.
I think maybe the AQ ligands are sufficiently labile that they are replaced (partially?) with H2O. At any rate, the complex loses the red colour and turns a pale tan that then darkens to blackish.
I looked at one of the papers that the patent references. It's about complexes of aminoguanidines and nickel, and one of the things they talk about is that some of the compounds are very readily oxidized by atmospheric oxygen. This may account for the black colouring.

[Edited on 24-2-2022 by Microtek]
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 24-2-2022 at 14:08


Thanks Microtek that helps a lot.
I have redone my calculations based on it being (bis)aminoguanidine and can now assess my yield properly.
I had noticed when I was washing the product with water I could see crystals very quickly disappearing, I thought they were going into solution rater than decomposing, the decomposition explains why I could not get it back out of solution.
I had also read the about the oxidation by atmospheric oxygen that you reference, which I was convinced was the big killer on my yield. I had proposed to try and do the reaction in an atmosphere or argon to avoid this, but I think in the first instance I will try again with the correct stoichiometric amounts based on the product being (bis)aminoguanidine and as little water as possible.
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 9-3-2022 at 20:32


So the rain has finally eased allowing some further testing of this product.
I don't have the means to accurately assess friction, though I have not been able to set it off using friction.
I have a crude impact tester with a 2 kg weight and the material was set off reliably from a drop height of 5 cm. For comparative purposes I get 3 cm for mercury fulminate.

400 mg was loaded into a brass cavity 4.5 mm ID with 0.5 mm walls at 1.23 g/cm3.
Fuse was inserted and packed in place with NC.
The target was 30 mm mild steel RHS with 1.5 mm walls.

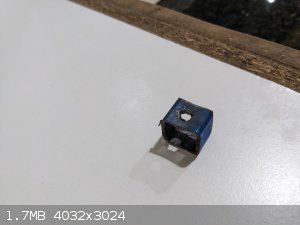

The results can be seen in the attached.
I was hoping to get full penetration. I was also a bit disappointed with the density that I could achieve. More to come when I can improve the density.

PXL_20220310_035221428.jpg - 1.5MB

PXL_20220310_035155594.jpg - 1.8MB

Edit - corrected an error in the cavity dimensions.

[Edited on 10-3-2022 by B(a)P]
View user's profile View All Posts By User
Microtek
International Hazard
*****




Posts: 638
Registered: 23-9-2002
Member Is Offline

Mood: No Mood

[*] posted on 10-3-2022 at 02:35


When preparing this material, I recommend continuing the stirring throughout the 4 hour precipitation period. This way you get uniform small crystals rather than the relatively long needles that are usually obtained if you let it sit undisturbed. This might help with the loading density, as well as the impact sensitivity.
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 10-3-2022 at 11:05


Quote: Originally posted by B(a)P

400 mg was loaded into a brass cavity 0.45 mm ID with 0.05 mm walls at 1.23 g/cm3.


400mg in cavity inner diameter 0,45 mm ....? Wall 0,05 mm...?...
It is diameter syringe needle....:D...?




Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 10-3-2022 at 13:53


Quote: Originally posted by Laboratory of Liptakov


400mg in cavity inner diameter 0,45 mm ....? Wall 0,05 mm...?...
It is diameter syringe needle....:D...?


Ha ha ha, good catch. If I got that performance out of that diameter I would have been very happy. The correct dimensions are 4.5 mm ID and 0.5 mm walls.

[Edited on 10-3-2022 by B(a)P]
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 11-3-2022 at 07:20


Brass wall 0,5 mm and ID 4,5 mm is good result for examined compound. Into 1,5mm steel. Basic ratio between ID and thickness of steel is 3:1.
It is base for measurement. Similarly as ID 6 mm (examined compound) and 2 mm steel target. Also 3:1....:cool:




Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 21-3-2022 at 16:00


Quote: Originally posted by B(a)P
So the rain has finally eased allowing some further testing of this product.
I don't have the means to accurately assess friction, though I have not been able to set it off using friction.
I have a crude impact tester with a 2 kg weight and the material was set off reliably from a drop height of 5 cm. For comparative purposes I get 3 cm for mercury fulminate.

400 mg was loaded into a brass cavity 4.5 mm ID with 0.5 mm walls at 1.23 g/cm3.
Fuse was inserted and packed in place with NC.
The target was 30 mm mild steel RHS with 1.5 mm walls.
The results can be seen in the attached.
I was hoping to get full penetration. I was also a bit disappointed with the density that I could achieve. More to come when I can improve the density.


This was tried again with a finer crystal size.
The same cavity dimensions, loading weight and target material were used. This time the achieved loaded density was 1.62 g/cm3. Not a lot of difference was observed in the outcome. The smaller piece on the left is loaded at 1.23 g/cm3 (previous attempt) and on the right 1.62 g/cm3. The higher density cap seemed to have slightly more penetration, though more was expected. Without some replications this can not be seen as significantly different.


PXL_20220321_233259988.jpg - 1.7MBPXL_20220321_233332879.jpg - 1.6MB
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 858
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 21-3-2022 at 21:54


Quote: Originally posted by B(a)P
Quote: Originally posted by B(a)P
So the rain has finally eased allowing some further testing of this product.
I don't have the means to accurately assess friction, though I have not been able to set it off using friction.
I have a crude impact tester with a 2 kg weight and the material was set off reliably from a drop height of 5 cm. For comparative purposes I get 3 cm for mercury fulminate.

400 mg was loaded into a brass cavity 4.5 mm ID with 0.5 mm walls at 1.23 g/cm3.
Fuse was inserted and packed in place with NC.
The target was 30 mm mild steel RHS with 1.5 mm walls.
The results can be seen in the attached.
I was hoping to get full penetration. I was also a bit disappointed with the density that I could achieve. More to come when I can improve the density.


This was tried again with a finer crystal size.
The same cavity dimensions, loading weight and target material were used. This time the achieved loaded density was 1.62 g/cm3. Not a lot of difference was observed in the outcome. The smaller piece on the left is loaded at 1.23 g/cm3 (previous attempt) and on the right 1.62 g/cm3. The higher density cap seemed to have slightly more penetration, though more was expected. Without some replications this can not be seen as significantly different.


You should be able to get a density of 1.8-1.9.
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 858
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 21-3-2022 at 22:21


Quote: Originally posted by B(a)P
Quote: Originally posted by B(a)P
So the rain has finally eased allowing some further testing of this product.
I don't have the means to accurately assess friction, though I have not been able to set it off using friction.
I have a crude impact tester with a 2 kg weight and the material was set off reliably from a drop height of 5 cm. For comparative purposes I get 3 cm for mercury fulminate.

400 mg was loaded into a brass cavity 4.5 mm ID with 0.5 mm walls at 1.23 g/cm3.
Fuse was inserted and packed in place with NC.
The target was 30 mm mild steel RHS with 1.5 mm walls.
The results can be seen in the attached.
I was hoping to get full penetration. I was also a bit disappointed with the density that I could achieve. More to come when I can improve the density.


This was tried again with a finer crystal size.
The same cavity dimensions, loading weight and target material were used. This time the achieved loaded density was 1.62 g/cm3. Not a lot of difference was observed in the outcome. The smaller piece on the left is loaded at 1.23 g/cm3 (previous attempt) and on the right 1.62 g/cm3. The higher density cap seemed to have slightly more penetration, though more was expected. Without some replications this can not be seen as significantly different.


You should be able to get a density of 1.8-1.9.
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 22-3-2022 at 01:19


Quote: Originally posted by MineMan



You should be able to get a density of 1.8-1.9.


I pressed the nickel aminoguanidine diperchlorate to approximately 50 MPa, which is about as far as I can go with my setup. What pressure would you need to achieve that kind of density?
Obviously this depends on crystal size. I tried continuous stirring to reduce size. The only other thing I can think of is to increase the reaction temperature more rapidly, then cool rapidly to make the crystals form faster.
View user's profile View All Posts By User
Microtek
International Hazard
*****




Posts: 638
Registered: 23-9-2002
Member Is Offline

Mood: No Mood

[*] posted on 22-3-2022 at 07:02


I just tried pressing mine. I don't have a way to easily measure the pressure I'm exerting, but I would estimate perhaps 100 kg on a 7mm coloumn of NAP. This would be about 20 MPa. The density I got was 1.96 g/cc.
I'm not sure that it is advantageous to press it to such high densities however.

Are you contemplating using this material as a secondary or as a single material cap filler? Personally, I would rather fill my caps with PETN, RDX or HMX and then use 50 mg NAP to set it off. Even more preferably, I would separate the NAP (or other primary) from the rest of the explosive filler and keep it in the fuse insert.

View user's profile View All Posts By User
Diachrynic
Hazard to Others
***




Posts: 174
Registered: 23-9-2017
Location: western spiral arm of the galaxy
Member Is Offline

Mood: zenosyne

[*] posted on 25-3-2022 at 06:53


Regarding the synthesis, there is also this video: https://www.youtube.com/watch?v=aqdKN4KBqjM

He mentioned in a comment:
Quote:
I made that Ni 2Agu perchlorate by dissolving nickel acetate 1M and ammonium perchlorate 2M first in just enough cold (room temperature) water, added all the Agu bicarbonate 2M at once, then heated on water bath with mixing, when the max. temp reached (slightly below 100°C, the bicarbonate dissolved with effervescence), I left it for 5 minutes, then removed from the bath and left stand for a few hours. The crystals appear slowly, gradually on standing. Then filtered and washed. The whole process was not optimized. I found if a small amount of acetic acid is added, the yields were higher.

This is useful since no perchloric acid is needed, but the yields are lower, I estimate around 40-50% of the theory based on used nickel.




we apologize for the inconvenience
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 25-3-2022 at 18:14


Quote: Originally posted by Microtek
I just tried pressing mine. I don't have a way to easily measure the pressure I'm exerting, but I would estimate perhaps 100 kg on a 7mm coloumn of NAP. This would be about 20 MPa. The density I got was 1.96 g/cc.
I'm not sure that it is advantageous to press it to such high densities however.

Are you contemplating using this material as a secondary or as a single material cap filler? Personally, I would rather fill my caps with PETN, RDX or HMX and then use 50 mg NAP to set it off. Even more preferably, I would separate the NAP (or other primary) from the rest of the explosive filler and keep it in the fuse insert.





Thanks very much for trying the density and reporting back. I have found that I was not actually applying the pressure that I thought, as my press was bottoming out on the blast guard. After modifying the guard I have just tried again and got 2.01 g/cm3 by applying to approximately 50 MPa.
The purpose of what I am doing is just to see the effects on performance by modifying loading pressure with this compound.


Quote: Originally posted by Diachrynic


Regarding the synthesis, there is also this video: https://www.youtube.com/watch?v=aqdKN4KBqjM
This is useful since no perchloric acid is needed, but the yields are lower, I estimate around 40-50% of the theory based on used nickel.



Thanks for the link. I had not seen that video. It appears he is doing essentially the same as I posted above (first post). He makes nickel perchlorate from nickel acetate and ammonium perchlorate, then his procedure is more or less the same from then on.
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 20-5-2022 at 13:25


I have my press guard reconfigured and now it is working perfectly. I repeated the above test, but this time managed to press to 2.01 g/cm3. Here is the result.
On a side note I have also been trying the lithium equivalent, but with no success thus far. I will report back if I manage to create anything of interest.

PXL_20220520_211807404.jpg - 1.7MB PXL_20220520_211857460.jpg - 1.8MB
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 20-5-2022 at 23:56


Good work, wall is 2 mm ? Inner diameter cavity 6 mm ?. If yes, it it good result.....:cool:



Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 21-5-2022 at 00:17


The target had 1.5 mm walls and the cavity is 4.5 mm ID. I note that in this instance I inadvertantly placed the detonator over the join in the RHS. In previous tests i had avoided the join.
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 31-5-2022 at 22:02


It are basically same ratios. Good results. Only the variable value according to the law of proportions comes into play. When the strength (behavior) of a material varies significantly according to size. This is given by the final size of the atom and molecule...:cool:



Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
PellePeloton
Harmless
*




Posts: 1
Registered: 21-6-2022
Member Is Offline


[*] posted on 27-6-2022 at 04:46


Just a small cautionary note: Try to avoid the smoke!

I did some work at our university with this compound (which is very nice, except for this one thing) in an ordinary hood. The quantities were 30 - 100 mg and visibly the hood was capable of sucking the smoke completely from the charges.

However, every night after the tests I had a sore throat very much like after ozone exposure. Also a minor feeling of not getting oxygen out of air... not difficulty in breathing but a strange and very unpleasant feeling.

After the third time this happened I came to think about the reaction products... the compound is ever so slightly oxygen negative, so the result is guaranteed to contain CO and metallic nickel... the nickel is atomic having the ultimate surface area, and the products cool very fast as the gas cloud expands. I have no knowledge or even estimate how much nickel tetracarbonyl is formed, but a little goes a long way.

The slight feeling of drowning lasted for a year, but is now completely vanished. I am not allergic to nickel.
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 783
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 27-6-2022 at 19:18


Sorry to hear that this happened to you and thanks for passing on the warning. Glad to hear that you got over it eventually, a year is a long time to be suffering such symptoms. I have always worn respiratory protection when working with nickel compounds because of their toxicity. I will be extra careful after hearing this.
View user's profile View All Posts By User

  Go To Top
