Author: Subject: Report on making cesium pentaiodobismuthate (lovely red color)
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 3-7-2022 at 20:56
Report on making cesium pentaiodobismuthate (lovely red color)


Inspiration to make this came from Poormans Chemist video:
https://odysee.com/@poormanschemist:9/PMC_pentaiodobismuthat...

The reaction was to proceed as below, with a target yield of 10g.

BiCl3 + 2CsCl + 5KI = Cs2(BiI5) + 5KCl

- 2.8g BiCl3 in a small bealer
- Add 1g concentrated HCl and 9g water and stir
- Solution became cloudy, add a few drops HCl until completely clear.

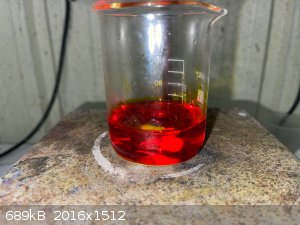

- Dissolve 7.5g KI in 10g water, and add this to the BiCl3 solution. The result was this red solution:
1.jpg - 689kB

- Dissolve 3g CsCl in 6g water. Add this to the red bismuth iodide solution. A red suspension resulted:
2.jpg - 497kB

- Stir 10 minutes and gravity filter. Rinse with water in filter twice. A red remainder was recovered with a very pale yellow filtrate. The color with the eye is very pure red according to my color reference; on the monitor it appears a bit darker:
3.jpg - 544kB

- Dry over NaOH and under vacuum in desiccator for 48 hours. The result was a dry, soft free flowing reasonably heavy powder. Minimal color change from wet to dry:
4.jpg - 440kB

- 7.9g bottled, representing a 79% yield. It seemed to stick quite well to the filter paper which probably accounts for some of the loss. Going by the volume that 7.9g takes up in the vial this product is heavier (denser) than most others I made.
5.jpg - 464kB

Cleaning the labware with concentrated HCl afterwards showed the product slowly dissolved in HCl into a mostly clear solution.

It will be interesting to see over time how stable the color it; thus whether it slowly decomposes and gives off iodine or not.



View user's profile View All Posts By User
DraconicAcid
International Hazard
*****




Posts: 4169
Registered: 1-2-2013
Location: The tiniest college campus ever....
Member Is Offline

Mood: Semi-victorious.

[*] posted on 3-7-2022 at 21:26


Hmm. I don't have any cesium salts, but I should try making the tetraethylammonium version of this.



Please remember: "Filtrate" is not a verb.
Write up your lab reports the way your instructor wants them, not the way your ex-instructor wants them.
View user's profile View All Posts By User
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 3-7-2022 at 22:34


@DraconicAcid Science Essentials have some cesium chloride, I am quite sure Peter will set it in small quantities. Give him a bell if you are interested.
View user's profile View All Posts By User
vano
International Hazard
*****




Posts: 660
Registered: 22-3-2019
Location: Georgia
Member Is Offline


[*] posted on 6-7-2022 at 04:57


Nice complex. I have the same antimony complex Cesium pentaiodoantimonate Cs2(SbI5), I will make a bismuth one.

292170917_1123660128548965_390750977357560408_n.jpg - 256kB




View user's profile View All Posts By User
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 6-7-2022 at 15:16


Hi Vano I tried to make the antimonate salt as well but messed up. To get the elemental antimony powder to dissolve quick I added a bit of nitric acid to the hydrochloric acid and I think some of this nitrate was still present when I added the KI because I ended up with a black solution due to free iodine. This I managed to wash out the iodine with lots of acetone and I eventually ended up with a product slightly more red than you show above. I want to repeat this but start with Sb2O3 which should dissolve easier in HCl.

I also tried a cesium lead iodide but I suspect I ended up with only PbI2, because it makes golden rain :)
View user's profile View All Posts By User
vano
International Hazard
*****




Posts: 660
Registered: 22-3-2019
Location: Georgia
Member Is Offline


[*] posted on 7-7-2022 at 02:54


nice! yes trioxide is much better. in nitric acid you will get pentaoxide. oxide is also very cheap. i have trichloride reagent, but of course i pefer to dissolve trioxide in hydrochloric acid.



View user's profile View All Posts By User
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 8-7-2022 at 01:37


My report on making the cesium pentaiodoantimonate. I have a few 100g of antimony powder so prefer to use this and not my small quantity of oxide.
- 6g HCl and 2g 70% HNO3 in beaker (I read somewhere that the presence of nitric acid helps hydrochloric acid to dissolve antimony).
- Add 1.6g fine antimony powder
- After a minute there was a short vigorous reaction with the release of NOx red-brown fumes. After this the reaction slowed down.
- After some hours there was a white suspension. 8g HCl had to be added to get the solution perfectly clear. It was heated to speed up the reaction.
- The next morning there was still a few grains of black material that did not seem to want to dissolve. The solution was filtered. At this point the filtrate was a pale yellow color, possible due to some dissolved nitrous oxide?
- Dissolved 8.2g KI and 3.3g CsCl in 15g water, result was a clear solution.
- Add the SbCl3 solution slowly to the mix of KI-CsCl. Solution initially turned red, but towards the end of the addition it suddenly turned black. At the same time purple-red fumes was seen; only for a few seconds and it disappeared before I could smell whether it was iodine vapor or NOx. Probably unlikely to have been iodine vapor as the solution was at room temp.
- I stopped the stirring and had an orange-red product with black supernatant liquid. I realised it was most likely free iodine.
1.jpg - 490kB

- Gravity filter. This was the result:
2.jpg - 495kB

- Wash with 3 lots of acetone in the funnel. This seemed to get rid of most of the iodine, but seemed to also dissolve a bit of the product as the last drops of wash water was slightly red.
3.jpg - 518kB

- Transfer the remainder into a beaker and stir for 5 minutes with 100ml acetone:
4.jpg - 442kB

- Filter. This time there was almost no black color left in the acetone and I was happy that I removed most of the iodine.
- In desiccator over NaOH and under vacuum. After 24 hours it appeared dry, but I left it going for another 24.
- Recovery was 5.6g dry, soft, orange-red flakes that easily powder. This is a 56% yield which I thought was ok after all the acetone washing.
5.jpg - 353kB

I was surprised to see how the NaOH in the desiccator was discolored. I know NaOH will react with acetone and can form yellow products in the process, whether this was the only reaction or whether some of the Cs2(SbI5) also carried over I do not know.
6.jpg - 676kB

EDIT: The color looks very similar to what Vano achieved.

[Edited on 8-7-2022 by Lion850]
View user's profile View All Posts By User
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 15-7-2022 at 00:35


Cesium tetrachloroiodate

I was referencing a Youtube video by Rhodanide:
https://www.youtube.com/watch?v=XtR1yNnxaqI

The procedure calls for potassium iodate, but I did not have any. I did have old discolored sodium iodate. I read that potassium tetrachloroiodate (the intermediate) was not very stable; I could not find any mention of sodium tetrachloroiodate online but expected that if it did exist to be even more unstable than the potassium salt. Thus I decided to try a one-pot synthesis.

First batch:
- 4.9g of the old sodium iodate measured out.
- 4.5g cesium chloride in small beaker (a slight excess)
- Add 20g HCl, and stil to dissolve all CsCl (dissolved fast).
- Add NaIO3 in small portions while stirring. There was some bubbling, but not as much as I expected. Hardly any. With each addition there was also a black color that faded. I assumed this was a sigh of free iodine in my product or maybe NaI.
- The only time I really smelled Cl2 was towards the end of the addition. This was the final solution:
Na1.jpg - 584kB

- Add a few grams HCl but the solution remained vary thick. No point to try and filter.
- Scratched all into a evaporating dish:
Na2.jpg - 419kB

- Keep dish in desiccator for 48 hours but it hardly dried.

While batch 1 was in the desiccator I progressed batch 2 detailed below. This was much more of a success and I decided to be a bit more bold with batch 1.

- I dried batch 1 on a steam bath for a few hours. The volume decreased only a bit but it turned more orange. No sign of decomposition.
Na3.jpg - 446kB

- Making batch 2 told me that the potassium salt was soluble in water but not the cesium salt. I thus transferred batch 1 into a beaker with 60ml water and stirred for 20 minutes.
- Vacuum filtered. I got a pale orange yellow filtrate and a bright yellow remainder.
Na6.jpg - 469kB

- The remainder was dried under a steel dish in the sun, it quickly dried to a soft bright yellow powder which I am reasonably sure is my cesium product CsICl4. 2.5g was recovered (initial target was 10g).
- The filtrate was reduced to a wet paste on the steam bath, and then put in a sealed dish of NaOH to dry out slowly. With the eye it looks more orange than with the phone camera.
N8.jpg - 439kB

Batch 2:
I decided to make fresh KIO3 and have another go.
- 13.8g KOH dissolved in 60ml water in a small beaker suspended in boiling water.
- 30g I2 was measured out and added in small portions, stirring with a glass rod and waiting for the solution to clear in-between additions.
- At 24g the solution remained black. I then added a gram more KOH, then more iodine, and continued so until I had added all 30g I2 and the solution was a pale olive color.
- While ppt of KIO3 was already forming. The beaker was transferred to a container with cold water. Once cool, the contents filtered and the remainder, being the KIO3, used wet.
- 15.5g HCl placed in a beaker and the wet KIO3 added in small portions. This time there was a lot of bubbling and pale green color above the liquid, I am confident that was Cl2 but then realized my cold must have affected my sense of smell more than I realised as I could barely smell the chlorine!
K2.jpg - 552kB

- I added more HCl to try and get all the KICl4 to dissolve, but it would not. I then added 10ml water and it immediately dissolved to a orange-yellow solution.
K3.jpg - 592kB

- 4.3g CsCl was dissolved in 10g water and then slowly added to the KICl4 while stirring. I thick yellow suspension formed.
K4.jpg - 502kB

- After 15 minutes stirring it was filtered and washed with water in the filter. This is the wet remainder:
K6.jpg - 447kB

- The yellow remainder was placed in a desiccator for 48 hours and the result was 5g of bright yellow product. Representing a 50% yield, more or less.
KN10.jpg - 481kB

So in the end quite a nice result, recovery would have been a lot better if I had purer KIO3. The last step remaining is to recover the KI from the filtrate after the KIO3 was filtered off, there should be a good 30g or so in solution.







View user's profile View All Posts By User
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 28-7-2022 at 20:40


Some time ago I made K2FeCl5 and I thought there could well be a cesium equivalent. And online is indeed mention of cesium pentachloroferrate(III); a few formulas are mentioned including Cs2[FeCl5(H2O)] and Cs2FeCl5┬ĚH2O which to me is the same thing.

The plan was to make stoichiometric solutions of FeCl3.6H2O in concentrated HCl and CsCl in concentrated HCl and then combine then, hoping for a ppt. I immediately encountered a problem. When I opened my old bottle of FeCl3 it was a rock hard layer covered by a layer of solution. I poured the saturated solution into a beaker, this was about 5g, and managed to break off another 6g in pieces. But I did not know exactly how much I had. 15g HCl was added and stirred until all was dissolved.

I measured out 7.5g CsCl in a separate beaker with 15g HCl, this should have put the CsCl in excess. Not all dissolved in the acid and I added 5ml water which then gave a clear solution.

The CsCl solution was added to the FeCl3 solution with stirring. The result was a carrot orange solution, too thick to stir. I added 15ml HCl and stirred for 15 minutes. This was the final solution (looked more orange with the eye):
1.jpg - 533kB

The solution was vacuum filtered and the product rinsed in the funnel with concentrated HCl. Below show the wet remainder and the filtrate. I also noticed the product is slightly soluble in HCl.
2.jpg - 494kB 3.jpg - 469kB

The wet product was left on the bench overnight but the weight stayed exactly the same. It was then dried on the steam bath. The weight was checked every 90 minutes and after some 5 hours the weight stopped decreasing and i had a dry, brittle product. The orange in the color became slightly stronger during the drying.
4.jpg - 539kB

15.5g was bottled. This would indeed indicate (ignoring losses) that the CsCl was in excess.
5.jpg - 417kB

Cleaning the implements showed the product to be very soluble in water, giving a faintly yellow-brown solution. Cleaning the implements was easy!

Not sure which cesium compound I will try next, thinking of cesium cobalt nitrite (the potassium salt is yellow) and cesium dichromate.





View user's profile View All Posts By User
Bezaleel
National Hazard
****




Posts: 444
Registered: 28-2-2009
Member Is Offline

Mood: transitional

[*] posted on 9-8-2022 at 00:00


Quote: Originally posted by DraconicAcid
Hmm. I don't have any cesium salts, but I should try making the tetraethylammonium version of this.
Hi Draconic Acid, did you even get round to making the tetraethylammonium salt?

If you don't, I might try it this week.
View user's profile View All Posts By User
DraconicAcid
International Hazard
*****




Posts: 4169
Registered: 1-2-2013
Location: The tiniest college campus ever....
Member Is Offline

Mood: Semi-victorious.

[*] posted on 9-8-2022 at 09:37


Not yet.



Please remember: "Filtrate" is not a verb.
Write up your lab reports the way your instructor wants them, not the way your ex-instructor wants them.
View user's profile View All Posts By User
Bezaleel
National Hazard
****




Posts: 444
Registered: 28-2-2009
Member Is Offline

Mood: transitional

[*] posted on 10-8-2022 at 14:39


Quote: Originally posted by Lion850
(Cs2BiI5)
It will be interesting to see over time how stable the color it; thus whether it slowly decomposes and gives off iodine or not.

How does the sample keep so far? Any loss of iodine or change of colour?
View user's profile View All Posts By User
woelen
Super Administrator
*********




Posts: 7892
Registered: 20-8-2005
Location: Netherlands
Member Is Offline

Mood: interested

[*] posted on 10-8-2022 at 22:37


I expect it to be quite stable. I have some BiI3 and BiOI, and both can be kept around indefinitely. The complex, described here, also has Bi in oxidation state +3, and if no air is allowed in, then I see no way for the iodine to split off, because that would require the Bi to go to oxidation state +2 or +1 and that is definitely not going to happen. If air can get in, then things are different. The oxygen could replace iodine.



The art of wondering makes life worth living...
Want to wonder? Look at https://woelen.homescience.net
View user's profile Visit user's homepage View All Posts By User
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 11-8-2022 at 15:48


Hi Bezaleel all the compounds above have kept the same color at this point.

Hi Woelen - I also tried the cesium copper chloride complex after seeing it on your website.
The first time I tried in water with stoichiometric amounts for Cu2CuCl4, the dry product is brown-orange after drying in a desiccator. I then did it again in an excess of HCl, the wet product looked like you show but it dried on a steam bath to a red-brown color (with no sign of decomposition). I never saw any yellow.
View user's profile View All Posts By User
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 18-8-2022 at 18:02


Cesium dichromate

Cesium dichromate has a relatively low solubility compared to sodium dichromate and a double displacement between sodium dichromate and cesium chloride was performed (each dissolved in minimal water).

- 6g Na2Cr2O7 dissolved in 10g water. This gave a clear red solution.
- 9g CsCl dissolved in 10g water. This gave a clear colorless solution. This should have put the CsCl in slight access.
- Add cesium chloride to sodium dichromate while stirring.
- An yellow suspension formed, too thick to stir. Add 10g water and stir for 30 minutes. During the stirring the color quickly changed to light orange.
- Vacuum filter. Both remainder and filtrate was the same light orange color.
1.jpg - 374kB

- Wash once in funnel with water (which would have caused some loss of product but hopefully increased purity) and leave on bench to dry.
- After 2 days the product appeared completely dry. The result was 8.2g of soft light/bright orange product, thus an efficiency of some 75%. I don't know if some chromate also formed, being that the initial suspension was yellow.
2.jpg - 435kB

- More crystals are also settling out of the filtrate.
3.jpg - 672kB

This concludes my cesium experiments for now as I want to keep the remaining CsCl in case something special comes up. Below is the family photo, with the white CsCl being the starting material from the supplier. So far none of the salts shows any color change.




4.jpg - 873kB
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 1045
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 18-8-2022 at 18:30


Thanks for sharing Lion850, nice work as always.
Not that there is any doubt around what you have created, but I have a small sample of cesium dichromate and it looks just like what you have prepared.
I also have a sample of cesium formate that was given to me, which is used as a drilling fluid additive. I still haven't decided what to do with it, though I will definitely consult this page before I decide.
View user's profile View All Posts By User
Lion850
International Hazard
*****




Posts: 514
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 19-8-2022 at 17:06


Hi B(a)P thanks for the feedback about the cesium dichromate color. And I then found photos online which shows similar color. What I found interesting is that the sodium dichromate is a very red salt, as opposed to the orange of ammonium, potassium, and cesium.

I read about cesium formate being used for well control as it makes a very heavy solution. Interesting stuff.

I am keeping an eye open for a cesium salt that is green, blue, or purple :)
View user's profile View All Posts By User
artemov
Hazard to Others
***




Posts: 181
Registered: 22-8-2018
Member Is Offline


[*] posted on 19-8-2022 at 23:36


Sorry to intrude, but can someone help answer my question on making BiCl3(aq) from Bi2O3?
https://www.sciencemadness.org/whisper/viewthread.php?tid=25...

I am interested in making a red salt :)
View user's profile View All Posts By User

  Go To Top
