Homemade fume extractor design.


Hi i have been thinking for a long time to make a fume hood myself out of plywood, but today i came to think about making a fume extractor that you can just hover over the apoaratus, and then put away.
Im thinking some sort of arm, with a funnel type thing that sucks the fumes. Or maybe you can use pulleys to hold up the ventilation.

Any ideas?

Thanks in advance. :)
View user's profile View All Posts By User
chemrox
International Hazard
*****




Posts: 2953
Registered: 18-1-2007
Location: UTM
Member Is Offline

Mood: LaGrangian

[*] posted on 12-11-2014 at 10:47


Like a restaurant hood? I can see the attraction to have something minimallist that you could swing out of the way. Please allow me to suggest a thought experiment: you wish to synthesize an aldehyde or perhaps you want to make a heterocyclic compound via the Strecker method. You have KCN and mineral acids in close proximity... is the minimallist approach still the way you want to go?



"When you let the dumbasses vote you end up with populism followed by autocracy and getting back is a bitch." Plato (sort of)
View user's profile View All Posts By User
bob800
Hazard to Others
***




Posts: 239
Registered: 28-7-2010
Member Is Offline

Mood: No Mood

[*] posted on 12-11-2014 at 14:20


It would likely work if the funnel were fixed directly on top of the beaker emitting fumes... yet anything requiring pouring of liquids, removal of stoppers or glass joints, would require the funnel to be "raised" well above the containers to allow easy manipulation.

In the latter case you will catch only a fraction of emitted fumes, and if halogens/NOx were involved, the "fume extractor" will do nothing to prevent potentially serious harm. If you are going to invest some time/money in a fume removal system, I would definitely recommend building an actual fumehood instead.

At best the fume extractor will be severely limiting (won't work for anything other than a beaker fixed in place); at worst it will provide a false sense of security if you think it can function as a real fumehood.
View user's profile View All Posts By User
nannah
Hazard to Others
***




Posts: 136
Registered: 20-12-2013
Member Is Offline

Mood: No Mood

[*] posted on 14-11-2014 at 06:56


I was thinking about if you maybe could tie up the fan itself and adjust the height, up and down. And this fan sucks fumes directly through a home made carbon scrubber before it exits my ventilation system. I dont know if this is a good idea, it was just a thought.

Im going to make fume hood but the plexi glass is so damn expensive. Can someone give an alternative?
View user's profile View All Posts By User
careysub
International Hazard
*****




Posts: 1339
Registered: 4-8-2014
Location: Coastal Sage Scrub Biome
Member Is Offline

Mood: Lowest quantum state

[*] posted on 14-11-2014 at 12:40


Quote: Originally posted by nannah
I was thinking about if you maybe could tie up the fan itself and adjust the height, up and down. And this fan sucks fumes directly through a home made carbon scrubber before it exits my ventilation system. I dont know if this is a good idea, it was just a thought.

Im going to make fume hood but the plexi glass is so damn expensive. Can someone give an alternative?


Are you using the plexiglass (acrylic) just for the see-through front section above the work entrance? This would require just one piece roughly 3 ft x 2 ft. I can get such a sheet locally (36 in. x 30 in. x .093 in. Acrylic Sheet) for $23.50. You blower will run much more than that (you want one that delivers a 1-1.5 ft/sec in-draft through the work entrance). 0.093" acrylic is pretty thin and would require a sash-frame board across the bottom for stiffness.

All the surfaces can be made of cheap board materials: plywood, hardboard, particle board, actual wood, or my favorite for cheap light-weight construction - thin plywood glued to sheet insulating foam for a cheap stiff composite.

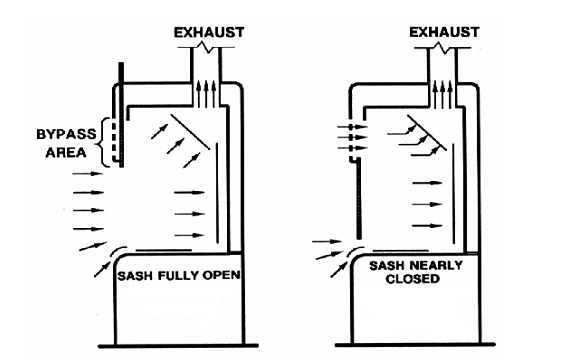

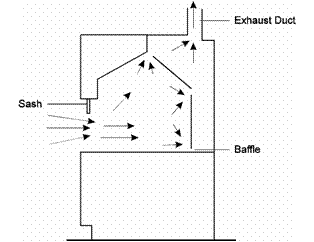

Here are a couple of images showing the preferred draft pattern in a fume hood. You can exhaust out the top or back, but you should have a back-baffle sheet to force the air to go under and over. You don't really need a lot of clearance behind the baffle, a couple of inches - perhaps even less.

It might be possible to cleverly rig a fume hood that could be pulled up the rafters (if in a garage) with a pulley.



chemical_clip_image006.gif - 5kB

Fume-hood.jpg - 53kB

[Edited on 14-11-2014 by careysub]
View user's profile View All Posts By User
nannah
Hazard to Others
***




Posts: 136
Registered: 20-12-2013
Member Is Offline

Mood: No Mood

[*] posted on 15-11-2014 at 16:15


Quote: Originally posted by careysub
Quote: Originally posted by nannah
I was thinking about if you maybe could tie up the fan itself and adjust the height, up and down. And this fan sucks fumes directly through a home made carbon scrubber before it exits my ventilation system. I dont know if this is a good idea, it was just a thought.

Im going to make fume hood but the plexi glass is so damn expensive. Can someone give an alternative?


Are you using the plexiglass (acrylic) just for the see-through front section above the work entrance? This would require just one piece roughly 3 ft x 2 ft. I can get such a sheet locally (36 in. x 30 in. x .093 in. Acrylic Sheet) for $23.50. You blower will run much more than that (you want one that delivers a 1-1.5 ft/sec in-draft through the work entrance). 0.093" acrylic is pretty thin and would require a sash-frame board across the bottom for stiffness.

All the surfaces can be made of cheap board materials: plywood, hardboard, particle board, actual wood, or my favorite for cheap light-weight construction - thin plywood glued to sheet insulating foam for a cheap stiff composite.

Here are a couple of images showing the preferred draft pattern in a fume hood. You can exhaust out the top or back, but you should have a back-baffle sheet to force the air to go under and over. You don't really need a lot of clearance behind the baffle, a couple of inches - perhaps even less.

It might be possible to cleverly rig a fume hood that could be pulled up the rafters (if in a garage) with a pulley.







[Edited on 14-11-2014 by careysub]


Im going to check that out. I have been so hesitant buying plexiglass becouse i thought i would find it somewhere else for cheaper.

If i would go with a plywood fume hood, i am going for the dimentions 80-100 cm wide by 80 cm high, and about 2 foot depth.
The reason to why i havent built the hood yet is becouse that the plexi is so damn expensive.
View user's profile View All Posts By User
Little_Ghost_again
International Hazard
*****




Posts: 985
Registered: 16-9-2014
Member Is Offline

Mood: Baffled

[*] posted on 16-11-2014 at 01:37


How well will plywood put up with say conc sulphuric acid? Asking as I am interested, I stayed away from organic materials in the end and went for glass/plexi glass, it cost much more but that depends how you add up the figures, if things go seriously nasty then it dosnt look so cheap to use cheaper materials.
For example keep in mind so far I havnt played with much you would consider nasty.........
My front sash is double glazed, the front panel that is in effect the front inside the cupboard is glass, its glass because worst case scenario something goes tits up and gets on it, then in theory at least little reacts with it, the panel behind that is the panel nearest me and is made of plexi glass, so if something goes bang and the front glass breaks then hopefully the rear plexi glass will stop the glass shards getting to me.
Does it work?
NO IDEA! I decided not to actually test it yet, but its likely it will be tested at some point with my track record :D.

My dad gave some good advice a few months ago when I started, treat safety equipment like condoms, dont be cheap and always use them. one day you will be pleased you did.
I still have trouble breathing with a condom on my head though :D

[Edited on 16-11-2014 by Little_Ghost_again]
View user's profile View All Posts By User
Fulmen
International Hazard
*****




Posts: 1577
Registered: 24-9-2005
Member Is Offline

Mood: Bored

[*] posted on 16-11-2014 at 04:41


The bench top should be made from a resilient material, the rest of the enclosure is less critical. Epoxy paint should provide some protection, and it's easy to reapply if you get stains or holes. Maybe not the best or best looking solution, but "good enough" is usually far simpler and cheaper than "perfect".
View user's profile View All Posts By User
Metacelsus
International Hazard
*****




Posts: 2499
Registered: 26-12-2012
Location: Boston, MA
Member Is Offline

Mood: Double, double, toil and trouble

[*] posted on 16-11-2014 at 05:57


Doesn't plywood use glue to hold the layers together? I think organic solvents would be bad for plywood.



As below, so above.
View user's profile View All Posts By User
Little_Ghost_again
International Hazard
*****




Posts: 985
Registered: 16-9-2014
Member Is Offline

Mood: Baffled

[*] posted on 16-11-2014 at 06:21


I guess it all depends, if you know what your doing then accidents are limited, if your new or stupid (I belong to both groups) Then plywood probably not the best idea.
I think thats why I am trying to make mine idiot proof. The thing is I am turning out to be a very clever idiot! Not the greatest combination




Dont ask me, I only know enough to be dangerous
View user's profile View All Posts By User
careysub
International Hazard
*****




Posts: 1339
Registered: 4-8-2014
Location: Coastal Sage Scrub Biome
Member Is Offline

Mood: Lowest quantum state

[*] posted on 16-11-2014 at 07:04


My suggestions for making a fume hood rely on the assumption that it is bottomless, and is placed on your actual work surface, which should be covered with something like polyethylene.

For myself I am looking at 2 ft x 4 ft folding tables that have polymer top surfaces, many are available. Laboratories often use epoxy work surfaces.

I agree that epoxy paint is a good choice for plywood.

Breakdown of plywood adhesives should not be a concern, since there is no reasonable scenario in which the sides or roof of a hood gets significant solvent exposure through its painted surface. It isn't being exposed to liquids, just to air-diluted fumes.

If you are doing regular org syn type experiments indoors then you should have a fume hood. Any (reasonably designed) fume hood is far better than none. A rough-and-ready set up with cheap materials can do the job. You can consider it a prototype for a fancier future set-up.

If you are doing pyro type energetic material work, well, your needs are different and not addressed by a regular fume hood.
View user's profile View All Posts By User
aga
Forum Drunkard
*****




Posts: 7030
Registered: 25-3-2014
Member Is Offline


[*] posted on 16-11-2014 at 13:37


I made a glass work surface with a 10mm glass 'fence' all round it sealed with silicone bathroom sealant, and Hardboard (4mm) for the sides.

The hardboard is now stained, yet not dissolved in any way, despite a few explosive 'accidents' involving strong acids and bases.

The glass worktop and 'fence' form a tray in which all sorts of things have been spilled, and were contained perfectly well.

Nothing lasts forever, so it's a balance between Budget, Aesthetics, and effectiveness for your needs.




View user's profile View All Posts By User
nannah
Hazard to Others
***




Posts: 136
Registered: 20-12-2013
Member Is Offline

Mood: No Mood

[*] posted on 17-11-2014 at 05:59


I am planning on lining the inside with stainless steel sheet metal.
I am thinking that it could be a good solution for me, becouse of its resistance, and that it is available to me.
Yes, sort of a prototype is what im planning to do now with this one.

But you guys advice me to go with a regular fume hood, and not a extractor.

I am just beginning with basic experiments, and simple reactions. So i wont do any grignards any time soon. :)

I am also thinking about making a lab stand, and i am thinking that i can use rebar vertically, and then lay rebar on top of the first, and attach with wire, or maybe solder.
I think you guys have a good idea of what im picturing in my mind.

View user's profile View All Posts By User
Praxichys
International Hazard
*****




Posts: 1063
Registered: 31-7-2013
Location: Detroit, Michigan, USA
Member Is Offline

Mood: Coprecipitated

[*] posted on 17-11-2014 at 06:57


If you want a fume hood on the cheap, you can make a temporary one for like $15.

Make a frame from a 1/2" PVC pipe and stretch a heavy duty plastic painting tarp over it, secured with clear packaging tape. The pipe is like $5 for a 10-foot stick, the clear polyethylene sheeting is a few dollars, and the pipe fittings are 10 or 15 cents each.

Put a vacuum cleaner outside the house and run an appropriately-sized flex hose in through a window or something. Secure the hose somewhere inside the hood.

It's far from permanent, but for basic stuff like ammonia, chlorine, chlorinated solvents, hydrazine, and smelly stuff, it will work just fine. Don't use with flammable stuff unless you are sure the blower in your vacuum is out of the airstream. Also, if your blower motor IS in the airstream, make sure you use a junk vacuum cleaner from a garage sale or something. I had an electric leaf blower/shredder on a dimmer that did a great job. It was noisy though.




View user's profile Visit user's homepage View All Posts By User
