Author: Subject: Naoum's improved glass nitrating funnel
Bert
Super Administrator
*********




Posts: 2821
Registered: 12-3-2004
Member Is Offline

Mood: " I think we are all going to die. I think that love is an illusion. We are flawed, my darling".

[*] posted on 10-1-2015 at 12:50
Naoum's improved glass nitrating funnel

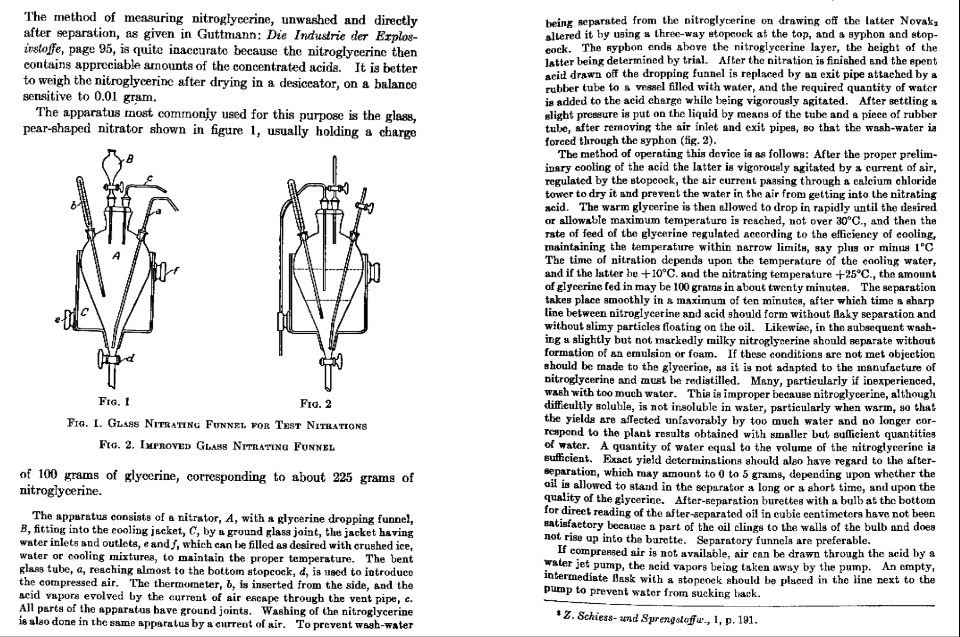

Been interested in this little item since first seeing the below diagram, maybe 30 years ago.


image.jpg - 314kB


I've seen jury rigged setups, but never the purpose built apparatus.

Has anyone ever actually SEEN, let alone used one? Or is it one of those great equipment ideas experts have, but never implement?

Can't expect there were ever enough made to be found second hand. When past use, the pieces were likely quite small and widely scattered...




Rapopart’s Rules for critical commentary:

1. Attempt to re-express your target’s position so clearly, vividly and fairly that your target says: “Thanks, I wish I’d thought of putting it that way.”
2. List any points of agreement (especially if they are not matters of general or widespread agreement).
3. Mention anything you have learned from your target.
4. Only then are you permitted to say so much as a word of rebuttal or criticism.

Anatol Rapoport was a Russian-born American mathematical psychologist (1911-2007).

View user's profile View All Posts By User
dermolotov
Hazard to Others
***




Posts: 114
Registered: 13-12-2014
Location: Toronto, Canada
Member Is Offline

Mood: Free

[*] posted on 10-1-2015 at 13:27


Honestly... This just looks way too overcomplicated. I can understand why someone would want if nitrations is a very common practice in their research. Is that why you have an accumlated interest in this?
A mutual mate of mine is a specialised glass blower in the Northern Toronto area who makes countless supplies like these. It's often asked whether or not people need these things and it seems that it's not NEEDED but removes one or two steps from simple reactions.

But I have performed countless nitrations using the simple 3 neck flask set ups and simple maths and have never found it too tedious (stressful, yes).
View user's profile Visit user's homepage View All Posts By User
S.C. Wack
bibliomaster
*****




Posts: 2419
Registered: 7-5-2004
Location: Cornworld, Central USA
Member Is Offline

Mood: Enhanced

[*] posted on 10-1-2015 at 16:28


I don't see why everything can't come through the top of an ordinary sep funnel (with plastic bag melted on, with pump hoses in the bag) held by an iron (I cover with paper towels) ring clamped on a ringstand, so that's probably what anyone else would have done.



"You're going to be all right, kid...Everything's under control." Yossarian, to Snowden
View user's profile Visit user's homepage View All Posts By User
ecos
Hazard to Others
***




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 12-1-2015 at 02:38


Hi Bert,

I saw this nitrating funnel in BBC documentary video : http://youtu.be/01pjt_K-94M?t=28m2s




unfortunately , I never found it in market :(
View user's profile View All Posts By User
ecos
Hazard to Others
***




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 12-1-2015 at 08:55


it seems I am mistaken , it might be 3 neck flask.

the item you have in your figure = 3 neck flask + separation funnel
View user's profile View All Posts By User
ecos
Hazard to Others
***




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 25-7-2015 at 09:46


Hi Bert,

I think this will work :
http://www.sla-scientificglass.com/shop/category.asp?catid=6...


a0001347.jpg - 7kB
View user's profile View All Posts By User
Fulmen
International Hazard
*****




Posts: 1722
Registered: 24-9-2005
Member Is Offline

Mood: Bored

[*] posted on 25-7-2015 at 13:49


Is there really anything in this design that limits it to nitrations? To me it looks like an excellent general purpose reactor that could be ideal for many reactions.



We're not banging rocks together here. We know how to put a man back together.
View user's profile View All Posts By User
Dr.Bob
International Hazard
*****




Posts: 2746
Registered: 26-1-2011
Location: USA - NC
Member Is Offline

Mood: No Mood

[*] posted on 26-7-2015 at 16:12


There are several variations on the flask with bottom stopcock widely used in pilot plant work and scale ups. I have had a few, but they are very fragile, which is why most don't use them. The bottom piece is so easy to snap off if the flask is not fixed in a frame, which is why those are mostly used in a fixed system that protects the flask. I think I might have one jacketed flask with a bottom stopcock, but it is more of a cylindrical shape. I don't think I have ever seen a jacketed sep. funnel shaped flask, but I have seen a few like the one ocos posted.
