[*] posted on 16-4-2016 at 21:07


Continued: some loose packed PETN was used to fill the cap well and to Fill the spaces in the top of the cast and to fill the gap between the cap and cast. At the site a hole was dug and the charge was duct taped to the sledge hammer head and place into the hole and earth was packed around it,the cap was placed in the cap well and the whole thing buried. Firing line was connected and from a safe distance behind a large tree I heard the dull thud and dirt showering the ground. Great. The anticipation of digging through the crater for the target was great.

This charge had Successfully penetrated the target to a brilliant 110mm of solid steel plus the air gap. 65mm through the first section and the jet and carrot continued through to the second section for another 45mm exiting out the side on an angle.
I think if the jet was straight it wi old have gone clean through both ends no problem. I was thrilled! All the effort of ensuring everything was done as carefully as possible payed off.
On looking at the hole there was very little splatter and no raised edges at the entry, it was pretty clean. The carrot was plugged in tight and I had to poke it out through the exit it was like a little copper spear.

All in all it was a great attempt and I would say a complete success with just over 3CD penetration. The Cyclotol/pentolite combo worked very well along with the dirt tamping. This is by far the most penetration I've gotten out of all the tests I've ever done, I thought it would be hard to beat the last effort.

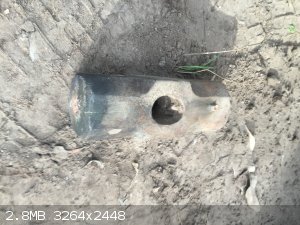

image.jpeg - 2.2MBimage.jpeg - 1.9MBimage.jpeg - 3.7MBimage.jpeg - 2.3MBimage.jpeg - 2.8MBimage.jpeg - 2.1MB




Where there is a will
there is a way.

AllCheMystery!
https://www.youtube.com/channel/UCWbbidIY4v57uczsl0Fgv7w?vie...
View user's profile View All Posts By User
nux vomica
National Hazard
****




Posts: 267
Registered: 18-7-2013
Member Is Offline

Mood: No Mood

[*] posted on 16-4-2016 at 23:33


Nice job neon , looks like there was some more penertration if the jet hadnt come through the side of the target .
View user's profile View All Posts By User
Microtek
International Hazard
*****




Posts: 638
Registered: 23-9-2002
Member Is Offline

Mood: No Mood

[*] posted on 17-4-2016 at 07:48


Perhaps you could try it with a higher RDX/PETN content. Cyclotol is usually around 75 % RDX. Of course, not all the RDX will dissolve in the TNT.
View user's profile View All Posts By User
NeonPulse
National Hazard
****




Posts: 417
Registered: 29-6-2013
Location: The other end of the internet.
Member Is Offline

Mood: Isolated from Reality! For Real this time....

[*] posted on 17-4-2016 at 17:08


Quote: Originally posted by Microtek
Perhaps you could try it with a higher RDX/PETN content. Cyclotol is usually around 75 % RDX. Of course, not all the RDX will dissolve in the TNT.


I plan to now I know that casting it is not as difficult as I thought. I had tried a 50/50 pentolite before and it was a co-precipitation of TNT and PETN which took a while to melt properly. Not only that but I only had 40g of RDX left and did not want to use it all in that charge. It would be a while before I can test it again since I'd have to distill more nitric for an RDX batch and to make another cone like the one I used. Maybe I'll try a waveshaper to cut the amount of HE needed. Maybe even a smaller charge. I do have a couple of other cones I could use too.




Where there is a will
there is a way.

AllCheMystery!
https://www.youtube.com/channel/UCWbbidIY4v57uczsl0Fgv7w?vie...
View user's profile View All Posts By User
gnitseretni
National Hazard
****




Posts: 280
Registered: 5-1-2007
Location: Medellin
Member Is Offline

Mood: No Mood

[*] posted on 19-4-2016 at 18:16


Nice one Neonpulse!

Those electroformed liners work pretty good huh?! And they're easy to make!
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 20-4-2016 at 01:41
electroplanting


Electroplating of copper cone? Very interesting question. Maybe same interesting, as result, thus the long hole. Some electro device we will see? WE are curious...:cool:...LL
View user's profile View All Posts By User
NeonPulse
National Hazard
****




Posts: 417
Registered: 29-6-2013
Location: The other end of the internet.
Member Is Offline

Mood: Isolated from Reality! For Real this time....

[*] posted on 20-4-2016 at 04:50


Quote: Originally posted by Laboratory of Liptakov
Electroplating of copper cone? Very interesting question. Maybe same interesting, as result, thus the long hole. Some electro device we will see? WE are curious...:cool:...LL


They work very well but require a little effort to produce. The guy who posted above you here Gnitseretni came up with the idea and even wrote up a PDF about it. It is very simple and reproducible. No special equipment needed but a cell phone charger or other power supply. There's a whole thread about it in technochemistry thread. I think it was called "electroforming copper liners" or something like that.




Where there is a will
there is a way.

AllCheMystery!
https://www.youtube.com/channel/UCWbbidIY4v57uczsl0Fgv7w?vie...
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 20-4-2016 at 11:14


Thanks Neon, will be study....:cool:...LL
View user's profile View All Posts By User
Hennig Brand
International Hazard
*****




Posts: 1284
Registered: 7-6-2009
Member Is Offline

Mood: No Mood

[*] posted on 21-4-2016 at 16:37


Very interesting test. You took the time to do good work and it definitely paid off. Shaped charge experiments involving cast explosives, especially TNT or mixtures with it, are very interesting I find. Yeah, electroforming is a decent option for making copper liners for the hobbyist in my opinion as well.



"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
View user's profile View All Posts By User
greenlight
International Hazard
*****




Posts: 686
Registered: 3-11-2014
Member Is Offline

Mood: Energetic

[*] posted on 8-8-2016 at 23:05


That is a very nice result NP!
I like how you could recover the copper jet/carrot.

I am in the process of designing a EFP with a diameter of 39mm to penetrate 20mm steel. The pipe casing inside diameter was supposed to be 40 mm but upon measuring it, it is slightly smaller.
I have 1.1mm thick Copper sheet and 1.85mm thick copper sheet. Before I cut and shape the liner, I was wondering if anyone had any suggestions on which thickness would be better?

[Edited on 9-8-2016 by greenlight]

[Edited on 9-8-2016 by greenlight]




The only use for an atomic bomb is to keep somebody else from using one.
George Wald
View user's profile View All Posts By User
NeonPulse
National Hazard
****




Posts: 417
Registered: 29-6-2013
Location: The other end of the internet.
Member Is Offline

Mood: Isolated from Reality! For Real this time....

[*] posted on 11-8-2016 at 17:20


Why don't you try both? I would probably go the thicker of the two. Just anneal it nicely and it should be fine. 40 mm is nice and wide and no doubt you will be using a highly brisant explosive. 40 mm is wide enough to consider trying a waveshaper to ensure a nice evenly formed slug and slam through the test plate.



Where there is a will
there is a way.

AllCheMystery!
https://www.youtube.com/channel/UCWbbidIY4v57uczsl0Fgv7w?vie...
View user's profile View All Posts By User
greenlight
International Hazard
*****




Posts: 686
Registered: 3-11-2014
Member Is Offline

Mood: Energetic

[*] posted on 11-8-2016 at 21:13


Thanks, I will try the thicker copper plate for the first test and yes explosive will be PETN plastic explosive with minimal inerts.
I will attempt using a waveshaper after the I see how the first test goes.




The only use for an atomic bomb is to keep somebody else from using one.
George Wald
View user's profile View All Posts By User
Bert
Super Administrator
Thread Split
20-9-2016 at 08:19
Zyxel
Harmless
*




Posts: 11
Registered: 23-9-2016
Member Is Offline

Mood: No Mood

[*] posted on 23-9-2016 at 13:20


Hi, Im new here.Today I lathe small shaped charge.Tomorrow will be tested.

Cone diameter is 24 mm, height 30mm thickness 1mm, cone angle is 42° .

Cone material is brass.

I use genuine military grade plasticized PETN, 40 gram.

Detonator is military grade, I aded electric match.

Casing tube is from LED flashlight, material aluminium, thickness 1mm.

Standoff is 85mm.

Target is 145mm mild steel plates.







DSC_0028.JPG - 1.1MBDSC_0031.JPG - 1.2MBDSC_0035.JPG - 1.6MBDSC_0034.JPG - 1.5MBDSC_0037.JPG - 1.4MB
View user's profile View All Posts By User
nitro-genes
International Hazard
*****




Posts: 1029
Registered: 5-4-2005
Member Is Offline


[*] posted on 23-9-2016 at 13:25


Your plastique looks like a potato...stealth plastique? Nice looking cone! Was it spunformed or machined, why brass btw?

[Edited on 23-9-2016 by nitro-genes]
View user's profile View All Posts By User
Zyxel
Harmless
*




Posts: 11
Registered: 23-9-2016
Member Is Offline

Mood: No Mood

[*] posted on 23-9-2016 at 13:34


My plastiqe and detonator is from Yougoslav M75 hand granade.Cone is machined in lathe.I dont have copper so I use brass.
Velocity of detonation is 7800m/s.

https://www.marstar.ca/html/reflibrary/YugoOrdnance/handgren...
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 858
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 23-9-2016 at 15:10


nice, please post pics of the result!
View user's profile View All Posts By User
NeonPulse
National Hazard
****




Posts: 417
Registered: 29-6-2013
Location: The other end of the internet.
Member Is Offline

Mood: Isolated from Reality! For Real this time....

[*] posted on 23-9-2016 at 16:43


I think I remember brass doesn't work very well for liners. Still a nice looking charge though. Is that an old torch?



Where there is a will
there is a way.

AllCheMystery!
https://www.youtube.com/channel/UCWbbidIY4v57uczsl0Fgv7w?vie...
View user's profile View All Posts By User
greenlight
International Hazard
*****




Posts: 686
Registered: 3-11-2014
Member Is Offline

Mood: Energetic

[*] posted on 23-9-2016 at 21:35


Hmmm, brass, will be interesting to see the results.
I would say the same as NP that brass liners wouldn't afford much penetration compared to copper.
I had a quick look for documents with tests and found this pdf were the penetration of different shaped charge liners was tested in granite. On page 56 in the conclusions section, it says that "copper and brass liners gave equal penetration for 42 degree apex angles".
I am sure copper is still superior to brass so maybe this was just an effect seen when penetrating rock and copper take the lead in metal targets.


BTW: I finally put together a 40mm EFP, took it out and fired it but the detonator was inferior and didn't give enough shock for the PE to go high order.
It sounded like a loud firecracker instead of a HE and scattered bits of PVC pipe from the casing around proving it was indeed low order. I still don't know what caused it , I did use some very old PETN for the base charge in the det so that may be it. :(



[Edited on 24-9-2016 by greenlight]

[Edited on 24-9-2016 by greenlight]




The only use for an atomic bomb is to keep somebody else from using one.
George Wald
View user's profile View All Posts By User
Fulmen
International Hazard
*****




Posts: 1576
Registered: 24-9-2005
Member Is Offline

Mood: Bored

[*] posted on 23-9-2016 at 23:39


I've been wondering about brass as well, but so far I haven't found much data on it.
Copper works, but it machines like crap and can be hard to find. Brass has roughly the same density and melting point, and while not as ductile as copper it's not bad either.




We're not banging rocks together here. We know how to put a man back together.
View user's profile View All Posts By User
greenlight
International Hazard
*****




Posts: 686
Registered: 3-11-2014
Member Is Offline

Mood: Energetic

[*] posted on 24-9-2016 at 00:12


I just use the copper pipes sold at hardware stores, cut through one side, anneal and flatten them, cut out a rough circle and shape it on a bench grinder.

One thing that is different is that copper has a high speed of sound than brass by about 1000 m/s I think which may make the copper behave better than brass under the extreme pressures of an SC.




The only use for an atomic bomb is to keep somebody else from using one.
George Wald
View user's profile View All Posts By User
Zyxel
Harmless
*




Posts: 11
Registered: 23-9-2016
Member Is Offline

Mood: No Mood

[*] posted on 24-9-2016 at 14:43


Here are results penetration is 15,5mm.I think cone is not good centered or explosive is not equally pressed.
But explosion make big holes in concrete blocks.

I found this chinese company that manufactures tungsten copper alloy liners.I asked they to manufacure one for me with same dimension as previous brass cone but they cant manufacture so thin (1mm) liner.I cant test bigger liners.If someone will try these tungsten copper allyo liner can ask they to make bigger liner.

This is company: http://www.tungsten-alloy.com/shaped-charge-liners.htm




DSC_0033.JPG - 1.7MB DSC_0035.JPG - 1.4MB DSC_0038.JPG - 2MB DSC_0028.JPG - 2.1MB

[Edited on 24-9-2016 by Zyxel]
View user's profile View All Posts By User
nux vomica
National Hazard
****




Posts: 267
Registered: 18-7-2013
Member Is Offline

Mood: No Mood

[*] posted on 24-9-2016 at 23:13


Nice maybe useing a 60° cone would be a less difficult to set up , i didnt have much luck with 42° cones , i had better forming jets useing the 60° ones .


[Edited on 25-9-2016 by nux vomica]
View user's profile View All Posts By User
Microtek
International Hazard
*****




Posts: 638
Registered: 23-9-2002
Member Is Offline

Mood: No Mood

[*] posted on 26-9-2016 at 00:29


With non-zero manufacturing error, brass could prove to be better than copper. Since copper is difficult to machine on a lathe (apart from spinning which introduces torsion in the jet), and brass is not, using brass for the liner could produce cones with micrometer precision.
Since this is not possible with handmade cones of copper, maybe it would be advantageous to go with brass.
View user's profile View All Posts By User
nux vomica
National Hazard
****




Posts: 267
Registered: 18-7-2013
Member Is Offline

Mood: No Mood

[*] posted on 26-9-2016 at 02:32


Quote: Originally posted by Zyxel
Hi, Im new here.Today I lathe small shaped charge.Tomorrow will be tested.

Cone diameter is 24 mm, height 30mm thickness 1mm, cone angle is 42° .

Cone material is brass.

I use genuine military grade plasticized PETN, 40 gram.

Detonator is military grade, I aded electric match.

Casing tube is from LED flashlight, material aluminium, thickness 1mm.

Standoff is 85mm.

Target is 145mm mild steel plates.







Just looking at the photos again and i notice the detonator is in the charge a long way i wonder if you should of only let it enter the charge 2 or 3 mm so as to give you more head hight and give the detonation wave more time form correctly .
Nux





DSC_0035.JPG - 1.6MB



[Edited on 26-9-2016 by nux vomica]
View user's profile View All Posts By User
Zyxel
Harmless
*




Posts: 11
Registered: 23-9-2016
Member Is Offline

Mood: No Mood

[*] posted on 2-10-2016 at 11:27


Hi, new test cone.

Cone diameter is 34 mm, height 26mm thickness 1,5mm, cone angle is 60° .
Cone material copper.
Explosive 34 grams.

Does is better to put detonator depper or shallower in explosive.


DSC_0014.JPG - 1.3MBDSC_0015.JPG - 1MB
View user's profile View All Posts By User
