Author: Subject: DIAMINOURONIUM (DI)NITRATE
twelti
Hazard to Others
***




Posts: 210
Registered: 20-2-2019
Member Is Offline


[*] posted on 2-9-2019 at 18:37


Quote: Originally posted by underground
Wow amazing news. Well done!! Will you try the white thing, like what i got?

Also compared to 2.5g ETN or PETN the damage to the plate is similar ? Do you have another plate with lest say 2.5g ETN or PETN ?

[Edited on 2-9-2019 by underground]


I think it IS the white stuff like you got. It is just powdered. I found that if you evaporate it down to a syrup, and add a small amount of methanol, maybe 2 or 3 times the volume of the syrup, you can get it to a (suspended) crystalline powder, and filter or whatever. Much easier to handle that way. It is weird though, sometimes it doesn't work and i have to try again. It is somewhat unpredictable, or I just haven't figured it out yet. I did previously do one that was solid white like yours, and I think it worked too. Just needs a healthy kick.

I will try 2.5 g of ETN, same setup.
View user's profile View All Posts By User
underground
International Hazard
*****




Posts: 524
Registered: 10-10-2013
Location: Europe
Member Is Offline


[*] posted on 3-9-2019 at 01:00


Very good information twelti, well done! I will let you know when i test my own. It looks promising.
View user's profile View All Posts By User
Rosco Bodine
International Hazard
*****




Posts: 6331
Registered: 29-9-2004
Member Is Offline

Mood: analytical

[*] posted on 3-9-2019 at 11:06


Quote: Originally posted by MineMan
Surly Rosco has some input on this thread...?


The carbohydrazide perchlorate would be the interesting candidate for testing from what I get as an impression.

It could make an interesting double salt with guanidine perchlorate, or triaminoguandine perchlorate, or other perchlorates like betaine perchlorate or glycine perchlorate or hydrazine perchlorate or methylamine perchlorate, or trimethylamine perchlorate, or tetramethylamine perchlorate, or possibly even hexamethylene tetramine diperchlorate.

Some of these might also form complex salts with nickel or copper or possibly even silver.

Another possibility is that the nickel carbohydrazide perchlorate might form a double or mixed salt with nickel hydrazine perchlorate or nickel semicarbazide perchlorate. The complex nickel hydrazine perchlorate is reportedly exceedingly sensitive and dangerous but the semicarbazide nickel complex analogue is a material on which I have been unable to find any references.

[Edited on 9/3/2019 by Rosco Bodine]
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 528
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 3-9-2019 at 11:54


Quote: Originally posted by Rosco Bodine
Quote: Originally posted by MineMan
Surly Rosco has some input on this thread...?


The carbohydrazide perchlorate would be the interesting candidate for testing from what I get as an impression.

It could make an interesting double salt with guanidine perchlorate, or triaminoguandine perchlorate, or other perchlorates like betaine perchlorate or glycine perchlorate or hydrazine perchlorate or methylamine perchlorate, or trimethylamine perchlorate, or tetramethylamine perchlorate, or possibly even hexamethylene tetramine diperchlorate.

Some of these might also form complex salts with nickel or copper or possibly even silver.

Another possibility is that the nickel carbohydrazide perchlorate might form a double or mixed salt with nickel hydrazine perchlorate or nickel semicarbazide perchlorate. The complex nickel hydrazine perchlorate is reportedly exceedingly sensitive and dangerous but the semicarbazide nickel complex analogue is a material on which I have been unable to find any references.

[Edited on 9/3/2019 by Rosco Bodine]


Why would these double salts be interesting...?the molecules you listed already contain a nitrogen containing fuel and an oxidizer...

The nitrate is easy and cheap to make... any thoughts on raising its heat of formation (explosion) or on how to crystallize effectively?
View user's profile View All Posts By User
twelti
Hazard to Others
***




Posts: 210
Registered: 20-2-2019
Member Is Offline


[*] posted on 3-9-2019 at 14:21


Quote: Originally posted by MineMan
Quote: Originally posted by Rosco Bodine
Quote: Originally posted by MineMan
Surly Rosco has some input on this thread...?


The carbohydrazide perchlorate would be the interesting candidate for testing from what I get as an impression.

It could make an interesting double salt with guanidine perchlorate, or triaminoguandine perchlorate, or other perchlorates like betaine perchlorate or glycine perchlorate or hydrazine perchlorate or methylamine perchlorate, or trimethylamine perchlorate, or tetramethylamine perchlorate, or possibly even hexamethylene tetramine diperchlorate.

Some of these might also form complex salts with nickel or copper or possibly even silver.

Another possibility is that the nickel carbohydrazide perchlorate might form a double or mixed salt with nickel hydrazine perchlorate or nickel semicarbazide perchlorate. The complex nickel hydrazine perchlorate is reportedly exceedingly sensitive and dangerous but the semicarbazide nickel complex analogue is a material on which I have been unable to find any references.

[Edited on 9/3/2019 by Rosco Bodine]


Why would these double salts be interesting...?the molecules you listed already contain a nitrogen containing fuel and an oxidizer...

The nitrate is easy and cheap to make... any thoughts on raising its heat of formation (explosion) or on how to crystallize effectively?


Not sure bout the heat, but crystallizing is easy. I'm using about a quarter of the water they used in Fischer, to minimize water content but prevent too much heating when you add the carbohydrazide. I evaporate it down (a little heat and a lot of stirring and air), then put some methanol on top, so it layers, then drop a couple of seed crystals in. Around 3 days and it is done - no refrigeration needed. I think the methanol is sucking the remaining water from the nitrated mixture, not sure.
View user's profile View All Posts By User
wessonsmith
Hazard to Others
***




Posts: 121
Registered: 15-2-2018
Location: Lives in Loughborough,UK
Member Is Offline

Mood: Satisfied

[*] posted on 3-9-2019 at 15:04


Quote: Originally posted by twelti


Not sure bout the heat, but crystallizing is easy. I'm using about a quarter of the water they used in Fischer, to minimize water content but prevent too much heating when you add the carbohydrazide. I evaporate it down (a little heat and a lot of stirring and air), then put some methanol on top, so it layers, then drop a couple of seed crystals in. Around 3 days and it is done - no refrigeration needed. I think the methanol is sucking the remaining water from the nitrated mixture, not sure.


Are you going to make a nice, easy to follow step by step how-to video:)


[Edited on 3-9-2019 by wessonsmith]
View user's profile Visit user's homepage View All Posts By User
Rosco Bodine
International Hazard
*****




Posts: 6331
Registered: 29-9-2004
Member Is Offline

Mood: analytical

[*] posted on 3-9-2019 at 16:11


Quote: Originally posted by MineMan
Quote: Originally posted by Rosco Bodine
Quote: Originally posted by MineMan
Surly Rosco has some input on this thread...?


The carbohydrazide perchlorate would be the interesting candidate for testing from what I get as an impression.

It could make an interesting double salt with guanidine perchlorate, or triaminoguandine perchlorate, or other perchlorates like betaine perchlorate or glycine perchlorate or hydrazine perchlorate or methylamine perchlorate, or trimethylamine perchlorate, or tetramethylamine perchlorate, or possibly even hexamethylene tetramine diperchlorate.

Some of these might also form complex salts with nickel or copper or possibly even silver.

Another possibility is that the nickel carbohydrazide perchlorate might form a double or mixed salt with nickel hydrazine perchlorate or nickel semicarbazide perchlorate. The complex nickel hydrazine perchlorate is reportedly exceedingly sensitive and dangerous but the semicarbazide nickel complex analogue is a material on which I have been unable to find any references.

[Edited on 9/3/2019 by Rosco Bodine]


Why would these double salts be interesting...?the molecules you listed already contain a nitrogen containing fuel and an oxidizer...

The nitrate is easy and cheap to make... any thoughts on raising its heat of formation (explosion) or on how to crystallize effectively?


Sheesh...Put on your thinking cap to become a curious cat. But try not to let curiosity kill the cat. Be a very wary and careful smart cat. Paranoid watchful nervous cats are rarely and less likely to become road kill or get their twitching little low mileage tails pinched by any ancients' rocking chairs. ;) What are unknowns there about such double salts or complexes or mixtures are interesting because properties can be synergistic and desirable.

It is only very rarely that single compounds are used neat in pure form as an ideal component but are more often "compounded" in "medicinal" designer formulations where the various components contribute their benefit to the formulation that is a sum and maybe more than just a simple sum of the components.

Carbohydrazide Perchlorate is itself interesting and so is its complex with Nickel.

Another possible reaction and double salt would be the possible reaction of Carbohydrazide with Ammonium Perchlorate.

Would simply dissolving Carbohydrazide in a warm water solution of Ammonium Perchlorate result in displacement of Ammonia byproduct and formation of Carbohydrazide Perchlorate and/or a double salt?

If the solubility driven reaction would occur, that would be worth knowing. Or such a reaction might require a different approach to exploit solubility for driving a metathesis "ion exchange" reaction.

Calcium Hydroxide can be reacted with Ammonium Perchlorate to displace Ammonia and result in a Calcium Perchlorate solution.
A low solubility Calcium Sulfate or even lower solubility Calcium Sulfate - Sodium Sulfate double salt could possibly be precipitated
to leave a dilute Perchloric Acid having been substantially stripped of its Calcium value....ready for neutralization by Carbohydrazide, with evaporation and crystallization and filtering to obtain the Carbohydrazide Perchlorate. If a cocrystallization with Ammonium Perchlorate does occur then that could be done to facilitate isolation of a double salt.

Thinking Cap / curious cat / example / exhibit A :D

truth-is-like-a-lion.bmp - 1.2MB


[Edited on 9/4/2019 by Rosco Bodine]
View user's profile View All Posts By User
twelti
Hazard to Others
***




Posts: 210
Registered: 20-2-2019
Member Is Offline


[*] posted on 4-9-2019 at 09:22


Quote: Originally posted by wessonsmith

Are you going to make a nice, easy to follow step by step how-to video:)


[Edited on 3-9-2019 by wessonsmith]


Could do, maybe this weekend!
View user's profile View All Posts By User
wessonsmith
Hazard to Others
***




Posts: 121
Registered: 15-2-2018
Location: Lives in Loughborough,UK
Member Is Offline

Mood: Satisfied

[*] posted on 4-9-2019 at 10:19


Quote: Originally posted by twelti


Could do, maybe this weekend!


Awesome!
View user's profile Visit user's homepage View All Posts By User
twelti
Hazard to Others
***




Posts: 210
Registered: 20-2-2019
Member Is Offline


[*] posted on 7-9-2019 at 19:56

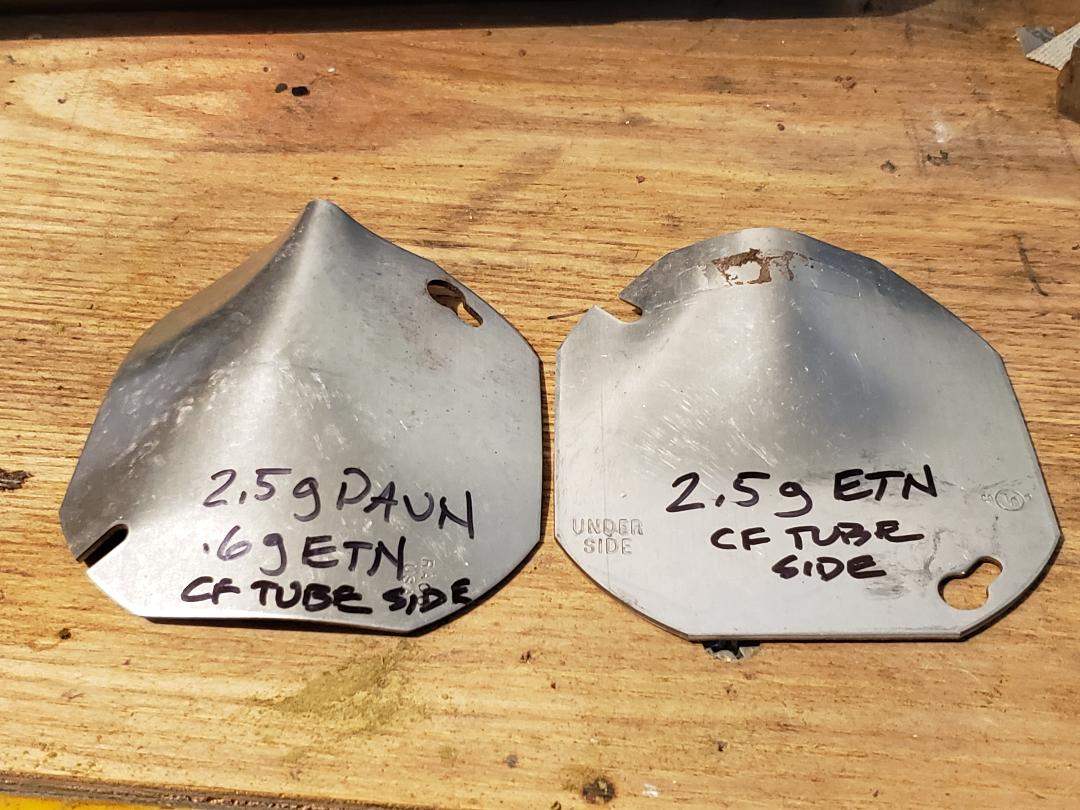

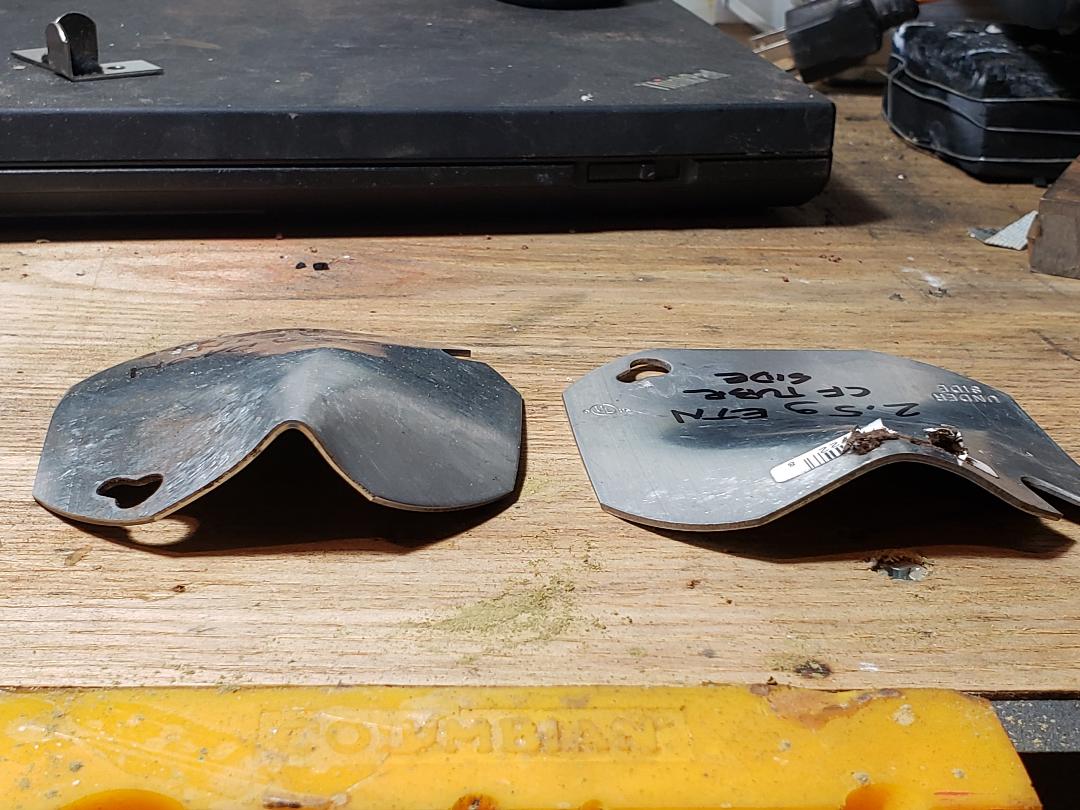

OK, I did a comparison to the 2.5 g of DAUN (see previous post). This was 2.5 g ETN straight up. Same conditions, both in 3/8" ID CF tubes, next to conduit cover plate. Looks like the DAUN is more brissant, though this is not a super scientific test.


thumbnail (32).jpg - 141kB thumbnail (33).jpg - 139kB
View user's profile View All Posts By User
underground
International Hazard
*****




Posts: 524
Registered: 10-10-2013
Location: Europe
Member Is Offline


[*] posted on 7-9-2019 at 23:53


WoW twelti this is amazing!!! I didn't expect that!! Sometimes i was thinking if i did well by buying DU but now i am really glad i bought it lol.

[Edited on 8-9-2019 by underground]
View user's profile View All Posts By User
twelti
Hazard to Others
***




Posts: 210
Registered: 20-2-2019
Member Is Offline


[*] posted on 8-9-2019 at 08:50


Quote: Originally posted by underground
WoW twelti this is amazing!!! I didn't expect that!! Sometimes i was thinking if i did well by buying DU but now i am really glad i bought it lol.

[Edited on 8-9-2019 by underground]

Me too, I was beginning to doubt, but now I know I didn't waste my money! Have you managed to get the crystalline powder form yet? I'm now wondering if there is some way to control crystal size etc. Right now it is either medium sized crystals or solid. Also want to try adding the aluminum, and maybe investigating the perchlorate salt as Rosco mentioned.

View user's profile View All Posts By User
underground
International Hazard
*****




Posts: 524
Registered: 10-10-2013
Location: Europe
Member Is Offline


[*] posted on 8-9-2019 at 11:34


I will definitely try what you did in order to get the crystals. I will let you know when i got any news.
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 528
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 8-9-2019 at 11:57


Quote: Originally posted by twelti
OK, I did a comparison to the 2.5 g of DAUN (see previous post). This was 2.5 g ETN straight up. Same conditions, both in 3/8" ID CF tubes, next to conduit cover plate. Looks like the DAUN is more brissant, though this is not a super scientific test.




Excellent work! This makes sense as the VOD is almost 9000 and the volume of gas is very high.

Can you try casting it now?


I hate starting this thread and not contributing, but, I am not able to at this time.
View user's profile View All Posts By User
franklyn
International Hazard
*****




Posts: 2993
Registered: 30-5-2006
Location: Da Big Apple
Member Is Offline

Mood: No Mood

[*] posted on 14-9-2019 at 02:29
Some thoughts


1,3-Diaminourea
N,N'-diamino-Urea
Carbohydrazide
Carbonicdihydrazide
Carbonyldihydrazine
https://en.wikipedia.org/wiki/Carbohydrazide
Hazardous Chemicals Desk Reference
https://books.google.com/books?id=WZeBDwAAQBAJ&lpg=PA161...

Any of the above names appended with dinitrate identify the same molecule.
Essentially this compound is comprised of 2 Hydrazino Nitrate moieties joined to a carbonyl. It's properties must be much like the known data on Hydrazinium Nitrate.
www.sciencemadness.org/talk/viewthread.php?tid=874#pid187600
www.sciencemadness.org/talk/viewthread.php?tid=10058#pid1194...
www.researchgate.net/publication/330474244_Detonation_proper...

It's annoying the cited paper only evaluates the hydrate which can scarcely be regarded a discreet compound. The mol of water is a spectator and absorbs much heat on detonation. Using Engager's Detonation utility and the heat of formation value Δ f in the paper to evaluate the hydrate gives a detonation velocity a little short of the one printed , ~ 7200 m/s .

Given the affinity for water similar polar solvents such as Methanol and Glycol should blend. Adding a small amount of Methanol less than 4.7 % , stoichiometrically balances detonation products and may serve to sensitize. Ethylene Glycol thinned with Methanol blended with the anhydrous Dinitrate and vacuum drying off the lighter Methanol so only the Glycol remains to prevent formation of the crystal latice can yield a plastic composition. Refrain from kneading with fingers until properties are determined. 5.4 % composition of Glycol is oxygen balanced.
3 CO(NH.NH2)2•2HNO3 + CH3OH => 4 CO2 + 14 H2O + 9 N2
5 CO(NH.NH2)2•2HNO3 + C2H4(OH)2 => 7 CO2 + 23 H2O + 15 N2

Peroxidates of ionic Nitrates disussed here => www.sciencemadness.org/talk/viewthread.php?tid=1778&page...
suggest Hydrogen Peroxide can substitute the water of the hydrate to form an adduct. Vacuum drying from a solution with 40 vol hair bleach which is 12 % peroxide should yield the adduct. To acertain the product put a smal puddle of Hypochlorite solution ( laundry bleach ) a few centimeters from a sample and tilt the setup so the liquid runs to contact it to react effervescently. I don't think this can cause detonation but assume it could.

Acidity of the Dinitrate as yet undisclosed or referenced can perhaps join with a base molecule in a co-crystal lattice. I discussed this liklihood with Dinitrourea + Nitroguanidine to form an Adduct. 5 CO(NH.NH2)2•2HNO3 + 2 (NH2)2CHNNO2 => 7 CO2 + 25 H2 + 19 N2
www.sciencemadness.org/talk/viewthread.php?tid=9443#pid17013...

Actual test detonation velocity data can be had with this setup.
www.sciencemadness.org/talk/viewthread.php?tid=63051#pid4130...


.




Techniques to Disrupt, Deviate and Seize Control of an Internet Forum In case you wonder W T F ! is going on here ?
www.zerohedge.com/contributed/2012-10-28/cointelpro-techniques-dilution-misdirection-and-control-internet-forum www.washingtonsblog.com/2012/08/the-15-rules-of-internet-disinformation.html
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 528
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 14-9-2019 at 13:05


Really interesting franklyn... glad to see your back and thank you for the thoughts!!

I have to admit, the mono nitrate seems much simpler... but I am assuming the techniques you provided will greatly increase the dinitrate.
View user's profile View All Posts By User
franklyn
International Hazard
*****




Posts: 2993
Registered: 30-5-2006
Location: Da Big Apple
Member Is Offline

Mood: No Mood

[*] posted on 16-9-2019 at 14:47
More thoughts


Would be nice if this program were in the public domain , providing one would not also need a supercomputer to use it.

Theoretical Prediction of the Heats of Formation , Densities , (etc.) by computation
www.arl.army.mil/arlreports/2015/ARL-TN-0693.pdf


CO(HNNH2)2• HNO3 => 3 H2O + CO + 3 N2 + H2
2 CO(HNNH2)2• 2HNO3 => 8 H2O + 2 CO2 + 6 N2 + O2

Co-crystallization of two dinitrate mols with one mononitrate mol is oxygen balanced.

2 CO(HNNH2)2• 2HNO3 + CO(HNNH2)2• HNO3 => 12 H2O + 3 CO2 + 9 N2


The mononitrate must have some slight basic quality favoring formation of a peroxidate.

CO(HNNH2)2• HNO3 •H2O2 => 5 H2O + CO + 3 N2
CO(HNNH2)2• 2HNO3 => 4 H2O + CO2 + N2 + 1/2 O2

Co-crystallization of one mol mononitrate peroxidate with one mol dinitrate is oxygen balanced.

CO(HNNH2)2• 2HNO3 + CO(HNNH2)2• HNO3 •H2O2 => 9 H2O + 2 CO2 + 4 N2


From the known behavior of Nitromethane in composition with Ammonium Nitrate , alias Kinepak , similar sensitization occurs with Urea Nitrate , it follows some addition to Diaminouronium mononitrate can make it readily detonable.


Digressing from the subject of this thread , chlorinating DAU should substitute at least the amine hydrogens producing a di-acid 1,3-Dichloramine urea.
CO(HN.NCl2)2 => 2 HCl + COCl2 + 2 N2 ( Hydrogen Chloride & Phosgene as a product , hmm )
Complete chlorination takes it to CO(NCl.NCl2)2 , not a known compound from what I can see , although Tetrachlorohdrazine exists N2Cl4
Dichlorourea CO(HNCl)2 preparation
https://books.google.com/books?id=vyPOAAAAMAAJ&lpg=RA1-P...

A diverse varied chemistry evolves from this seemingly bland precursor DAU presenting many further avenues for investigation.

www.sciencemadness.org/talk/viewthread.php?tid=20296#pid2604...

www.sciencemadness.org/talk/viewthread.php?tid=2945&page...


.




Techniques to Disrupt, Deviate and Seize Control of an Internet Forum In case you wonder W T F ! is going on here ?
www.zerohedge.com/contributed/2012-10-28/cointelpro-techniques-dilution-misdirection-and-control-internet-forum www.washingtonsblog.com/2012/08/the-15-rules-of-internet-disinformation.html
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
View user's profile View All Posts By User
twelti
Hazard to Others
***




Posts: 210
Registered: 20-2-2019
Member Is Offline


[*] posted on 21-9-2019 at 14:40


Yer makin my head spin again. If there is a simple and most interesting thing to try, what would it be?

BTW, tried again with the cast DAUN. Still no go, though it may be my fault. I think I may have had a small physical gap in the firing train, between the ETN (0.7 g hand pressed) and the 2 g of cast DAUN. Maybe .5 mm gap. Not sure if that would cause it to not kick off.
View user's profile View All Posts By User
underground
International Hazard
*****




Posts: 524
Registered: 10-10-2013
Location: Europe
Member Is Offline


[*] posted on 21-9-2019 at 16:51


Try a core of ETN or a mini shape charge for better initiation

[Edited on 22-9-2019 by underground]
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 528
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 12-10-2019 at 11:23


Any update for the cast stuff? This looks like the perfect insensitive explosive. Also. Would love to see a cast mixed with 20 percent fine aluminum.
View user's profile View All Posts By User
underground
International Hazard
*****




Posts: 524
Registered: 10-10-2013
Location: Europe
Member Is Offline


[*] posted on 12-10-2019 at 13:02


Unfortunately i am quite busy those days. I have already cast some DUN into some small containers but i have not tested them yet. I wraped them with some plastic wrap and all are dry except one where the wrap was almost removed. The top of that container was like cream due to its hygroscopicity, after removing that cream, it was solid like all the others. I will post here when i got any news from future tests.

[Edited on 12-10-2019 by underground]
View user's profile View All Posts By User
 Pages:  1  ..  5    7

  Go To Top
