Author: Subject: My Synthesis of Nitroethane via a AgNO2 Packed Column
Johnny Windchimes
Harmless
*




Posts: 37
Registered: 28-5-2019
Member Is Offline

Mood: Sorry, it's my chimes~!

[*] posted on 16-4-2020 at 15:03
My Synthesis of Nitroethane via a AgNO2 Packed Column


Good day all,

It's bean rather exhaustively discussed on these boards and elsewhere for the better part of 25 years, and the consensus seems to be that it's a pain to make. That's because it is a pain to make.

Chemplayer's great video was still unfortunately a ton of setup and time for a relatively small yield. Silver being part of this reaction complicates it further from a monetary point of view as well.

I have recreated Chemplayer's Victor-Meyer style synthesis using anhydrous THF in lieu of Ether, and Bromoethane in lieu of Iodoethane, with similar (albeit worse) results.

Those who have read the literature know of course about the industrial methods using propane and ethane at 400 C and vapourized nitric acid etc etc; these industrial processes are best left alone. KABOOM comes to mind when I even think of trying one on a lab bench scale.

(As an aside, I did find one nitration of ethane that runs at 100 C, using UV light as the catalyst, paper attached below)

----------------------------------------


Now, radiochemistry is not really something done in a home chemistry setting, which is why this method and it's paper might have slipped through the cracks a bit:

https://www.thevespiary.org/rhodium/Rhodium/Vespiary/talk/in...

About half way down the page there is a post by "no1uno" detailing an interesting method. I gave it a try, results below:


A jacketed Liebig condenser was lightly packed with a 90/10 AgNO2/Silica sand mix and a glass wool plug was inserted in the bottom. A glass takeoff adapter with a long glass hollow rod was led into Distilled H2O. About 1 Mole of AgNO2 was used (+/- 10% to make sure the Liebig was topped off)

A 1000 ml RBF was charged with 6 moles of Bromoethane (freezer stored, synthesized 1 year ago, dried using 3 Angstrom Molecular Sieves). A stir bar was inserted and the flask placed in a heating mantle. One neck of the flask was then connected with a 3 way distillation adapter, and the AgNO2 packed Liebig was connected to this adapter giving it a slight downward angle which helped facilitate product collection (IMO).

I did not use an N2 or a CO2 stream of dried carrier gas as per the paper. I settled on a 24/29 12 inch 3.3 boro tube packed with CaCl2 and a small aquarium style air pump to bubble dried room temp air into the Bromoethane as it was being heated and help push it into the AgNO2 packed Liebig.

The AgNO2 packed Liebig had its jacket connected to a small pressure cooker that was delivering steam to the jacket to keep it at approximately 100 Degrees C for the entirety of the run. A Jacketed HPLC column would have been even more ideal however I do not own a jacketed one and the Liebig seemed a good compromise.

Steam was introduced to the AgNO2 packed Liebig, and the heating mantle was turned on. Bromoethanes boiling point is 38.4 C, so not much heat was required to vapourize it. The air pump was turned on (very light flow, basically enough to keep positive pressure and encourage the Bromoethane to flow into the AgNO2 packed Liebig).

About 1.5 hours were required to send a majority (approx 25 ml left in the distilling flask) of the Bromoethane through the AgNO2 packed Liebig, and the dried air positive pressure flow helped to push the effluent reaction mix down into the Distilled H2O. I used a conical 1000 ml flask with a take off side arm as the receiving flask, and then ran the take off into another 1000 ml conical flask just to ensure I captured as much as possible. The paper uses DMSO to capture the nitroalkanes, but I am all out of DMSO currently.

The pressure cooker, mantle and air pump were turned off and the entire setup was allowed to come back to room temperature.

The Distilled H2O receiving flask (Just the first one in the train) had 2 semi-opaque layers. This was put into a sep funnel, and the top aqueous layer retained and extracted with 50 ml of DCM once.

The organic layer was pooled with the DCM extraction, and dried over CaCl2 for several hours in the fridge. The flask was rigged for fractional distillation on a hotplate with stir bar added.

The Bromoethane came off intermixed with the DCM (their boiling points are basically the same). I chose DCM because I would rather contaminate my cheap and easily made Bromoethane than face a toluene azeotrope / pure toluene boiling point(s) of 80/110 C respectively, the latter which would definitely co-mingle with any Nitroethane coming off at circa 114 C. In hindsight I would not have pooled my DCM extract with my main organic layer and worked it up separately.

After removing approximately 350 ml of seemingly unreacted Bromoethane and DCM (very volatile so no doubt mechanical losses as well as evaporative losses as well throughout the process) through fractional distillation, the temperature climbed past 110 C and around 112 C a slightly yellow oily liquid came over.

The collection flask was changed out and approx 10 ml of what was assumed to be Nitroethane was collected. Its characteristic smell was compared to a known authentic sample (briefly, as its..... you know.... toxic.....).

This yield is a very poor 14% based on starting silver nitrite, with a 6 x molar excess of Bromoethane thrown in to boot.

HOWEVER, given the cost of Bromoethane and the ease of this solvent-free setup, I feel that if I tweak this procedure to be more in line with the paper, coupled with all the potentially unreacted Bromoethane recovered during workup, we could have a very viable source of Nitroethane!



The next time I run this experiment I will take and post photos of the entire thing. Questions and comments are welcome!



Sources:



Screenshot_2020-04-16 Nitroethane - Copy.png - 190kB

Attachment: 1017-Online.Synthesis.11C.Nitroalkanes0474 - Copy.pdf (131kB)
This file has been downloaded 39 times

Attachment: EP83107806NWA1 - Copy.pdf (351kB)
This file has been downloaded 39 times

[Edited on 16-4-2020 by Johnny Windchimes]
View user's profile View All Posts By User
monolithic
Hazard to Others
***




Posts: 241
Registered: 5-3-2018
Member Is Offline

Mood: No Mood

[*] posted on 16-4-2020 at 17:52


It's nice to see someone posting results. Everyone talks about nitroethane syntheses but no one ever posts results. :)

Have you ever tried the bromoethane and sodium nitrite in DMSO reaction? https://www.hyperlab.info/inv/index.php?s=61ad7dd3930f684e12... (Run it through Google translate.) I plan on running this in the coming months. I've heard a lot of people fail miserably with this reaction but then there are a few -- not many -- posts which show it works quite well for how cheap the reagents are. This reaction is all based on the work of Kornblum, see the following links:

DOI: 10.1021/ja01588a059
DOI: 10.1021/jo01355a612
DOI: 10.1039/B805985C
View user's profile View All Posts By User
chemplayer...
Hazard to Others
***




Posts: 189
Registered: 25-4-2016
Location: Away from the secret island
Member Is Offline

Mood: No Mood

[*] posted on 17-4-2020 at 23:38


Very interesting write-up and well done for going to the lengths to try this out! It shows that the reaction with bromoethane can work, but it's much slower and needs more stringent conditions to get to work.

Problem still in the end really is the cost of the silver salt - we played around recovering the metallic silver but it's trickier than you'd think and gives you ~75% return if I remember. The iodine can also be recovered to some extent and recycled, but iodine is getting more and more expensive too (but not quite silver levels).

The holy grail is finding the conditions or OTC solvent that can do this with sodium nitrite. We wondered if acetonitrile might work, but never got the time to try it out.




Watch some vintage ChemPlayer: https://www.bitchute.com/channel/chemplayer/
View user's profile View All Posts By User
Johnny Windchimes
Harmless
*




Posts: 37
Registered: 28-5-2019
Member Is Offline

Mood: Sorry, it's my chimes~!

[*] posted on 18-4-2020 at 00:01


Quote: Originally posted by chemplayer...


The holy grail is finding the conditions or OTC solvent that can do this with sodium nitrite. We wondered if acetonitrile might work, but never got the time to try it out.



Forgive me if I blush, but I'm a huge fan! I cant believe I'm even passively chatting with you! You guys rock! I've watched every single video of yours (most looped on repeat because I'm insane like that!).

Ok school girl giggles aside, I do intend to play with this one a bit more, but I'm also wondering if maybe this is our long sought 'Holy Grail'? Source attached down below!

PEG-400 is not quite hardware store shelf, but 1000 places sell it for mixing with vaping fluid these days, as well as of course eBay and Amazon.


I've included their 2004 paper on a x 4 molar AgNO2 excess aqueous Alkyl Halide Nitroalkane synthesis as well for context, it was known on the hive and such places if I recall, but their 2008 follow up paper would be the one I'm intrigued to give a go. I've ordered a liter of PEG-400 from a vape shop online this very day!

I'll post follow ups when I finish experimenting!



***EDIT*** Their PDF that goes along with their 2004 paper now also attached.

Attachment: ballini2004 - Copy.pdf (46kB)
This file has been downloaded 39 times

Attachment: ballini2008 (Grail) - Copy.pdf (87kB)
This file has been downloaded 43 times

[Edited on 18-4-2020 by Johnny Windchimes]

Attachment: 2004 add-on ballini pdf - Copy.pdf (975kB)
This file has been downloaded 37 times

View user's profile View All Posts By User
Johnny Windchimes
Harmless
*




Posts: 37
Registered: 28-5-2019
Member Is Offline

Mood: Sorry, it's my chimes~!

[*] posted on 18-4-2020 at 09:29
Two steps forward.....


Although it might be going in the wrong direction insofar as OTC goes....

These two papers use Polymer suspended nitrite to get the job done. This is prepared from Sodium Nitrite as opposed to the pricey Silver Nitrite as well.

I have nothing against Iranian chemistry, or the Journal of The Chinese Chemical Society per se (re: Zarchi 2005), but it seems in line with Gelbard 1977 in relation to the theory at least. The polymer Zarchi use's is a tad more exotic, but I found it easily on Alibaba once typing in the CAS number. Some people I've noticed don't trust out of the way journals or chemistry at face value, for perhaps good reason.... but it looks legit (in my infinite wisdom haha).

Worth mentioning is Zarchi also in his paper directly synthesizes Nitroethane (among other Nitroalkanes) as opposed to everyone else who makes longer chain Nitroalkanes and only allude to their methods short chain Nitroalkane application(s).



And I'll throw in Ballini & Palmieri's 2018 Nitroalkane Review paper too for kicks. It's nice to know these boys are dedicated over the years....


If the PEG-400 Synthesis fails I'll give the polymer ones a try as well. I'm kinda addicted to finding a reasonably working method at this point!

Attachment: zarchi2005 - Copy.pdf (39kB)
This file has been downloaded 37 times Poly(4- WBR vinylpyridine) WBR , cross-linked 226963 - Copy.png - 112kB

Attachment: gelbard1977 - Amberlyst Nitroethane - Copy.pdf (254kB)
This file has been downloaded 34 times

Attachment: palmieri2018 - Copy.pdf (3.7MB)
This file has been downloaded 40 times

[Edited on 18-4-2020 by Johnny Windchimes]
View user's profile View All Posts By User
S.C. Wack
bibliomaster
*****




Posts: 2116
Registered: 7-5-2004
Location: Cornworld, Central USA
Member Is Offline

Mood: Enhanced

[*] posted on 18-4-2020 at 15:22


Quote: Originally posted by chemplayer...
The holy grail is finding the conditions or OTC solvent that can do this with sodium nitrite.


Aq. sodium ethylsulfate aka Krause reagent, or Auger's solution aq. potassium a-bromopropionate.

[Edited on 18-4-2020 by S.C. Wack]




"You're going to be all right, kid...Everything's under control." Yossarian, to Snowden
View user's profile Visit user's homepage View All Posts By User
chemplayer...
Hazard to Others
***




Posts: 189
Registered: 25-4-2016
Location: Away from the secret island
Member Is Offline

Mood: No Mood

[*] posted on 19-4-2020 at 06:45


Very interesting references - interested to see if PEG400 works and if it is reproducible for some of the complex halo compounds used, as well as whether or not it works for nitroethane.



Watch some vintage ChemPlayer: https://www.bitchute.com/channel/chemplayer/
View user's profile View All Posts By User
draculic acid69
International Hazard
*****




Posts: 844
Registered: 2-8-2018
Member Is Offline


[*] posted on 19-4-2020 at 07:55


Firstly nice write-up. The price of silver salts and brominating ethanol make this a pretty expensive experiment.
I've thought about this.easiest way to nitroethane seems to be sodium ethylsulfate and nitrite. I'd buy the following things:
4litre of methylated spirits,jug of 2.5kg sodium carbonate, bucket of 3kg sodium bisulfate , a kg of sodium nitrite off ebay and a 6litre teflon coated cooking pot. All available at big hardware stores and Walmart/Kmart or whatever u have wherever you are. With the cooking pot u should be able to make a big batch of sodium ethylsulfate very easily. Whatever size batch u can do in a few hours in the cooking pot will be more than one could do in a day using 1litre flasks and doing one batch after the other one could go through the whole sodium bisulfate pretty quickly giving enough
sodium ethylsulfate to do a batch big enough to yeild around a hundred mls instead of a small 7-15ml batch ppl usually do.seems easier than any other methods to get nitroethane.
Using a glass diamond tipped drill bit to make a hole big enough in the lid to stick a few metres of 12 mm aquarium tube thru it is about all u would need to do to make this pot work to reflux ethanol. Maybe u could connect a 1metre copper tube as a reflux condenser to a short length of aquarium tubing which is stuck thru the hole in the lid. It wouldn't require much modification to get the pot working as needed.some thick teflon tape (the pink or yellow stuff) should be enough to get a tight enough seal
around the edge of the lid to seal against the pot.

[Edited on 19-4-2020 by draculic acid69]
View user's profile View All Posts By User
Corrosive Joeseph
International Hazard
*****




Posts: 744
Registered: 17-5-2015
Location: The References Forum
Member Is Offline

Mood: Cyclic

[*] posted on 19-4-2020 at 08:30


I'd have to search but if I remember rightly, yields are about 8%


/CJ




MSDS Addict and OTC Slut
View user's profile View All Posts By User
clearly_not_atara
International Hazard
*****




Posts: 1813
Registered: 3-11-2013
Member Is Offline

Mood: Big

[*] posted on 19-4-2020 at 09:28


Quote:
The holy grail is finding the conditions or OTC solvent that can do this with sodium nitrite.


Anethole is way cheaper than silver and nobody ever seems to think about the anethole pseudonitrosite method. Only sodium nitrite is required. The only other difficult chemical needed for the pseudonitrosite rxn is diethyl ether. Shulgin demonstrated the retro-Henry reaction using alpha-methylbenzylamine but I imagine you could get pretty similar results with beta-phenethylamine or any of the other known methods for hydrolysing a nitroalkene.

There is also a direct anhydrous cleavage of nitroalcohols:
https://www.thieme-connect.com/products/ejournals/pdf/10.105...
I am not sure if copper in wet conditions could catalyze the same thing but it seems interesting.

[Edited on 19-4-2020 by clearly_not_atara]




[Edited on 04-20-1969 by clearly_not_atara]
View user's profile View All Posts By User
Johnny Windchimes
Harmless
*




Posts: 37
Registered: 28-5-2019
Member Is Offline

Mood: Sorry, it's my chimes~!

[*] posted on 19-4-2020 at 13:51


Quote: Originally posted by clearly_not_atara
Quote:
The holy grail is finding the conditions or OTC solvent that can do this with sodium nitrite.


Anethole is way cheaper than silver and nobody ever seems to think about the anethole pseudonitrosite method. Only sodium nitrite is required. The only other difficult chemical needed for the pseudonitrosite rxn is diethyl ether. Shulgin demonstrated the retro-Henry reaction using alpha-methylbenzylamine but I imagine you could get pretty similar results with beta-phenethylamine or any of the other known methods for hydrolysing a nitroalkene.

There is also a direct anhydrous cleavage of nitroalcohols:
https://www.thieme-connect.com/products/ejournals/pdf/10.105...
I am not sure if copper in wet conditions could catalyze the same thing but it seems interesting.

[Edited on 19-4-2020 by clearly_not_atara]



Interesting, I saw that you advocated for this method in another Nitroethane thread in 2019. Let me see if I can dig it up....

http://www.sciencemadness.org/talk/viewthread.php?tid=40137&...

There we are. Yeah looks interesting I'll dive into that one too. It's a quiet Sunday so I'll start with this great piece on Nitroso compounds by Gowenlock.

Attached below~


Unfortunately if anyone was to need gallons of Nitroethane they would need to rely on one of the industrial processes miniaturized. Bubbling propane through heated Nitric Acid and then shoving it all into a 450 C heated tube sounds super safe and fun to me.... But I don't think my wife would want that device in our garden shed.... or anywhere on the property in general:P.

These boys tried a mini propane heated nitration and man what a ton of work. Paper attached below~

I don't need gallons, but it would be nice to find a reasonably scalable synthesis!~

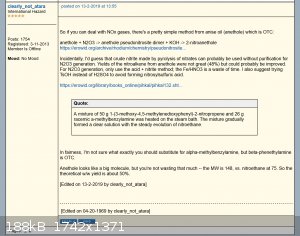

Preparation of nitroethane - Copy.png - 188kB

Attachment: gowenlock2004 - Copy.pdf (448kB)
This file has been downloaded 27 times

Attachment: Multi-step processing in a microstructured flow reactor_ direct nitration of propane - Copy.pdf (2.1MB)
This file has been downloaded 34 times

[Edited on 19-4-2020 by Johnny Windchimes]
View user's profile View All Posts By User
clearly_not_atara
International Hazard
*****




Posts: 1813
Registered: 3-11-2013
Member Is Offline

Mood: Big

[*] posted on 19-4-2020 at 14:39


JW: I'm not sure why the anethole method is so unpopular.

The pseudonitrosite reaction for nitration of styrenes has been developed extensively by... well, let's just say... entrepreneurs. It's easy to find a number of amateur reports if you Google "pseudonitrosite erowid".

The "Pseudonitrosite FAQ" describes alkali workup of the initial addition product in alcohol:
https://erowid.org/archive/rhodium/chemistry/pseudonitrosite...

"0.1 mole of the corresponding propenylbenzene pseudonitrosites (28.5g asarone, 23.8g isosafrole or 22.4g anethole) was dissolved in 150ml 8% alcoholic KOH with shaking, and possibly light heating (not over 30°C, especially not in the case of asarone pseudonitrosite, or there is a risk of decomposition (to the aldehyde, amongst other things)."

It appears that simply warming up the reaction mixture is enough to cleave the nitrostyrene, at least if there is sufficient water available for the hydrolysis reaction. If the aldehyde is subsequently immobilized by adding bisulfite, it should be possible to obtain the nitroethane directly from this reaction mixture. KOH will deprotonate nitroethane, so it should be carefully neutralized (e.g. AcOH, not HCl) to prevent a Nef reaction.

Just a quick comparison of molar masses:
Silver: 107
Anethole: 148
so overall you need 1.4 g of anethole to replace 1 g of silver, which means it really isn't that inefficient.




[Edited on 04-20-1969 by clearly_not_atara]
View user's profile View All Posts By User
Johnny Windchimes
Harmless
*




Posts: 37
Registered: 28-5-2019
Member Is Offline

Mood: Sorry, it's my chimes~!

[*] posted on 21-4-2020 at 16:09


Just a few additional references:

Gabrielli was apparently a student of Ballini (Dr. PEG-400 above), and her PhD thesis has a few extra references in it, although nothing overly new in itself.

McNulty uses phosphonium salts as the Ionic Liquid (PEG-400 was Ballini's choice for Ionic Liquids if you recall). Old Man Crumbie was more into nitro-ketones but he used the Amberlite-IRA-900 ion exchange resin as well, and there's a few AgNO2 blurbs and one about Phloroglucinol a la' Kornblum.

Once my PEG-400 arrives I'm jumping right in and will take pictures this time!



Attachment: Gabrielli PhD Dissertation - Copy.pdf (1.8MB)
This file has been downloaded 31 times

Attachment: crumbie1982 - Copy.pdf (777kB)
This file has been downloaded 25 times

Attachment: mcnulty2006 - Copy.pdf (173kB)
This file has been downloaded 25 times

View user's profile View All Posts By User
outer_limits
Harmless
*




Posts: 31
Registered: 3-3-2020
Member Is Offline

Mood: hybridized

[*] posted on 21-4-2020 at 21:42


Quote: Originally posted by draculic acid69
Firstly nice write-up. The price of silver salts and brominating ethanol make this a pretty expensive experiment.

I'd say that it's expensive only because of silver and it's salts prices. But sometimes you can buy some good quality silver fairly cheap and make silver nitrite on your own. So the costs could be reduced.
View user's profile View All Posts By User
draculic acid69
International Hazard
*****




Posts: 844
Registered: 2-8-2018
Member Is Offline


[*] posted on 22-4-2020 at 09:27


Quote: Originally posted by outer_limits
Quote: Originally posted by draculic acid69
Firstly nice write-up. The price of silver salts and brominating ethanol make this a pretty expensive experiment.

I'd say that it's expensive only because of silver and it's salts prices. But sometimes you can buy some good quality silver fairly cheap and make silver nitrite on your own. So the costs could be reduced.


I can get silver at a great price but buying silver and whatever else to make it takes time and the costs add up.i don't think it is as easy as nitrate.then making 6+ moles of bromoethane =more time and money.
View user's profile View All Posts By User
clearly_not_atara
International Hazard
*****




Posts: 1813
Registered: 3-11-2013
Member Is Offline

Mood: Big

[*] posted on 22-4-2020 at 09:39


Quote:
I can get silver at a great price but buying silver and whatever else to make it takes time and the costs add up.i don't think it is as easy as nitrate.then making 6+ moles of bromoethane =more time and money.

If there is one thing that seems to be the rule with nitroethane, it is that lazy people get no yield. The ethyl sulfate route works well when it is performed with a well-planned setup and careful technique. Antoncho's method is news to nobody.

Of course, the anethole route is still much easier. I plan to type that sentence approximately five thousand times over the next ten years.




[Edited on 04-20-1969 by clearly_not_atara]
View user's profile View All Posts By User
Johnny Windchimes
Harmless
*




Posts: 37
Registered: 28-5-2019
Member Is Offline

Mood: Sorry, it's my chimes~!

[*] posted on 23-4-2020 at 00:22


Quote: Originally posted by clearly_not_atara
Quote:
I can get silver at a great price but buying silver and whatever else to make it takes time and the costs add up.i don't think it is as easy as nitrate.then making 6+ moles of bromoethane =more time and money.

If there is one thing that seems to be the rule with nitroethane, it is that lazy people get no yield. The ethyl sulfate route works well when it is performed with a well-planned setup and careful technique. Antoncho's method is news to nobody.

Of course, the anethole route is still much easier. I plan to type that sentence approximately five thousand times over the next ten years.



500 ml of Anethole oil ordered as well:) It wasn't too bad of a price.

This thing, as you've posted it (and I've looked into as well), is rather "Hivey".... like you did mention. Nothing wrong with that at all, but some stuff there is a bit shaky on the details.

This one seems decently descriptive though. I can see the Nitropropene angles for their purposes, and I suppose by decomposing / hydrolysing at the end I'd essentially be "ruining" the proposed drug synthesis and ending back up with the 'starting' nitroethane, insofar as 'starting' can be ascribed.

I like the idea of using bisulfite to adduct out the aldehyde right in the same pot too, then filtering, seems slick.

If you add in the electro-synthesis of nitroethane (oh yes, I'm totally going after these 2 sentence throwaway blurbs from 1895 involving sodium propionate and sodium nitrite I saw in a google book search baby!!), I'll have my hands full!!

I've attached Hofer's Electro paper. It's in German. I'll havta have it translated to get the experimental procedure with a hope of recreating it, any helpful German volunteers?

PEG-400 first!





Screenshot_2020-04-16 Journal of the Chemical Society2 - Copy.png - 472kB Screenshot_2020-04-16 Science2 - Copy.png - 471kB


[Edited on 23-4-2020 by Johnny Windchimes]

Attachment: 10.1002@cber.18950280322 - Copy.pdf (676kB)
This file has been downloaded 34 times

[Edited on 23-4-2020 by Johnny Windchimes]

All I really got to go on for the electrolysis - Copy.jpg - 403kB

[Edited on 23-4-2020 by Johnny Windchimes]

This is the Nitroethane Section of Hofer's Paper - Copy.jpg - 317kB
View user's profile View All Posts By User

  Go To Top
