Author: Subject: [Q]: How can I remove this stopper from the distiller ?
metalresearcher
International Hazard
*****




Posts: 697
Registered: 7-9-2010
Member Is Offline

Mood: Reactive

[*] posted on 18-4-2020 at 09:19

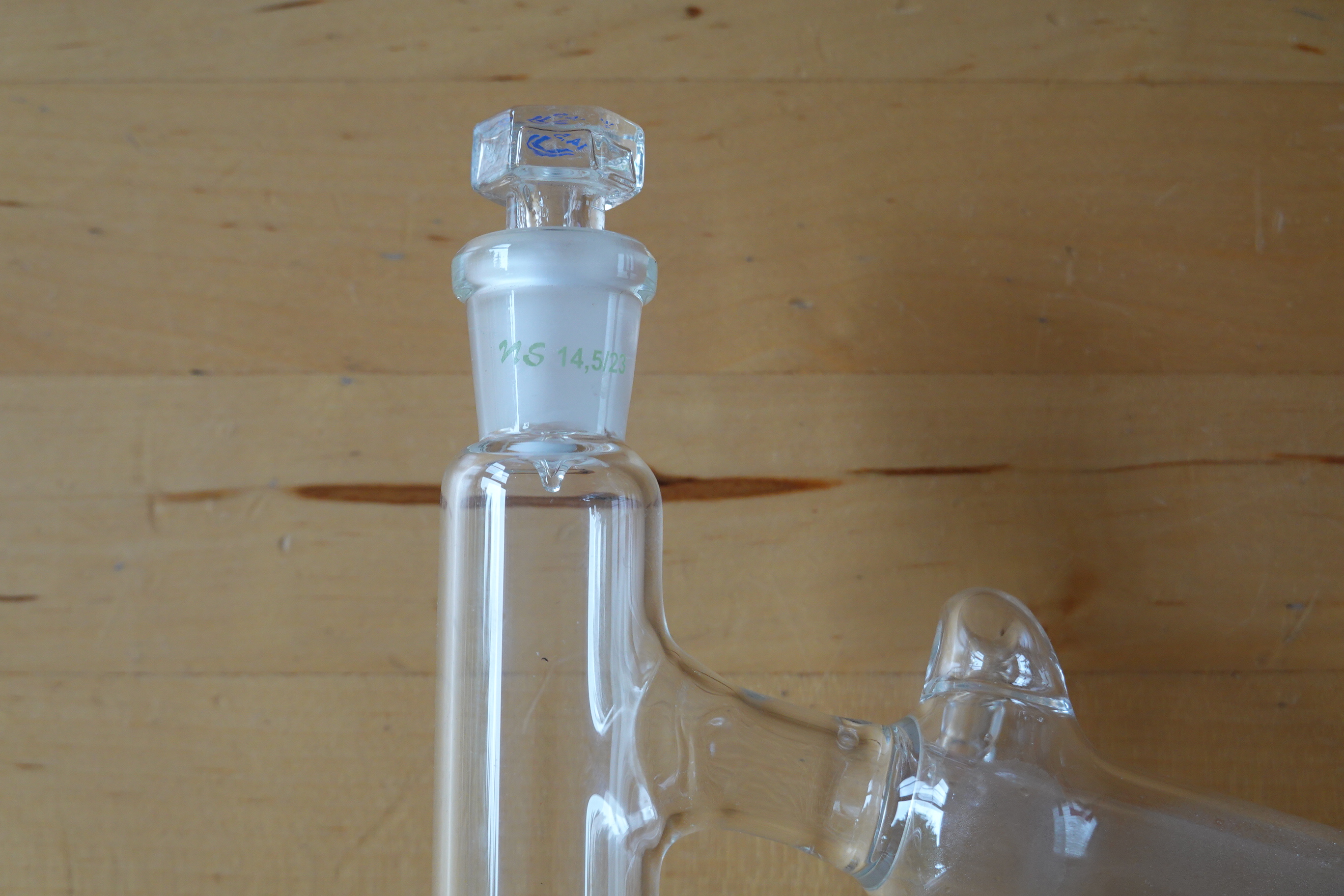

[Q]: How can I remove this stopper from the distiller ?


I have been using this distiller for years. It works great, particularly with the water cooling.
But I cannot use a thermometer in the top with the NS 14.5/23 plug, because I cannot remove the stopper. I am reluctant to use brute force, because the distiller will probably break.

Does anybody have ideas how to remove it ?


RX601279.JPG - 2.1MBRX601278.JPG - 1.8MB
View user's profile View All Posts By User
SWIM
International Hazard
*****




Posts: 970
Registered: 3-9-2017
Member Is Offline


[*] posted on 18-4-2020 at 10:19


I would remove it by rigorous application of the search engine on this site.

Wedge the search engine between the stopper and the neck of your glassware, and then enter an appropriate term in the search engine to get advice.

You may want to lubricate the search engine to some extent with WD-40 or other light penetrating oils, or even heat the search engine with a torch so it will expand slightly, loosening it if it's stuck.

Some people boil their search engines in carbonated water and this can work for smaller stuck parts according to the instruction sheet that comes with some microscale glassware kits.




View user's profile View All Posts By User
monolithic
National Hazard
****




Posts: 429
Registered: 5-3-2018
Member Is Offline

Mood: No Mood

[*] posted on 18-4-2020 at 11:06


Try heat (submerge in warm water to heat up the outer joint) and the wooden dowel method. Or maybe an acetone soak could help penetrate the joint.

http://www.ilpi.com/glassblowing/frozenglass.html

[Edited on 4-18-2020 by monolithic]
View user's profile View All Posts By User
Syn the Sizer
International Hazard
*****




Posts: 588
Registered: 12-11-2019
Location: Canada
Member Is Offline


[*] posted on 18-4-2020 at 13:08


Quote: Originally posted by SWIM
I would remove it by rigorous application of the search engine on this site.

Wedge the search engine between the stopper and the neck of your glassware, and then enter an appropriate term in the search engine to get advice.

You may want to lubricate the search engine to some extent with WD-40 or other light penetrating oils, or even heat the search engine with a torch so it will expand slightly, loosening it if it's stuck.

Some people boil their search engines in carbonated water and this can work for smaller stuck parts according to the instruction sheet that comes with some microscale glassware kits.


I tried each one of those methods and they all worked for me, but the best method was the hot water method suggested by monolithic. it has unstuck a couple stoppers for me. Then I started using lithium grease.
View user's profile View All Posts By User
mackolol
National Hazard
****




Posts: 457
Registered: 26-10-2017
Location: Poland
Member Is Offline

Mood: Psychedelic

[*] posted on 19-4-2020 at 02:25


You can as well take a spoon and knock the plug around, using some force, but not too much, not to break the stopper. You can heat it before doing so. Sometimes it works.
View user's profile View All Posts By User
Texium
Administrator
Thread Moved
19-4-2020 at 11:23
arkoma
Redneck Overlord
*******




Posts: 1635
Registered: 3-2-2014
Location: On a Big Blue Marble hurtling through space
Member Is Offline

Mood: ¡socialista!

[*] posted on 19-4-2020 at 12:41


Quote: Originally posted by SWIM
I would remove it by rigorous application of the search engine on this site.

Wedge the search engine between the stopper and the neck of your glassware, and then enter an appropriate term in the search engine to get advice.

You may want to lubricate the search engine to some extent with WD-40 or other light penetrating oils, or even heat the search engine with a torch so it will expand slightly, loosening it if it's stuck.

Some people boil their search engines in carbonated water and this can work for smaller stuck parts according to the instruction sheet that comes with some microscale glassware kits.



LMAO




Travel is fatal to prejudice, bigotry, and narrow-mindedness, and many of our people need it sorely on these accounts.
View user's profile View All Posts By User
j_sum1
Administrator
********




Posts: 5846
Registered: 4-10-2014
Location: Unmoved
Member Is Offline

Mood: Possessor of a tidy and organised lab. Now to mess it up again.

[*] posted on 19-4-2020 at 21:04


Allow time. It is easy to get impatient.
I had a sep funnel recently with a similar issue. I can't remember which solution finally worked but I do remember that leaving it for >24 hours soaking in something certainly helped.
View user's profile View All Posts By User
lordcookies24
Hazard to Self
**




Posts: 78
Registered: 2-1-2019
Location: pluto
Member Is Offline

Mood: curious

[*] posted on 24-4-2020 at 19:18


I had the same issue recently. It felt as if the the stopper and the joint became one. I passed the joint through warm water while applying my Grip Strengthâ„¢ to it for like 20 minutes hard enough that it felt it was gonna break. It eventually came off after a while but the stopper was only the the joint for like five months instead of years in your case. You could try to let solvent through the cracks such as acetone or alcohols like methanol, ethanol, or isopropanol. Well, good luck and try not to break it when forcing it off :D.
View user's profile View All Posts By User
RedDwarf
Hazard to Others
***




Posts: 160
Registered: 16-2-2019
Location: UK (North West)
Member Is Offline

Mood: Variable

[*] posted on 25-4-2020 at 05:57


Quote: Originally posted by SWIM
I would remove it by rigorous application of the search engine on this site.

Wedge the search engine between the stopper and the neck of your glassware, and then enter an appropriate term in the search engine to get advice.

You may want to lubricate the search engine to some extent with WD-40 or other light penetrating oils, or even heat the search engine with a torch so it will expand slightly, loosening it if it's stuck.

Some people boil their search engines in carbonated water and this can work for smaller stuck parts according to the instruction sheet that comes with some microscale glassware kits.


Even in the depths of despair a SWIM post has the ability to make me smile (and generally I also learn something as well!) - Thank you:)
View user's profile View All Posts By User
Refinery
National Hazard
****




Posts: 371
Registered: 17-2-2014
Member Is Offline

Mood: Still

[*] posted on 4-5-2020 at 00:10


I learned the hard way not to ever leave any glass joints coupled. Broke a couple.
View user's profile View All Posts By User
RogueRose
International Hazard
*****




Posts: 1581
Registered: 16-6-2014
Member Is Offline


[*] posted on 4-5-2020 at 01:21


I have a very nice rotovap multi port condensor with a plug stuck as well and I'm at a total loss as to how to get it out. If you (OP) finds something that works, let us know!
