Steam distillation tubing size?


Does the size matter when choosing glass tube for steam distillation? I would think that very small tube would cause pressure and velocity issues that causes the liquid to shoot up in the flask. I have available 3.5mm ID and 6mm ID glass tubing, I was preferring the latter.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 10-7-2020 at 00:09


Steam distillation is the same as normal distillation, the only difference is the water in the pot. 3.5mm could be fine if your setup is really small.
View user's profile View All Posts By User
CouchHatter
Hazard to Others
***




Posts: 130
Registered: 28-10-2017
Location: Oklahoma
Member Is Offline

Mood: enthused

[*] posted on 10-7-2020 at 03:58


Consistent rate of steam generation matters more. I have used 5/16"ID to great success, but if the steam generator is cooled before the pot, the tubing lead into the pot will build pressure slowly until one great big burst of steam comes over and belches into the receiver. In that instance I think the volume of small ID tubing would still be enough to make an appreciable splash but I haven't ever used small ID.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 10-7-2020 at 04:02


Steam distillation can be done without an external steam generator. Just put water in the pot, if you need more water than it can fit you either cool down and refill or use a claisen adapter with an addition funnel.
View user's profile View All Posts By User
Eddie Current
Hazard to Self
**




Posts: 78
Registered: 25-7-2018
Member Is Offline


[*] posted on 10-7-2020 at 04:42

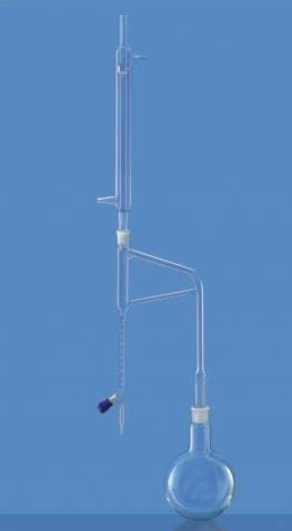

A clevenger apparatus (left) is a handy piece of equipment for steam distillations.

clevapp.PNG - 203kB clevrig.PNG - 62kB
View user's profile View All Posts By User
monolithic
National Hazard
****




Posts: 363
Registered: 5-3-2018
Member Is Offline

Mood: No Mood

[*] posted on 10-7-2020 at 07:01


Quote: Originally posted by CouchHatter
Consistent rate of steam generation matters more. I have used 5/16"ID to great success, but if the steam generator is cooled before the pot, the tubing lead into the pot will build pressure slowly until one great big burst of steam comes over and belches into the receiver. In that instance I think the volume of small ID tubing would still be enough to make an appreciable splash but I haven't ever used small ID.


Also an appropriate rate of steam generation. I've played around with an external steam generator (pressure cooker on a gas stove) and it's surprisingly easy to outrun the capabilities of a 300 mm Liebig condenser.
View user's profile View All Posts By User
Refinery
National Hazard
****




Posts: 371
Registered: 17-2-2014
Member Is Offline

Mood: Still

[*] posted on 10-7-2020 at 08:36


According to "laboratory methods of organic chemistry" a steam distillation with flask of water is sufficient for more volatile substances, but less volatile should be helped with external steam, and low volatility stuff can be distilled with superheated steam.

I was planning on putting just another flask with glass tubes and silicon stoppers and tubing into a CaCl2 bath to feed steam at constant rate to a flask filled with water and a substance to be distilled, and heat it to boiling.

I think I could try the clevenger because I can get one cheap. Although, it seems that many substances are actually heavier than water, and in this instance a dean-stark trap should work better.

EDIT: Clevenger seems to work both ways, so that it is.

[Edited on 10-7-2020 by Refinery]
View user's profile View All Posts By User
Mateo_swe
Hazard to Others
***




Posts: 219
Registered: 24-8-2019
Location: Within EU
Member Is Offline


[*] posted on 10-7-2020 at 12:01


A Clevinger apparatus works for both heavier than water and lighter than water distillates but is little more complicated to work with compared with a dean stark.
However not all clevinger is designed the same and can be used for both purposes.
They need to have a piece of glass tube below where the thin pipe attaches to the main tube close to the "knob".
If one is short of cash i would choose the clevinger as it can be used for both situations.
Chemplayer has a video explaining the function and how to operate it.
