Author: Subject: What kind of flange is this? telling schott from something else.
SWIM
International Hazard
*****




Posts: 767
Registered: 3-9-2017
Location: Foster city
Member Is Offline

Mood: I was full of piss and vinegar, now I'm just full of vinegar

[*] posted on 10-7-2020 at 10:59
What kind of flange is this? telling schott from something else.


So I've got this big old reaction vessel which was supposed to have a Schott flange, which I thought was a grooved flat flange.

However the flange isn't all flat.

It's got a 150 mm I.D., and the flange is about 20 mm with a groove, but the groove and the flat area around it if only about 8 mm wide, and the rest of the flange is actually angled down away from the opening at a shallow angle.

So is anybody familiar with flanges like this?
Do these mate to a flat head or is there some other kind of head or gasket these are used with?




They always say, "He lost his battle with cancer." But as Norm MacDonald pointed out, the cancer dies at pretty much the same time you do, so doesn't that make it a tie?


















View user's profile View All Posts By User
OldNubbins
Hazard to Others
***




Posts: 134
Registered: 2-2-2017
Location: CA
Member Is Offline

Mood: Comfortably Numb

[*] posted on 10-7-2020 at 12:06


Anything like this?


Capture.PNG - 20kB

This is a QVF Supra coupling
View user's profile View All Posts By User
SWIM
International Hazard
*****




Posts: 767
Registered: 3-9-2017
Location: Foster city
Member Is Offline

Mood: I was full of piss and vinegar, now I'm just full of vinegar

[*] posted on 10-7-2020 at 12:55


Yes, looks just like that.
Thanks.

Might be a little tougher finding a cheap head for this than I thought.











They always say, "He lost his battle with cancer." But as Norm MacDonald pointed out, the cancer dies at pretty much the same time you do, so doesn't that make it a tie?


















View user's profile View All Posts By User
Mateo_swe
National Hazard
****




Posts: 279
Registered: 24-8-2019
Location: Within EU
Member Is Offline


[*] posted on 11-7-2020 at 03:20


I would guess that some kind of gasket is to used with a surface like that.

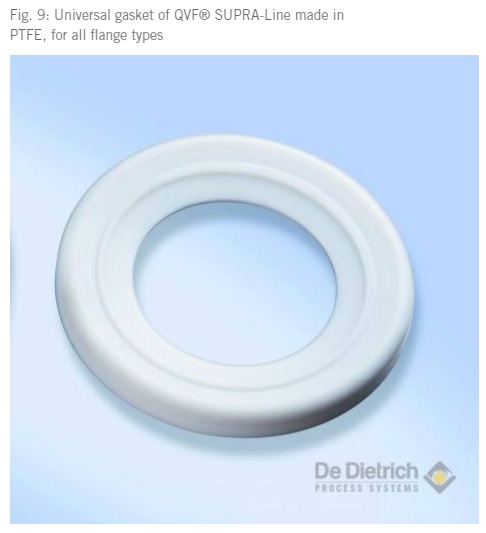

Here is a pic of a universal gasket of QVF® SUPRA-Line made in PTFE, for all flange types.

QVF Supra gasket.jpg - 33kB
