Metal glycinates


Rhodanide posted a photo on his Youtube channel some 3 weeks ago showing a red chromium glycinate and a blue copper glycinate salt, nice colors. I saw glycine was readily available on eBay at a good price and ordered some.

Brauer has a report on chromium glycinate:
“CrCl3-6H2O + 3H2NCH2COOH + 3NaOH = (H2NCH2COO)3Cr + 3 NaCl + 3 H2O
An aqueous solution of one mole of green chromium chloride hydrate and 3 moles of glycine is boiled while 3 moles of NaOH is added gradually. This gives a dark-red solution from which a violet compound separates. The latter is filtered off while the mixture is still hot. The filtrate, after cooling and standing in vacuum over H2SO4, deposits still more of the violet compound,
together with larger red crystals. After suction-filtration and drying, the heavy red crystals are separated from the lighter violet ones by slurrying with alcohol. In this way, both compounds are obtained in analytically pure state.
PROPERTIES:
Red crystals = chromium (III) glycinate, (H3NCH3COO)3Cr.
Violet crystals = so-called "basic" chromium (III) glycinate,
(NH3CH3COO)3Cr(OH)3Cr(OOCCH2NH3)3 • H3O”

I also came across a thesis that gave a short description of making chromium glycinate; this was different in that the sodium hydroxide was only added after the solution turned red. Also, Poor man’s chemist synthesized chromium glycinate on his Youtube channel but he had trouble separating the violet and red crystals. I also had various issues...

Attempt 1:
CrCl3 + 3C2H5NO2 = C6H12CrN3O6 + HCl
HCl + NaOH = NaCl + H2O

- 7g CrCl3 added to a beaker with 50ml water and stirred….note this was the anhydrous chromium salt (beautiful violet crystals).
- 11g glycine (10% excess) was dissolved in 50ml water; dissolved easily to a clear solution when hot.
- The CrCl3 did not want to dissolve, even after increasing the volume to 150ml and boiling! Reading up I saw that the anhydrous salt has low solubility in water….
- I added the solutions together hoping that as CrCl3 is consumed more will dissolve. Heat to 80 and stir. The bit of CrCl3 that did dissolve turned the solution black, but it was full of sparkles as the undissolved crystals swirled around. See photo.
- After 21 hrs stirring it looked very much the same, but when I dropped a few drops of the reaction solution on baking soda it bubbled showing that acid was forming, as it should.
- After 28 hrs there was still so much undissolved CrCl3. I then dropped in 0.1g of zinc, the idea being that the zinc will reduce a tiny amount of the chromium to chromium ii and the presence of chromium ii was said to greatly encourage the chromium iii to dissolve. That worked surprisingly well, after only 30 minutes all CrCl3 seemed to have dissolved.
- After 50 hrs stirring hot it was still very dark, see photo. The pH was down to 2 showing it was becoming more acidic. I started adding sodium hydroxide in intervals while checking the pH inbetween; after adding 4.8g the pH was around 7 which was almost the theoretical amount needed to neutralize the acid that formed. It was still black, so I added a gram of glycine.
- The color started to become lighter and signs of purple! I added another gram of sodium hydroxide which pushed the pH to 8-9 and left it stirring hot.
- At 68 hrs it was lavender-purple with suspended solids. See photo. I stopped and vacuum filtered. I got a very dark red-purple filtrate and purple / lavender remainder.
- The remainder was dried on a steam bath, the color did not change a lot and the dry yield was 6.6g of light purple powder.
- I tried to dry the remainder on a steam bath but it remained a dark red liquid. I then put it under vacuum and over dry NaOH in the desiccator for 2 days; this gave a dark purple-red solid but it was so contaminated with sodium chloride that I chucked it out.
So at this point I only had the purple / lavender compound, which Brauer calls the basic chromium glycinate. I decided to try a different way:

Attempt 2:
Cr(OH)3 + 3C2H5NO2 = C6H12CrN3O6 + 3H2O
- 11.2g glycine was dissolved in 50ml hot water giving a clear solution
- 4.7g Cr(OH)3 was added to a beaker and the glycine solution added. The chromium iii hydroxide formed a sea-green suspension when stirred.
- At this point my stirring hot plate was occupied with something else so it was boiled a bit and then left. But it did turn grey when boiled.
- The next morning it went onto the hotplate and stirred hot for 12 hours. 2 g glycine was also added (should be 20% or so excess glycine but I do not know if glycine comes in a hydrate or not?? The glycine I got is supposedly ‘food grade’).
- After 12 hrs the solution was only purple with no more sign of hydroxide remaining but it was left to stir hot will the next morning. See photo.
- It was vacuum filtered, and I got a purple remainder with a dark purple-red filtrate. The remainder was washed once and then onto the steam bath, and the filtrate boiled down to under 50ml (no crystals forming).
- The remainder gave 3.7g dry purple powder, quite similar to the previous result described above, and it was added to the same vial.
- The dark filtrate was placed in the desiccator for 12 hours. This gave a hard dark purple-red layer that had to be carefully chipped out of the crucible. See photo. I removed the flaky crystals in the centre first, they were lose from the rest and could have been excess glycinate.
- The remaining red and red-pink powder was grinded in a mortar. To a light red pinkish powder. It was then added to a beaker with 50ml ethanol, and stirred vigorously for 10 minutes.
- When the stirring was stopped, a dark ppt quickly settled while the supernatant solution was pink with suspended solids. The pale pink supernatant solution was decanted, and this washing with ethanol was repeated a total of 3 times. Each time the solution was slightly redder when stirred.
- After the final wash the ppt was transferred to a crucible and left in the under a steel dish to dry for 4 hours.

- Final yield was some 9.7g of reddish crystals. For sure there is still some of the purple mixed in, but I did not want to use more of my precious 99% ethanol (although it can of course be recycled).

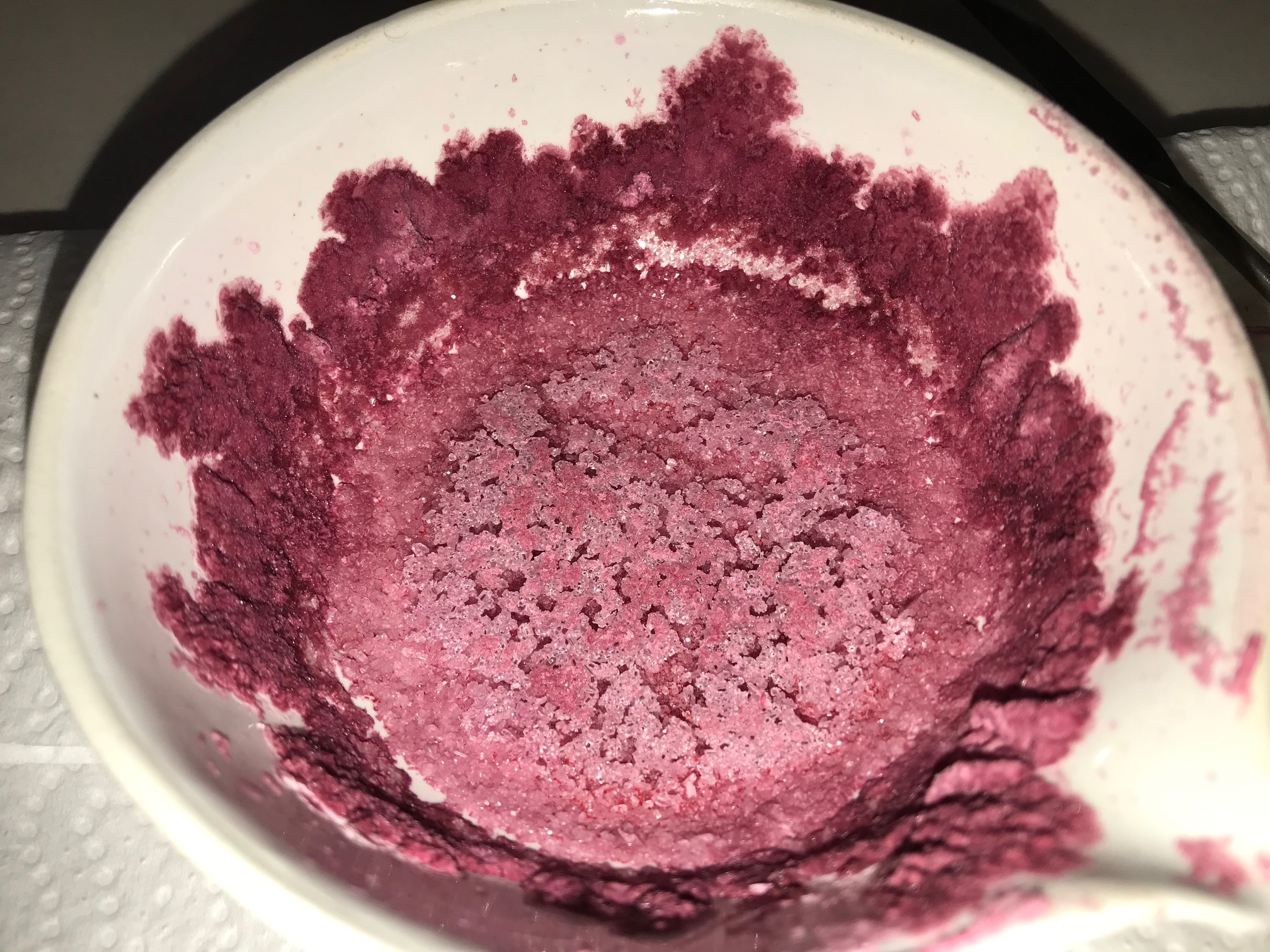

- Final photo shows the more red and much more soluble salt on the left (the suspected normal glycinate) and the much less soluble purple salt on the right (the suspected basic glycinate).

1 CrCl3 swirling.jpg - 852kB 2 All CrCl3 dissolved.jpg - 717kB 3 CrCl3 consumed to lavender solution.jpg - 701kB 4 2nd synth after desiccator.jpg - 843kB 4 Cr(OH)3 consumed to purple solution.jpg - 670kB 5 Cr normal and basic glycinates.jpg - 515kB
View user's profile View All Posts By User
DraconicAcid
International Hazard
*****




Posts: 3373
Registered: 1-2-2013
Location: The tiniest college campus ever....
Member Is Offline

Mood: Semi-victorious.

[*] posted on 3-8-2020 at 09:20


Nice! (I love the sparkly purple!)

A note about how the presence of chromium(II) helps the reaction along: chromium(III), with 3 d electrons, is extremely non-labile, so ligand exchange reactions are excruciatingly slow. Chromium(II), however, is not. A bit of zinc can reduce Cr(III) to Cr(II), the Cr(II) can then undergo rapid ligand exchange to coordinate with the glycinate anions, and then be oxidized back to an inert Cr(gly)3 complex.

Uncatalyzed rxn: Cr(3+) + 3 gly- --> Cr(gly)3 (very slow)

Catalyzed reaction: 2 Cr(3+) + Zn --> 2 Cr(2+) + Zn(2+) (fast)
Cr(2+) + 3 gly- --> Cr(gly)3(-) (fast)
Cr(3+) + Cr(gly)3(-) --> Cr(2+) + Cr(gly)3 (fast) And then the Cr(2+) goes back to step 2.

As a general rule, any complex in which the metal is either d3, or low-spin d6, will be inert to ligand exchange. This is why so much classical coordination chemistry was done on Cr(III) and Co(III)- the compounds were stable enough that isomers could be separated and characterized.




Please remember: "Filtrate" is not a verb.
Write up your lab reports the way your instructor wants them, not the way your ex-instructor wants them.
View user's profile View All Posts By User
Lion850
Hazard to Others
***




Posts: 248
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 4-8-2020 at 17:14


DraconicAcid thanks for the explanation. We need for a few beers one day, so much to learn :)

Copper glycinate shed report:
Copper glycinate was made using copper carbonate as the copper source. The expected equation:

CuCO3 + 2C2H5NO2 = C4H8CuN2O4 + CO2 + H2O.

- 15g glycine dissolved in a beaker in 75g water, with heat until a completely clear solution.
- 11g copper carbonate was added in small portions to the hot solution (near boiling) with stirring. These masses should put the glycine in slight excess, but I do not know if either the copper carbonate or glycine is a hydrate.
- The solution immediately turned blue, and each time CuCO3 was added gas bubbles was observed.
- Stirring was continued for 30 minutes after the last addition. At this point there was no more gas bubbles.
- After stirring was stopped the solution settled into a lighter blue ppt and a dark blue supernatant liquid. See photo.
- The solution was vacuum filtered, and the lighter blue remainder washed with room temp water in the funnel. The run-through was clear on the second wash.
- The light blue remainder was dried on a steam bath. The colour remained more or less the same, maybe got a bit lighter. Final yield of the light blue product was 16.5g. This powder is very light and sticks to the sides of the bottle.
- The dark blue filtrate was boiled down to <50ml and then transferred to the steam bath. Beautiful dark blue crystals started to appear (see photo).
- As the dark blue crystals dried on the steam bath, they started to turn green! See photo.
- The mix of blue and green crystals was left on a watch glass exposed to air overnight. The next morning it was mostly blue again. Yield of the dark blue soluble product was 4.5g.

Photo of final products attached. Total weight of both products is 21g, very close to the calculated yield which was 21.5g.

So, copper also seems to give 2 products when reacted with glycine just like chromium. A ligther blue salt with very low solubility in water, and a dark blue salt that is readily soluble. Photos online of copper glycinate usually shows the light blue product. But if one follow what Brauer says about chromium glycinate, then the light blue insoluble copper salt may be a basic glycinate, and the dark blue salt the normal glycinate. In which case my bottle labelling for the light blue product is wrong.

Advice from members knowledgeable with copper glycinate(s) will be greatly appreciated.

I am now busy with cobalt glycinate.


1 After reaction.jpg - 601kB 2 Filtrate crystalising on steam bath.jpg - 817kB 3 Filtrate crystals turning green.jpg - 805kB 4 Filtrate back to blue after air exposure.jpg - 477kB 5 Final products.jpg - 569kB
View user's profile View All Posts By User
DraconicAcid
International Hazard
*****




Posts: 3373
Registered: 1-2-2013
Location: The tiniest college campus ever....
Member Is Offline

Mood: Semi-victorious.

[*] posted on 4-8-2020 at 17:43


Copper does form two glycinates (a cis and a trans), although I thought they were both slightly different shades of blue.

https://webs.wofford.edu/hilljb/Chem%20323/CopperGlycine.pdf





Please remember: "Filtrate" is not a verb.
Write up your lab reports the way your instructor wants them, not the way your ex-instructor wants them.
View user's profile View All Posts By User
Lion850
Hazard to Others
***




Posts: 248
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 4-8-2020 at 18:05


Thanks for that! Doing a google image search for copper glycinate brings up all shades of blue and even green.

Do you perhaps have info on cobalt glycinate and nickel glycinate? What I see with cobalt so far is that it reacts different to copper and chromium: it makes just a single salt, deep maroon color when wet, and quite soluble in water. There is no second salt that participates out.

From what I see online glycine can come as a monohydrate - do you perhaps know if this is the common form?
View user's profile View All Posts By User
DraconicAcid
International Hazard
*****




Posts: 3373
Registered: 1-2-2013
Location: The tiniest college campus ever....
Member Is Offline

Mood: Semi-victorious.

[*] posted on 4-8-2020 at 18:34


I seem to recall I once made Co(gly)3. I'd have to check my notes.

My attempt at nickel glycinate was an utter failure. Nickel readily forms a deep blue complex with glycinate, which is quite stable (almost no precipitation of Ni(OH)2 with xs hydroxide), but I was unable to get any kind of solid from it. I'm pretty sure it's Ni(gly)3(-), but neither sodium, potassium nor tetraethylammonium were suitable as a counterion. Adding methanol to an aqueous solution of it just gave a more dilute solution; adding isopropanol gave me two layers.

I don't know if glycine is generally hydrated or not.

A cite for Co(II) salts of amino acids:
https://www.researchgate.net/publication/253872755_Synthesis...

Co(III) glycinate:
https://pdfs.semanticscholar.org/2c4c/4778dcf2788457fa8dc547...

[Edited on 5-8-2020 by DraconicAcid]




Please remember: "Filtrate" is not a verb.
Write up your lab reports the way your instructor wants them, not the way your ex-instructor wants them.
View user's profile View All Posts By User
Lion850
Hazard to Others
***




Posts: 248
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 5-8-2020 at 23:02


Nickel glycinate report:

The starting materials were nickel carbonate (which I made some time ago, see it briefly mentioned in

http://www.sciencemadness.org/talk/viewthread.php?tid=155359...

and glycine powder (food grade). The expectation was that the reaction would proceed as follows:

NiCO3 + 2C2H5NO2 + H2O = C4H8N2NiO4.2H2O + CO2

- 15g glycine dissolved in 120g water, heated and stirred into a clear solution
- Start adding nickel carbonate to the hot glycine solution. Initially a gram at a time. A reasonably vigorous reaction ensued with gas bubbling off. And the solution turned blue. See photo. (Unlike when I did copper, with nickel the carbonate dissolved completely without forming any ppt).
- The NiCO3 was added in gram quantities and each time I waited until the foaming subsided before adding more. As the amount added increased the reaction slowed down.
- Eventually the 10th and 11th gram took a while to react completely (some 30 and then 40 minutes) and after adding the 12th gram of NiCO3 I reduced the heat a bit and left the solution to stir overnight. An watch glass on top of the beaker caused the steam to condense and drop back (at least when the solution is around 50C).
- The next morning all the NiCO3 was gone but I anyway increased the heat and left it another 2 hours. I did not add any more, as 12g was the stochiometric amount.
- I then removed the watch glass to let it boil down to just under 50ml. See photo, the color was so deep blue that on the photo it looks black.
- The solution was filtered straight into a crucible. There was no remainder on the filter paper. The crucible was placed on the steam bath (see photo).

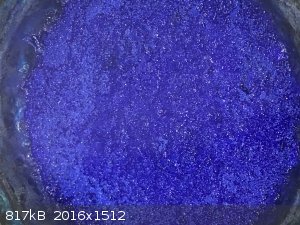

- When I next returned to the shed beautiful dark blue crystals were forming. See photo. The crucible was on the steam back for some 6 hours in total, at that point the weight had stabilized for the last hour, and it was also in the ballpark of the theoretical mass. To my relief the color did not change when drying!
- The crystals were one solid hard layer in the crucible; difficult to remove. It came lose as one piece (see photos of both sides).
- I broke it up in a mortar, just small enough to be bottled. See photos of the final product in the vial.

Mass of the recovered product was 21g, theoretical for a dihydrate was 24g. I looked for a picture of nickel glycinate online but could not find any. I looked around with google and on Wikipedia (which has seperate pages for nickel organic salts as well as nickel inorganic salts) trying to see which other nickel compounds are blue and while there are some it seems blue nickel compounds are not that common? Happy to be corrected if they are!

So while copper makes 2 glycinates in the same reaction with different properties, nickel (like cobalt) makes just one which is quite soluble. And this compound also seems very stable, it did not change color when dried on the steam bath and it does not dissolve easily in concentrated HCl, unlike copper glycinate (my go-to when cleaning the crucibles and mortar is always conc. HCl).

If any member if familiar with nickel glycinate or can find a photo I would really like to see it looks similar.


1 Nickel source.jpg - 477kB 2 NiCO3 reacting with glycine.jpg - 571kB 3 Final solution.jpg - 461kB 4 On steam bath.jpg - 478kB 5 Crystallising.jpg - 546kB 6 Dried crust.jpg - 769kB 7 Dried crust bottom.jpg - 647kB 8 In vial.jpg - 414kB 9 Label.jpg - 477kB
View user's profile View All Posts By User
DraconicAcid
International Hazard
*****




Posts: 3373
Registered: 1-2-2013
Location: The tiniest college campus ever....
Member Is Offline

Mood: Semi-victorious.

[*] posted on 5-8-2020 at 23:17


This is the triglycinatonickel(II) anion in solution- it's very blue. If you have six oxygen donors on nickel(II), you get a green complex; if you have six nitrogen donors, you have a purple complex. If you have some of each in an octahedral geometry, you get blue.

I wouldn't be surprised if your glycinate isn't simply a glycinate, but a mixture of complexes.

YINL4499.JPG - 189kB




Please remember: "Filtrate" is not a verb.
Write up your lab reports the way your instructor wants them, not the way your ex-instructor wants them.
View user's profile View All Posts By User
Lion850
Hazard to Others
***




Posts: 248
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 6-8-2020 at 00:31


DraconicAcid - thanks mate. The color seems right I think. I'll search some more for a picture of the compound online. By the way, the bits that was left in the crucible did eventually dissolve in the concentrated HCl, just slower than the copper and chromium glycinates / complexes.

View user's profile View All Posts By User
Lion850
Hazard to Others
***




Posts: 248
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 6-8-2020 at 23:00


Cobalt glycinate shed report:

I actually completed cobalt before nickel but the product took days to dry in the desiccator.

I found more than 1 formula for cobalt glycinate online but the one that most often came up is C4H10CoN2O4. I then had problems getting an equation into my stoichiometry app and had to settle for the following, which looks weird as I would not have expected oxygen.

2CoCO3 + 4C2H5NO2 = 2C4H10CoN2O4 + 2CO2 + O2

First run:
- 16.5g glycine added to a beaker with 110g water and heated to dissolve in a clear solution.
- Cobalt carbonate was added a 4g portions. The first two resulted in a obvious reaction with gas bubbling off. See photo. The reaction was much less obvious when the 3rd portion (taking the total to 12g) was added. The beaker was left to stir overnight.
- The next morning the solution was vacuum filtered. The filtrate was very dark purple and there was a pink remainder.
- The remainder was dried on a steam bath and gave 5g of pink powder. Up to this point I assumed the remainder and the compound left in the filtrate was two different glycinates as was the case with chromium and copper, but it did not look right. The remainder was a much lower portion than was previously the case. I tested the dried pink remainder with hydrochloric acid and it behaved just like a carbonate! I then assumed that cobalt made just one soluble glycinate complex and that the leftover remainder was probably excess cobalt carbonate.
- The filtrate took some 3 days to dry in a desiccator under high vacuum and over NaOH. Again, different from the copper and chromium soluble glycinate portions. The final dry product was like a rock crust and well stuck to the crucible. See photo of the final product, purple and pink color.

Second run:
I decided to have another run trying different ratios. I took into account the apparent excess CoCO3 in run one which told me the ratio of glycinate to cobalt carbonate should be more or less 2:1.
- 14g glycinate added to beaker with 100g water, heat near to boil.
- Add 7g CoCO3 slowly. Pink swirling solution.
- Dark solution after some 30 minutes of hot stirring.
- Add 1.8g CoCO3, pink solution (total 8.8g)
- Still pink after 30 minutes. Add 1g glycine.
- At some 45 min intervals add another 1.5g and then 1.1g glycine for total 17.6g.
- Still some hints of pink. Add 1g glycine and left stirring hot overnight.
- Next morning, a black solution. Vacuum filter hot. No remainder.
- Boil down to approx 45ml. Decided to evaporate further on steam bath to see if a different color is obtained compared to run 1 that was dried in a desiccator. See photo of the product coming out of solution on the steam bath.
- After some total 8 hours drying on the steam bath 23g of dry pink-purple product was recovered. The appearance was quite the same as the product from the desiccator so it does not seem to be much affected by drying at higher steam bath temperature.

Google image search brings up a picture of cobalt glycinate which is purple-ish; the color I got seems to be in the ball park.

EDIT: I found a paper "Simultaneous Preparation of Facial and Meridional Isomer of Cobalt-Amino acid Complexes and their Characterization" (that I will try to link) that gives the following formula for a cobalt glycinate complex: C6H12CoN3O6

If I then consider the following equation:

O2 + 12 C2H5NO2 + 4 CoCO3 = 4 C6H12CoN3O6 + 4 CO2 + 6 H2O

the mass of glycine and cobalt carbonate is 10:5.2 so almost exactly what I suspected after the first run. It also says the color is pink or purple depending on hydration, and thus how it was dried. They use a different method to make the compound, also involving a carbonate route, but much more complex.




1 CoCO3 reacting with glycine solution.jpg - 610kB 2 First run final dry hard product.jpg - 677kB 3 Second run drying on steam bath.jpg - 516kB

Attachment: Cobalt-Amino acid Complexes.pdf (160kB)
This file has been downloaded 14 times

[Edited on 7-8-2020 by Lion850]
View user's profile View All Posts By User
B(a)P
National Hazard
****




Posts: 373
Registered: 29-9-2019
Member Is Offline

Mood: Confined

[*] posted on 7-8-2020 at 01:48


I have really been enjoying this thread, thank you very much!
View user's profile View All Posts By User
Lion850
Hazard to Others
***




Posts: 248
Registered: 7-10-2019
Location: Australia
Member Is Offline

Mood: Great

[*] posted on 7-8-2020 at 02:33


Hi B(a)P thank you! Even though there may not be a great interest in glycinates I think it is good to record what I did and got in case someone looks for info one day. Seems a reasonably straightforward way for the home amateur to get interesting coloured compounds. My favourite so far is probably the blue nickel salt. I also need to revisit chromium to see how to get the red soluble salt more pure.
View user's profile View All Posts By User

  Go To Top
