How to seal a threaded stainless steel retort ?

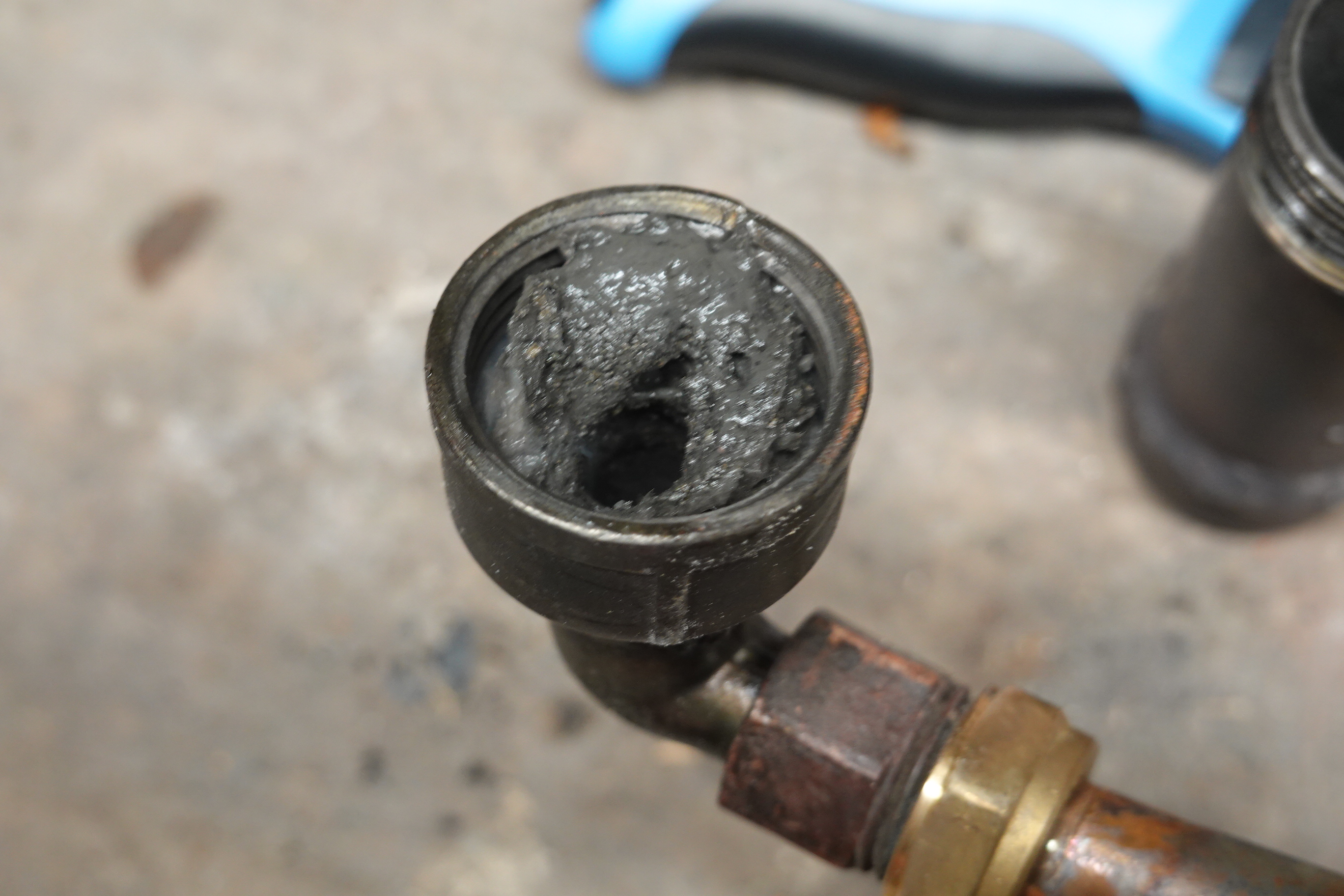

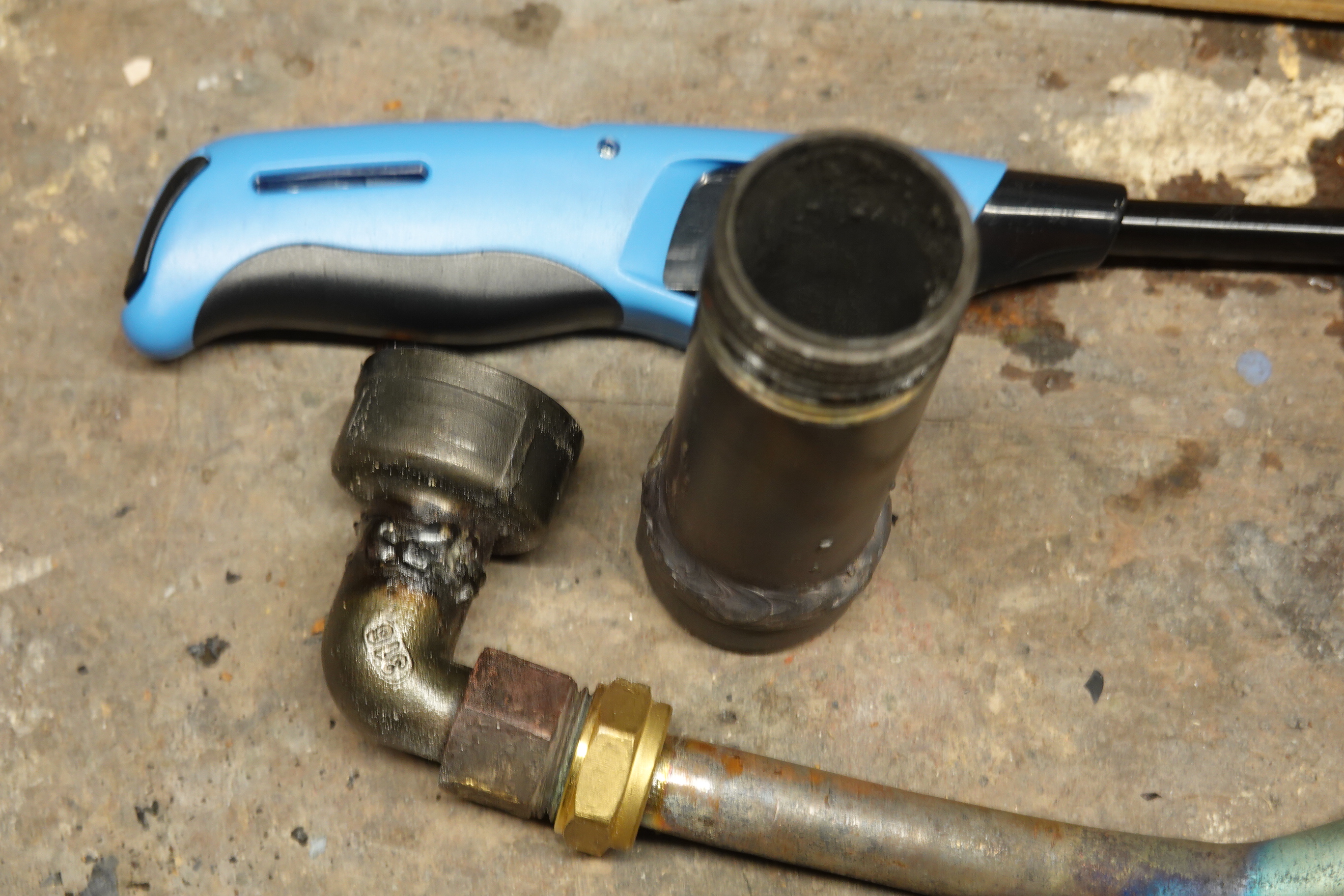

I have a stainless steel retort made of threaded 1" pipe with a bottom welded on and a screwable top with 1" pipe thread from which a narrow pipe goes down.
I attempted to seal the thread using ceramic wool (heat resistant and inert) but despite this, it leaks considerably, despite barely overpressure in it (using for distilling K metal) The threaded top of the retort gets 700 C at most.

Is there a way to seal a thread gas tight ?

[Edited on 2020-10-14 by metalresearcher]

RX606842.JPG - 2.1MBRX606843.JPG - 1.7MB
View user's profile View All Posts By User
unionised
International Hazard
*****




Posts: 5124
Registered: 1-11-2003
Location: UK
Member Is Offline

Mood: No Mood

[*] posted on 14-10-2020 at 11:14


I know they silver plate SS threads to stop them sticking.
I wonder if that would also improve the seal.
View user's profile View All Posts By User
RedDwarf
Hazard to Others
***




Posts: 166
Registered: 16-2-2019
Location: UK (North West)
Member Is Offline

Mood: Variable

[*] posted on 14-10-2020 at 12:59


Sodium Silicate?
View user's profile View All Posts By User
Panache
International Hazard
*****




Posts: 1290
Registered: 18-10-2007
Member Is Offline

Mood: Instead of being my deliverance, she had a resemblance to a Kat named Frankenstein

[*] posted on 14-10-2020 at 22:24


tapered threads perhaps, the british swore by them forwever. I note that superheated steam lines are very thick steel, i always assumed this was for protection, whatever but when i was thinking about this (i have no direct experience in this kind of problem btw), my first thought was that if your male thread was of considerablely thicker gauge/wall thickness than the female, by virtue of the materials expansion under heat it would crimp or seal in the threads better. the superheated steam parts/fittings could provided this for you.
View user's profile View All Posts By User
Fulmen
International Hazard
*****




Posts: 1714
Registered: 24-9-2005
Member Is Offline

Mood: Bored

[*] posted on 15-10-2020 at 04:13


Exhaust assembly paste might do the trick.



We're not banging rocks together here. We know how to put a man back together.
View user's profile View All Posts By User
Morgan
International Hazard
*****




Posts: 1694
Registered: 28-12-2010
Member Is Offline

Mood: No Mood

[*] posted on 15-10-2020 at 07:10


Metal to metal seals reminded me of a pressure cooker that achieves a good seal. I bought the large one like this for sterilization of mushroom media years ago but it's a curious question if there are any simple steel vessel methodologies that are designed to seal well at high temperatures?

"No gasket pressure cookers use a secure metal-to-metal design that is extremely tight sealing."
https://www.corriecooks.com/top-pressure-cookers-that-dont-u...
View user's profile View All Posts By User
WolfPack
Harmless
*




Posts: 9
Registered: 3-2-2013
Member Is Offline

Mood: Chelating

[*] posted on 15-10-2020 at 11:53


Not sure about this, but maybe you can apply here the metal-to-metal seal concept used in a specific type of ultra high vacuum flange called ConFlat (CF).



The basic idea is that you've got a flange on each side of the metal pipes that you want to join, usually made out of stainless steel, these flanges having a series of holes for bolts. Sometimes the holes of one of the flanges is threaded (known as flanges "with tapped holes"), otherwise nuts are required. Between them, a copper gasket is inserted. On the side that faces the other flange, they have a concentric protruding ring (called knife edge on the image below) that embeds into the copper as you tighten the bolts, thus deforming it.



This means that you usually need to replace the copper gasket everytime you open the joint, if you want to make sure it is perfectly airtight. Sometimes they are reused a couple of times but this is discouraged by the manufacturers - I have never taken chances anyway.

This kind of flanges is available in small sizes, which are used to connect feedthroughs for whatever process you're doing on your UHV system (e.g. chemical vapor deposition), so maybe there is one useful to you.

Also you need to know that, especially for medium to large sizes, you need to tighten the bolts in a given pattern (have a look at this website), and even use a torque wrench, in order to uniformly apply pressure over the copper gasket.

One last thing about CF: on the first image, you might notice that, on the left side, there are both a flange and an insert. This is because the full left-side assembly is rotatable. Once the flange is tightened, the insert can rotate. But you don't need to use these, it depends on your system. Both of them are usually fixed-type ones.

Copper melts at 1.085 °C, so it would sustain the temperatures on your vessel. I was curious if it would form an alloy with potassium and according to Pelton, A.D. The Cu−K (Copper-Potassium) system. Bulletin of Alloy Phase Diagrams 7, 231 (1986). https://doi.org/10.1007/BF02868995 :

Quote:

Because solubilities are expected to decrease proceeding from Li to Cs, the solubility of Cu in liquid K is expected to be much less than 1 at.% at the melting point of Cu. Therefore, liquid Cu and K are assumed to be nearly completely immiscible.


Good luck with your project! ;)
View user's profile View All Posts By User
1KEE
Harmless
*




Posts: 25
Registered: 23-2-2020
Member Is Offline


[*] posted on 15-10-2020 at 12:16


I was thinking about copper as a gasket like that con-flat, but I'm afraid at that temperature the copper would become very soft. At room temperature, mechanically deforming copper hardens it (work hardening) and is annealed (re-softened) at 500 to 700 deg C.
View user's profile View All Posts By User
njl
National Hazard
****




Posts: 609
Registered: 26-11-2019
Location: under the sycamore tree
Member Is Offline

Mood: ambivalent

[*] posted on 16-10-2020 at 08:55


Why not seal with teflon tape?
View user's profile View All Posts By User
metalresearcher
National Hazard
****




Posts: 757
Registered: 7-9-2010
Member Is Offline

Mood: Reactive

[*] posted on 16-10-2020 at 09:55


Quote: Originally posted by njl
Why not seal with teflon tape?

Teflon tape at 700 C ? Forget it. The copper gasket idea seems nice, but I have no flange mount, but a threaded mount.
I already tried with Na2SiO3 with water which I painted on the thread and then I closed it, filled with some wood. Wood decomposition is an ideal leakage test as it smokes (and stinks) well. It appeared that it not leaked at the thread. I'll do another test using some stove cement to be applied with a caulking gun (I repair my melting furnaces with it and withstands very well even till 1500 C).
And I'll test with a small amount of zinc which vaporizes at 906 C and the vapors are clearly visible. Bu a very small amount suffices.


[Edited on 2020-10-16 by metalresearcher]
View user's profile View All Posts By User
Chemetix
Hazard to Others
***




Posts: 375
Registered: 23-9-2016
Location: Oztrayleeyah
Member Is Offline

Mood: Wavering between lucidity and madness

[*] posted on 16-10-2020 at 12:24


Carbon tape might work? A graphite impregnated silica thread wound onto the thread could also be an option.
View user's profile View All Posts By User
Fyndium
International Hazard
*****




Posts: 1192
Registered: 12-7-2020
Location: Not in USA
Member Is Offline


[*] posted on 16-10-2020 at 12:44


Carbon powder, mixed with sodium silicate might work. It clogs the threads by two different materials that are thermally stable at those temps. Below 1000C should be rather easy still.

I've got a similar problem when I get to use my SS welded custom made pot with NPT for attempting to distill sodium metal from carbonate carboreduction. I initially thought that little leaks may not be an issue, if they are minor and they might clog themselves with any sodium compound that is formed during the reaction, but if not, those would be the first line I'd try out.

As a side note, when I was making CaO, I used a metal rod to stir the calcium carbonate, but I soon found out it was made of brass, because the rod just kept going into the pot, and I quickly realized it was melting as I pushed it. It was so dirty I thought it was steel, but doh.
View user's profile View All Posts By User
metalresearcher
National Hazard
****




Posts: 757
Registered: 7-9-2010
Member Is Offline

Mood: Reactive

[*] posted on 17-10-2020 at 00:17


Quote: Originally posted by Fyndium
Carbon powder, mixed with sodium silicate might work. It clogs the threads by two different materials that are thermally stable at those temps. Below 1000C should be rather easy still.

I've got a similar problem when I get to use my SS welded custom made pot with NPT for attempting to distill sodium metal from carbonate carboreduction. I initially thought that little leaks may not be an issue, if they are minor and they might clog themselves with any sodium compound that is formed during the reaction, but if not, those would be the first line I'd try out.

As a side note, when I was making CaO, I used a metal rod to stir the calcium carbonate, but I soon found out it was made of brass, because the rod just kept going into the pot, and I quickly realized it was melting as I pushed it. It was so dirty I thought it was steel, but doh.

Na2SiO3 paste mixed with C(harcoal) powder might be a good idea. I'll try 'painting' it with a brush onto the thread.

But you attempted Na2CO3 + C ? I tried it as well as a proof of concept. I tried distilling both Na and K as I saw nice yellow resp. purplish flames, but was not able to capture it and the retort (was still mild steel) almost melted as it requires 1200 C and the temp (propane flame) went well over it. What kind of retort are you using ?

[Edited on 2020-10-17 by metalresearcher]
View user's profile View All Posts By User
Panache
International Hazard
*****




Posts: 1290
Registered: 18-10-2007
Member Is Offline

Mood: Instead of being my deliverance, she had a resemblance to a Kat named Frankenstein

[*] posted on 17-10-2020 at 13:42


Wait a sec...why not simple graphite powder, locksmiths stuff.
View user's profile View All Posts By User
Fyndium
International Hazard
*****




Posts: 1192
Registered: 12-7-2020
Location: Not in USA
Member Is Offline


[*] posted on 24-10-2020 at 14:12


It should not need over 1200C temps. I haven't yet had a chance to make that reaction due to supply shortage, and it is a good chance it might go as far as next year.

I have thick walled stainless steel vessels for these purposes. They are welded out of min 3mm 316 steel, which takes heat pretty well. Goes bright yellow with no issue. Haven't measured actual temps, though.
View user's profile View All Posts By User
BromicAcid
International Hazard
*****




Posts: 3241
Registered: 13-7-2003
Location: Wisconsin
Member Is Offline

Mood: Rock n' Roll

[*] posted on 24-10-2020 at 14:23


I've used these types of copper anti-size / sealants before with success

https://www.jcwhitlam.com/Product/7/546/190#




Shamelessly plugging my attempts at writing fiction: http://www.robvincent.org
View user's profile Visit user's homepage View All Posts By User
nux vomica
Hazard to Others
***




Posts: 267
Registered: 18-7-2013
Member Is Offline

Mood: No Mood

[*] posted on 26-10-2020 at 01:32


Welding it shut , it is only way for a amateur to get a guaranteed seal , or keep threads far enough away from heat that expansion wont cause leaks , but you are risking the product condensing in retort by second method .



My YouTube channel Nux's channel
View user's profile View All Posts By User
Fantasma4500
International Hazard
*****




Posts: 1681
Registered: 12-12-2012
Location: Dysrope (aka europe)
Member Is Offline

Mood: dangerously practical

[*] posted on 29-10-2020 at 08:08


smear on some metal that stays liquid at 700*C, or maybe silver solder it (supposing thats possible) the top shouldnt reach 700*C nor melt the silver
otherwise some viscous grease might do the trick

as for these constructions, you should instead go for flanges, go to scrap yard and you might find some flanges, making your own flange isnt too difficult, you just get 2 plates, weld them on sides, drill holes all the way around and then if its made perfectly it should be airtight, otherwise some soft metal could be used to squash in between, silicone is typically used for these applications but thats lower temperature. silicone might still work for a while, i know one guy who managed to use silicone hose for distilling WFNA- it lasted for a run or two

maybe you should just scale up the reaction chamber and weld the thing shut, should be easy to pry apart if youre going with flange design and a cutting disc




~25 drops = 1mL @dH2O viscocity - STP
Truth is ever growing - but without context theres barely any such.

https://en.wikipedia.org/wiki/Solubility_table
http://www.trimen.pl/witek/calculators/stezenia.html
View user's profile View All Posts By User
zed
International Hazard
*****




Posts: 2281
Registered: 6-9-2008
Location: Great State of Jefferson, City of Portland
Member Is Offline

Mood: Semi-repentant Sith Lord

[*] posted on 27-11-2020 at 18:21


700 C, is hotter than the hinges of Hell.

I had an idea, but you are going awfully hot.

I have a pressure reactor with a screw-down ring cap.

But, the cap itself, has additional bolts around its rim.

These bolts, apply pressure that is utilized to seal an inner gasket.

https://www.parrinst.com/products/non-stirred-pressure-vesse...

This isn't a bad idea. Flat metal plate, and gasket. Over end of pipe. Pipe cap, screwed down over that. Bolt protruding through pipe cap, to produce direct pressure to sealing unit.
Pick your own gasket material.

https://www.google.com/search?q=pressure%20reactor%20diagram...
Though on reinspection, your device doesn't have much room for modifications.. Bigger?

[Edited on 28-11-2020 by zed]
View user's profile View All Posts By User
Yo-Yo
Harmless
*




Posts: 26
Registered: 27-5-2012
Member Is Offline

Mood: No Mood

[*] posted on 28-12-2020 at 12:38
