Author: Subject: Condenser overpowering and joint size?
Fyndium
International Hazard
*****




Posts: 1124
Registered: 12-7-2020
Location: Not in USA
Member Is Offline


[*] posted on 25-3-2021 at 13:36
Condenser overpowering and joint size?


I've gotten twice in a situation when 24* condenser flooded, and I noted that the condenser length doesn't have to be much more than 200, tops 300mm, after when the height doesn't matter anymore because reflux will choke the throat and cause further issues. When I got 4-necked flask, I just added a second condenser, but I began thinking that for larger glassware it would be very clever to pre-emptively obtain a vessel with at least one 45/40 or larger joint. Further issue is, that it seems that no condensers are made for larger joints than 29*, so it effectively renders the condenser ineffective - unless one would obtain a claisen for two or more 29* condensers. Of course, the original idea of using multiple condensers would work if one can get flasks with enough necks, four, five or even more. The devices are generally fitted with stirrer, thermoprobe, condenser and an addition port, so no more room would be left. Adding claisen to 24* would still keep the choking issue.

Any ideas, apart from cooling the flask itself?
View user's profile View All Posts By User
dawt
Hazard to Self
**




Posts: 66
Registered: 9-5-2016
Location: EU
Member Is Offline

Mood: fluorescent

[*] posted on 25-3-2021 at 14:15


Quote: Originally posted by Fyndium
it seems that no condensers are made for larger joints than 29*


Nah, there's plenty of condensers in 45/50 and larger, and you can find cheap ones on eBay for use with soxhlet extractors, rotavaps etc. https://www.ebay.com/sch/12576/i.html?_from=R40&_nkw=con...




Check out my ELN - and feel free to register and host your own lab notebook there!
View user's profile Visit user's homepage View All Posts By User
Fyndium
International Hazard
*****




Posts: 1124
Registered: 12-7-2020
Location: Not in USA
Member Is Offline


[*] posted on 25-3-2021 at 14:52


The soxhlets have very narrow reflux gate, much smaller than 24* joint.
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3113
Registered: 8-2-2015
Location: UK ... on extended Holiday in Malaysia
Member Is Online


[*] posted on 25-3-2021 at 14:52


why do you need a rapid boiling for refluxing ?
would it not be sufficient to operate at a lower boiling rate
- the temperature will be the same.





CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
Fery
International Hazard
*****




Posts: 545
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 25-3-2021 at 22:46


https://sklep-chemland.pl/en/szklo-laboratoryjne/chlodnice/c...

condenser acc. to Dimroth length 600mm 2x 45/40 glass connector
08-183.203.65
€38.10 Excl. Tax
€46.86 Incl. Tax
Availability in stock: 29




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
zed
International Hazard
*****




Posts: 2242
Registered: 6-9-2008
Location: Great State of Jefferson, City of Portland
Member Is Offline

Mood: Semi-repentant Sith Lord

[*] posted on 26-3-2021 at 00:28


Only condensers I can recall having flooding problems with, have been Grahams.

But, I know either flooding or overwhelming, can be problems.

Bigger flasks; maybe bigger problems. Also, really vigorous reaction conditions.

Not much call for 22Liter reaction flasks around here, but I'm pretty sure a 24/40 condenser couldn't handle the reflux output.

In this example, a vigorous Fe/HCl reduction requires two condensers, to keep the reflux in check. Of course, the reagents in question, aren't very obtainable anymore.

But, similar reaction conditions might be applied to the reduction of a Nitrobenzene or Nitrotoluene.

http://www.orgsyn.org/demo.aspx?prep=CV4P0573

[Edited on 26-3-2021 by zed]
View user's profile View All Posts By User
Fyndium
International Hazard
*****




Posts: 1124
Registered: 12-7-2020
Location: Not in USA
Member Is Offline


[*] posted on 26-3-2021 at 00:59


It was actually 2-liter flask I have got both of these issues. First one I solved by using water bath to buffer the temp a bit earlier when the reaction kicks off so it almost go without reflux at all, and the other one can probably be solved by changing reaction kinetics.

I want zero risk of vapor/liquid/reaction contents shooting out of a vessel. Some consider geysers an experience, I consider them a catastrophic failure.

Ah, the good old Chemland. Seems to be always saving the day.
View user's profile View All Posts By User
greenlight
International Hazard
*****




Posts: 684
Registered: 3-11-2014
Member Is Offline

Mood: Energetic

[*] posted on 26-3-2021 at 07:32


I have had a violent reflux before using a 2 litre flask with a 19/26 300 mm9 condenser on top and a large amount of vapour was escaping. I put another condenser on top of the initial one and connected the two with a tube and ran them both from the one pump. Fixes the issue of escaping gases but wont solve the problem of geysers .

[Edited on 26-3-2021 by greenlight]




The only use for an atomic bomb is to keep somebody else from using one.
George Wald
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3113
Registered: 8-2-2015
Location: UK ... on extended Holiday in Malaysia
Member Is Online


[*] posted on 26-3-2021 at 23:42


Would an anti-splash/bump head/adapter be worthwhile?
https://www.google.com/search?q=anti-splash/bump+head/adapte...




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
Fyndium
International Hazard
*****




Posts: 1124
Registered: 12-7-2020
Location: Not in USA
Member Is Offline


[*] posted on 27-3-2021 at 05:31


Actually, anti-geysir trap could be made from chromatography reservoir. For larger vessels it's a little of help, but adding 1L reservoir for 2L reaction flask doubles the headspace for foam/whatever stuff that's coming over.

The anti-splash adapter I bought earlier does not have drain holes for some reason, and when it fills quickly even from natural condensation to walls of it and stillhead, and when it reaches the exhaust holes, it will form water-lock and cause major issues for everything. Don't know what it's for, but definitely not useable at all for distillation.
View user's profile View All Posts By User
CharlieA
International Hazard
*****




Posts: 585
Registered: 11-8-2015
Location: Missouri, USA
Member Is Offline

Mood: No Mood

[*] posted on 27-3-2021 at 15:56


It seems to me that this may be a matter of technique. If you are performing a simple reflux, it seems that you may be heating the flask to too high a temperature. At a constant temperature, the rate of reaction is constant. If the reaction is proceeding too fast, perhaps you can change the apparatus setup to provide for a controlled addition of one of the reagents to gain control over the rate of reflux....Just random thoughts from an old fart.;)
View user's profile View All Posts By User
Fyndium
International Hazard
*****




Posts: 1124
Registered: 12-7-2020
Location: Not in USA
Member Is Offline


[*] posted on 27-3-2021 at 22:46


I'm purely looking here for a protection against any too vigorous reaction conditions. Whenever possible, I always use gradual addition, dilution, effective stirring, coarseness of material and other factors to limit reaction speed and also use waterbaths for reactions that would need additional cooling so I can respond to that in an in instance. For example, exothermic initiation of benzaldehyde was such a reaction. Running it full blast will cause reflux choking and vapor and even liquid escaping, but carefully heating it with waterbath to the edge of the initiation, and slowly adding cold water to waterbath will buffer it to a very controllable state.

A very specific case. Another case when it comes a matter is if flask size goes big enough. Then, 24* joint is simply too small to handle the common reaction rates at that scale.
View user's profile View All Posts By User
zed
International Hazard
*****




Posts: 2242
Registered: 6-9-2008
Location: Great State of Jefferson, City of Portland
Member Is Offline

Mood: Semi-repentant Sith Lord

[*] posted on 28-3-2021 at 03:41


Ummm. In some cases, reactions work better if you let it rip, and use more condensers.

Not the way I would have engineered things, if I had been asked. But, I wasn't asked.

I'm stocked-up with extra condensers. Kinda short on flasks with multiple necks though. I've got 2 and 3 neck adapters in 24/40.... Which at a certain point, might be overwhelmed.

Sigh.... So many ways to encounter disaster.

Oh well, better to ponder the problem here, than to be surprised by it under reflux.

[Edited on 28-3-2021 by zed]
View user's profile View All Posts By User
Fyndium
International Hazard
*****




Posts: 1124
Registered: 12-7-2020
Location: Not in USA
Member Is Offline


[*] posted on 29-3-2021 at 00:45


I got half a dozen of condensers, and I don't buy anymore other than min 3 neck flasks, except if I need to risk a sacrificial flask. It is very difficult to stir, measure temp, reflux/distill and add stuff at the same time through one hole.
View user's profile View All Posts By User
SWIM
International Hazard
*****




Posts: 767
Registered: 3-9-2017
Location: Foster city
Member Is Offline

Mood: I was full of piss and vinegar, now I'm just full of vinegar

[*] posted on 30-3-2021 at 12:43

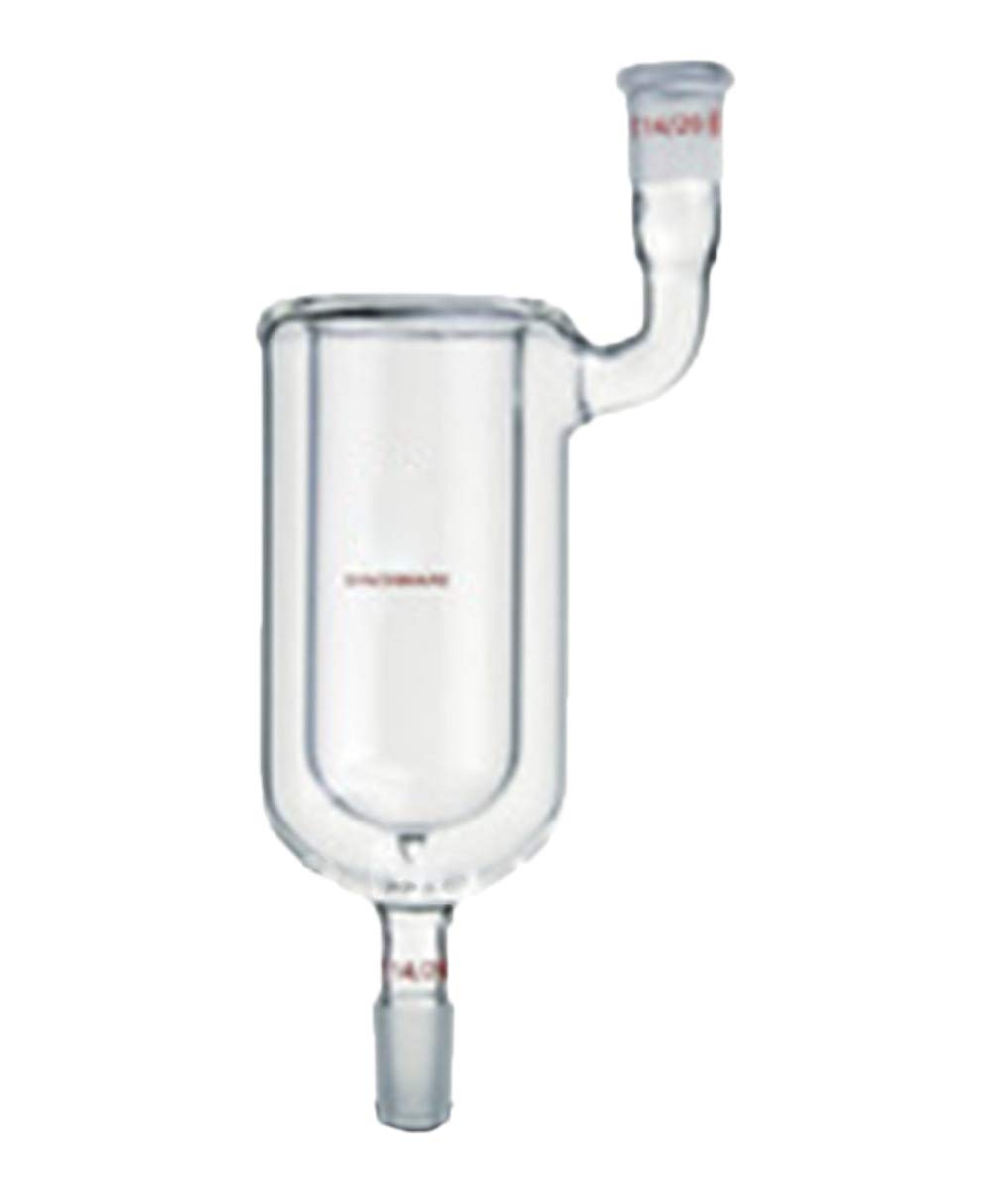

A really big Dewar condenser can do the trick sometimes.

The large volume around the ice reservoir helps stop any geyser action.

Also, if the condenser chokes spattering will tend to be caught in the condenser body.

https://images-na.ssl-images-amazon.com/images/I/41YVxSbUe-L...

Helps to put an Allihn condenser on top as a belt and suspenders measure sometimes.




They always say, "He lost his battle with cancer." But as Norm MacDonald pointed out, the cancer dies at pretty much the same time you do, so doesn't that make it a tie?


















View user's profile View All Posts By User
zed
International Hazard
*****




Posts: 2242
Registered: 6-9-2008
Location: Great State of Jefferson, City of Portland
Member Is Offline

Mood: Semi-repentant Sith Lord

[*] posted on 30-3-2021 at 22:05


Ummm. Dewar condenser. Interesting idea.

Thank you.
