Edwards Speedivac pump


Hi!
I have an Edwards ED75 double stage rotary vane pump that I've been using for vacuum distillations for the last year or so. So I thought it's high time to actually take good care of it, as this chunk of steel is 55 years old now.

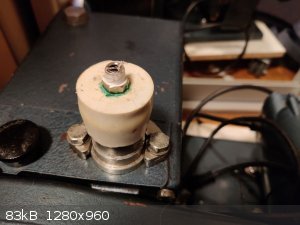

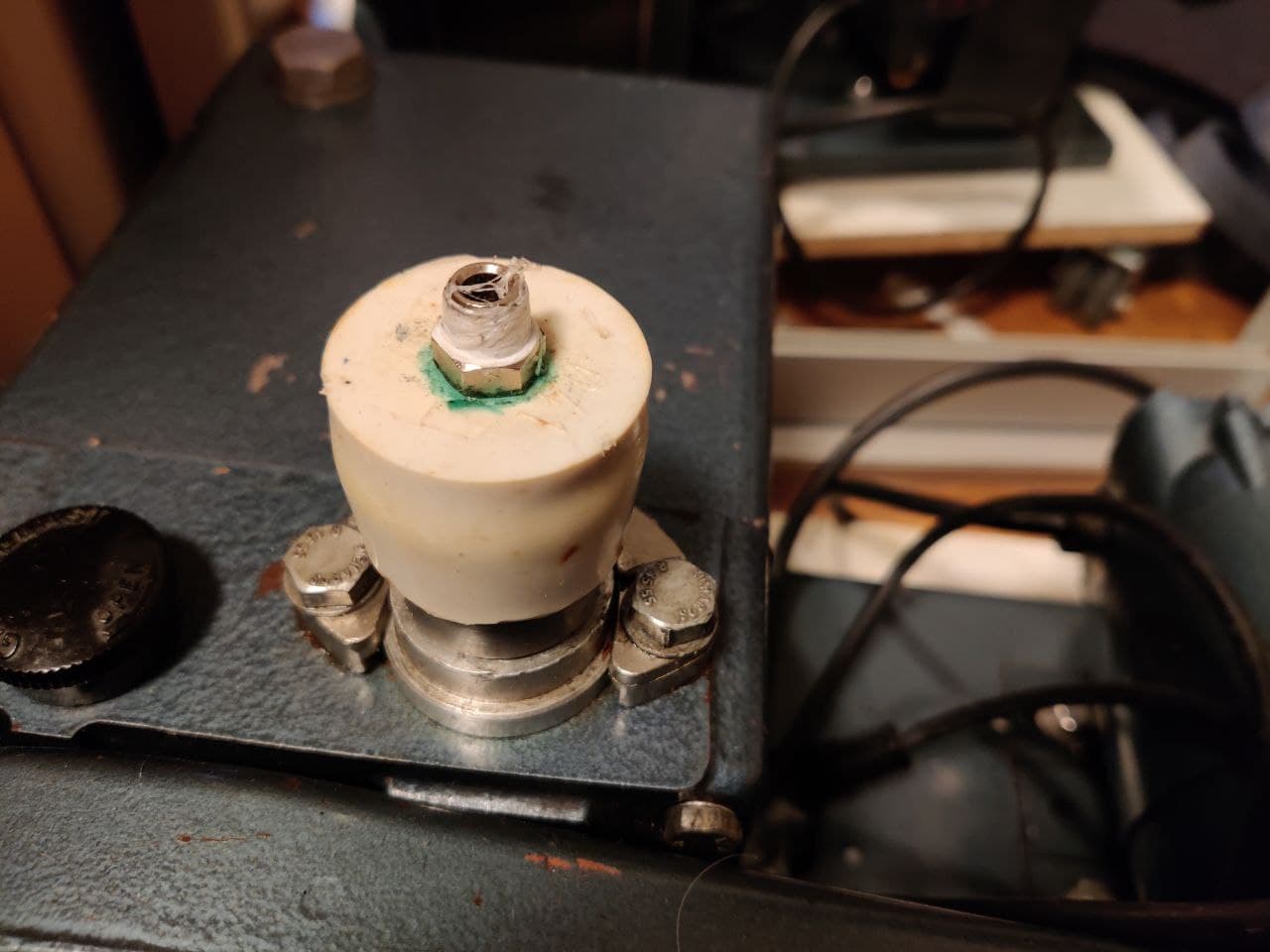

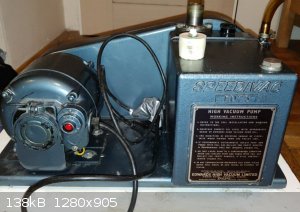

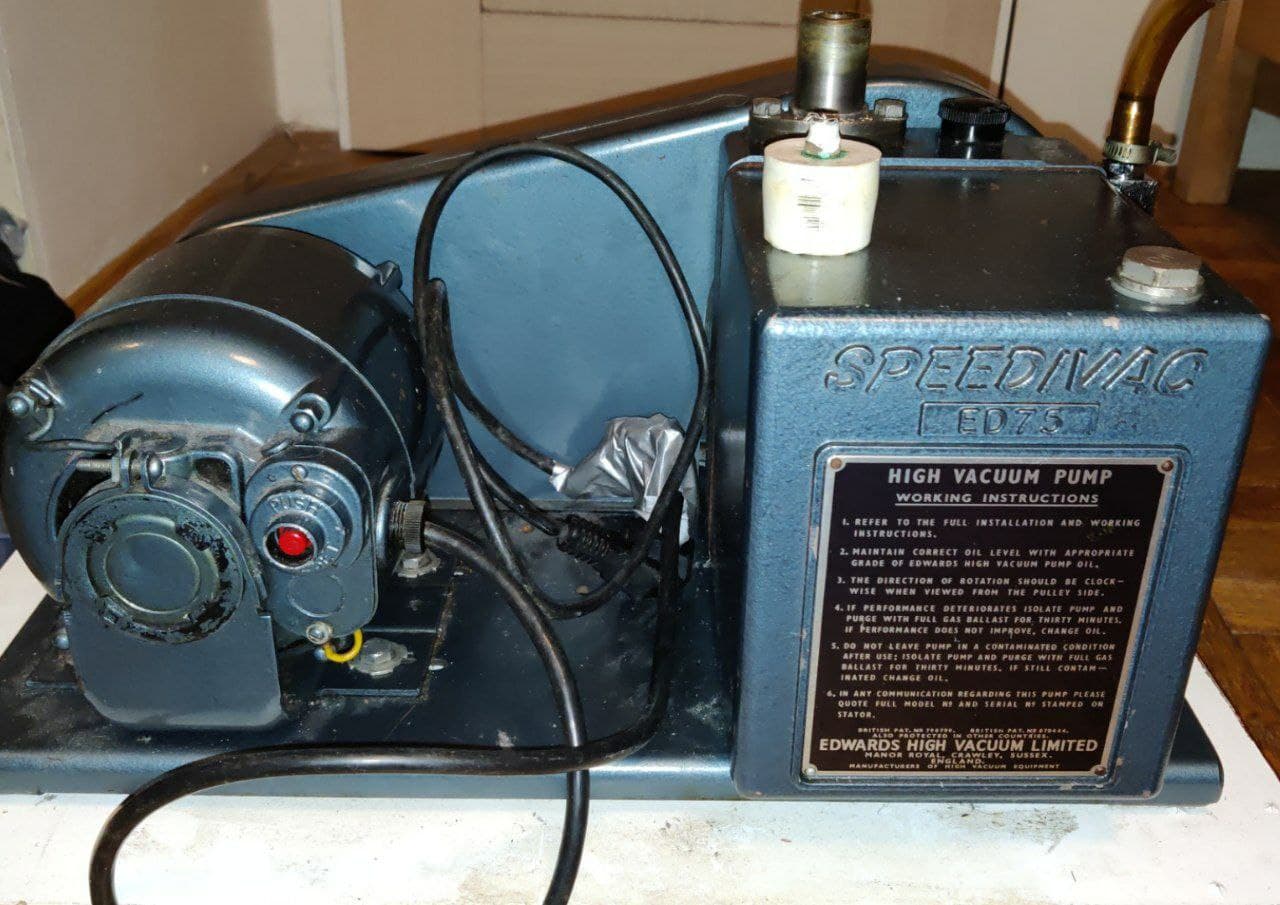

I'm attaching some photos - the pump, a makeshift fitting I made for it from a rubber cork that may be causing my vacuum to be weak (~5 torr) and the original steel fitting with the flange.


My questions are - does anyone know how to look for a fitting for the inlet? I'd like to connect a hose, so some sort of gasket + barb fitting would be the best.

The pump has been making a worrying noise lately too, when the gas ballast is fully closed there's audible knocking coming from the vane department. When it's open just a little bit the noise is more quiet. Has anyone got any experience reparing these? The manual seems to indicate that this may be connected to the valve related to the gas ballast, but I'm not sure if they just mean the needle valve that the gas ballast is made of or some other inside. Attaching screenshots from the manual too. I was worried that maybe the vanes are hitting against something.

Additionally, what oil would be the best for it? Edwards doesn't produce the recommended Speedivac No. 16 and No. 18 oils for it anymore, so I've been using ISO VG 100 viscocity vac. pump oil. Edwards recommended to me that I use their Ultragrade 19, which is ISO VG 46 in the matter of viscocity and also insanely expensive where I live. Does the viscocity matter that much? Will a 46 oil pull a better vacuum than a 100 one?


A great-written manual is here: https://www.idealvac.com/files/manuals/Edwards_ED75_ED150_ED...

Thanks in advance!

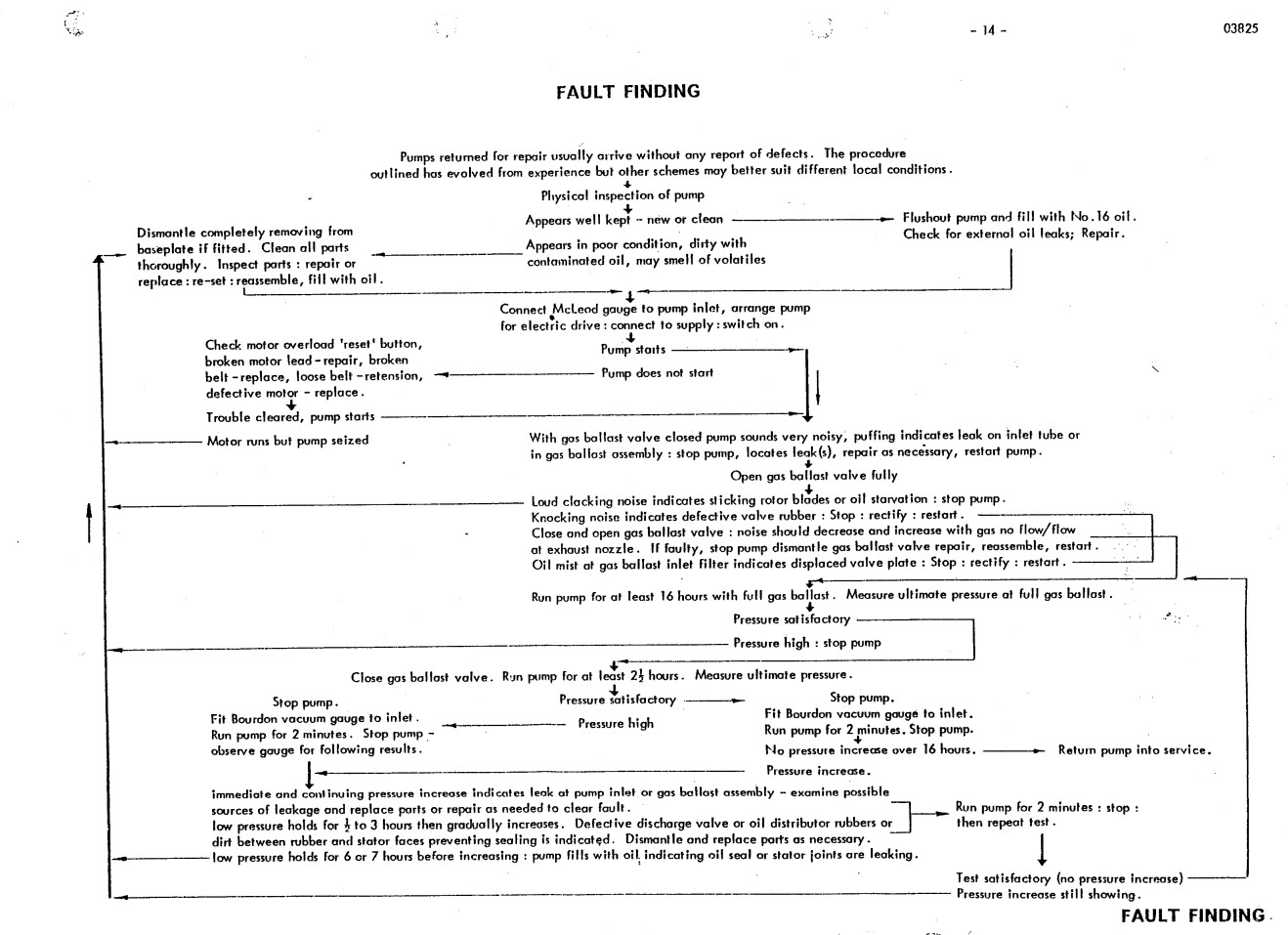

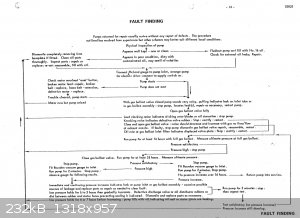

photo_2021-12-25_18-14-35.jpg - 83kB photo_2021-12-25_18-14-32.jpg - 138kB fault finding.jpg - 232kB

[Edited on 25-12-2021 by Antigua]
View user's profile View All Posts By User
Panache
International Hazard
*****




Posts: 1287
Registered: 18-10-2007
Member Is Offline

Mood: Instead of being my deliverance, she had a resemblance to a Kat named Frankenstein

[*] posted on 25-12-2021 at 17:13


When running that exact vac pump for several years a few years back I used a synthetic oil made by cps (American company that makes vacuum pumps and associated gear for the HVAC industry). It's a good product.
The pump itself is also a stalwart, I recall seeing a photograph of about a hundred of them installed in a room side by side, something to do with that small Apollo project NASA ran in the 1960's...

The knocking you describe chimes with me and I'm.trying to recollect it's source, when/if I do lII update, but in the interim I'm sure it was of no consequence, just super annoying when it occured then it would abate at deeper vacuums (if I recall correctly.).
Finally...to finding fittings...do what you can...Edwards stuff from that era utilised proprietary threads if I recall..so trying to find matching is utmostly infuriating...
View user's profile View All Posts By User
Panache
International Hazard
*****




Posts: 1287
Registered: 18-10-2007
Member Is Offline

Mood: Instead of being my deliverance, she had a resemblance to a Kat named Frankenstein

[*] posted on 25-12-2021 at 17:17


How's the mechanical seal on the belt side? Does it leak any oil? That seal wasn't trivial to source if I recall, and although it didn't affect the vacuum losing Oil constantly was a pain,
View user's profile View All Posts By User
Antigua
Hazard to Others
***




Posts: 145
Registered: 27-9-2020
Member Is Offline


[*] posted on 26-12-2021 at 03:05


Do you mean the shaft seal? Like here: https://www.youtube.com/watch?v=jidG7yJDaVg?
I wasn't able to remove the pulley yet, was a bit too scared to screw things up. But I'm not losing any oil there, no significant leakage. Regarding fittings I think I'm just going to get a proper barb to fit the rubber cork and screw it up from underneath to make it air-tight. Silicone sealant on the outlet/cork gap and that should do the trick. I'm still a bit worried about the knocking though.
View user's profile View All Posts By User
monolithic
National Hazard
****




Posts: 424
Registered: 5-3-2018
Member Is Offline

Mood: No Mood

[*] posted on 26-12-2021 at 15:54


The rattling might be from the gas ballast valve. These old style pumps (like on a Precision Scientific pump that I once owned) have a spring-loaded ball bearing within the gas ballast valve assembly. If the spring it weak you might get some rattling of the ball bearing. The PDF of the manual you linked (page 28/74) shows that it can be disassembled pretty easily. I'd start there. Maybe pull it off and plug the hole with your finger (or a piece of rubber) and start it up, see if the rattling sound goes away. If not, it might be a broken vane.

You might be able to get a better seal with some good vacuum tubing and a hose clamp, and then a reducer with a hose barb.
View user's profile View All Posts By User
wg48temp9
International Hazard
*****




Posts: 698
Registered: 30-12-2018
Location: not so United Kingdom
Member Is Offline


[*] posted on 26-12-2021 at 20:58


Finding an adapter

There probably were adapters made that fit the outlet flange of your pump and connect to a plastic pipe but that flange is not now common in vacuum work so it will be very difficult to source one. You could ask Edwards but any thing from them is likely going to cost £100 and up.

I suggest you remove the short 1" ID pipe from the exhaust and take it to a plumbing shop to find a short piece of flexible tubing that will fit over the tube and fit a a reducing connector/coupling both secured by jubilee clips. You could also show the pipe to one of the shop assistants and explain what you want to do and ask if they have any suggestions.

You should also check the o-ring on the sleeve of the flange fitting or preferably replace it.

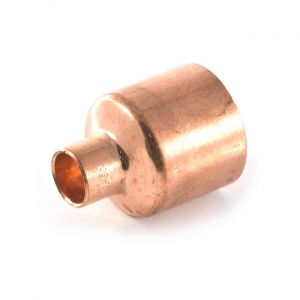

Below is a picture of a reducing copper pipe coupling that could be used. Plastic stepped hose connectors are also available that can fit a range of pipe diameters.
