Swap the aluminium and ceramic top plates of two hotplates


Hey, I know this is not exactly the right forum for this but it’s the closest. Is it possible to swap the plate (top) of a hotplate for a different one? I.e. swapping the ceramic and aluminium plate of two hotplates that are the same model? Or will it damage some internals, maybe because it will change the power draw or similar?
The two plates I might to this to have similar specs, however one is digital and one analogical (non digital). But that shouldn’t be any different for the plate but I might be wrong. Has anyone attempted that before?
My goal is to transfer my ceramic plate on my digital hotplate instead of it’s current aluminium one.
The two models are the DM300 (digital, aluminium, 370C) and EC300 (analog, ceramic, 420C).
I will only have access to the two units in a week, and I will check the heating elements as I don’t know if they are different as they are rated for different temperatures, but maybe that is because of the top plate and the digital one when swapped for a ceramic top might be able to also reach 420C.


[Edited on 4-8-2024 by Cendre]

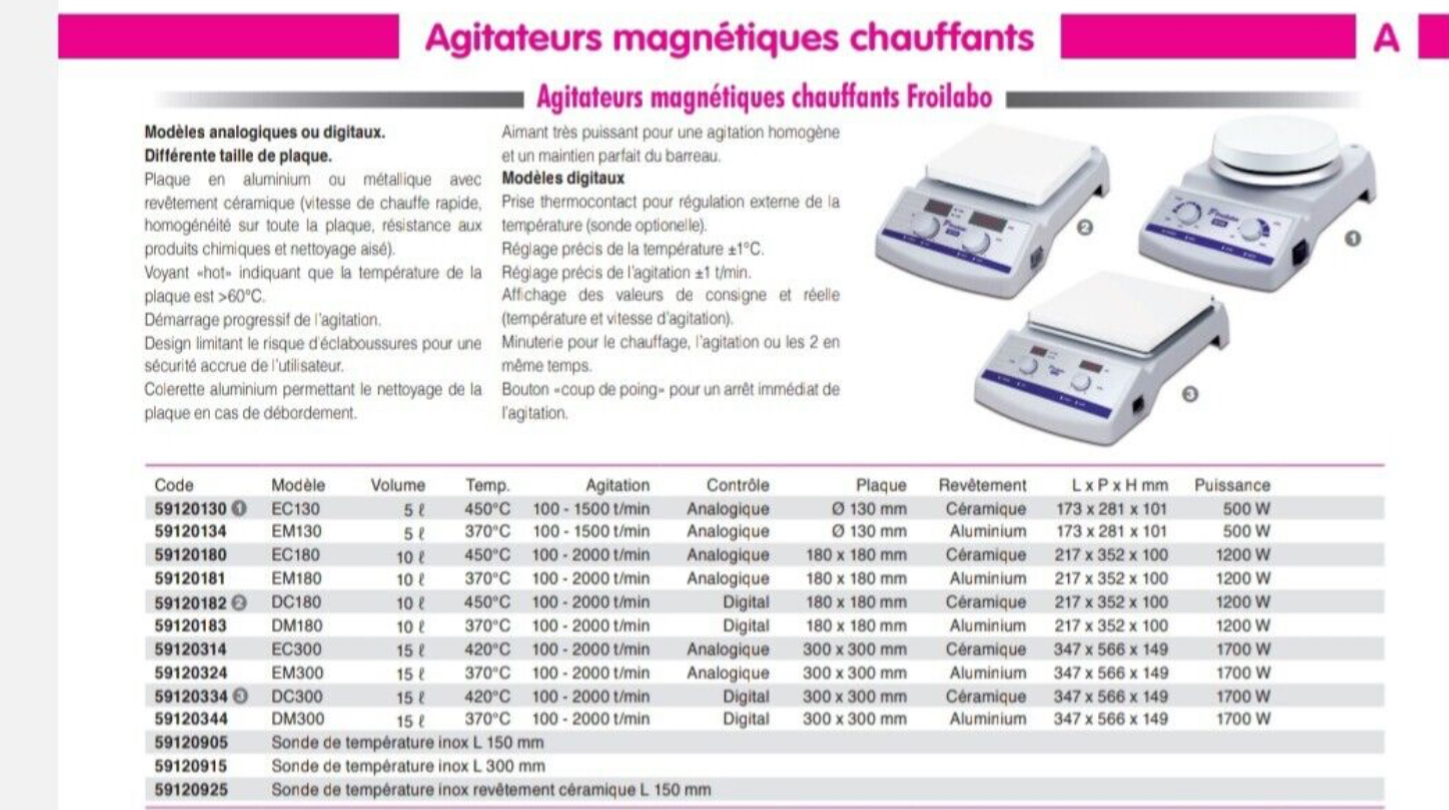

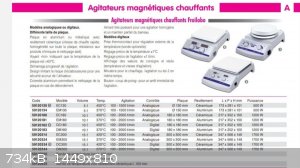

IMG_6859.jpeg - 734kB
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3674
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 4-8-2024 at 05:10


It looks like analog/digital and ceramic/metal options are interchangeable, (at time of manufacture)
But, before disassembling anything:

Check if the digital temperature can be set to your required maximum,
If not then you would need to change the max temp limit variable,
I don't know how or if possible.
It is possible that the controller can detect which plate is fitted, but I doubt it.
(Look for any difference in the wiring and connectors of the two heaters)
If you are lucky there could be labeled jumpers on the PCB.

Internal wiring is often crimped or welded rather than soldered,due to material incompatibility and high temperatures.
If just nuts/bolts/screws then ok, but check first.

It could be an extremely simple procedure,
or a nightmare that you will wish you'd never started.




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
Texium
Administrator
Thread Moved
4-8-2024 at 06:44
Cendre
Harmless
*




Posts: 28
Registered: 1-12-2023
Location: California/France
Member Is Offline

Mood: No Mood

[*] posted on 7-8-2024 at 09:31

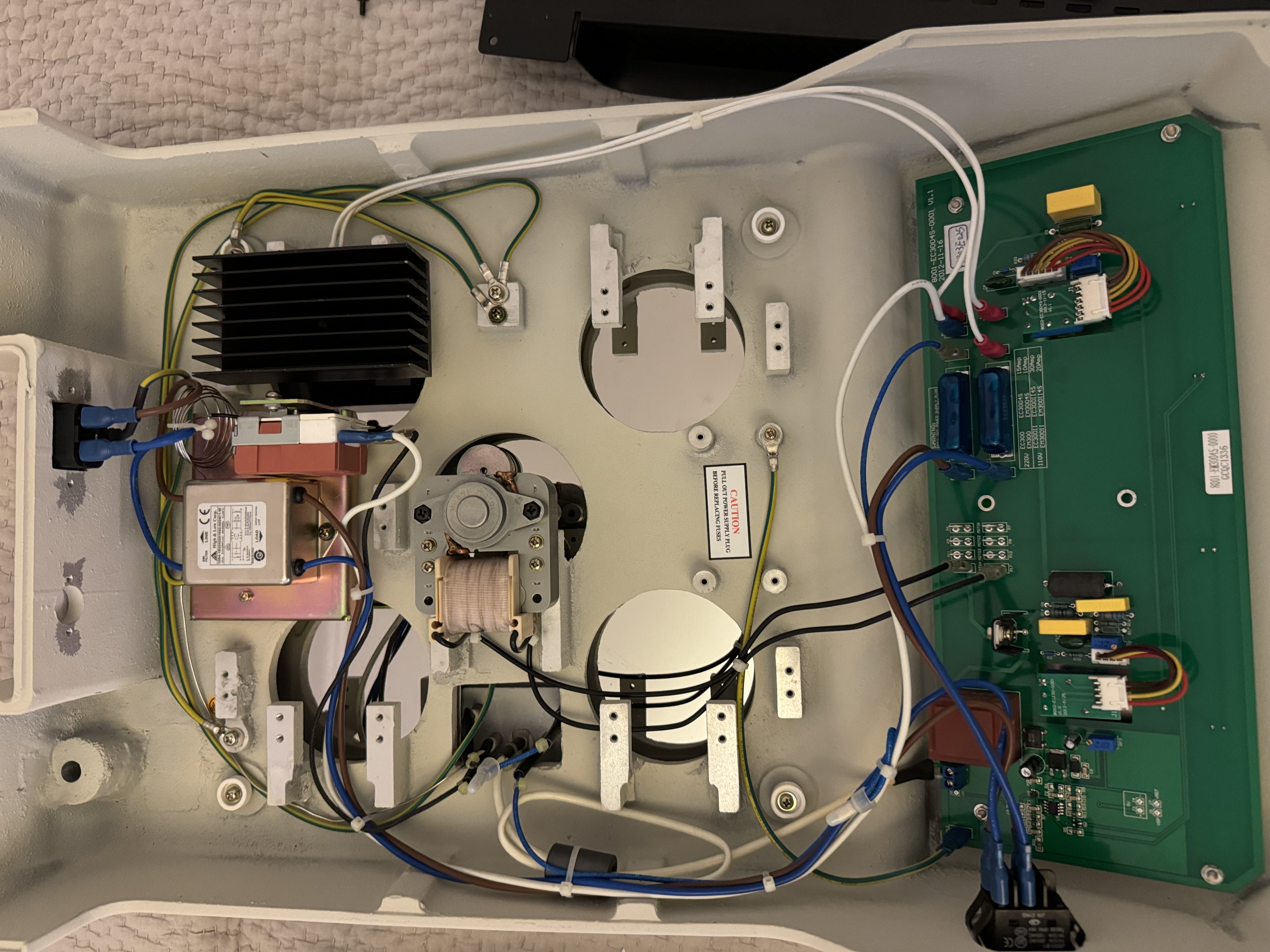

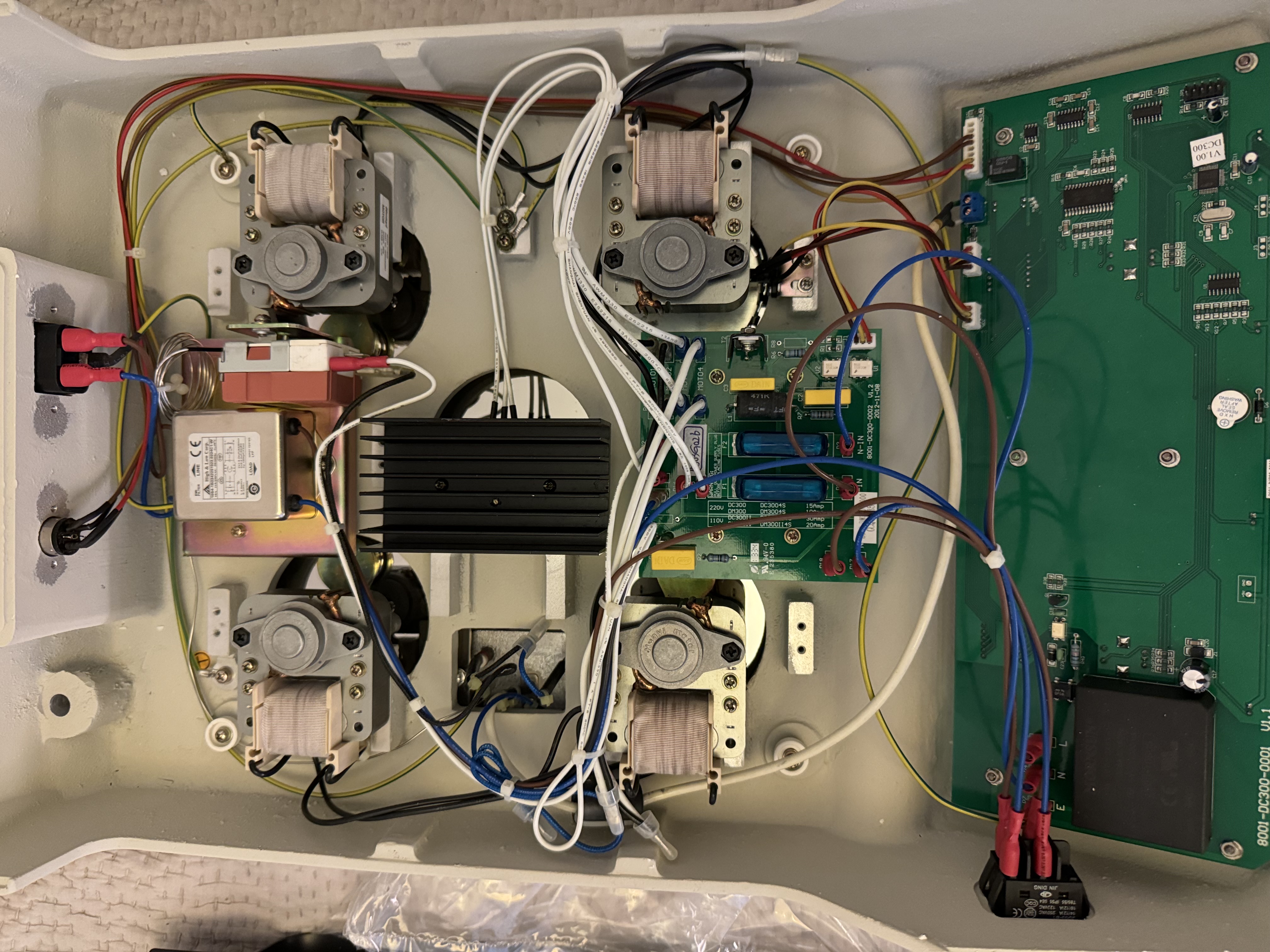

The aluminium digital one is first, the ceramic analog one is second. The digital one rated for 1430W has way more components (several motors and heating resistances) than the analog ceramic one rated for 2500W.
It doesn’t seem like either has a variable to adjust max temperature.
Edit: it looks like the digital one has 4 separate sets of motor + heater which work on each corner of the machine

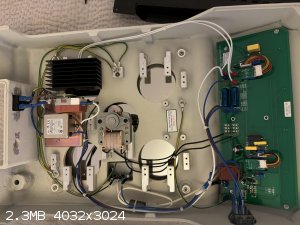

IMG_6923.jpeg - 2.6MB IMG_6924.jpeg - 2.3MB
