Author: Subject: Homemade and Repurposed Lab Gear
draculic acid69
International Hazard
*****




Posts: 1371
Registered: 2-8-2018
Member Is Offline


[*] posted on 13-1-2023 at 04:13


Quote: Originally posted by arkoma
Running trials (so to speak) now. Generic PLA, 50% infill (gyroid)



[Edited on 11-30-2022 by arkoma]


Horseheads can also be made out of timber. A 1"x1"x2" block of pine with 12mm holes drilled for vertical and horizontal poles with a few 4mm holes for screws to tighten things in place works for lighter things. I wouldn't use it for a 1L full of water but smaller things are fine
View user's profile View All Posts By User
Rainwater
National Hazard
****




Posts: 931
Registered: 22-12-2021
Member Is Offline

Mood: Free oxidizer for sale

[*] posted on 13-1-2023 at 05:18


Quote: Originally posted by arkoma
Running trials (so to speak) now. Generic PLA, 50% infill (gyroid)



[Edited on 11-30-2022 by arkoma]

You may find this post processing analysis useful
https://youtu.be/DyAKtS1b3SQ




"You can't do that" - challenge accepted
View user's profile View All Posts By User
arkoma
Redneck Overlord
*******




Posts: 1763
Registered: 3-2-2014
Location: On a Big Blue Marble hurtling through space
Member Is Offline

Mood: украї́нська

[*] posted on 13-1-2023 at 15:06


So far, the handiest things I've been printing are funnels, ones that fits a 24/40 taper and perforated plates for filtration. In my mobile, so i will edit in some pics later.



"We believe the knowledge and cultural heritage of mankind should be accessible to all people around the world, regardless of their wealth, social status, nationality, citizenship, etc" z-lib

View user's profile View All Posts By User
scitiana
Harmless
*




Posts: 4
Registered: 26-10-2022
Member Is Offline


[*] posted on 17-1-2023 at 07:15


in my search for a affordable catalyst i stumbled across this

has anyone here got experience working with thse? cus it seems to me that this would be a relatively cheap catalyst for a ostwald reactor




throwing science at the wall and seeing what sticks
View user's profile View All Posts By User
ave369
Eastern European Lady of Mad Science
****




Posts: 596
Registered: 8-7-2015
Location: No Location
Member Is Offline

Mood: No Mood

[*] posted on 27-3-2023 at 10:38


Today I've made a Bunsen burner. I bought a cheap Chinese made propane-butane burner for camping stove cartridges, and cut the burner in two. The cartridge adapter with valve became part 1, the cylinder valve for my makeshift gas line; the burner head itself, attached to an improvised round stand, became the Bunsen burner.

The two parts are connected by a gas line that is made from a silicone tube. The silicone is chemical resistant and survives heating to 250 C.

I had to craft this because the cartridge with the original burner installed was far too tall for any of my clamps and retort stands.

[Edited on 27-3-2023 by ave369]




Smells like ammonia....
View user's profile View All Posts By User
Gammatron
Hazard to Others
***




Posts: 125
Registered: 30-8-2022
Location: Abandoned Uranium Mines
Member Is Offline


[*] posted on 27-3-2023 at 16:14
Fumehood Vacuum System


The file size of my pictures was too big to post more than 1 but I wrote about it on my blog. Very easy to build system capable of vacuum distillation on corrosive substances.

https://gammatronscience.wordpress.com/2023/03/27/vacuum-sys...

20230327_103924.jpg - 3.8MB




View user's profile Visit user's homepage View All Posts By User
Rainwater
National Hazard
****




Posts: 931
Registered: 22-12-2021
Member Is Offline

Mood: Free oxidizer for sale

[*] posted on 27-3-2023 at 16:16


Looks better and cleaner than mine. How loud is it?



"You can't do that" - challenge accepted
View user's profile View All Posts By User
Gammatron
Hazard to Others
***




Posts: 125
Registered: 30-8-2022
Location: Abandoned Uranium Mines
Member Is Offline


[*] posted on 27-3-2023 at 16:25


Not loud at all with the little mufflers on the exhaust. I was expecting it to be pretty noisy being on top of my FH but it's quite nice.



View user's profile Visit user's homepage View All Posts By User
Rainwater
National Hazard
****




Posts: 931
Registered: 22-12-2021
Member Is Offline

Mood: Free oxidizer for sale

[*] posted on 27-3-2023 at 16:33


PS. CaSO4 is a ;>/"& to clean. This may be a cleaner alternative, does require filtering the gas stream
http://www.sciencemadness.org/talk/viewthread.php?tid=159094...




"You can't do that" - challenge accepted
View user's profile View All Posts By User
Gammatron
Hazard to Others
***




Posts: 125
Registered: 30-8-2022
Location: Abandoned Uranium Mines
Member Is Offline


[*] posted on 27-3-2023 at 17:52


Nice write up! I did a smaller scale reaction yesterday and luckily the CaSO4 broke up with a little shaking. I may have to use a metal rod to break up the pieces in this run but I work at a plant with an ammonia chiller system and I found a place where I can bleed some off into a bottle of water. Boom! Free NH4OH of the highest concentration I can make. I dont need anhydrous, just a more concentrated solution than what is available at the store.



View user's profile Visit user's homepage View All Posts By User
Organikum
resurrected
*****




Posts: 2338
Registered: 12-10-2002
Location: Europe
Member Is Offline

Mood: frustrated

[*] posted on 29-3-2023 at 01:00


Quote: Originally posted by earpain

.......
And then, the Monstrosity
........
Once that is finished, i simply slide a 500ml RBF on that bottom receiver elbow piece, connect my vacuum source to the special straight vacuum adapter which is slowly rendering vacuum angled take-off's obsolete.
Then i proceed with a Vacuum Fractional Distillation
In such a way where it is most ideal to use <100ML flasks as the stillpot, but crucial to use serious BIG BOY glassware to condense and collect.

You still have to change receiver flasks between fractions and for this to disconnect the vacuum? Also it would seem to me that you will have quite some distillate collecting in the vacuum adapter not able to run down into the collecting flask, thats somewhat beating the purpose isn't it? I would have thought for 100 ml boiling flasks the shortway thing on top of the small flask would completely suffice. Looks grandiose though, no doubt on this!




Irgendwas is ja immer
View user's profile View All Posts By User
Texium
Administrator
********




Posts: 4609
Registered: 11-1-2014
Location: Salt Lake City
Member Is Online

Mood: PhD candidate!

[*] posted on 29-3-2023 at 07:06


Quote: Originally posted by earpain
Now that DCM is gone, I've been plagued by the tediousness AND the mechanical yield loss off having aq. layers 10 or more times the volume of my compound. And all the organic non-polar solvents still sold to the public either boil at WAY TOO HOT degrees celsius, or just suck in general because they hide water or they dont really dissolve stuff(naphtha).
OR I have to make them from scratch! diethyl ether, chloroform, this isn't over!
Two words: ethyl acetate.



Come check out the Official Sciencemadness Wiki
They're not really active right now, but here's my YouTube channel and my blog.
View user's profile Visit user's homepage View All Posts By User
Morgan
International Hazard
*****




Posts: 1705
Registered: 28-12-2010
Member Is Offline

Mood: No Mood

[*] posted on 31-3-2023 at 17:17


I repurposed my old 35 mm photo lab film developing tank by placing a piece of steel wool inside it and then putting the lid back on. To that I attached a dust collector/bellows that fits over a drill bit to catch sawdust or whatever when drilling into walls or ceilings. Then just a magnet to hold it down. It's strangely simple but really gets going when blasted with a second torch. It seemed a lot of mass to be slinging back and forth, uncertain if the silicone bellows would hold up.
https://youtu.be/rBeaZNxOQYc
https://youtu.be/WXUVMTi8cZU
View user's profile View All Posts By User
j_sum1
Administrator
********




Posts: 6332
Registered: 4-10-2014
Location: At home
Member Is Offline

Mood: Most of the ducks are in a row

[*] posted on 24-4-2023 at 18:40


Broken frit funnel and an evaporating dish makes a good gas bubbler. Here I am concentrating some HCl.



IMG20230425123413.jpg - 2.8MB
View user's profile View All Posts By User
arkoma
Redneck Overlord
*******




Posts: 1763
Registered: 3-2-2014
Location: On a Big Blue Marble hurtling through space
Member Is Offline

Mood: украї́нська

[*] posted on 25-4-2023 at 09:04


Sum broken gear in sum lab. Pun intended. Must be a coarse frit though.



"We believe the knowledge and cultural heritage of mankind should be accessible to all people around the world, regardless of their wealth, social status, nationality, citizenship, etc" z-lib

View user's profile View All Posts By User
Organikum
resurrected
*****




Posts: 2338
Registered: 12-10-2002
Location: Europe
Member Is Offline

Mood: frustrated

[*] posted on 20-3-2024 at 03:59

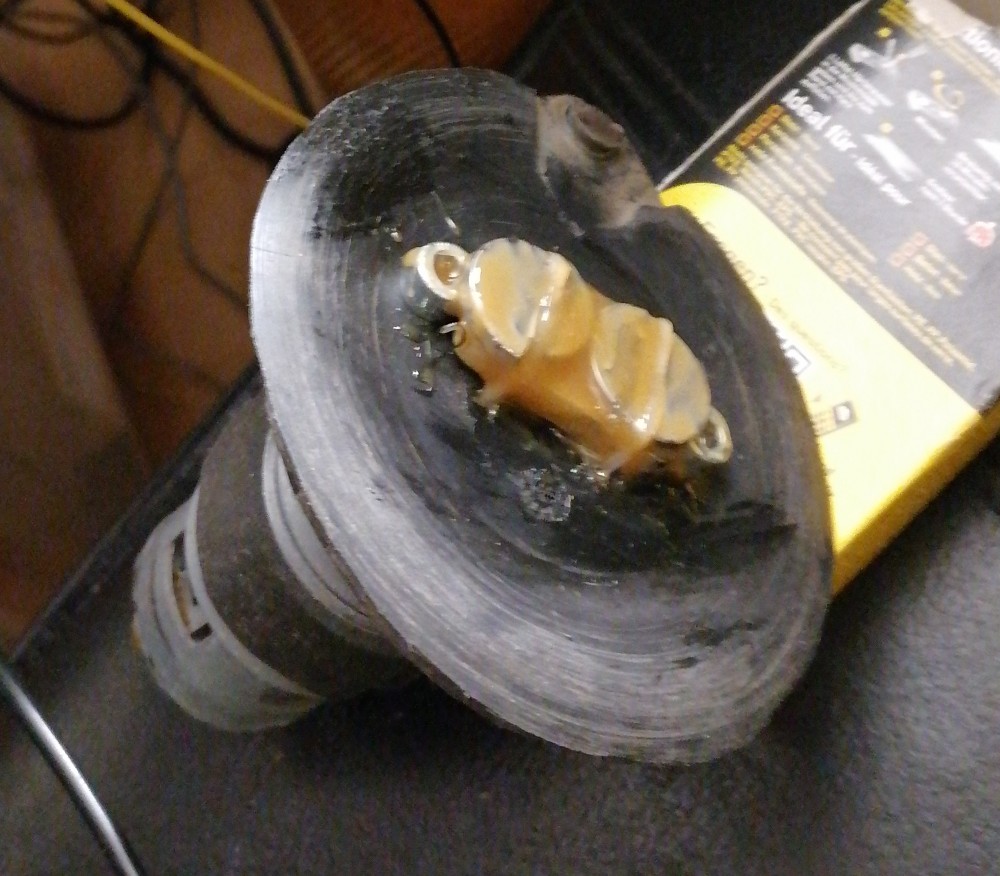

Magnet stirrer broke needed a quick replacement.

Motor is from a battery lawn trimmer - complete overkill but due to its mass it needs no big balancing. Magnets are Sm/Co - I had too many Neodyms dying already.
Not shown is the lab-power supply I use now, I will later use a 14V PS and a 5 buck speed controller (PWM). It pulls now in the worst case 1,5 Watt.

Changes I would make now: Magnets a bit more apart like 5 mm.

It is perfect and powerful with RBFs and eggs.


magstir on the quick1.jpg - 212kBmagnetstir new2.jpg - 191kBquickfix magstir1.jpg - 326kB




Irgendwas is ja immer
View user's profile View All Posts By User
Mateo_swe
National Hazard
****




Posts: 545
Registered: 24-8-2019
Location: Within EU
Member Is Offline


[*] posted on 6-5-2024 at 14:16


Anyone of you are using the replacement heating mantle sleeves?
Like the one in Organikum´s post above, the picture to the right.

I have a few of those in different sizes but i want to put it into something to easier keep the shape around the flask when using them.
I been thinking I maybe put the mantle sleeve in a clay flowerpot with some vermiculite inside.
Vermiculite can handle the high temps and are a good insulator for heat.
That might help to keep the shape of the sleeve around flask and allow for it to be placed upon a hotplate stirrer (for the stirring function).
If you use these, do you use as they are (as in the pic above) or have you made some support thingy for them?

And if you haven't seen these before, they are a cheap alternative for a heating mantle (find in auction sites) but you need a variac to drive them or buy a dimmer type driver.
Just be careful not to electrocute yourself, one should at least know a bit about electrical safety when messing with mains voltage and currents.
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3711
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 24-6-2024 at 02:38

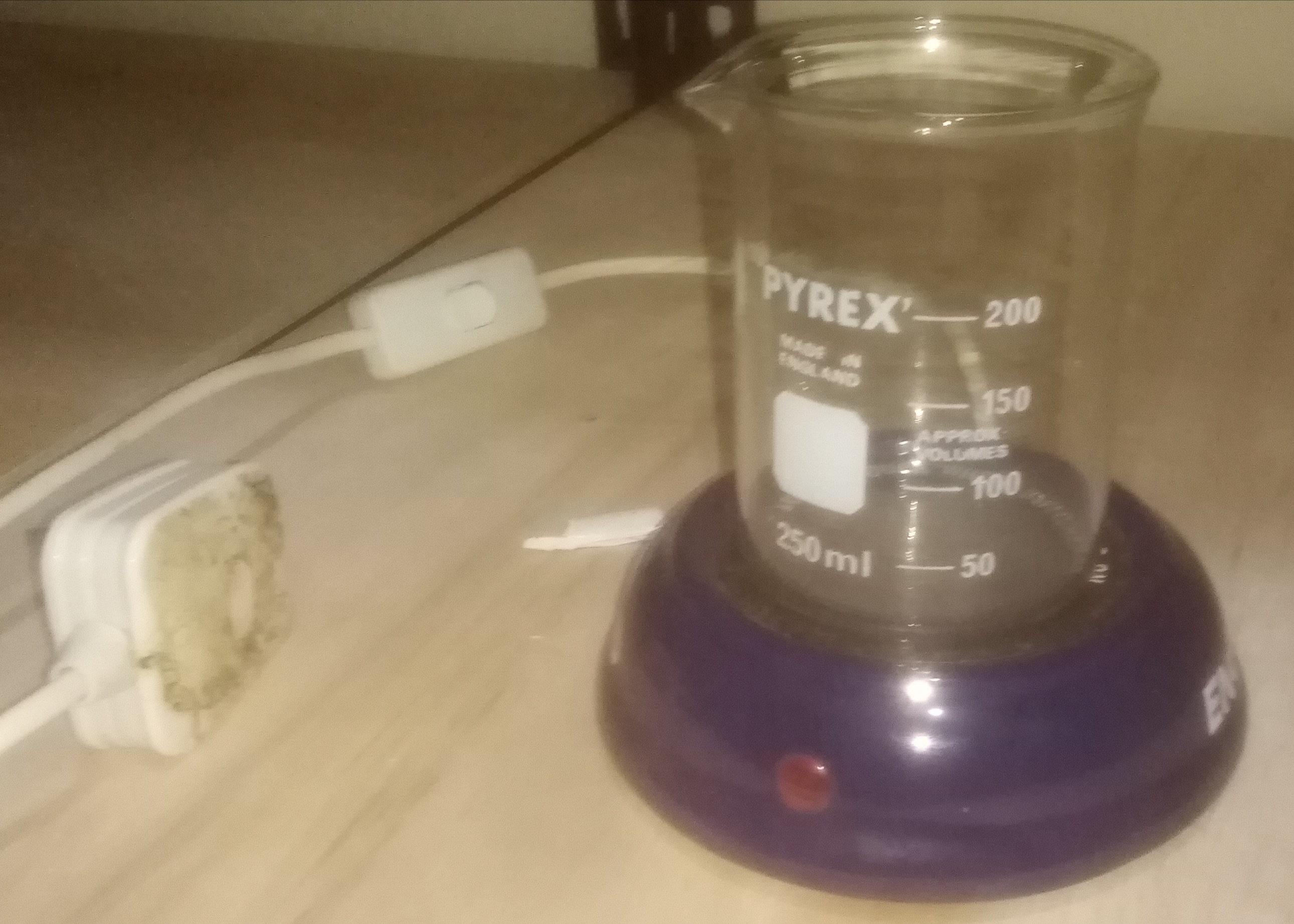

Coffee cup warmer for evaporation.


I've recently been evaporating dilute nitric acid solutions to recover solid residues,
I've found this coffee cup warmer to be very useful,
IMG_20240624_181454.jpg - 1.2MB
It maintains a temperature of about 85C and can be left on for as many hours as desired.
I've left it on overnight several times.
(outdoors; a covered, ventilated, tiled area - no hazards)

I think that coffee cup warmers have been mentioned before,
but I found it so useful that I've mentioned it here again.
Also useful for recrysalisations.

I wonder if a diy mag stirrer would work through one......




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
jackchem2001
Harmless
*




Posts: 45
Registered: 2-6-2024
Member Is Offline


[*] posted on 24-6-2024 at 21:21


It is common to use aluminium foil to create an insulating layer of air around a boiling flask. If the foil is in direct contact with the flask, this is obviously no good for producing an insulating layer. Even worse, however, is that I suspect this introduces the potential for cracking when cooling the flask. One of my boiling flasks developed a large star crack on its side where contact between foil and flask had been made.

Here is somebody who has had a similar experience:
https://www.sciencemadness.org/talk/viewthread.php?tid=18619...

I don't think this really belongs in this thread but I don't see one that really suits it better.
View user's profile View All Posts By User
yobbo II
National Hazard
****




Posts: 764
Registered: 28-3-2016
Member Is Offline

Mood: No Mood

[*] posted on 11-9-2024 at 12:06



https://leclair.vision/

This stuff (IMO) would be great for high temp. experiments.
Not too expensive.

https://www.ebay.co.uk/itm/225983222952?_nkw=teflon+bowl&...

Visions is a brand of innovative glass-ceramic cookware originally created by Corning France. Released in Europe during the late 1970s and early 1980's, it was officially introduced in the United States during the latter-half of 1983 and became the number one selling cookware set for a number of years.

Notable for its transparency, it is commonly seen in an amber or cranberry tint. Some model lines feature painted decoration, sculptured bodies, and SilverStone non-stick coating. A white variant was sold in some regions as "White Visions".

Visions is made of a material belonging to the Pyroceram family of vitroceramics (glass-ceramics). It features thermal characteristics similar to Corning Ware, plus improved resistance to staining and the detrimental effects of acids and detergents.

It will withstand heat up to 850°C (1,560+ °F) and is safe for use on a gas or electric stovetop range as well as in the oven, under the broiler, and with a microwave.

Additionally, due to it's ability to survive sudden temperature changes of up to 450C, it can used for food storage in refrigerator or freezer and be taken directly to stove and then table or sink without worry of shattering. It's also great for combination cooking. One piece of Visions can do the work that would typically require numerous pieces of more conventional kitchenware.

Can it be drilled to attach tubes to?

It is similar to the stuff 'glass toped' electric cookers are made from.

Yob


[Edited on 11-9-2024 by yobbo II]
View user's profile View All Posts By User
Morgan
International Hazard
*****




Posts: 1705
Registered: 28-12-2010
Member Is Offline

Mood: No Mood

[*] posted on 12-9-2024 at 15:19


Quote: Originally posted by yobbo II

https://leclair.vision/

This stuff (IMO) would be great for high temp. experiments.
Not too expensive.

https://www.ebay.co.uk/itm/225983222952?_nkw=teflon+bowl&...

Visions is a brand of innovative glass-ceramic cookware originally created by Corning France. Released in Europe during the late 1970s and early 1980's, it was officially introduced in the United States during the latter-half of 1983 and became the number one selling cookware set for a number of years.

Notable for its transparency, it is commonly seen in an amber or cranberry tint. Some model lines feature painted decoration, sculptured bodies, and SilverStone non-stick coating. A white variant was sold in some regions as "White Visions".

Visions is made of a material belonging to the Pyroceram family of vitroceramics (glass-ceramics). It features thermal characteristics similar to Corning Ware, plus improved resistance to staining and the detrimental effects of acids and detergents.

It will withstand heat up to 850°C (1,560+ °F) and is safe for use on a gas or electric stovetop range as well as in the oven, under the broiler, and with a microwave.

Additionally, due to it's ability to survive sudden temperature changes of up to 450C, it can used for food storage in refrigerator or freezer and be taken directly to stove and then table or sink without worry of shattering. It's also great for combination cooking. One piece of Visions can do the work that would typically require numerous pieces of more conventional kitchenware.

Can it be drilled to attach tubes to?

It is similar to the stuff 'glass toped' electric cookers are made from.

Yob

The lids are usually Pyrex and the casserole dishes and pots should have molded on the bottom the words - Oven, Microwave, Rangetop, Freezer. Some don't say Rangetop and are all Pyrex like the plates and some cookware. I saw a Corning Visions cranberry platter that didn't have Rangetop printed on it but instead Microwave, "Oven & Broiler", Freezer which would also probably be acceptable high temp material.
I happened to hear the word Pyroceram in the 9 minute region of this video when mentioning nose cones.
US Tests Its Monstrously Powerful Laser Carrier To Beat Hypersonic Missiles
https://www.youtube.com/watch?v=pmN23S8GmWk

I found them useful for this jumper experiment.
https://www.youtube.com/watch?v=pjXxg3I5Zas

[Edited on 13-9-2024 by Morgan]
View user's profile View All Posts By User
yobbo II
National Hazard
****




Posts: 764
Registered: 28-3-2016
Member Is Offline

Mood: No Mood

[*] posted on 12-9-2024 at 16:07



I could make a rude comment about that jumper...

Spill some water on the top (the bottom actually) of that dish and you will see the meissner effect.

Yob
View user's profile View All Posts By User
Morgan
International Hazard
*****




Posts: 1705
Registered: 28-12-2010
Member Is Offline

Mood: No Mood

[*] posted on 12-9-2024 at 17:45


Some fun facts about Pyroceram
https://www.woodstove-fireplaceglass.com/pages/pyroceram-gla...
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3711
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 12-9-2024 at 20:53


Quote: Originally posted by jackchem2001
...If the foil is in direct contact with the flask, this is obviously no good for producing an insulating layer. Even worse, however, is that I suspect this introduces the potential for cracking when cooling the flask...
I gently crumple my foil then open it up before loosely wrapping it around an rbf,column etc.
This provides better insulation due to less foil-glass contact area and the formation of trapped air pockets.
and good chance of reusing the foil many times.

Wrap so that you can open a little when hot - to inspect progress.




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3711
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 12-9-2024 at 22:15


Quote: Originally posted by Mateo_swe
...If you use these, do you use as they are (as in the pic above) or have you made some support thingy for them?.
I used a cake tin as an enclosure
https://www.sciencemadness.org/talk/viewthread.php?tid=71664
I used some aluminium sheet with a similar sized hole underneath the top to clamp the mantle,
So the mantle only needs to be gripped around the top circumference.

PS my heating element baskets went very stiff after a few uses so if possible use a new liner/basket/element for your new heating mantle..

Inspiration from nux vomica https://www.sciencemadness.org/talk/viewthread.php?tid=67866...

[Edited on 13-9-2024 by Sulaiman]




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
 Pages:  1  ..  16    18

  Go To Top
