Author: Subject: nitroglycerin
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 13-5-2015 at 01:09


I don't like the idea of depending on O2 in air. it might not be enough for complete combustion.

from wikipedia :

Quote:

Tritonal is a mixture of 80% TNT and 20% aluminium powder, used in several types of ordnance such as air-dropped bombs. The aluminium improves the total heat output and hence impulse of the TNT - the length of time during which the blast wave is positive. Tritonal is approximately 18% more powerful than TNT alone.


Wow, 18% increase in power is very good !


is there anyway to calculate the improvement for other EM and the optimum percentage of Al ?


[Edited on 13-5-2015 by ecos]
View user's profile View All Posts By User
Hennig Brand
International Hazard
*****




Posts: 1284
Registered: 7-6-2009
Member Is Offline

Mood: No Mood

[*] posted on 13-5-2015 at 02:12


You can easily estimate the increase in heat output if you know the percent of Al in the charge and the extent of combustion. The particle size and shape of the aluminum, as well as other factors, will greatly effect the power of the explosive though. I am not an expert on this, so if you dig a little you will likely find more information about how to quantify this.



"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 13-5-2015 at 03:35


I started to dig , it seems increasing the percentage of Al above a certain limit will decrease the power.

I found the optimum value for AN is 13% but most people use 10% of Al. in Tritonal they use 20%.

I couldn't find any mixture above 20% Al but no reason why.
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 14-7-2015 at 15:23


Hi All,

I start to wonder, is it possible to make NG gel as a fine powder ? I was thinking that BB can be made fine powder using a ball mill. I was thinking to use the same technique to get a fine powder of NG gel. This would remove the air bubbles inside the gel and make it possible to be used for shaped charges
I found no detonation for NG/NC (91:9) for 2kg from 15 cm as indicated in figure below. this mean the ball mill jar can be smaller in size not to exceed this critical diamater.
Capture.png - 38kB
Ref : Nitroglycerine and Nitroglycerine Explosives: Phokion Naoum
page : 312

I am just afraid that decrease the size of NG gel would make it very sensitive to shock !.

any suggestions ?

[Edited on 14-7-2015 by ecos]
View user's profile View All Posts By User
Metacelsus
International Hazard
*****




Posts: 2508
Registered: 26-12-2012
Location: Boston, MA
Member Is Offline

Mood: Double, double, toil and trouble

[*] posted on 14-7-2015 at 15:47


Would powdering it even work? Would it just get mushed up? Maybe you could freeze it first, like in https://en.wikipedia.org/wiki/Cryogenic_grinding
but less extreme.

Anyway, do this at your own risk. I wouldn't be anywhere nearby.




As below, so above.
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 17-7-2015 at 03:15


Quote: Originally posted by Cheddite Cheese
Would powdering it even work? Would it just get mushed up? Maybe you could freeze it first, like in https://en.wikipedia.org/wiki/Cryogenic_grinding
but less extreme.

Anyway, do this at your own risk. I wouldn't be anywhere nearby.


as i understand, NG gel shouldn't be freezed or it would crystallize and be unstable -- thats why they mix NG with Nitroglycol !
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 24-7-2015 at 13:05


short video about Gelatin dynamite : https://youtu.be/n3COSL_cIoc
I was shocked when i saw the process ! i thought NG is more sensitive than being treating like this(picture for the mixer) :

image.png - 329kB

I was very scared when i deal with NG! I read many stories about how danger to handle NG and NC but this video show they are not that sensitive.

I try to avoid making blasting gelatin because i am scared to mix NG with NC and stir them with the thermometer.

any experience how to deal with NG ?

[Edited on 24-7-2015 by ecos]
I also found vidoes for people using syringe to deal with NG ; https://www.youtube.com/watch?v=Qhb3nxS4g84

i thought the pressure of syringe would explode it !

[Edited on 24-7-2015 by ecos]
View user's profile View All Posts By User
Hennig Brand
International Hazard
*****




Posts: 1284
Registered: 7-6-2009
Member Is Offline

Mood: No Mood

[*] posted on 24-7-2015 at 15:26


Yes, NG under normal conditions is much less sensitive than it is reported to be by many modern sources, however, I am still very careful when handling it. If I am being more careful than needed and wasting a little time and energy it is much better than having an overconfident attitude possibly/likely resulting in a tragic accident that would likely leave me maimed or killed.

It is an interesting video, thanks.




"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 24-7-2015 at 16:34


I started to get confused of everything :

Wiki states :
Quote:

Early in its history, it was discovered that liquid nitroglycerin can be "desensitized" by cooling it to about 5 to 10 °C (40 to 50 °F). At this temperature nitroglycerin freezes, contracting upon solidification. Thawing it out can be extremely sensitizing, especially if impurities are present or the warming is too rapid.


In The process of synthesizing NG, it is required an ice path for washing and removing acids i.e, NG would exist in a medium with temperate almost Zero !

for making blasting gelatine , it is preferred to cool NG from 0-5 degres to slow the gelatinization process !

it is also said that any acid traces would be dangerous for NG however, NG is synthesised in acid medium and left for some time!
I feel confused by different sources

[Edited on 25-7-2015 by ecos]
View user's profile View All Posts By User
Hennig Brand
International Hazard
*****




Posts: 1284
Registered: 7-6-2009
Member Is Offline

Mood: No Mood

[*] posted on 24-7-2015 at 17:03


Wikipedia is not always a reliable reference. It can be a convenient research starting point and the references at the bottom of the Wiki pages are often good.

Frozen NG is very insensitive, but bits of frozen NG in liquid NG can be a very sensitive mixture as can mixtures with bits of sand or other hard gritty substances in a sample of liquid NG for the same reason.

It is much easier to gelatinize NG with NC at slightly elevated temperatures. Not sure about industrial processes, but I have always found the gelatinization process very slow without the help of a solvent and maybe a bit of heat, but then again I was not using the very fine, essentially powdered, NC that is used industrially for the purpose.

Different concentrations of acid effect NG differently, also exposure time makes a difference. I have left spent mixed acids to stand in the dark for one or two days after which I would often obtain as much as 10-15% more NG. I also remember extracting and then only crudely washing a small sample of NG years ago and coming out the next morning to find it boiling and billowing red fumes from the small open beaker holding the sample.




"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 25-7-2015 at 09:33


Hi Hennig,

regarding this part :

Quote:

Frozen NG is very insensitive, but bits of frozen NG in liquid NG can be a very sensitive mixture as can mixtures with bits of sand or other hard gritty substances in a sample of liquid NG for the same reason.


I never used distilled water. Also dust can be a factor of things I use ! this mean the NG would be sensitive ?

I was also preparing to add Al powder to NG/NC mixture ! this sounds critical now !
View user's profile View All Posts By User
Hennig Brand
International Hazard
*****




Posts: 1284
Registered: 7-6-2009
Member Is Offline

Mood: No Mood

[*] posted on 25-7-2015 at 12:26


The sharp edges and corners on hard gritty substances with motion can result in localized high pressure and heat being generated between these surfaces and each other or other surfaces which can sometimes be enough to result in initiation.

Not all dust is the same though. I couldn't say for sure how much of a sensitizer your particular type of dust is. I just try to avoid any contaminants, but especially hard gritty contaminants. NG/NC mixtures are normally very insensitive and mixing in fine flake aluminum should be fine.


https://www.tedpella.com/company_html/hardness.htm

Mohs Scale

Hardness of Quartz (Vitreous Silica): 7
Hardness of Aluminum: 2-2.9




"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 25-7-2015 at 17:10


Quote: Originally posted by Hennig Brand
Wikipedia is not always a reliable reference. It can be a convenient research starting point and the references at the bottom of the Wiki pages are often good.

Frozen NG is very insensitive, but bits of frozen NG in liquid NG can be a very sensitive mixture as can mixtures with bits of sand or other hard gritty substances in a sample of liquid NG for the same reason.

It is much easier to gelatinize NG with NC at slightly elevated temperatures. Not sure about industrial processes, but I have always found the gelatinization process very slow without the help of a solvent and maybe a bit of heat, but then again I was not using the very fine, essentially powdered, NC that is used industrially for the purpose.

Different concentrations of acid effect NG differently, also exposure time makes a difference. I have left spent mixed acids to stand in the dark for one or two days after which I would often obtain as much as 10-15% more NG. I also remember extracting and then only crudely washing a small sample of NG years ago and coming out the next morning to find it boiling and billowing red fumes from the small open beaker holding the sample.


I think you mean frozen NG is sensitive !
I was reading today more about NG since it is the only HE I can prepare now:

  1. book name : high explosives and propellants
  2. Author ; S. Fordham
  3. page 38


Capture.png - 61kB
View user's profile View All Posts By User
Bert
Super Administrator
*********




Posts: 2758
Registered: 12-3-2004
Member Is Offline

Mood: " I think we are all going to die. I think that love is an illusion. We are flawed, my darling".

[*] posted on 25-7-2015 at 21:52



Quote:

I think you mean frozen NG is sensitive !


No, he meant exactly what he said.

Frozen NG is quite INsensitive. Partially frozen NG is bad news... Incautious attempts to thaw NG or NG explosives not formulated for cold weather use are also a historically famous source of accidental explosions.

Too tired to dig out the references right now. Google George Mowbray, Hoosac tunnel, sleigh, frozen NG.




Rapopart’s Rules for critical commentary:

1. Attempt to re-express your target’s position so clearly, vividly and fairly that your target says: “Thanks, I wish I’d thought of putting it that way.”
2. List any points of agreement (especially if they are not matters of general or widespread agreement).
3. Mention anything you have learned from your target.
4. Only then are you permitted to say so much as a word of rebuttal or criticism.

Anatol Rapoport was a Russian-born American mathematical psychologist (1911-2007).

View user's profile View All Posts By User
Praxichys
International Hazard
*****




Posts: 1063
Registered: 31-7-2013
Location: Detroit, Michigan, USA
Member Is Offline

Mood: Coprecipitated

[*] posted on 26-7-2015 at 05:28


Quote: Originally posted by Bert

Frozen NG is quite INsensitive. Partially frozen NG is bad news... Incautious attempts to thaw NG or NG explosives not formulated for cold weather use are also a historically famous source of accidental explosions.

Yes, I believe this to be correct. Think of the higher polyols. ETN is more sensitive when melted than frozen. NG should be the same way.

IIRC the reason frozen NG is more dangerous is that attempts to thaw the NG before electric heating was available lead to many accidents. Frozen NG in handling equipment sometimes lead unknowledgeable operators to force equipment or warm it over a fire. I can find no account of thawing NG actually exploding by itself other than in internet heresay. It doesn't make sense from a chemical standpoint anyway.

http://www.logwell.com/tales/frozen_nitroglycerin.html

EDIT: Whoops, wrong argument.

[Edited on 26-7-2015 by Praxichys]




View user's profile Visit user's homepage View All Posts By User
Tabun
Harmless
*




Posts: 38
Registered: 17-4-2015
Member Is Offline

Mood: No Mood

[*] posted on 26-7-2015 at 10:26


Quote: Originally posted by ecos
short video about Gelatin dynamite : https://youtu.be/n3COSL_cIoc
I was shocked when i saw the process ! i thought NG is more sensitive than being treating like this(picture for the mixer) :



I was very scared when i deal with NG! I read many stories about how danger to handle NG and NC but this video show they are not that sensitive.

I try to avoid making blasting gelatin because i am scared to mix NG with NC and stir them with the thermometer.

any experience how to deal with NG ?

[Edited on 24-7-2015 by ecos]
I also found vidoes for people using syringe to deal with NG ; https://www.youtube.com/watch?v=Qhb3nxS4g84

i thought the pressure of syringe would explode it !

[Edited on 24-7-2015 by ecos]

I was also a little scared...never worked with it but I thought it's more sensitive.I first heared about its true sensitivity from Uncle Fester's book.After that I looked into it a little more and learned about it but I still thought it's easy to initiate as I said in this topic.I now know how it trully is after reading Urbanski's book on the subject and another book which you can find in the library(sciencemadness's library).Now it's really annoying to see people trying to convince you how unstable it is and other s**ts like this...
View user's profile View All Posts By User
Praxichys
International Hazard
*****




Posts: 1063
Registered: 31-7-2013
Location: Detroit, Michigan, USA
Member Is Offline

Mood: Coprecipitated

[*] posted on 27-7-2015 at 05:54


I remember my first experiences with NG. Having just sworn off peroxides (mostly MEKP), I made some NG which I had read was much more powerful. I was very nervous the first time and I used all the same plastic labware I had used to make organic peroxides, shaking slightly, with a sweat band (yes, I am a product of the late 80s) controlling the salt water over my eyes.

Initially my 16 or 17-year-old self thought I had botched the synthesis, since I was unable to detonate any by hammer blow using my standard benchtop-vise/anvil and the 6oz ball-peen hammer which could set off MEKP easily with a stern tap.

It still burned like the devil though, hissing away in a pale white flame - I knew something was amiss. Fetching large piece of steel stock and my dad's biggest framing hammer, I gave it several good overhand strikes before it let loose like a 12-gauge. I felt the thump in the chest and all the ducts and pipes in the basement sang for a full second, loose sawdust from the shop snowing from the ceiling under the glare of the fluorescent lamps.

The sense of accomplishment was palpable among the particles of sawdust. If my youth ever had halcyon days, that was one of them.

Anyway, I learned to respect NG but also that its sensitivity makes it rather benign to work with in a laboratory, with due care. Indeed the stuff is dangerous in an industrial setting when tens of liters of the stuff is thrown around in buckets, trounced by machines, and spat from noodle plates under the care of an army of 19th-century laymen. However, for the occasional laboratory curiosity, a healthy respect for explosives does well to remove undue hazard.

[Edited on 27-7-2015 by Praxichys]




View user's profile Visit user's homepage View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 27-7-2015 at 09:06


A lot of stories gave me and indication that NG is more sensitive than AP.

I have a big interest in NG since glycerin is cheap ,available everywhere and can produce HE when nitrated.

NG gelatine can also be used as propellent and this interest me a lot (double base propellent).

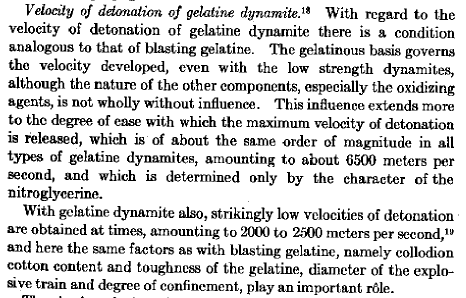

The detonation power of NG and its mixtures is variable. it vary from 2000 to 8000 m/s , please check figure below :

Capture.png - 34kB

I think no one would like to spend effort in synthesizing NG and then get VoD that reaches 2000 ms !

one of the solutions that proposed to achieve the high VoD for NG gelatine is to use special initiators as expressed in US2525397

the initiator in patent above depend on PETN and special casing design of the detonator ! I didn't like the idea coz i don't have Pentaerythritol and I am not going to press EM that much to achieve certain density.

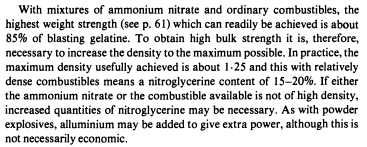

I found in a reference this statement :

Capture3.png - 69kB

Now, I need to insert high density material in NG gelatine to reach the max VoD , Al has density of 2.7 g/cm³ !
I have MnO2(Density: 5.03 g/cm³) and Fe2O3 (Density: 5.24 g/cm³) but Hennig remarked before that even sand can cause problem so think about metals ! I feel that I am going to increase the sensitivity of NG a lot with this idea !

the book didn't even mention the quantity I need to add !

do any body have any valuable idea ?


[Edited on 27-7-2015 by ecos]

[Edited on 27-7-2015 by ecos]
View user's profile View All Posts By User
kecskesajt
National Hazard
****




Posts: 299
Registered: 7-12-2014
Location: Hungary
Member Is Offline

Mood: No Mood

[*] posted on 27-7-2015 at 10:11


Maybe other exlplosive powders like PETN or HMX or even TNT.What about diatomaceus earth?That way used in the first dynamites.Or wood dust.
Al makes ETN much more sensitive.

[Edited on 27-7-2015 by kecskesajt]
View user's profile View All Posts By User
Tabun
Harmless
*




Posts: 38
Registered: 17-4-2015
Member Is Offline

Mood: No Mood

[*] posted on 28-7-2015 at 04:05


Quote: Originally posted by ecos


the initiator in patent above depend on PETN and special casing design of the detonator !

[Edited on 27-7-2015 by ecos]


The only special thing I have seen in that patent is the thickness of the blasting cap's bottom.And it doesn't only mention PETN.If PETN would work,why wouldn't ETN?

Does anybody have any experience with Nitroglycide and gelatine made with this?
View user's profile View All Posts By User
Bert
Super Administrator
*********




Posts: 2758
Registered: 12-3-2004
Member Is Offline

Mood: " I think we are all going to die. I think that love is an illusion. We are flawed, my darling".

[*] posted on 28-7-2015 at 06:39


Or you could just use a thin gelatin (ca 2-3% NC) and make a 60% NG ammonium nitrate/wood flour based gelignite. THAT will not likely fire at the low velocity quoted.

I long ago fired a small sample of 2% NC jelly soaked 200 mesh granular magnalium, ratio about 40% jelly to 60% 50:50 Mg/Al powder. Bled jelly if allowed to sit, had to pack in plastic film. It worked very well in a .75" Dia. charge, producing a flat, high pitched CRACK! similar in tone to a heavy PETN det cord- but I did not bother to determine the velocity. Flash of light it gave was AMAZING.

[Edited on 28-7-2015 by Bert]




Rapopart’s Rules for critical commentary:

1. Attempt to re-express your target’s position so clearly, vividly and fairly that your target says: “Thanks, I wish I’d thought of putting it that way.”
2. List any points of agreement (especially if they are not matters of general or widespread agreement).
3. Mention anything you have learned from your target.
4. Only then are you permitted to say so much as a word of rebuttal or criticism.

Anatol Rapoport was a Russian-born American mathematical psychologist (1911-2007).

View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 28-7-2015 at 07:49


@kecskesajt , all what you stated has low density and the concept is not to add absorbent like diatomaceus earth
adding PETN , TNT ,... would be a very expensive solution ! adding Metal to increase the density would be a better solution.

I am not sure if adding metal powder (Fe2O3 or MnO3) would add a lot of hazard to the NG gelatine or not ! I am not expert with NG mixtures.

@Tabun, he mentioned to press it well to reach a high density initiator, I think ETN will work but I didnt like the patent concept !

@Bert, here is what i found for AN mixtures with NG :


Capture2.png - 27kB

The maximum power would reach 85% of blasting gelatine , this means lower VoD and it might not work for shaped charges !

I found some mixtures stated in US4764229


I made hard search for compositions and I found this mixture from the patent above:

gel.png - 21kB

It is also noted the power has 80% strength even after adding Al powder :( ! unfortunately, The author didn't provide any info about VoD and I am stuck to calculate it myself.

[Edited on 28-7-2015 by ecos]

[Edited on 28-7-2015 by ecos]
View user's profile View All Posts By User
PHILOU Zrealone
International Hazard
*****




Posts: 2880
Registered: 20-5-2002
Location: Brussel
Member Is Offline

Mood: Bis-diazo-dinitro-hydroquinonic

[*] posted on 28-7-2015 at 11:41


The sensitivity of NG when frozen comes also from tiny bubbles entrapped into the matrix, generating hot spots when shocked by a compression wave.

Tawing usually generate a risk of local overheating and hence deflagration and detonation.

Same effect is seen with microballoons and low density NH4NO3 for sensitivity increase.


[Edited on 28-7-2015 by PHILOU Zrealone]




PH Z (PHILOU Zrealone)

"Physic is all what never works; Chemistry is all what stinks and explodes!"-"Life that deadly disease, sexually transmitted."(W.Allen)
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 2-8-2015 at 04:05


Quote: Originally posted by Bert
Or you could just use a thin gelatin (ca 2-3% NC) and make a 60% NG ammonium nitrate/wood flour based gelignite. THAT will not likely fire at the low velocity quoted.


I made some searches in Naoum book and found that any mixture has NG as ingredient will suffer the same problem of low VoD :

VOD.png - 36kB

and


vod2.png - 19kB

even storage will affect the sensitivity and very strong cap would be needed to get the max VoD. (cap8)

it seems detonation of NG is not an easy thing :

image.png - 27kB

[Edited on 3-8-2015 by ecos]
View user's profile View All Posts By User
ecos
National Hazard
****




Posts: 464
Registered: 6-3-2014
Member Is Offline

Mood: Learning !

[*] posted on 14-8-2015 at 07:09
Regeneration of sulfuric acid nitrating mixtures (after synthesis nitroglycerin)


Very interesting video about Regeneration of sulfuric acid nitrating mixtures (after synthesis nitroglycerin)

https://www.youtube.com/watch?v=DASQdQMwaB4
View user's profile View All Posts By User
 Pages:  1  ..  23    25    27

  Go To Top
