Asus3
Harmless
Posts: 10
Registered: 25-11-2025
Member Is Offline
Mood: No Mood
|
|
-

|
|
|
chempyre235
Hazard to Others
Posts: 219
Registered: 21-10-2024
Location: Between Nb and Tc
Member Is Offline
Mood: Quite distracted
|
|

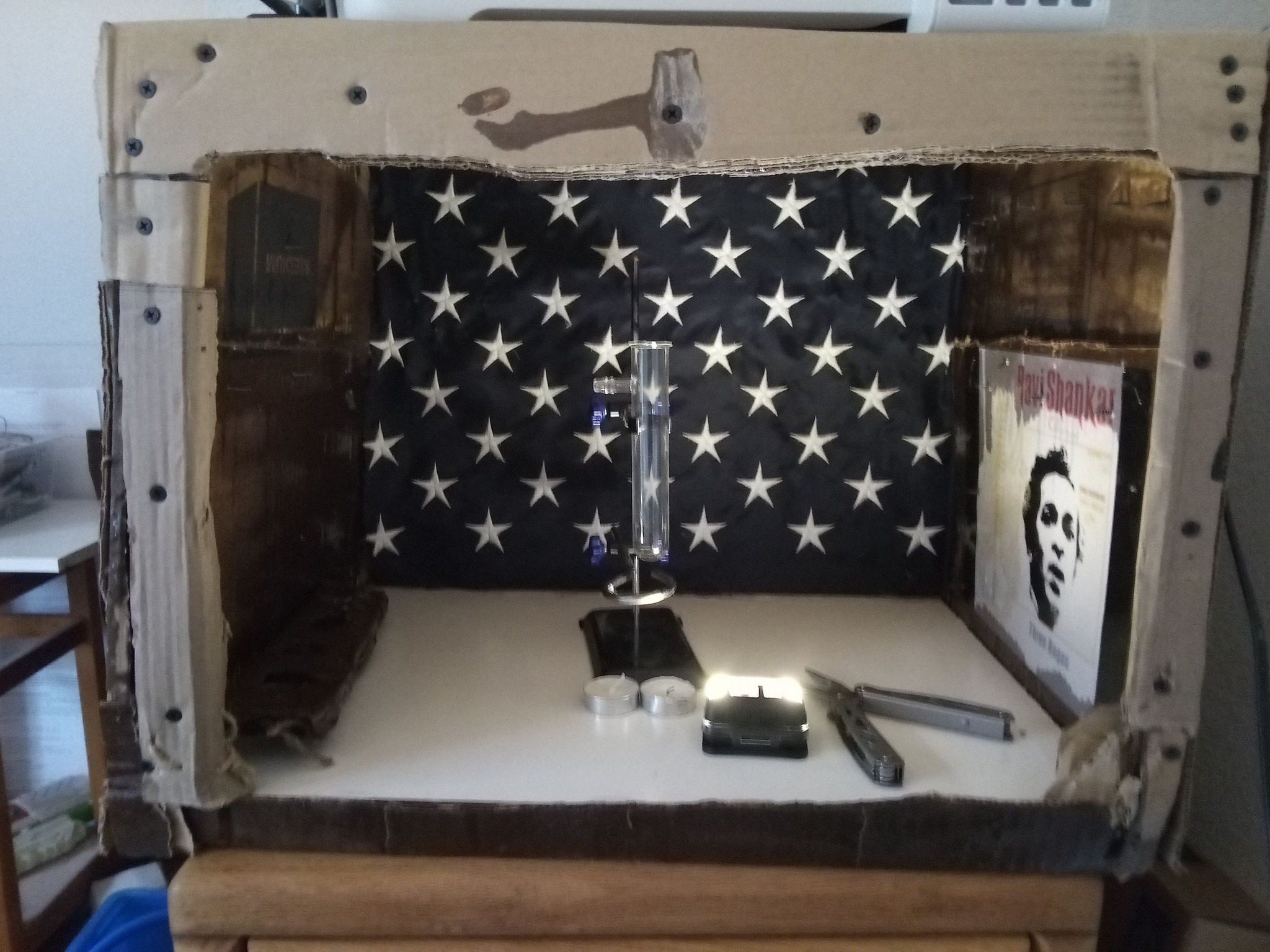

That fume hood is the most redneck thing I've seen in a long time. I like it.
The stars of Old Glory add a nice touch, too.
However, I wouldn't recommend doing anything flammable, or using concentrated acid in that fume hood. And don't spill...
[Edited on 1/2/2026 by chempyre235]
"However beautiful the strategy, you should occasionally look at the results." -Winston Churchill
"I weep at the sight of flaming acetic anhydride." -@Madscientist
"...the elements shall melt with fervent heat..." -2 Peter 3:10
|
|
|
RecreationalHazzardEnjoye
Harmless
Posts: 2
Registered: 2-1-2025
Member Is Offline
|
|

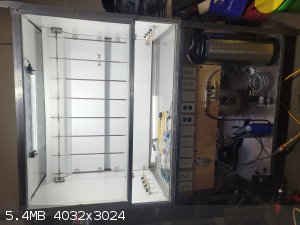

Just finished the fumehood I've been working on, and thought I'd post a picture of it here. It's made of aluminum and painted with an epoxy enamle
paint. The sash is polycarbonate and glass layered together. I welded together a steel rack that fits inside it, and I've got some valves and barb
hose fittings on the side to supply RO water, vacuum, and coolant. If anyones wants to know more about it, or has any suggestions for future additions
I could make I'd love to hear them. Hopefully the image works. This is my first time using the forum.
[Edited on 19-2-2026 by RecreationalHazzardEnjoye]
|
|
|
bnull
National Hazard
Posts: 998
Registered: 15-1-2024
Location: East Woods
Member Is Offline
Mood: Fecking annoyed
|
|
Perhaps a thermometer to monitor coolant temperature (in and out) and a clock on the outside.
It looks good as it is. Well done.
|
|
|
RecreationalHazzardEnjoye
Harmless
Posts: 2
Registered: 2-1-2025
Member Is Offline
|
|
I like the thermometer idea. I'm planning to replace the rotary vacuum pump with a recirculating water vacuum aspirator eventually and I'll add a
thermometer to the coolant once I'm working on it anyways.
|
|
|
