Allyl Bromide Preparation


Overview
Allyl alcohol was prepared from glycerol and formic acid under inert atmosphere, hydrolysed with NaOH and fractionally distilled to yield the 73 % allyl alcohol water azeotrope. This was then reacted with 48 % hydrobromic acid and sulfuric acid and the allyl bromide distilled as per the conventional method. It was then redistilled with 3A molecular sieves drying agent to yield the final product which is stored over additional 3A molecular sieves. Allyl bromide I’ve prepared in this way has been used as is, without further drying nor refinement, for the preparation of Grignard reagent and in Grignard reactions, so has been proven suitable for such application(s).

The allyl alcohol preparation is based on patent: WO2008092115A1
“Conversion of glycerol from biodiesel production to allyl alcohol”
https://patents.google.com/patent/WO2008092115A1

Allyl alcohol is an irritant and potent lachrymator, therefore suitable overhead ventilation was used.

This is effectively a rudimentary distilling exercise in inert atmosphere, with reaction temperature measurement in addition to the usual still head temperature measurement for distilling.
Basic equipment was used as depicted in the images, whilst I used a 500 ml 3 neck flask for convenience, an ordinary 500 ml RBF could easily have sufficed with the appropriate fittings. Reaction mixture temperature was measured with a thermocouple probe in a sealed glass tube mounted using a thermometer adapter.



Allyl Alcohol Preparation (2 runs in total)

Reagents per run:
165 g glycerol
144 g 85 % formic acid (3 distillation cycles, 48 g per cycle)

(Therefore a combined total of 330 g glycerol, and 288 g 85 % formic acid were used in this experiment.)

Argon was used for the inert atmosphere, though only really necessary at the start before the vapour displaces the air.

1st cycle
165 g glycerol was added to the 500 ml RBF, along with 48 g 85 % formic acid. Stir bar also added.
Setup for distillation with condenser, vigreux column, addition funnel, and still head thermometer. During the distillation, reflux/air cooling from the column helps to keep the formic acid from distilling, increasing yields by about 15 % or so compared to when I’ve used without.

Start : Air is displaced with argon. Mantle heat is set at about 65 – 75 % of maximum, and maintained at this setting. As the solution heats, the viscosity decreases to allow the stir bar to stir, stirring was started as soon as it was possible to do so.
Target reaction temperature I’ve used is about 235 – 245 C, attained after water distils off.

T + 15 minutes: Reaction temperature = 130 C, still head temperature = 100 C, water distilling.
T + 45 minutes: Reaction temperature = 175 C, still head temperature = 100 C, water distilling.
T + 52 minutes: Reaction temperature = 216 C, still head temperature = 99 C, water distilling, approx. 15 ml collected.
T + 55 minutes: Reaction temperature = 224 C, still head temperature unstable, varying between 91 – 97 C, CO2 evolution, though no significant frothing.
T + 68 minutes: Reaction temperature = 240 C, still head temperature at 91 C, heat setting reduced to 60 %. Approx. 25 ml collected. Product distilling at about 1.5 drips per second.
T + 73 minutes: Reaction temperature = 240 C, still head temperature at 86 C, approximately 1.5 drips per second of distillate.
T + 90 minutes: Reaction temperature = 246 C, approximately 55 ml collected. Heat is turned off and allowed to cool down to below 200 C. Thus concluding the first of three cycles. (The water distillate wasn’t discarded, all the distillate was kept together. Water will be needed for the hydrolysis later.)

90 minutes per cycle.



Another 48 g of 85 % formic acid is added to the addition funnel, and then added to the reaction mixture over about 1 minute. The heating is then turned on as before, and the cycle is repeated, and then repeated again with the remaining 48 g 85 % formic acid.
At the end of the 3rd cycle, there was just under 200 ml distillate, and about 20 ml or so of dark orange liquid remaining in the distilling flask.
Total elapsed time was about 5 hours.



The above was repeated the next day, with another 165 g glycerol, and 144 g 85 % formic acid. Total combined distillate was about 400 ml.

*No further inert atmosphere required*

Distillate hydrolysis / allyl formate decomposition
1 hr reflux with 80 g NaOH

The RBF used for the distillation was cooled, cleaned out, and the clear distillate (~400 ml) added. The RBF was placed in a water bath, and 80 g NaOH slowly added in 3 portions.

Caution: about half of the NaOH will boil the mixture without cooling, so external cooling is essential, or a prolonged delay between additions.

The glassware was setup for reflux, and refluxed for just over 1 hr.



By the end of the reflux/hydrolysis, the solution was dark red-burgundy coloured.
The allyl alcohol – water azeotrope was then fractionally distilled, slowly, from the dark alkaline solution, collecting the fraction 87 C – 90 C.



(The pure 72.9 % azeotrope boils at 88.2 C, and has a density of 0.905 g/cc).

Distillation required about 2.5 hours, with 200 g collected. This was then redistilled, to collect the constant boiling azeotrope, this required about 1 hour (in previous runs, this re-distillation was omitted without problems, so it isn’t essential for allyl bromide preparation).

Total yield = 192 g. Density = 0.90 g/cc.

It was then transferred to an amber storage bottle, and the internal air displaced with argon to attenuate the formation of explosive peroxide(s).

No titration was carried out to determine precise purity of the allyl alcohol, however previous experience has shown that it is sufficiently pure for the preparation of allyl bromide in the following step.



Only 100 g of the 73 % allyl alcohol was used for the following allyl bromide preparation, the remaining 92 g was kept aside for future experiments.

Allyl Bromide Preparation

Reagents:
321 g 48 % hydrobromic acid
86 g >95 % sulfuric acid (x 2)
100 g 73 % allyl alcohol
3A molecular sieve was used as drying agent, though other drying agents could be used instead.

Glassware/equipment is setup for distillation, with addition funnel. Vigreux column was used, but probably not necessary.
With magnetic stirrer on, 321 g 48 % hydrobromic acid, 86 g sulfuric acid and 100g 73 % allyl alcohol were added to the RBF, in that order. After they are added the solution colour was orange.
Note: sulfuric acid will readily polymerise allyl alcohol to red tar, so it’s important to get the order of addition correct!

A further 86 g sulfuric acid (purple drain unblocker) was added to the addition funnel.



With the equipment setup for distillation (including still head thermometer), with vigorous magnetic stirring the additional 86 g sulfuric acid was slowly added over about 3 minutes. This caused the solution to heat up and distil slightly, the solution colour changed to a darker orange. After a few more minutes when the distillation subsided, the heating was started on medium heat. Care was taken to ensure the vapour didn’t overwhelm the condenser.
This required about 30 minutes, still head thermometer reading gradually increasing to about 65 C or so. When water starts to come over and sits on the allyl bromide, it’s about time to stop.

(The small amount of tar that remains in the distilling flask readily dissolves in and was cleaned using white spirits.)

All of the distillate was added to a 125 ml separating funnel, and washed with 20 ml of 5 % K2CO3 solution.



After settling, the lower allyl bromide layer was drawn off and added to a dry 500 ml RBF in preparation for the final distillation.

Note: Pure allyl bromide bp is 70-71 C (ref: chemspider)
https://www.chemspider.com/Chemical-Structure.7553.html

Equipment is setup for fractional distillation (w/vigreux column) and distillation started. After the lower boiling fraction, up to around 68-69 C or so, has come over, some water will have also and can be seen floating as droplets on the surface of the distillate. At this point the distillation was stopped, cooled and then 2 teaspoons of 3A molecular sieve added to the RBF. Dried by allowing to stir for 15 minutes. The lower boiling fraction is discarded, the receiver cleaned and dried.
The distillation was then continued, slowly (about 1 drip/second). Collecting the pure allyl bromide fraction.



Final yield was 111 g, density measured to be 1.4 g/cc. This was then transferred to a dry jar containing 8 g 3A molecular sieve, then placed in a freezer for storage. No inert atmosphere has been used for storage thus far.
I’ve stored water clear allyl bromide in this way for 2 months and counting, and with no discernible discolouration nor decomposition.

Attachment: Allyl Alcohol from Glycerol Patent.pdf (124kB)
This file has been downloaded 87 times

[Edited on 11-12-2019 by CycloKnight]
View user's profile View All Posts By User
Boffis
International Hazard
*****




Posts: 1361
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 10-12-2019 at 14:05


Nice write up CycloKnight! I have often contemplated carrying out this preparation but was put off by my perceived risk of ending up with a flask full of black c**p. But you seem to end up with only a small amount of dark residue. Is it water soluble?
View user's profile View All Posts By User
Cou
International Hazard
*****




Posts: 769
Registered: 16-5-2013
Location: Dallas, Texas, USA
Member Is Online

Mood: Mad Scientist

[*] posted on 10-12-2019 at 19:58


epic x))))
View user's profile Visit user's homepage View All Posts By User
Pumukli
International Hazard
*****




Posts: 554
Registered: 2-3-2014
Location: EU
Member Is Offline

Mood: No Mood

[*] posted on 11-12-2019 at 02:41


A very nice preparation, thanks for sharing!

I would have thought that allyl-alcohol and sulfuric acid would produce tar even if diluted by HBr but it seems this is not the case. Probably the water in 48% HBr is enough to inhibit polymerization.

Why is substitution of the OH with Br is preferred over say HBr addition to the double bond? Water in the system?
View user's profile View All Posts By User
Metacelsus
International Hazard
*****




Posts: 2409
Registered: 26-12-2012
Location: Cambridge, MA
Member Is Offline

Mood: Double, double, toil and trouble

[*] posted on 11-12-2019 at 05:26


Quote: Originally posted by Pumukli

Why is substitution of the OH with Br is preferred over say HBr addition to the double bond? Water in the system?


The mechanism for allyl bromide formation is loss of H2O from the protonated alcohol to form an allyl cation, followed by addition of the bromide nucleophile. SN1 mechanisms are favored for allylic alcohols due to the delocalization (and thus stabilization) of the cation.

HBr addition to the double bond could possibly take place, but this would be relatively disfavored. The alkene, instead of the alcohol, would have to be protonated, and this is much less likely to happen.




As below, so above.
View user's profile View All Posts By User
Fery
National Hazard
****




Posts: 257
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 11-12-2019 at 14:26


CycloKnight beautiful and thank you for sharing. Allylalcohol synthesis from glycerol and formic acid (or dehydrated oxalic acid) is something I would like to try in the future though I have 500 ml of allyl alcohol and 1 l of allylbromide. My allylalcohol is in big sealed glass ampule and I do not have hearth to break it. But I would like to synthesize e.g. allylpentanoate (pineapple scent not found in nature unlike natural ethylbutyrate, ethylhexanoate).
One step interested me - using inert gas for expelling oxygen (in the patent attached they used nitrogen) - do you think it is really necessary and does it increase yield significantly? You did it only once at the beginning, never at repeated steps. When your glassware cooled down and vapors condensed, by my opinion some air entered you flask. If there would be 500 ml of air inside at the beginning, that is approximately 0,1 g of O2. Does it hurt or not? Perhaps it could induce acrolein formation?
I always try to reduce unnecessary steps, but perhaps it could be wrong in this synthesis and I should follow every step carefully and use argon or nitrogen too.
View user's profile Visit user's homepage View All Posts By User
monolithic
National Hazard
****




Posts: 267
Registered: 5-3-2018
Member Is Offline

Mood: No Mood

[*] posted on 11-12-2019 at 16:41


Nice work. Plan on doing a write up on the impending Grignard reaction? :)
View user's profile View All Posts By User
CycloKnight
Hazard to Others
***




Posts: 127
Registered: 4-8-2003
Member Is Offline

Mood: Still waiting for the emulsion to settle.

[*] posted on 12-12-2019 at 06:03


Thanks fellas!

Quote: Originally posted by Boffis
I have often contemplated carrying out this preparation but was put off by my perceived risk of ending up with a flask full of black c**p. But you seem to end up with only a small amount of dark residue. Is it water soluble?


There wasn't any tar produced during the allyl alcohol distillation, but there was some tar remaining in the flask after the first allyl bromide distillation. This was an amber coloured residue that remained after the dark solution was emptied. This tar didn't dissolve very well in acetone nor ethyl acetate, but a small amount of white spirits dissolved it immediately, so no risk of messy flasks, etc. After the final allyl bromide distillation, I didn't take any photos because there was nothing to see other than a clean, empty flask with 3A molecular sieve in the bottom.
I also neglected to mention in the write up that whist there was a lower fraction, there was no higher boiling fraction, so actually the final distillation doesn't have to be run as slowly as I did.

Quote: Originally posted by Pumukli

I would have thought that allyl-alcohol and sulfuric acid would produce tar even if diluted by HBr but it seems this is not the case. Probably the water in 48% HBr is enough to inhibit polymerization.

You are right about the tar. Some allyl alcohol was degraded, I didn't take photos but by the end of the allyl bromide reaction/formation and distillation, the solution was very dark red, and with a thin film of black tar floating on the surface.

Quote: Originally posted by Fery
Allylalcohol synthesis from glycerol and formic acid (or dehydrated oxalic acid) is something I would like to try in the future though I have 500 ml of allyl alcohol and 1 l of allylbromide. My allylalcohol is in big sealed glass ampule and I do not have hearth to break it. But I would like to synthesize e.g. allylpentanoate (pineapple scent not found in nature unlike natural ethylbutyrate, ethylhexanoate).
One step interested me - using inert gas for expelling oxygen (in the patent attached they used nitrogen) - do you think it is really necessary and does it increase yield significantly? You did it only once at the beginning, never at repeated steps. When your glassware cooled down and vapors condensed, by my opinion some air entered you flask. If there would be 500 ml of air inside at the beginning, that is approximately 0,1 g of O2. Does it hurt or not? Perhaps it could induce acrolein formation?
I always try to reduce unnecessary steps, but perhaps it could be wrong in this synthesis and I should follow every step carefully and use argon or nitrogen too.


I'm quite sure that the inert atmosphere is essential. Although I've never tried this particular reaction without argon, I have some experience of working with hot glycerol back when I was formulating an isoeugenol synthesis. The first run I did with glycerol, with no inert atmosphere, and only to 150 C, for several hours. It was a complete mess. The glycerol was converted to a black, treacle-like substance, resembling burnt sugar. It took a bit of work to clean out.
For the allyl alcohol prep, I didn't take many pictures of the solution later in the reaction, but there is virtually no colour change for the first couple distillation cycles or so. Even though the temperature is way up at 240 C, without inert atmosphere that simply wouldn't be possible.

Quote: Originally posted by monolithic
Plan on doing a write up on the impending Grignard reaction? :)

Yep, you betcha. :)

[Edited on 12-12-2019 by CycloKnight]
View user's profile View All Posts By User
CycloKnight
Hazard to Others
***




Posts: 127
Registered: 4-8-2003
Member Is Offline

Mood: Still waiting for the emulsion to settle.

[*] posted on 12-12-2019 at 06:44


Quote: Originally posted by Fery

One step interested me - using inert gas for expelling oxygen (in the patent attached they used nitrogen) - do you think it is really necessary and does it increase yield significantly? You did it only once at the beginning, never at repeated steps. When your glassware cooled down and vapors condensed, by my opinion some air entered you flask. If there would be 500 ml of air inside at the beginning, that is approximately 0,1 g of O2.


I have a large argon cylinder that I also use for tig welding. The argon is fitted with a tig secondary regulator (with a flow indicator), I use a bubble bottle (containing dry toluene) to gauge the flow, to help conserve argon. It is therefore very easy to flush out flasks with argon, and then maintain a very subtle argon flow, of perhaps a bubble every few seconds or so.
Before starting each distillation cycle, the internal atmosphere was displaced with argon (by temporarily increasing the argon flow) so no air entered at any time when at high temperature.

[Edited on 12-12-2019 by CycloKnight]
View user's profile View All Posts By User
Dr.Bob
International Hazard
*****




Posts: 2135
Registered: 26-1-2011
Location: USA - NC
Member Is Offline

Mood: No Mood

[*] posted on 12-12-2019 at 15:24


That is a great writeup and experimental detail. I'd give it an A+ if I was teaching a class.

As to the stability of the allyl group in HBr, most of the time you want to hydrohalogenate a double bond, you use a dry halogenated solvent and as concentrated of an acid as you can find. If there is an activated alcohol, like a benzyl or allyl alcohol, it will exchange first, in many cases, but if not, the double bond can add HCl or HBr, typically in a Markovnokov manner. The reaction is in equilibrium, and can go forewards or backwards, depending on the amount of water/acid/SM/product present, so using dehydrating conditions may favor the elimination as well. In fact HBr should be faster than HCl to add to the double bond than HCl. But water can compete with the HBr and either convert the bromide back to the alcohol or add back to the double bond, so the amount of water present can affect the product ratio.

But in this case, the product (allyl bromide) can distill quickly, and once it is away from the reaction, it no longer sees the super acidic environement. If the double bond adds HBr, you would get 1,2-dibromopropane, but its BP is about 140 C, so it cannot distill easy, so it can then dehydrohalogenate back to allyl bromide under the equilibrium. So you likely have a mixture of the two compounds, and since the allyl bromide distills away at about 70 C, the reaction equilibrium shifts, and more is formed. That is Le Chatelier's Principle at work. At least that would be my explaination of it.
View user's profile View All Posts By User
Fery
National Hazard
****




Posts: 257
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 17-2-2020 at 12:58


I would like to write my own opinion.
The inert gas is probably unnecessary. Seems water steam expels air and oxygen quickly. Keeping T below 260 C seems to be more important.
I will post more when completing everything, here just a few pictures (after 6 rounds still no tar, just orange color).

Writing this with still tears in my eyes, secretion from nose and irritated throat (though I even led a hose from the apparatus output to outside of building) :-D
Now I know why the commercial allyl alcohol I've bought recently came in a sealed ampule.

After 3 rounds:


IMG_20200217_135928_8_sm.jpg - 41kB IMG_20200217_135935_9_sm.jpg - 28kB



After 6 rounds:


IMG_20200217_193553_6_sm.jpg - 39kB IMG_20200217_193600_2_sm.jpg - 30kB




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Fery
National Hazard
****




Posts: 257
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 18-2-2020 at 03:22
allyl alcohol preparation from glycerol + formic acid


Be very careful - allyl alcohol has significantly higher toxicity (pls read the pdf attached) than other alcohols !!! CO2 evolved during reaction with some allyl alcohol vapours must be discharged outside of building using a hose. Fumehood required and if you have suitable gas mask + efficient filter even better. It is strong lachrymator, irritating eyes, nasal mucosa, throat, airways.
Both chemicals are quite cheap and easy to buy. Glycerol is readily available for home-made cosmetics. Formic acid could be obtained certainly from a bee-keeper shop if you can't buy it from a chem supplier.

In the first step, glycerol is esterified into monoformate, in the second step the ester loses CO2 and H2O so allyl alcohol produced.

Preparation-of-allyl-alcohol-from-glycerol-and-formic-acid.png - 34kB

Reagents: Glycerol (anhydrous, I used pharma grade 99,5%), formic acid 85% (I used analytical grade, but technical grade should work too).

Apparatus: 2-neck 1000 ml RBF round bottom flask, 300 mm vigreux colum, 75' thermometer distillation adapter, thermometer adapter, thermometer upto 110 C, thermometer upto 300 C, 300 mm Liebig condenser, VACUUM TAKE-OFF ADAPTER (!!! THIS IS VERY NECESSARY !!!), A HOSE LONG ENOUGH FROM THE VACUUM TAKE-OFF ADAPTER TO THE OUTSIDE OF BUILDING (!!! THIS IS VERY NECESSARY !!!), 2-neck 250 ml RBF + 1 stopper (to open the flask only when removing the distillate, the distillate is removed by such a way that the stopper is removed, rotating the vacuum take-off adapter holding the flask, the distillate poured from the side arm of the flask, the flask quickly stoppered again and the adapter with the flask rotated back).

Method:

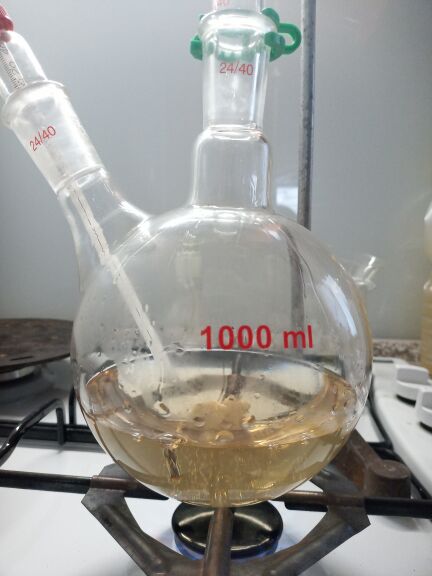

To the 1000 ml RBF were placed boiling chips, 330 g of anhydrous glycerol and 100 g of 85% formic acid (the amout of acid ranged in 96-104 g it is not critical), mixed well. A HOSE WAS CONNECTED TO THE VACUUM TAKE-OFF ADAPTER AND WAS LED TO OUTSIDE OF BUILDING.

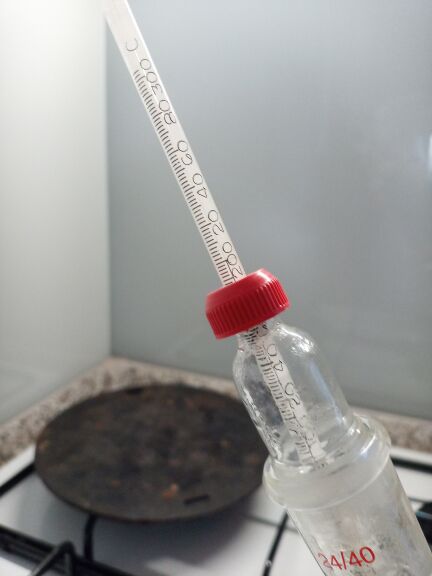

The thermometer upto 300 C was placed in the side arm of the RFB and submersed into the liquid with its bulb close to the flask bottom so it stays submersed even when the volume of reactants decreases due their consumption during the reaction. The thermometer upto 110 C was inserted into the 75' thermometer distillation adapter.
The flask was heated with strong flame using gas burner. It is suggested that the first distillate (water and formic acid) distills in 15 minutes and the T inside flask reaches 195 C in 30-45 minutes when the product (allyl alcohol) starts to distill. It is hard to estimate the intensity of heating because it is different for the first round when all glycerol present and certainly lower flame required during the third round when a lot of glycerol already used up. When the heating is too strong (boiling in 5 minutes and product distillation in 15 minutes) it seems to have negative impact on the yield too, apparently less glycerol formate esterified and more of formic acid just distilled out of the reaction mixture.
The distillate coming when the T in the reaction mixture is below 195 C contains mostly water and formic acid, perhaps it is worth to recycle formic acid from it.
When the T of reaction mixture reaches 195 C the dropping from condeser ceases temporarily and T inside reaction is increasing, at some point the distillation resumes again at a speed of 1-2 drops per second (the product). It is hard to estimate this point just from the 110 C thermometer in the distillation head which is unstable at this point - if the heat is too strong the CO2 coming from the reaction is too hot so the T could reach even 110 C which is undesirable (I tried that) although b.p. of allyl alcohol is 97 C and azeotrope of allyl alcohol with water b.p. 88,89 C (72,3% alcohol). On the other side when the rate of distillation is too slow the T could indicate even less than 80 C which is caused by a condensation above the thermometer bulb so then by cooled drops running down to the thermometer bulb. Don't rely on the thermometer in the distillation head too much, the more important thermometer is the one submersed in reaction mixture (thermometer upto 300 C) - without this thermometer it is almost impossible to determine the point when water stops to distill and product starts and when the formic acid is used up and the flame should be turned off (though I tried that - no success, every round has different amount of reactants, different flame strength, some air blowing or with different temperature around unisolated column caused by different hour of the day, etc).
So when the T of the reaction mixture reaches 195 C, remove the water+formic acid (about 45-55 ml) from the flask capturing the distillate (without detaching the flask - just rotating the take-off vacuum adapter with the flask and using side arm of the flask to pour off the distillate) and start to collect the allyl alcohol, when the T reaches 260 C turn the heating off and let the mixture to cool down (few drops of the product will still pass through the condenser on cooling down the reaction mixture). About 65-105 ml of the product obtained (less product when heating was too strong and also when the heating too week then acrolein formation with negative impact on the yield too).
When the T decreases to 100 C, add second portion of the formic acid (100 g) and repeat.
Then the third round with the same amount of formic acid and at the end there is only little of glycerol remaining in the RBF.

To the remaining yelow glycerol I added extra 292 g of fresh pure colorless glycerol and repeated the 3 rounds again. This second serie I was more brave and applied too strong heating which seemed to have negative impact on the yield. Too slow heating has also negative impact (acrolein formation). It is hard to reproduce all 3 rounds exactly due to different mass of reactants (some of glycerol used up every step, so the first round requires stronger heating than the third one).

It is necessary to adjust heating during every step, initial heating is stronger and when reaching desired temperatures it is decreased to approx 1/2, sometimes 1/3 and rarely 1/4 (if the initial heating was too strong) - just watch thermometers, especially the one sumbersed in reaction mixture (allyl alcohol collected when reaction mixture temperature in range 195-260 C from which at both extremes only very little of distillate and most of distillate at 225-235 C).

At the end I recovered 93 g of reddish unreacted glycerol from the flask (if the heating was not so strong especially in the second serie I believe there was much less of residual glycerol).
The exact amounts of reactants:
glycerol 330 g + 292 g = 622 g, so 529 g of glycerol reacted (5,75 mol)
85% formic acid 102,3 + 98,6 + 98,3 + 102 + 101 + 104,6 = 606,8 g which is 516 g of 100% formic acid which is 11,2 mol (seems half of the formic acid reacted and half distilled out with the water from 85% acid and the water from esterification of glycerol with formic acid so it seems to be worth of recovering formic acid from the distillate).

water + formic acid obtained as a distillate:
45 + 52 + 55 + 47 + 51 + 55 ml

Allyl alcohol obtained as a distillate:
105 + 105 + 72 + 92 + 82 + 65 ml
The 72 ml in the third round of the first serie was very likely caused by too strong heating (the heating for the 3rd round should be weaker than for the 1st round as the amount in the flask is about half of the initial amount).

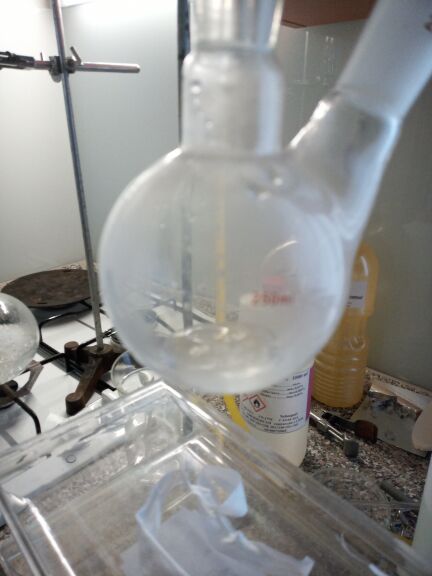

The second serie yield was significantly lower (92 + 82 + 65 ml) as I applied much stronger heating (in the first serie I was more cautious).

I did not determine the concentration of the allyl alcohol obtained. I did not perform work-up yet. I would like to break azeotrope by salting out using K2CO3 which also neutralizes traces of formic acid and hydrolyzes allyl formate.

Attachment: 10.1002@14356007.a01425.pdf (249kB)
This file has been downloaded 63 times

photos will follow soon


[Edited on 18-2-2020 by Fery]




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Fery
National Hazard
****




Posts: 257
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 18-2-2020 at 04:04


reactants

IMG_20200217_092708_7_sm.jpg - 42kB



apparatus - !!! note the hose from the vacuum take-off adapter must lead to the outside of the building !!!

IMG_20200217_082227_1_sm.jpg - 33kB IMG_20200217_082309_4_sm.jpg - 41kB



first round: 330 g glycerol + 102,3 g formic acid

IMG_20200217_085758_7_sm.jpg - 32kB



water distilling with formic acid

IMG_20200217_091013_7_sm.jpg - 15kB IMG_20200217_091024_9_sm.jpg - 30kB IMG_20200217_091034_2_sm.jpg - 32kB



about 45-55 ml of water obtained in one round

IMG_20200217_092419_2_sm.jpg - 21kB



already collecting allyl alcohol as a distillate

IMG_20200217_092218_7_sm.jpg - 20kB



allyl alcohol still passing as a distillate

IMG_20200217_093111_5_sm.jpg - 19kB IMG_20200217_093542_6_sm.jpg - 27kB IMG_20200217_093559_1_sm.jpg - 16kB



allyl alcohol distillation going to finish for this round No. 1

IMG_20200217_103500_4_sm.jpg - 19kB IMG_20200217_103518_8_sm.jpg - 15kB IMG_20200217_103532_5_sm.jpg - 23kB



round No. 2 by adding about 98,6 g of fresh 85 % formic acid into the glycerol left after the round No. 1 in the flask (temp of the glycerol about 100 C before addition of formic acid), then heating again

IMG_20200217_110558_8_sm.jpg - 32kB



end of round No. 2 (note this thermometer is not so important, surprisingly small amount of allyl alcohol still passing through the condenser), the important thermometer is the one submersed into the reaction mixture through the side arm of the RBF

IMG_20200217_121546_7_sm.jpg - 14kB



end of round No. 2, here is the important thermometer, stop the heating when the temperature raises to 260 C

IMG_20200217_122156_4_sm.jpg - 30kB



72 ml of crude allyl alcohol collected after the round No. 3 finished, best yields 105 ml (round No. 1, 2), worst yields like 65 ml in other rounds when heating too strong (second serie) and literature claims also poor yield when heating too weak

IMG_20200217_135922_4_sm.jpg - 37kB



remaining glycerol after the first serie (after the round No. 3) - will be used later in the second serie by adding new fresh pure colorless anhydrous glycerol

IMG_20200217_135928_8_sm.jpg - 41kB IMG_20200217_135935_9_sm.jpg - 28kB



second serie round No. 1 started (so the fourth round totally) by adding 292 g of fresh anhydrous glycerol to the remaing yellow glycerol from the first serie + 102 g of 85 % formic acid and then heating again

IMG_20200217_145816_6_sm.jpg - 33kB



the remaining 93 g of glycerol after second serie round No 3. (so totally 6 rounds) - no tar, just reddish color

IMG_20200217_193553_6_sm.jpg - 39kB IMG_20200217_193600_2_sm.jpg - 30kB

[Edited on 18-2-2020 by Fery]




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User

  Go To Top
