Cleaning Uranium Metal

While it's widely known that nitric acid is useful for the removal of the black coating of oxide that forms on uranium metal exposed to air, exactly what concentration of acid is best to use and what, if any, additives are beneficial were pieces of data that I lacked. I searched on SM for "cleaning uranium" expecting to find multiple entries, but this simplistic search returned no relevant hits. By looking through a few of the many AEC monographs downloadable from this site, I found an optimized cleaning mixture that utilizes diluted acid and incorporates hydrogen peroxide in the mixture.

The ratio of choice for the components 70% HNO3, distilled H2O and 30% H2O2 was given as 49 to 49 to 2 (parts by volume). Given that I have immediate access to 3% H2O2 and no easy access to 30% H2O2, an equivalent solution was prepared using 70% HNO3, distilled H2O and 3% H2O2 in a 49 to 31 to 20 volume ratio. For all practical purposes, this can be prepared in the laboratory by mixing:

1) 5 volumes of 70% HNO3
2) 3 volumes of distilled H2O
3) 2 volumes of 3% H2O2

Uranium metal is often packaged under mineral oil or with at least a mineral oil coating. Mineral oil is supposedly soluble in toluene, and it very likely is when pure and anhydrous, but all of the mineral oil that I find coating some reactive metals seems to contain some small toluene-insoluble fraction, maybe a few percent. I suspect that it may commonly be water. The first step in cleaning the metal is to totally remove the oil. Several washes with toluene removed the obvious oily coating. The metal was then washed a couple of times with acetone to remove the suspected moisture and then blotted dry.

A blackened sample of U is shown in one of the accompanying pictures. I had another 18+ grams of similar-looking metal as a half dozen small chunks. They were solvent washed as described above and then added to a 10 mL lot of the acid-peroxide solution. The solution liberated small bubbles (and thus is suited for outdoor or fume hood work lest any aerosolized U enter the air) and the solution slowly assumed a color reminiscent of dinitrogen tetroxide. The color may also be from solubilized oxide and no attempt to decide which one was actually responsible was made. After 5 minutes, with occasional gentle stirring, the metal faces which were smooth were etched to a flat to moderately shiny silver color. Areas of the metal which presented fractured surfaces were also cleaned by the etchant but more slowly. For many presentational purposes, the metal can then be rinsed with water followed by acetone, then dried under a stream of argon and sealed into an ampoule under vacuum or argon. The second picture shows what the sample looks like at this point.

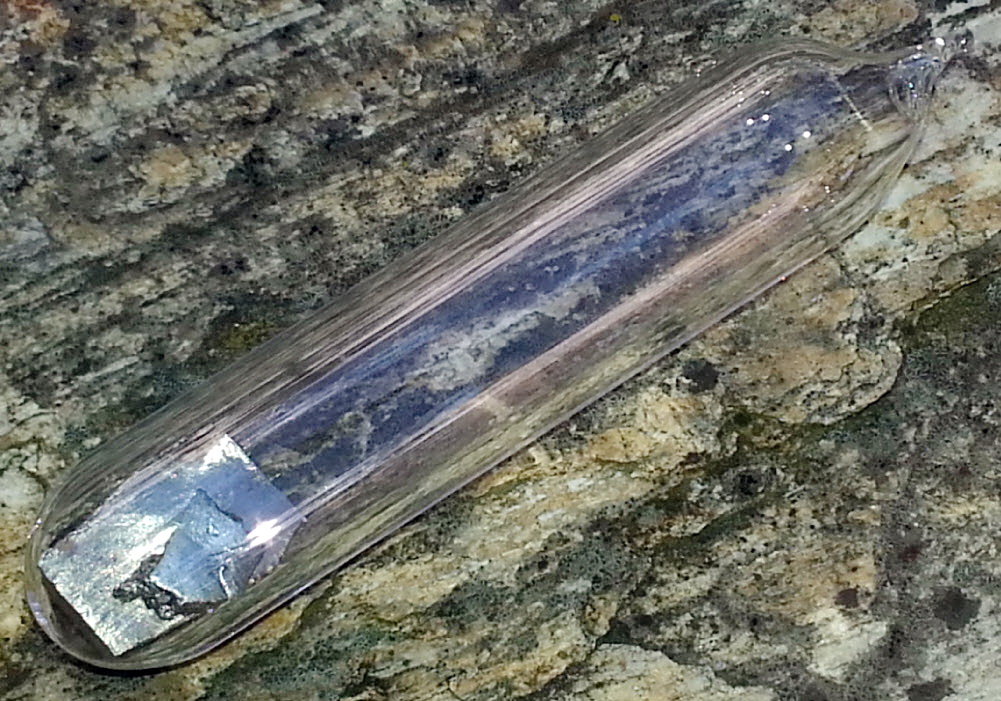

To achieve even nicer surfaces on samples with appropriate surface morphology, scrubbing underwater with a mild abrasive such as SiC impregnated polymer mesh pad or by using a simple abrasive cleanser, like Comet may be performed. The metal may be further subjected to gentle cleaning with a small stainless steel wire wheel mounted in a Dremel tool if desired. This requires protection for the operator by employing a rudimentary glovebox or similar isolation scheme because of the radioactive dust that it generates. A 9-gram sample ultimately cleaned by this method is pictured below in an ampoule under argon.

The spent acid solution may be diluted with water and adjusted to a pH of 11 - 12 with ammonia. This causes the concentration of dissolved U to decrease by about 4 orders of magnitude and the resulting precipitate may be collected by filtration and packaged with your other low level insoluble radioactive wastes for appropriate disposal.

[Edited on 12/17/2019 by Dan Vizine]

"All Your Children Are Poor Unfortunate Victims of Lies You Believe, a Plague Upon Your Ignorance that Keeps the Youth from the Truth They Deserve"...F. Zappa
stamasd
Hazard to Others

Posts: 133
Registered: 24-5-2018
Location: in the crosshairs
Member Is Offline

Mood: moody

Excellent! This requires a thorough peer review including exact reproduction in an independent lab. I volunteer, but I need a piece of uranium for that.

(edited to say: 30% H2O2, or more precisely 27% H2O2 is easily available from pool supply shops; usually you have to buy it in bulk. I got 4 gallons for about $60 including shipping, brand name "Baquacil oxidizer") [Edited on 18-12-2019 by stamasd] Dan Vizine International Hazard Posts: 628 Registered: 4-4-2014 Location: Tonawanda, New York Member Is Offline Mood: High Resistance Ohhh...thanks for that bit of OTC knowledge. Previously I only knew of beauty shops as potential sources. "All Your Children Are Poor Unfortunate Victims of Lies You Believe, a Plague Upon Your Ignorance that Keeps the Youth from the Truth They Deserve"...F. Zappa G-Coupled National Hazard Posts: 287 Registered: 9-3-2017 Member Is Offline Mood: Slightly triturated What concentration H2O2 are beauty suppliers allowed to/will sell to private customers? Dan Vizine International Hazard Posts: 628 Registered: 4-4-2014 Location: Tonawanda, New York Member Is Offline Mood: High Resistance It seems that's irrelevant now. A company named Lab Alley sells 30% H2O2 for$27/L. I just never realized that it had become so easy to get.

"All Your Children Are Poor Unfortunate Victims of Lies You Believe, a Plague Upon Your Ignorance that Keeps the Youth from the Truth They Deserve"...F. Zappa
fusso
International Hazard

Posts: 1910
Registered: 23-6-2017
Location: 4 ∥ universes ahead of you
Member Is Offline

May I ask where did u get that piece of beautiful U metal?

Dan Vizine
International Hazard

Posts: 628
Registered: 4-4-2014
Location: Tonawanda, New York
Member Is Offline

Mood: High Resistance

Hi Fusso,
It belongs to a client. I don't really know its source.

"All Your Children Are Poor Unfortunate Victims of Lies You Believe, a Plague Upon Your Ignorance that Keeps the Youth from the Truth They Deserve"...F. Zappa
