Author: Subject: Cubane; Dimethyl Cubane-1,4-dicarboxylate synthesis
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 15-2-2020 at 04:23
Cubane; Dimethyl Cubane-1,4-dicarboxylate synthesis


I'm far from the full synthesis of dimethyl cubane-1,4-dicarboxylate, but I'm getting somewhere.

Based on this publication: Attachment: falkiner2013.pdf (1.4MB)
This file has been downloaded 249 times

The first step I took was making cyclopentanone ethylene diketal. presuming the product is pure, I did it with a yield of 69%. I'm planning to do a vacuum distillation before proceeding, so that will go down a bit.

What I did:

To make compound 8 from scheme 5 I bought cyclopentanone and ethylene glycol. As a catalyst for the ketalization I refluxed 25 ml of 96% sulfuric acid with 100 ml of toluene in a Dean Stark apparatus. I don't know if it is normal for this reaction to turn black, but after one hour of reflux at least the sulfuric acid layer seems to take up all the black tar (I guess it is tar) and the toluene layer on top becomes quite colorless, it has a bit of a green color. I stopped the reaction after I separated 2 ml of water in the Dean Stark trap.

I screwed up the above preparation once, I tried to separate the two layers (toluene/sulfuric acid) in clean, but not dry glassware. This will make the p-toluenesulfonic acid (TsOH) precipitate and clog the separation funnel. The TsOH hydrate is pretty insoluble in my pretended solvent (toluene) so I didn't try to get it back in solution or to do a laborious isolation of TsOH, which would also introduce a water molecule as it forms a monohydrate. With dry glassware, everything worked out fine. I just separated the two layers.

50 ml of the above prepared solution of TsOH was diluted with 150 ml of toluene and to this cyclopentanone (30.0 ml, 28.5 gr, 0.34 mol) and ethylene glycol (19.0 ml, 21.1 gr, 1.05 eq.) was added. This was refluxed for one hour at high heat in a Dean Stark apparatus, after which the calculated 6 ml of water was trapped by the Dean Stark. When heating was continued droplets of ethylene glycol were captured by the trap (ethylene glycol forms an azeotrope at 110, against the water azeotrope at 84) which was visually determined as the droplets sank into the water layer.

To be sure the reaction was finished (as I didn't know how much glycol came over with the first 6 ml) the water and ethylene glycol captured were returned into the boiling flask and the procedure was repeated but with lower heating. This time there was a clear difference in viscosity of the droplets captured before and after the 6 ml mark.

The reaction was cooled and washed with bicarbonate and brine. The toluene was evaporated under vacuum and the remaining organic layer was dried over magnesium sulfate. The crude yield was determined to be 30 gr. 69%.

I did screw up during the work-up, I had a suck back of (clean) water during the vacuum evaporation of the toluene, stupid mistake which made me dry the organics again, so the yield probably could have been higher. Also next time I will consider using worked up TsOH ( the hydrate will be captured by the Dean Stark anyway...) or something like acidic exchange resin as a catalyst (from a Brita cartridge?). But for a first attempt, not too bad I would say.

[Edited on 15-2-2020 by Tsjerk]
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 15-2-2020 at 04:35


The next step is the bromination of the diketal with 1,4-dioxane.Br2. I'm looking forward to receive my sodium bromide and sodium bromate, as I wasn't looking forward too much to distilling bromine. With the bromine/bromate and a bit of acid I can make bromine as a separate layer which will be dried with sulfuric acid.

Apparently this step only works with the dioxane-Br2 intermediate. The solvent doesn't seem very relevant to me... the reaction runs at room temperature. Only the dioxane/bromine complex seems to be important. I'm thinking about using a co-solvent instead of pure dioxane as the solvent.

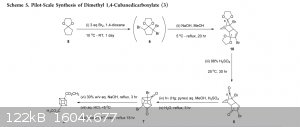

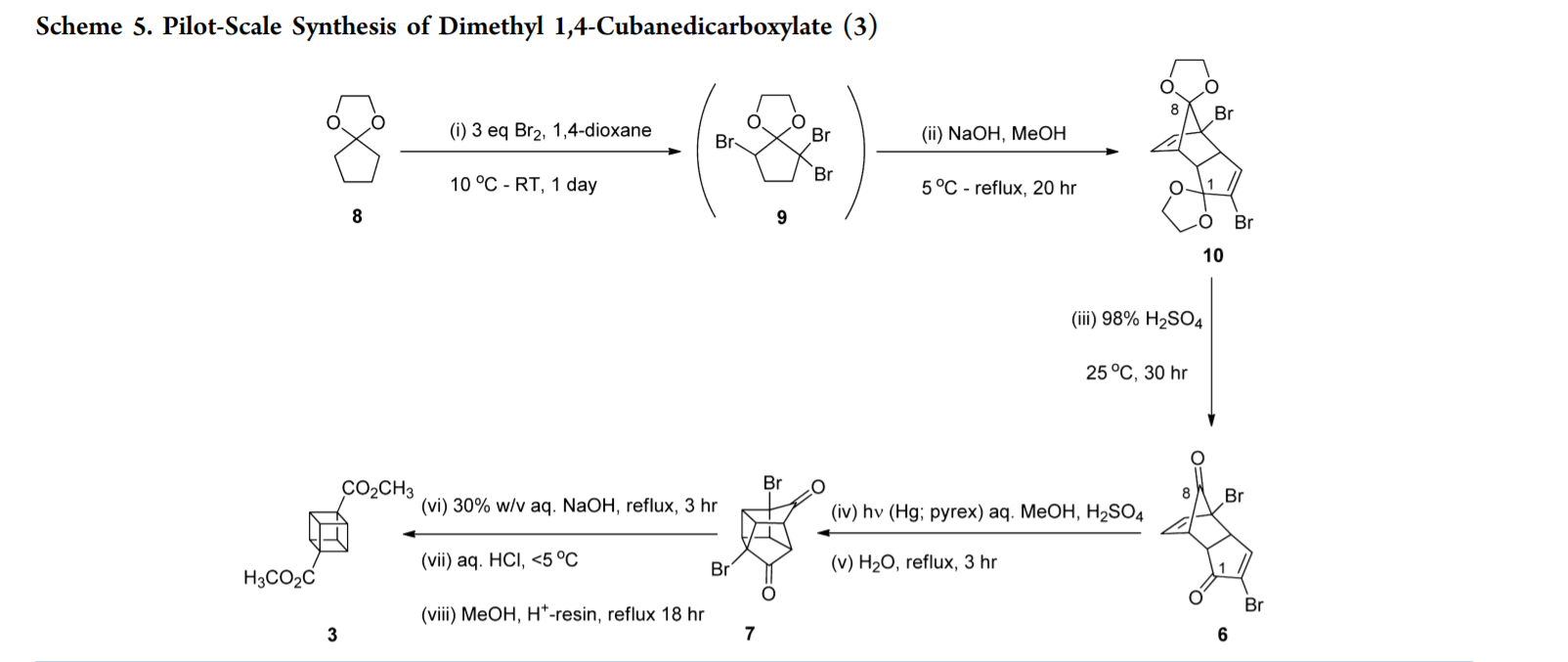

The reaction scheme:
Scheme.PNG - 122kB

[Edited on 15-2-2020 by Tsjerk]
View user's profile View All Posts By User
Dr.Bob
International Hazard
*****




Posts: 2299
Registered: 26-1-2011
Location: USA - NC
Member Is Offline

Mood: No Mood

[*] posted on 15-2-2020 at 17:33


That looks pretty interesting. I have never seen this synthesis, but it looks good, practically a good organic test question. For most cases of the first step, you could simply start the reaction by mixing the ketone and glycol in toluene and then just add a little sulfuric acid as the catalyst, I believe. But pre-making toslic acid that way is a neat trick.

The bromination is interesting, it goes only 3/4 of the way, likely due to sterics. Then the dehydrobromination to the monobromo-cylcopentadiene, which does a Diels-Alder with itself. Good luck with the whole synthesis.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 15-2-2020 at 22:08


Quote: Originally posted by Dr.Bob
For most cases of the first step, you could simply start the reaction by mixing the ketone and glycol in toluene and then just add a little sulfuric acid as the catalyst, I believe.


I was planning on doing that; but when I added the sulfuric acid to the toluene it turned black in minutes. I don't know if this happens to pure toluene or that it is due to an impurity that is polymerizing. It does look a lot like tar and the color is captured by the sulfuric acid layer after prolonged refluxing.

[Edited on 16-2-2020 by Tsjerk]
View user's profile View All Posts By User
ninhydric1
National Hazard
****




Posts: 345
Registered: 21-4-2017
Location: Western US
Member Is Offline

Mood: Bleached

[*] posted on 16-2-2020 at 11:45


The polymerization is most likely due to (1) impurities, or (2) some sort of interesting polymerization with the ethylene glycol. Is the toluene/sulfuric acid fairly pure?

If they are, and the black tar still happens, I highly recommend making the tosylic acid first. Chances are EG polymerizes messily in the presence of sulfuric acid.




The philosophy of one century is the common sense of the next.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 16-2-2020 at 12:16


Thank you for the reaction! Did you run the tosylic acid preparation yourself with pure toluene? I wonder whether it turns black with pure toluene.

What I did was running this preparation in two steps, first preparing the TsOH catalyst; see if I could capture some water in the trap, and than use the TsOH solution for the ketalizaition. I thought it would work as an one pot reaction, but it looked so dirty I separated the sulfuric acid (full of tar) from the toluene before using it. It forms a nice two layer system, and the final toluene layer was only slightly colored.

I guess my toluene contains something that polymerizes, It was dirt cheap...
View user's profile View All Posts By User
ninhydric1
National Hazard
****




Posts: 345
Registered: 21-4-2017
Location: Western US
Member Is Offline

Mood: Bleached

[*] posted on 16-2-2020 at 15:33


I have, indeed, carried out the tosylic aicd preparation with pure toluene, and no such black tar had formed; the most discoloration was a slightly gray or a light orange-yellow. I suspect it has to be impurities and/or reaction with EG.



The philosophy of one century is the common sense of the next.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 17-2-2020 at 04:26


The black tar was separated with the sulfuric acid layer before I added EG and cyclopentanone. After removing the tar and dilution of the TsOH with fresh toluene the solution was only slightly yellow, as is the diketal now.
View user's profile View All Posts By User
Tdep
National Hazard
****




Posts: 493
Registered: 31-1-2013
Location: Fixed Lasers
Member Is Offline

Mood: *laser noises*

[*] posted on 24-6-2020 at 20:32


I'm really interested in doing this. The pilot scale synthesis paper is fantastic, and I found that before I found the thread, thinking "hey wonder if anyone from sciencemadness has tried this"... of course they have.

The difficult part of this experiment for me is the need for vacuum distillation. The boiling point of the ketal is what... 150 C? Distilling at standard pressure might "tar it up" at those temperatures I suppose... or break it apart and start distilling the two fragments... although there's no water left in the system?

An issue I've been thinking about is 1,4-dioxane production. You do have excess ethylene glycol and a hot, acidic environment. So maybe the vacuum dist. is to avoid the temperature needed to drive dioxane production?? But then you see in the Pilot-Scale paper, that they use dioxane as the solvent for the next step... so I guess who cares anyway?

If it's all about keeping the temperature low, could you run a Dean-Stark set-up with Benzene instead of toluene? Boiling point of azeotrope (91% benzene) is 69 C, and then after the reaction you can distil off the benzene at 80 C, leaving behind just your product, some small amounts of dioxane.... and you proceed to the bromination without further purification?
View user's profile View All Posts By User
Tdep
National Hazard
****




Posts: 493
Registered: 31-1-2013
Location: Fixed Lasers
Member Is Offline

Mood: *laser noises*

[*] posted on 24-6-2020 at 20:36


On second thoughts, you'll have acid and excess ethylene glycol and potentially cyclopentanone and knowing me some tar... so it's probably worth distilling out the product before doing the bromination, right?
View user's profile View All Posts By User
Heptylene
National Hazard
****




Posts: 319
Registered: 22-10-2016
Member Is Offline

Mood: No Mood

[*] posted on 24-6-2020 at 23:18


Sigma says the boiling point of the ketal is 55 °C at 35 mmHg. That vacuum level can be easily reached with an aspirator. This whole synthesis looks very doable! Any updates Tsjerk?
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 25-6-2020 at 01:02


I indeed vacuum distilled the ketal, of which I have plenty now. The bromination went fine as far as I could tell but I couldn't filter the product, it was so fine it went straight through my finest glass filter. Gravity filtration also didn't work as the filter was clogged within seconds.

I left the product in an open beaker, the solid at the bottom seems stable, it stays nice and beige, but as soon as the liquid evaporated everything turned black.

I'm producing a big batch of KBrO3 out of KBr by electrolysis as we speak, so I can make more bromine. I will brominate some more ketal soon and figure out a way to filter the product.

One problem I'm facing is the source of UV in the 300 - 350 nm range. I have a nice quartz tube I can stick through a Teflon stopper, but looking for a UV led only got me here. The have leds's in the right range but they are expensive... They have a price list somewhere on the website.

Does anyone know a cheaper source?

Edit: about the tar produced by the toluene/sulfuric acid: I later found that happens with technical toluene and can be prevented by stirring the toluene with sulfuric acid at room temperature and seperating the acid before doing the Dean Stark.

sulfur in toluene

The yellow ketal nicely cleaned up by vacuum distilling it, indeed leaving black crap behind.

Edit2: I'm thinking about extracting the brominated product with DCM... This would then be dried with MgSO4 and evaporated under vacuum. That way there is no need for filtration. Also the product seems to be oxygen sensitive, this way not too much air would be around.

[Edited on 25-6-2020 by Tsjerk]
View user's profile View All Posts By User
Endo
Hazard to Others
***




Posts: 113
Registered: 5-1-2006
Location: USA
Member Is Offline

Mood: Cold

[*] posted on 25-6-2020 at 05:02


I recently purchased some UV LEDs from these guys.

EBAY supplier
View user's profile View All Posts By User
Tdep
National Hazard
****




Posts: 493
Registered: 31-1-2013
Location: Fixed Lasers
Member Is Offline

Mood: *laser noises*

[*] posted on 25-6-2020 at 18:32

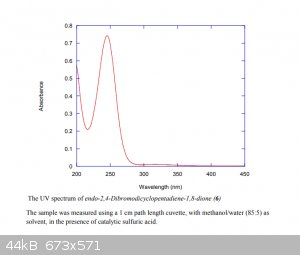

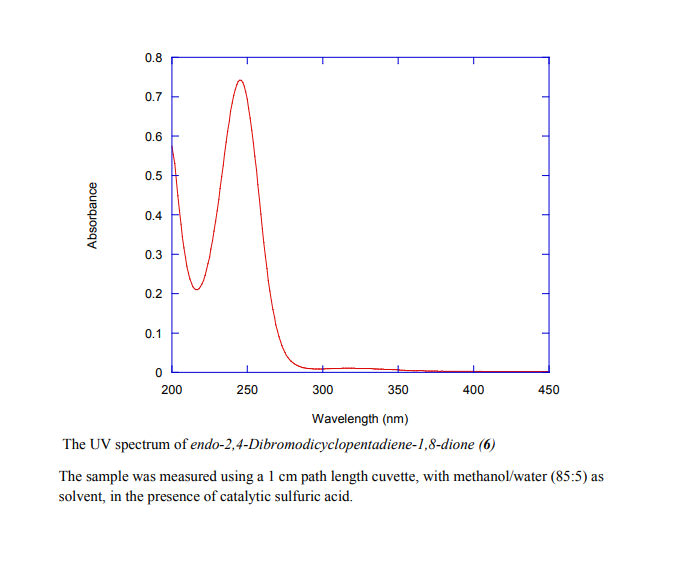

The wavelength has to be shorter than 350nm, which is frustrating, as most common UV LEDs are 365 nm. There's some deep UV LEDs, but they're pretty expensive still.
Really the peak absorbance perfectly overlaps with the 254nm UV line from a low-pressure mercury lamp. As fancy, fun and fresh LEDs are, this really looks like a lamp job to me

Capture.PNG - 44kB
View user's profile View All Posts By User
Quieraña
Harmless
*




Posts: 16
Registered: 24-8-2019
Member Is Offline


[*] posted on 25-6-2020 at 22:20


I saw this thing on yt about YAG crystal filled cubane molecules wrapped in tellurium or equivalent mirror shiny coating of nuclear unstable isotope which, when beamed with xray became filled with infrared via YAG component which would , when injected say, to a cancer cell, be there knocking off carcinomas via neutron bombardment AND a laser punch have ypur cake and eat it too, 'be rainbowed', channel on yt.
View user's profile View All Posts By User
DavidJR
International Hazard
*****




Posts: 908
Registered: 1-1-2018
Location: Scotland
Member Is Offline

Mood: Tired

[*] posted on 25-6-2020 at 22:35


Quote: Originally posted by Tsjerk

I was planning on doing that; but when I added the sulfuric acid to the toluene it turned black in minutes. I don't know if this happens to pure toluene or that it is due to an impurity that is polymerizing. It does look a lot like tar and the color is captured by the sulfuric acid layer after prolonged refluxing.


I think this is caused by the presence of methylthiophenes in petroleum-derived toluene, which cannot be separated by distillation. These compounds are more readily sulfonated than toluene.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 26-6-2020 at 01:39


Quote: Originally posted by DavidJR

I think this is caused by the presence of methylthiophenes in petroleum-derived toluene, which cannot be separated by distillation. These compounds are more readily sulfonated than toluene.


Indeed, I found out via this video. The method for purification shown in the video works nicely. I do think some p-TsOH is already formed at RT, as white fluffy crystals crystallize when the toluene is added in a wet separatory funnel. Depending on the purpose of the toluene this can easily be removed with some (bi)carbonate solution.

Quote: Originally posted by Tdep
The wavelength has to be shorter than 350nm, which is frustrating, as most common UV LEDs are 365 nm. There's some deep UV LEDs, but they're pretty expensive still.
Really the peak absorbance perfectly overlaps with the 254nm UV line from a low-pressure mercury lamp. As fancy, fun and fresh LEDs are, this really looks like a lamp job to me


I think I will order some of the cheap UV LEDs mentioned by Endo and hope they bleed enough into the <350 nm range. Maybe I can even ask the supplier if he has an emission spectrum.
View user's profile View All Posts By User
Housane
Hazard to Others
***




Posts: 125
Registered: 3-9-2018
Location: Worcester, England
Member Is Offline

Mood: Let’s make

[*] posted on 26-6-2020 at 10:02


Why do you want this Tsjerk? What idea do you have for it?



Green QD's so far

Feel free to correct grammar or incorect knknowledge. We are all learning.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 26-6-2020 at 11:01


For the fun of it, it would be nice to have a NMR spectrum with that specific cubane hydrogen peak.
View user's profile View All Posts By User
Heptylene
National Hazard
****




Posts: 319
Registered: 22-10-2016
Member Is Offline

Mood: No Mood

[*] posted on 27-6-2020 at 01:13


Philips makes some UV-B fluorescent tubes. Not cheap though. But maybe there's an affordable source near you, since Philips is a dutch company!

Otherwise, go with a mercury vapor lamp, high pressure if possible as it emits more UV-B.
I think almost any mercury vapor lamp is going to be better than any LED at those wavelength.
Mercury vapor lamp efficiencies are in the tens of percents, with multi-watts outputs, while deep UV-B and UV-C are less than a percent efficient, and only emit milliwatts per LED.
View user's profile View All Posts By User
Tdep
National Hazard
****




Posts: 493
Registered: 31-1-2013
Location: Fixed Lasers
Member Is Offline

Mood: *laser noises*

[*] posted on 27-6-2020 at 20:52


Quote: Originally posted by Tsjerk


I think I will order some of the cheap UV LEDs mentioned by Endo and hope they bleed enough into the <350 nm range. Maybe I can even ask the supplier if he has an emission spectrum.


An emission spectrum is always nice to have, but I wouldn't expect them to bleed much at all into the 350nm range. The UV leds tend to peak rapidly and then bleed into longer wavelengths a lot. So it probably has hardly any emission even at 360nm, but still a whole lot at 380nm. They tend to be named after the shortest wavelength they produce in any meaningful way.

Also, as it heats up, it'll red shift some more, so if you plan to run them a long time, it'll get less efficient with time I believe.

Not meaning to rain on your parade on anything, I wish the absorbance spectrum at least showed some of the peak in at 360nm, then I'd be heaps more keen for LEDs.

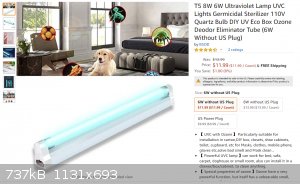

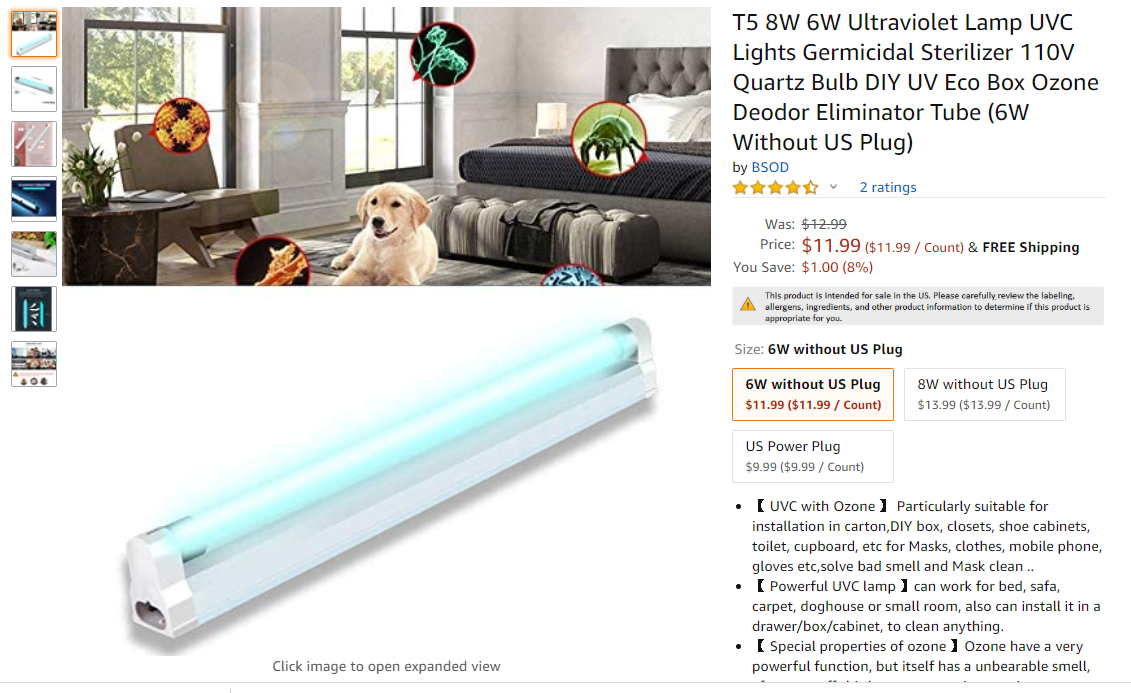

I've been looking at lamps on Amazon, and holy shit, what's with these prices? Is this some kind of chinese scam, or do they legitimately produce UV-C radiation?? Crazy. Are they regulated? Link to product in picture: https://www.amazon.com/ultravioleta-germicida-esterilizador-...

uv-c lamp.PNG - 737kB
View user's profile View All Posts By User
Heptylene
National Hazard
****




Posts: 319
Registered: 22-10-2016
Member Is Offline

Mood: No Mood

[*] posted on 28-6-2020 at 01:09


Tsjerk: The emission spectrum is guaranteed to be in the datasheet of the LED. Have a look on digikey for some UV LEDs, for instance this one.

Tdep: These lamp really produce UV-C and in large quantities too! I bought a big 20W bulb for $15 a while ago and it produces a weird smell of burnt skin when skin is exposed to it. It can excite calcium tungstate phosphor, which doesn't glow with UV-A. It's the real deal, and will damage your eyesight without protection.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 28-6-2020 at 09:31


I found the perfect lamp! UV-B from Philips, peak at 310nm, 28 mm diameter so it would fit through a NS 29/32 neck. Only it costs around 40 euro...

These lamps are cheaper, but have their maximum intensity around 254nm. I could get one of these for around 10 euro.

What do you guys think? Would 254nm do the job? I don't know too much about light catalyzed reactions...


[Edited on 28-6-2020 by Tsjerk]
View user's profile View All Posts By User
Tdep
National Hazard
****




Posts: 493
Registered: 31-1-2013
Location: Fixed Lasers
Member Is Offline

Mood: *laser noises*

[*] posted on 28-6-2020 at 22:37


254nm is perfect, that's what you want. You want the emission to overlap with the absorption of the compound, and that spectrum is what I posted earlier in the thread, from the Supp info of the Pilot scale synthesis.

The absorbance peaks at ~245nm, so the emission of 254nm from the lamp is perfect.

Heptylene: That's amazing. I was wondering if they were some kind of fake product that's meant to capitalise on Corona fears... just strap a normal lamp with some blue glass together or something... but it's amazing that they are real! I'm really keen to get one and try this out, this sounds like a lot of fun. I'll want a big acrylic box or something for safety... hm
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2361
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 29-6-2020 at 00:21


Quote: Originally posted by Tdep
254nm is perfect, that's what you want. You want the emission to overlap with the absorption of the compound, and that spectrum is what I posted earlier in the thread, from the Supp info of the Pilot scale synthesis.

The absorbance peaks at ~245nm, so the emission of 254nm from the lamp is perfect.


Then I don't get this statement in the Falkiner article...

Quote:
The long reaction time for this process can be attributed principally to the polychromatic nature of medium-pressure Hg vapor lamps, with only minor emissions in the critical region of 300 to 350 nm (see Supporting Information for UV spectrum of 6 under the conditions of the reaction). A better matched light source would be expected to significantly reduce irradiation time, and the concomitant waste of energy.


This is why I was looking for something between 300 and 350 nm.
