mononitrophenols - nitration of phenol


Put 1,5 mol 30% HNO3 (I made it from 166 g of 57% HNO3 with density 1,3505 g/ml + 149 g H2O) into 1 L 2-neck RBF, add magnetic stirbar, dropping funnel with pressure equalizing into one neck, thermometer into second neck, place the flask in ice-water bath onto a magnetic stirrer.
Liquefy 1 mol = 94,1 g of phenol with 20 ml water in 200 ml beaker (heat the reagent vessel with phenol above 41 C, pour the desired amount of phenol from it into the beaker while weighing the beaker until reached the desired weight, add warm water, mix) and pour it into the dropping funnel. Attach a hose to the hose connector of the dropping funnel to lead NOx gases out of the building or put the apparatus into fumehood.
Start stirring the 30% HNO3 and drop phenol into the reaction mixture at such a rate that the T is kept below 20 C (the reaction is exothermic, the nitration itself and oxidative sidereactions). Even the first drop of phenol changes the color in the reaction mixture to yellow, further drops to dark brown and soon the color becomes very dark. The phenol addition lasted for 2 hour. Then stir for extra 1 hour at T 20 C. I approximate the NOx gas evolved at a scale 1-2 L.
Transfer into separatory funnel, separate bottom tar oily very viscous phase into a beaker (its volume is approx 100 ml), discard upper layer phase (maybe it could be done in a less messy way by cooling to 0 C or even below 0 to such T where diluted acid still does not freeze but the thick oil solidifies and then just pour out the waste HNO3). It is almost impossible to see the border of the 2 phases, but after the lower viscous phase drained then the upper layer starts to flow more readily due to its much lower viscosity so you notice it when watching the stem of the separatory funnel and when it drops out of the funnel it also creates eyes on the surface of already drained bottom oily layer. Washed 3 times with 250 ml ice cold water, keeping bottom dark oily layer and discarding upper H2O layer. It is necessary to get rid of nitric acid.
Put the oil into 2 L RBF, add 1 L hot H2O, boiling chips, attach Liebig condenser with as much wide inner tube as you have. Start distilling. 2-nitrophenol creates intramolecular H bridges between -OH and -NO2 so its solubility in water is very low and its volatility by steam distillation is high unlike 4-nitrophenol where the bridges are intermolecular. Water with o-nitrophenol distills, m.p. of the o-nitrophenol 44-45 C so it is better to use warm water in condenser circulation, otherwise the product solidifies in the condenser - do not allow to obturate the condenser !!! Watch the condenser carefully and if the obturation portend, stop the water circulation flow (it is good to do it every 10-15 minutes anyway) and allow the steam to heat the condenser and melt the o-nitrophenol so it slides down to the receiver. Do not use take-off vacuum adapter with flask as a receiver (adapter has a tube which is cold and too narrow), use a beaker instead so the condensate drops from the condenser directly into the beaker and you have a good view into the inner tube of the condenser through its output end. It is also better to circulate the cooling water only so slowly that the product is still melted in the beginning parts of the condenser. After more than 500 ml of condensate collected, decant the water and return it back into the distillation flask and continue second round. Now after collecting 50 ml the amount of o-nitrophenol was significantly lower than in first round, the condenser was cleaned by stopping circulation and allowing the small amount of 2-nitrophenol to melt and slide out of the condenser. Then water circulation resumed and in 50 ml distillate only very little of 2-nitrophenol, condenser flushed by steam after stopping circulation, then circulation resumed and no yellow solid product anymore, only yellowish drops of water without solidified 2-nitrophenol so the distillation finished. Yellow solid 2-nitrophenol was crushed to smaller pieces and air dried. Do not dry it for too long, it seems to slowly sublime !!! Better to dry it in a dessicator over CaCl2.
Yield 38,3 g. It has quite interesting scent.

4-nitrophenol.
Adjust the volume in distillation flask to 1 L, add 25 ml 35% HCl, heat upto boil to extract p-nitrophenol from the tar at the bottom of the flask. When it starts to boil, turn the heating off, let to settle for 5 minutes (so the droplets of tar sink and coalesce with the tar at the bottom), decant the solution into 2 L tall beaker carefully, so the tar stays in the distillation flask (use a lamp to shine through the flask to see the tar at the bottom).
Everytime after heating to boil (to extract p-nitrophenol from the tar) allow it to somewhat cool down so the tar settles to the bottom, only then decant into the tall beaker.
Filtering the hot solution with tar through filter paper to get rid of tar does not help, the filtrate is liquid just dark colored and on cooling down the dark oil separates from the formerly clear liquid and the water phase becomes less dark. The solution of 4-nitrophenol on cooling just separates into 2 phases: upper phase H2O saturated with 4-nitrophenol, bottom phase 4-nitrophenol saturated with H2O.
Cooling the solution was done by putting tall beaker into shallow cold water bath where only low part of the beaker submersed into the cooling water, so the bottom phase solidified as first and only then crystallization started at some point when upper layer is further cooled down. Then put the beaker into fridge (4 C) overnight.
You'll end up with a beaker in which there is solid dark thin bottom layer (few mm), then half of the beaker filled with nice needle shaped crystals in mostly vertical position and upper half just mother liquor.
Return the mother liquor back into the flask by carefully decanting as much of it as possible, then carefully scrape the needle shaped crystals with thick glass rod (it works very well) and store them for further purification and then break the low dark crystalline solid mass into pieces and return them back into the flask (formerly liquid 4-nitrophenol phase saturared with H2O which later solidified).
This was repeated few times. The reason why not to use fresh clean water and returning dirty mother liquor back into the flask is due to the significant solubility of 4-nitrophenol in water so the reason is to reduce product loses at the cost of some purity degradation.
The 4th cycle of extraction yielded only little of crystals.
15 g of black hard tar was discarded from the flask at the end (without any sign of crystals, just glass like black substance).
So the extraction was performed 4 times with 1 L of H2O + 25 ml 35% HCl, the mother liquor reused from the first extraction till the last 4th extraction.
The formerly 1 L mother liquor (now little less volume due to loses on crystals) was kept as it was expected to contain maybe upto 10 g of the 4-nitrophenol (solubility at 15 C is 11 g / 1 L, at 4 C it is less but no info in literature).
The 4-nitrophenol needle-shaped crystals were recrystallized using 2 beakers and 500 ml 1% HCl (500 ml H2O + 10 ml 35% HCl) - but now the extraction of the product was by warming only upto 50-60 C (not to the boil, it was possible to touch by hand, no thermometer used), decanting from first into second beaker, cooling the bottom of the second beaker in shallow cold water bath, further cooling down to 4 C in a fridge for half a day, pouring the mother liquor back into the first beaker with dirty product, scraping crystals from the second beaker, returning a little of solid mass from the bottom of second beaker into first beaker. Again reusing the mother liquor due to significant solubility of the product in the water. Total 4 extractions+crystallizations performed, at the end only few grams of dark crystalline solid stayed in the bottom of second beaker which was extracted again using the same cycle (5th cycle) and after drying it yielded 1,9 g of of crystals (5th cycle) with darker color than the main crop (cycles 1-4). The first 4 crystallizations yielded 25,0 g of 4-nitrophenol after air drying it on filter paper. The formerly 500 ml of mother liquor was kept too. The 1000 ml mother liquor from the first series of extractions kept aside was now extracted with 2x 100 ml of ethylacetate (second approach would be to let it to evaporate and crystallize), ethylacetate layers were separated, added together, air evaporated outside during 3 days (some smell of acetic acid due to hydrolysis of the ester observed) and the solid dark product was once recrystallized using the 500 ml mother liquor from the second series of extractions. It yielded 6,6 g of 4-nitrophenol of poorer quality - visible as darker color than the main crop.
So the total yield of 4-nitrophenol was 33,5 grams of which 25,0 g the main crop and the 1,9 g + 6,6 g crops much darker crystals with lower purity.
The recrystallization from water acidified with HCl seems not to be the right way how to achieve good purity of the product but is capable to separate the product from tar. Perhaps toluene could be used for further recrystallization or another solvent. One method uses diluted NaHSO3 solution for recrystallization. There is a problem in alfa and beta modifications of crystals, one of them is not stable and light changes their color to red, there is some temperature point where these 2 modifications wrap on crystallization.

The glass was cleared with diluted solution of NaOH.

Photos will follow in the second post. The third post will contain a lot of information I collected.




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 4-6-2020 at 07:15

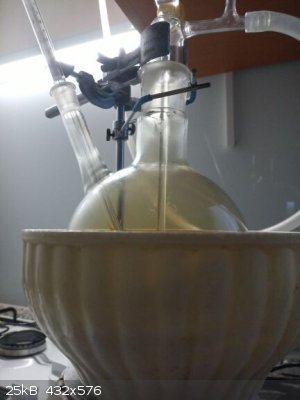

apparatus: 1 L 2-neck RBF with 1,5 mol 30% HNO3, magnetic stirbar, thermometer with long stem, dropping funnel with phenol (only half of phenol due to its insufficient volume only 50 ml, the second half of the phenol on the right side in the beaker), bath with water-ice, magnetic stirrer

IMG_20200525_200346_7_sm.jpg - 38kB



first drop of phenol into diluted HNO3

IMG_20200525_200702_2_sm.jpg - 35kB



NOx gases evolved so I connected the hose connector of dropping funnel to a hose to lead the gases outside of the building (total volume of gases evolved during the whole nitration approximated to 1-2 liters)

IMG_20200525_201413_4_sm.jpg - 25kB

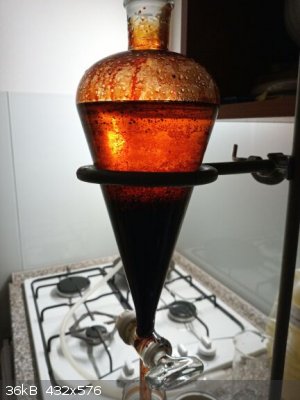

washing the nitrophenols (bottom layer), this is the last washing where the upper water layer is not dark so the border of the 2 layers is well visible, but when separating the nitrophenol from the waste nitric acid the border is not visible due to very dark color of the waste nitric acid (but they have very different viscosities though)

IMG_20200525_235141_0_sm.jpg - 36kB



draining the nitrophenols into RBF for steam distillation separation

IMG_20200526_082537_0_sm.jpg - 33kB



steam distillation, watch the condenser and do not allow it to clog

IMG_20200526_100605_0_sm.jpg - 27kB



if using cold water for circulation, turn it off every 10-15 minutes so the 2-nitrophenol melts and slides down to the beaker

IMG_20200526_101314_0_sm.jpg - 32kB



after distilling off 500 ml of water from formerly 1 L water charged in the flask, the distillation was interrupted, water from beaker decanted and returned back to the flask to continue the steam distillation (if I knew that it was almost done I would just further continue to distill more 150 ml of distillate)

IMG_20200526_115528_1_sm.jpg - 28kB



steam distillation done, no solid 2-nitrophenol in the condenser anymore (totally 650 ml of water distilled so far)

IMG_20200526_131313_0_sm.jpg - 36kB



2-nitrophenol crushed to smaller pieces and air dried, it seems to slowly sublime, perhaps better to dry it in desiccator

IMG_20200527_071634_5_sm.jpg - 33kB



crystals of 4-nitrophenol

IMG_20200526_215045_2_sm.jpg - 31kB IMG_20200526_215345_2_sm.jpg - 43kB




crystals of 4-nitrophenol with lower purity and smaller amount on following cycles of extraction/crystallization

IMG_20200527_074549_8_sm.jpg - 57kB IMG_20200527_074618_5_sm.jpg - 37kB



crystals of 4-nitrophenol with lowest purity and smallest amount on the last extraction/crystallization cycle

IMG_20200527_075217_8_sm.jpg - 41kB IMG_20200527_075229_0_sm.jpg - 49kB



comparison of mother liquor which stayed after the first round of extraction/crystallization (left side, formerly 1 L volume somewhat reduced due to loses on crystalls and evaporation on boiling) and solution in the second cycles of extractions/crystallizations (500 ml, right side, second round, first extraction/crystallization, currently it is still warm and saturated with 4-nitrophenol - upper layer, the bottom layer is 4-nitrophenol saturated with water, this is state before crystallization, it is going to be decanted into an empty beaker to let it to crystallize)

IMG_20200528_211137_6_sm.jpg - 30kB



comparison of colors of solid 2-nitrophenol (yellow on the left side) and color of 4-nitrophenol (right side, there is still some solidified black 4-nitrophenol which was formerly liquid phase of 4-nitrophenol+H2O which later solidified on the bottom on cooling, then needle-shaped crystalls of 4-nitrophenol which are going to be collected, then mother liquor above them)

IMG_20200529_095333_3_sm.jpg - 38kB




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 4-6-2020 at 07:43


now the complete mess of all info in case somebody wants to find something useful there

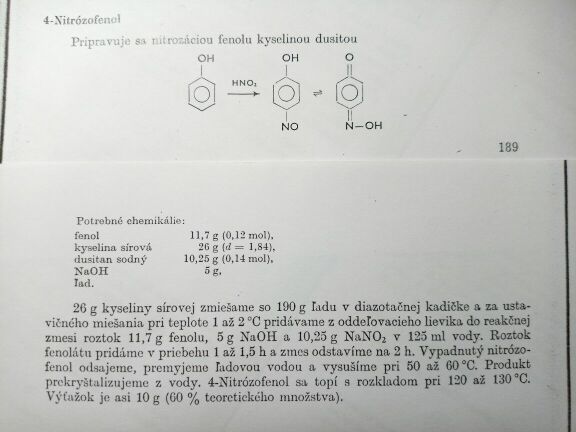

97.png - 214kB



IMG_20200528_070959_7_sm.jpg - 192kB




sidgwick1915.pdf
https://sci-hub.tw/https://doi.org/10.1039/CT9150701202

duff1929.pdf
https://doi.org/10.1039/JR9290002789
https://pubs.rsc.org/is/content/articlepdf/1929/jr/jr9290002...
https://sci-hub.tw/https://doi.org/10.1039/JR9290002789

https://books.google.cz/books?id=SPxbxns2NKMC&pg=SL3-PA9...


http://myweb.liu.edu/~nmatsuna/che122/exp19.pdf

hart1910.pdf
https://sci-hub.tw/https://pubs.acs.org/doi/pdf/10.1021/ja01...

https://www.oc-praktikum.de/nop/en/instructions/pdf/5001_en....

https://webcache.googleusercontent.com/search?q=cache:Za8LQu...



Attachment: 5001_en.pdf (212kB)
This file has been downloaded 39 times

Attachment: exp19.pdf (68kB)
This file has been downloaded 41 times

Attachment: hart1910.pdf (145kB)
This file has been downloaded 37 times

Attachment: prepchem.com_4-nitrophenol.zip (36kB)
This file has been downloaded 39 times

Attachment: duff1929.pdf (395kB)
This file has been downloaded 39 times

Attachment: p-nitrophenol_color_change.pdf (411kB)
This file has been downloaded 41 times

Attachment: sidgwick1915.pdf (630kB)
This file has been downloaded 37 times

Attachment: US3933929.pdf (445kB)
This file has been downloaded 37 times


https://onlinelibrary.wiley.com/doi/abs/10.1002/047084289X.r...
Purification: recystallization from toluene gives the metastable
α-form if performed at>63 ◦C; the β-form is obtained as yellow
prisms at <63 â—¦C.
Handling, Storage, and Precautions: the α-form is light stable,
whereas the yellow β-form gradually turns red in light. Moderately toxic by inhalation and skin absorption.

% of 4-nitrophenol in its saturated toluene solution:
https://sci-hub.tw/https://doi.org/10.1039/CT9150701202
sidgwick1915.pdf
5,60 % 62,4 C
6,54 % 66,3 C
9,99 % 72,2 C
14,22 % 77,1 C
22,41 % 82,6 C
26,40 % 84,5 C
34,67 % 87,7 C
44,45 % 90,0 C
49,96 % 91,0 C
61,50 % 93,8 C
68,69 % 95,8 C
79,80 % 100,2 C
89,98 % 105,4 C
100,00 % 113,8 C (m.p. of the 4-nitrophenol)
in the above pdf you can also find solubility of nitrophenols in water and solubility of water in 4-nitrophenol


duff1929.pdf
https://doi.org/10.1039/JR9290002789
https://pubs.rsc.org/is/content/articlepdf/1929/jr/jr9290002...
https://sci-hub.tw/https://doi.org/10.1039/JR9290002789

https://sci-hub.tw/https://pubs.rsc.org/en/content/articlela...
page 158
186. (( Note on EL colour change in P-paranitrophenol brought about
pNitropheno1 yields two modifications which have been examined
crystallographically by the author (Zeitsch. Kryst. Min., 1907, 44,
159). The two modifications possess great similarity in the values
of their prism angles; that they are quite distinct, however, follows
from the observed transformation of one into the other on heating
under the microscope. The transition temperature, if one really
exists, has not been accurately determined, but the author’s
observations would seem to point to a temperature of 63 C, for a
saturated toluene solution yields crystals of either modification
according as the temperature is above or below 63 C. That modification
which appears at high temperatures will henceforth be termed
α the other β.
The α-modification is almmt colourless, being of a very pale
lemon-yellow tint. The β-modification, on the other hand, is of a
pronounced yellow colour; but on allowing it to remain for some
time the crystals were found tlo acquire gradually a red tinge on
the surface. The α-crystals, on the other hand, preserved their
original tint.
Experiments were theref ore made under varying conditions, and
it was soon found that the red coloration appears only when the
crystals are exposed to sunlight. The brighter the light the quicker
is the change; in dull weather crystals may be exposed for many
days without any appreciable change, whilst on a bright day the
red coloration is apparent after an hour or so. Absolutely no
change takes place if the crystal be kept in the dark. A tube
which has been kept wrapped up in black paper presents no trace
of chmge, even after a lapse of seven years.
It was at first thought that the coloration might possibly be due
to the formation of an ammonium salt. That this is not the case
is proved by the fact that the change proceeds in a desiccator over
sulphuric acid, and again when the desiccator is filled with hydrogen
or carbon dioxide. The change, although quickly enough detected
by the eye, must in reality be a very slow process, since crystals
after some months’ exposure still present a yellow nucleus, and it
is likely that the red material acts as a protection against further
change by absorbing the aictinic rays.
It b very remarkable that the a-modification is wholly unactedon.
Of this there can be no doubt, as the following will show.
Solutions in water at the ordinary temperature yield crystals, the
great majority of which are those of the P-modification, but, in
addition, some crystals of the a-modification also appear. Owing
to the similarity in habit, it is often impossible without an
actual measurement on the goniometer to distinguish between
crystals of the two modifications. The whole of one crop thus
obtained was collected into a tube, and exposed to sunlight for
some time; all the crystals with the exception of two turned red
after a few hours. The action was allowed to proceed for a few
months; but even after this prolonged treatment the two crystals
still failed to show the slightest trace of change. They were there
fore taken out, and measured on the goniometer, and proved to be
crystals of the a-modification. A few of the red crystals selected
at random proved on measurement to be those of the P-modification.
Commercial p-nitrophenol consists of a mixture of both kinds of
crystals, and on examination it will generally be found that some
are red whilst others are not. The former are those of the
&modification.
Cases of colour change have previously been observed, but as far
as the author is aware, no case has previously been discovered in
which the change is restricted to one crystalline modification. At
prAsent the usually accepted view with regard to polymorphous
modifications is that the difference in crystalline form is not due
to a difference in the chemical molecule, but rather in the different
mode of packing of the molecules. The above remarkable difference
of behaviour, however, of the two ‘‘ polymorphous ” modifications of
pnitrophenol would seem to argue for a difference in chemical
structure; it is difEcult to see how a mere difference in the
arrangement of the same chemical molecules should render one
crystal structure immune to the action of actinic rays. It is
therefore suggested that the chemical structures of the a- and
R-modifications of p-nitroghenol ar0 different.


https://patents.google.com/patent/US3933929A/en
In a purification process for p-nitrophenol obtained by nitration of phenol, separation of crude nitrophenols, steam distillation to remove o-nitrophenol, and cooling the broth obtained when it contains more than 0.5% sodium bisulphite and is at pH 5.4 to 6.4 to deposit crystals of p-nitrophenol, an improvement consists in stirring the crystals with water at 55°-85°C to give a mixture containing 10-40% excess of p-nitrophenol over the solubility at that temperature, separating the upper layer of p-nitrophenol in water obtained, cooling it to 40°-50°C and separating the layer of water in p-nitrophenol, cooling the latter to below 30°C and collecting the crystals deposited.

https://patentimages.storage.googleapis.com/df/ee/5e/f89d095...


https://chemistry.stackexchange.com/questions/13589/solubili...
3

p-Nitrophenol is actually modestly soluble in water at neutral pH (16 g/l at 25 °C) because of its weak acidity (pKa=7.16 at 22 °C) and the formation of intermolecular hydrogen bonds between the phenolic OH group and water molecules. The latter would also explain why the compound dissolves in diluted HClaq despite being protonated at lower pH values. The importance of intermolecular hydrogen bonds is also demonstrated by the significantly lower solubility of the ortho isomer, which forms intramolecular hydrogen bonds and therefore appears to be less polar to the solvent (source):

enter image description here

In basic solutions, p-nitrophenol is deprotonated to p-nitrophenolate. The anion is stabilized by delocalization of the negative charge into the benzene ring and the electron-withdrawing nitro group (only two of the possible resonance structures are shown):



https://en.wikipedia.org/wiki/4-Nitrophenol
4-Nitrophenol
Melting point 113 to 114 °C (235 to 237 °F; 386 to 387 K)
Boiling point 279 °C (534 °F; 552 K)
Solubility in water
10 g/L (15 °C)
11.6 g/L (20 °C)
16 g/L (25 °C)


https://en.wikipedia.org/wiki/Nitrophenol
o-Nitrophenol (2-nitrophenol; OH and NO2 groups are neighboring; CAS number: 88-75-5), a yellow crystalline solid (m.p. 46 °C).


https://www.prepchem.com/synthesis-of-4-nitrophenol/
A mixture of 94 grams of phenol and 20 ml. water is added dropwise to a obtained solution containing of 150 grams of sodium nitrate dissolved in 400 ml. water and 250 grams of concentrated sulfuric acid. Good stirring is maintained during the addition, and the temperature is kept below 20°C. Stirring is continued for 2 hours. The mother liquor is poured off from the tarry mixture of nitrophenols, and the tar is melted with 500 ml. water with the addition of enough chalk to make the mixture neutral to litmus. The wash water is poured off and the washing repeated. The crude ortho and para nitrophenols, freed from nitric acid, are subjected to steam distillation, using a condenser with a wide tube. About 40 grams of pure o-nitrophenol distills over. The residue in the distillation flask is cooled and filtered after standing for 24 hours. The precipitate is boiled with 1 liter of 2% hydrochloric acid and filtered through a fluted filter. The pure p-nitrophenol crystallizes from the filtrate in nearly white, long needles. The extraction can be repeated if necessary. The yield is about 40 grams each of the ortho-nitrophenol and para-nitrophenol isomers. It is bad practice to treat the crude nitrophenols with sodium hydroxide, as called for in some procedures, because the sodium hydroxide has an immediate resinifying action.

Physical Constants
Compound Mol. Wt (g/mol) Density
(g/mL)
b.p. (°C) m.p. (°C)
Phenol 94.11 1.071 182 40-42
Nitric acid 63.01 1.490 - -
p-Nitrophenol 139.11 1.270 279 113-115
o-Nitrophenol 139.11 1.495 214-215 44-45
Procedure:
Slowly add 10 mL concentrated nitric acid to 35 mL water in a 250 mL round
bottom flask using your medicine dropper. Insert your thermometer into the small neck,
using the red neoprene thermometer adapter to hold it securely.
Prepare an ice bath. The stockroom will provide pre-measured portions of phenol
(8.0 g) in 2 mL of water. Be careful to not get the phenol on your skin. It is a mild
irritant. It is advisable to wear disposable gloves for this experiment. They are provided
by the stockroom.
Add the phenol slowly in 1 mL portions (15-20 drops) to the nitric acid solution.
Maintain the temperature between 45-50°C. As you add each portion, swirl the flask to
ensure thorough mixing. The reaction is exothermic and you will need the ice bath for
cooling the reaction mixture. When all the phenol has been added, rinse the test tube
with 1 mL of water and add this rinse to the reaction mixture if needed. Allow the
reaction mixture to stand for 10 minutes. The reaction mixture becomes very dark.
After 10 minutes, pour the dark, oily mixture into a separatory funnel. You want
to separate the oily layer that is on the bottom. Drain this into your 500 mL round bottom
flask. Sometimes it is very difficult to see where the bottom layer ends. You can drain
off a small portion and then add 10-15 mL water and swirl the separatory funnel. Drain
off a small portion of the oily solution and add 10 mL additional water. Usually at this
point it is possible to see a clear separation between the two layers.
This is a convenient place to stop if you are out of time. Usually this experiment
takes more than one laboratory period to complete.
Add 200 mL of water to the 500 mL flask and mark the total volume with a
marking pen on the outside of the flask. Set-up your apparatus for a simple distillation,
using 2 ground glass stoppers in the two extra joints of the three-necked round bottom,
the three-way adapter with your thermometer adapter (ground glass + rubber adapter) and
thermometer, your condensing column with water hoses, your vacuum adaptor and 400
mL beaker as the receiving flask (see Figure 3.3 for reference but note that you are using
the 500 mL 3-necked flask and you can use a Bunsen burner as a heat source if you
want).
Add 50 mL additional water and begin distilling. You will see a yellow liquid
coming over along with the water. This is ortho-nitrophenol. You must be careful
because it can solidify in the condensing column and block the column. YOU DO NOT
WANT TO HEAT A CLOSED SYSTEM!!! Usually it is necessary to turn off the cold
water going to the condensing column at some point so that the solid ortho-nitrophenol
can melt and slide down into your receiving flask. When this happens, turn the water
back on. Otherwise you will start to see steam coming out of your vacuum adaptor.
If the total volume in your distilling flask falls below the 200 mL mark, then turn
off the heat, add 20-30 mL more water and continue your distillation until no more
yellow oil comes over. The yellow oil will solidify. Collect it by filtration, grind it with
a mortar and pestle and let it dry. Obtain the weight and calculate the percent yield as if
the theoretical yield were 100% ortho. Take the melting point.
To isolate the para- isomer, adjust the volume of the residual liquids in the
distilling flask to a total of 200 mL. You may need to remove more water by distillation
or to add more water. Add 0.5 g of decolorizing charcoal to the residual liquid and reheat
to boiling for one minute. Filter into your 400 mL beaker using a coarse fluted filter
paper and your stemless funnel. You want to work as quickly as possible so that the solid
para-nitrophenol does not solidify/crystallize on the filter paper. All you are trying to
remove at this point is the charcoal. Many types of colored impurities will adhere to the
charcoal and be removed by filtration.
Once you have filtered off the charcoal, cool the 400 mL flask as rapidly as
possible in order to obtain crystals. Sometimes this can be tricky. Collect the crystals by
suction filtration, dry them, get the weight and melting point and calculate the percent
yield of each product.
You can easily remove the oily residue on your glassware using dilute sodium
hydroxide solution.
Remove any larger pieces of the tar-like residue using your spatula,
then add a few mL of dilute NaOH and swirl the flask, using your brush. Flush with
clean water. Please leave your glassware CLEAN when you check out of the lab.

https://shodhganga.inflibnet.ac.in/bitstream/10603/133545/11...

https://sci-hub.tw/https://pubs.acs.org/doi/pdf/10.1021/ja01...




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Pumukli
International Hazard
*****




Posts: 565
Registered: 2-3-2014
Location: EU
Member Is Offline

Mood: No Mood

[*] posted on 4-6-2020 at 12:00


Hi Fery, thanks for the detailed description! I might found your preparation useful. :-)

What is "quite interesting scent" regarding o-nitrophenol? Could you compare it to something? How would you describe it if it was possible?
View user's profile View All Posts By User
Boffis
International Hazard
*****




Posts: 1378
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 4-6-2020 at 13:51


Nice work Fery and a really comprehensive write-up. I have often looked at this preparation and shied away from it because of the black tar. Though just lately I have made a lot a tars of different coloures :).
View user's profile View All Posts By User
Cou
International Hazard
*****




Posts: 804
Registered: 16-5-2013
Location: Dallas, Texas, USA
Member Is Offline

Mood: Mad Scientist

[*] posted on 4-6-2020 at 16:59


epic x)



my youtube channel: https://www.youtube.com/channel/UC0qzaRyHxLUOExwagKStYHw
Buy fragrance compounds at www.jupiterfragrances.com (quality control pending)
View user's profile Visit user's homepage View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 4-6-2020 at 23:07


Boffis, yes this is the most messy nitration I have ever done. The nitration itself was OK, just the workup was very dirty and very slow (> 1 week). The slowness and the biggest problem - the crystallization of the para isomer (only http://myweb.liu.edu/~nmatsuna/che122/exp19.pdf
mentions laconic that the crystallization could be tricky, nothing else in any other sources about the difficulties, I had to research what the hell happened and found answer in almost 100 years old documents which were hard to obtain). The para I obtained is not completely colorless... but one of the 2 crystalline forms of para isomer changes color under light from colorless to red. Anyway the purity still OK for further syntheses, but there is not too much to be done with it - reduction to p-aminophenol, reaction with monochloroacetic acid in alkaline environment to produce p-nitroaryloxyacetic acid. Both orto and para could be used as acidobasic indicators. Orto has interesting scent and beautiful yellow color. In alkaline their color intensity is devilishly saturated, even trace concentrations yellow, low concentrations already very dark. Para could be researched for the 2 crystalline modifications, IIRC the temp 63 C (it is exactly in the sources I posted) is an edge where the crystallization of the 2 forms wraps. One of the crystalline form is light stable, the other one changes color to red on exposure to light (it is visible at some pictures I posted, there where is red color + sunlight + shade). Really a lot of interesting surprises and challenges, definitely worth to be tried. I'm very happy that I tried it, in most practical chemistry documents the synthesis and workup seems to be flawless, but the workup isn't, especially for the para isomer. I still have 2 L of that "strange" 57% HNO3 (density 1,35) which is good for nitration of compounds easy to be nitrated like phenol and naphtalene (I managed to use only 500 ml of it during past 20 years, so it was formerly 2,5 L). I have enough of common 65% in stock (density 1,4), I just wanted to use that 57% for something.

[Edited on 5-6-2020 by Fery]




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Boffis
International Hazard
*****




Posts: 1378
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 5-6-2020 at 09:00


Have you thought of trying the nitrosation route? I read somewhere that simple phenolic nitro compounds can sometime be preared by nitrosating the phenol with sodium nitrite and any mineral acid followed by oxidation with 50% or "dilute" nitric acid. This method when applied to phenol results in almost exclusively the para isomer. I have also seen a similar prep on o-cresol to give 2-methyl-4-nitrophenol but p-cresol does not react. This might allow you to use up some of your lower strength nitric acid (or you could just add more conc sulphuric acid soak up the excess water!).

I think you are right about this being one of those preparations you do to improve your manipulation skills in the lab rather than to prepare the compounds.
View user's profile View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 5-6-2020 at 13:06


Boffis, cool idea. I think I'll manage to prepare the 4-nitrosophenol, I found this synthesis few pages later than the phenol nitration (picture attached, sorry it is written in my language, if someone interested I can translate into English). Then oxidation using 50% HNO3 (not included in my book).
Btw some NOx gases produced during the nitration of phenol which could catalyze this way into para position.

IMG_20200605_225428_2_sm.jpg - 34kB

[Edited on 5-6-2020 by Fery]




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Boffis
International Hazard
*****




Posts: 1378
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 6-6-2020 at 02:17


Hi Fery, I've found the nitro via nitroso-o-cresol. Check out pages 16 and 54, its in two separate preps in the attached book (I think this was downloaded from the SM library. This oxidation used ferricyanide but I am sure I have seen one via nitric acid but thinking about it it may be for dinitrosoresorcinol but I have papers for this. I'll dig them out if you would like to see them.

Attachment: 1B Advanced laboratory manual of organic chemistry M Heidelberger.pdf (934kB)
This file has been downloaded 50 times

View user's profile View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 6-6-2020 at 10:22


Hi Boffis, thank you very much for the manual, I'll study it.



If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
S.C. Wack
bibliomaster
*****




Posts: 2169
Registered: 7-5-2004
Location: Cornworld, Central USA
Member Is Offline

Mood: Enhanced

[*] posted on 6-6-2020 at 11:49


Quote: Originally posted by Fery
The slowness and the biggest problem - the crystallization of the para isomer


Maybe that's why the 1937 Gattermann crystallizes it as the sodium salt.

Quote: Originally posted by Boffis
I read somewhere that simple phenolic nitro compounds can sometime be preared by nitrosating the phenol with sodium nitrite and any mineral acid followed by oxidation with 50% or "dilute" nitric acid.


Another application of nitrite + sulfuric acid is to aniline, see e.g. Systematic Org Chem (where it's also used on salicylic acid, which is less interesting).




"You're going to be all right, kid...Everything's under control." Yossarian, to Snowden
View user's profile Visit user's homepage View All Posts By User
Boffis
International Hazard
*****




Posts: 1378
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 7-6-2020 at 03:02


@S.C. Wack; Thats an interesting route from aniline, I have not heard of this route before and thats an interesting book too.

@Fery; also check out Urbanski vol 1 p536-540 ish details are for resorcinol to 2,4-dinitroresorcinol but this is the nitric acid oxidation of a nitroso compound.

I presume I downloaded both of these books from the SM liberary, if not they are widely mirrored.
View user's profile View All Posts By User
Boffis
International Hazard
*****




Posts: 1378
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 7-6-2020 at 09:51


Found it! sort of..

In the Urbanski reference above at the bottom of page 475 it states that p-nitrophenol can be prepared by the oxidation of nitrosophenol with dilute nitric acid but does not give a reference.

But check out the patent US 3933926, it used 26% nitric acid.

Attachment: Preparation of nitrophenols via nitroso compound oxidation US 3933926.pdf (685kB)
This file has been downloaded 44 times

View user's profile View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 7-6-2020 at 22:24


Boffis, interesting... for those who need only 4-nitrophenol this is the best route!



If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Methyl.Magic
Hazard to Others
***




Posts: 139
Registered: 14-5-2007
Member Is Offline

Mood: No Mood

[*] posted on 10-6-2020 at 14:07


Really nice work with picture ! I really liked the isomer seperation , it is not so common: nowadays people uses indirect ways to have the correct isomer. Or they simply bought them :( That is ufortunatly what I do...
View user's profile View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 10-6-2020 at 20:05


Hi Methyl.Magic, steam distillation is my favorite separation method. Due to intramolecular H-bound the ortho isomer is almost insoluble in water, has low b.p. and distills well with steam. The para isomer forms intermolecular H bounds thus is better soluble in water, has higher b.p. and its concentration in steam is very low and stays dissolved after steam condenses (solubility approx 10-15 g per 1 liter at 15-25 C). The ortho obtained by steam distillation is really very pure. The pain is to purify the para isomer (problems described during crystallization, color change because of light sensitivity etc).
In fact, what motivated me to perform this synthesis was something meant as a joke during the time of coronavirus lockdown. In my country, antifever drug paracetamol was sold out during first 2 weeks and then all pharmacies usually exposed a big paper in their entrance doors that paracetamol is unavailable. But 1 pharmacy in this difficult situation showed a sense of humor and posted on their internet pages that they do not have paracetamol, but there is a method how to prepare it - nitration of phenol, separation the para-nitrophenol, reduction to para aminophenol, acylation with acetic anhydride into acetaminophen (paracetamol). The lockdown is luckily gone, such drug with the acetaminophen was produced in enough quantities in few weeks by another pharma company under different product name, and the cool idea of phenol nitration persisted in my mind, so I tried it.




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 24-7-2020 at 11:39


The 8,5 g of dirtiest last crop of 4-nitrophenol was recrystalled this way:
3,0 g dissolved in 50 ml hot toluene in 100 ml Erlenmayer flask, let to sit for few seconds and decanted into clean flask where allowed to slowly cool down to room temperature
after cooling down it was decanted into dirty flask (only 40 ml now) and 3,0 g of dirty 4-nitrophenol added, heated until it dissolved (a lot of dark tar stayed sticked at the bottom) and after few seconds decanted into second flask with purer product and allowed to slowly cool down to room temperature
then decanted into first dirty flask (now only 30 ml of mother liquor) to which was added 10 ml of toluene to have total volume of 40 ml and last 2,5 g of dirty product, heated until dissolved, let to settle oily drops for few seconds and then decanted into second flask where allowed to cool down
that way most of the dark tar removed
25 ml of fresh toluene added into second flask so total volume 75 ml now, heated until everything dissolved and allowed to cool to room temperature very slowly (thermally insulated)
it was NOT processed at once (8,5 g dirty 4-nitrophenol + 75 ml of toluene) but in 3 batches (3,0 g + 3,0 g + 2,5 g) because tar dissolves better in solution richer on 4-nitrophenol and in 3 batches the concentration of 4-nitrophenol was always lower than in 1 batch (8,5 g nitrophenol + 75 ml toluene) so the tar separated better (stayed sticked on the bottom of flask so it was easy to decant) - the same as with water purification (extracted 5 times not with boiling water where solubility of 4-nitrophenol higher together with higher solubility of the tar, but with water 50-70 C warm in which 4-nitrophenol less soluble so the tar)
yield 7,8 g
the edge where the crystalline forms sensitive and insensitive to light wraps is 63 C, at that temperature the toluene solution of 4-nitrophenol is approx 5 %, so the crystallization started from approx 10% solution at higher temperature to yield a mixture of both crystalline forms, in the picture there are red crystals (photosensitive) which crystallized below the edge temperature and pale yellowish crystals which crystallized above the edge temperature

I would like to try the 0,5% bisulphite pH 5,4-6,4 water purification method as the last idea with this preparation.

IMG_20200724_100749_3_sm.jpg - 30kB




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
fdnjj6
Banned by request
***




Posts: 114
Registered: 20-2-2019
Member Is Offline

Mood: Pissed

[*] posted on 29-7-2020 at 18:15


Do you happen to know how to do this with toluene? I need mononitrotoluene and can't for the love of my life figure out how to make it using the dilute (probably 40-50% HNO3) nitric acid or from sulfuric acid and a nitrate salt.
View user's profile View All Posts By User
Fery
National Hazard
****




Posts: 267
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 30-7-2020 at 11:37


Hi fdnjj6, be patient, I'll synthesize mononitrotoluenes soon (perhaps in 1 year at most) to synthesize 2 and 4-amminobenzoic acids from it.
When you have such almost concentrated HNO3, you can use it with sulfuric acid. Concentrate sulfuric acid with boiling until it starts to decompose to SO3, then you have 98% H2SO4 and mix with your HNO3 and then you can nitrate toluene. The pain is to seprate mononitrotoluenes, but when the final goal are amminobenzoic acids, perhaps the orto could be steam distilled and para remains in distillation flask, but that I must try to figure out, it is just my idea (the same as orto mononitrophenol is volatile with steam due to intramolecular H bridge I expect the same with orto amminobenzoic acid).




If there is a heaven, it seems not to be materially based. Does chemistry exist there and if yes, how does it look like? Are there good souls well supplied with laboratory equipment, glass, chemicals and information?
View user's profile Visit user's homepage View All Posts By User
fdnjj6
Banned by request
***




Posts: 114
Registered: 20-2-2019
Member Is Offline

Mood: Pissed

[*] posted on 15-8-2020 at 03:13


Quote: Originally posted by Fery
Hi fdnjj6, be patient, I'll synthesize mononitrotoluenes soon (perhaps in 1 year at most) to synthesize 2 and 4-amminobenzoic acids from it.
When you have such almost concentrated HNO3, you can use it with sulfuric acid. Concentrate sulfuric acid with boiling until it starts to decompose to SO3, then you have 98% H2SO4 and mix with your HNO3 and then you can nitrate toluene. The pain is to seprate mononitrotoluenes, but when the final goal are amminobenzoic acids, perhaps the orto could be steam distilled and para remains in distillation flask, but that I must try to figure out, it is just my idea (the same as orto mononitrophenol is volatile with steam due to intramolecular H bridge I expect the same with orto amminobenzoic acid).


I figured it out. Forgot you even responded. The nitration worked but the isomer separation requires a lab freezer to cool slowly and form larger crystals as well as a vacuum pump that you don't care for. It ate away at mine and so I couldn't use it. 500mg yield from a theoretical 20 grams. There goes benzocaine.
View user's profile View All Posts By User

  Go To Top
