Author: Subject: successful method for purifying anthranilic acid(quick report)
B.D.E
Hazard to Self
**




Posts: 94
Registered: 5-8-2019
Member Is Offline

Mood: Oscillating

[*] posted on 7-7-2020 at 10:49
successful method for purifying anthranilic acid(quick report)


Hey, this is a quick report on a successful attempt of mine to purify anthranilic acid made from phthalimide via the Hoffman rearrangement.
There's nothing really special about it, but I figured it can't hurt posting it in here, just in case someone would find it useful :)
---

Stuff you'll be needing:
1. Crude anthranilic acid
2. Soxhelt apparatus
3. n-Heptane(other alkanes might also work, although it seems reasonable to assume that those with higher b.p would work better[or at the very least faster]).

The process:
Fill the Soxhelt apparatus with the crude anthranilic acid, add some n-heptane and start refluxing. That's about it.

If larger crystals are desired, you can add a bit of methanol(after the extraction is over) and slowly boil it off. But keep in mind that some of the acid will react to form methyl anthranilate(evident by a grapy odor). Adding ether might be a better choice.
---

pictures & descriptions:
beginning: a brown powder(somewhat sticky)

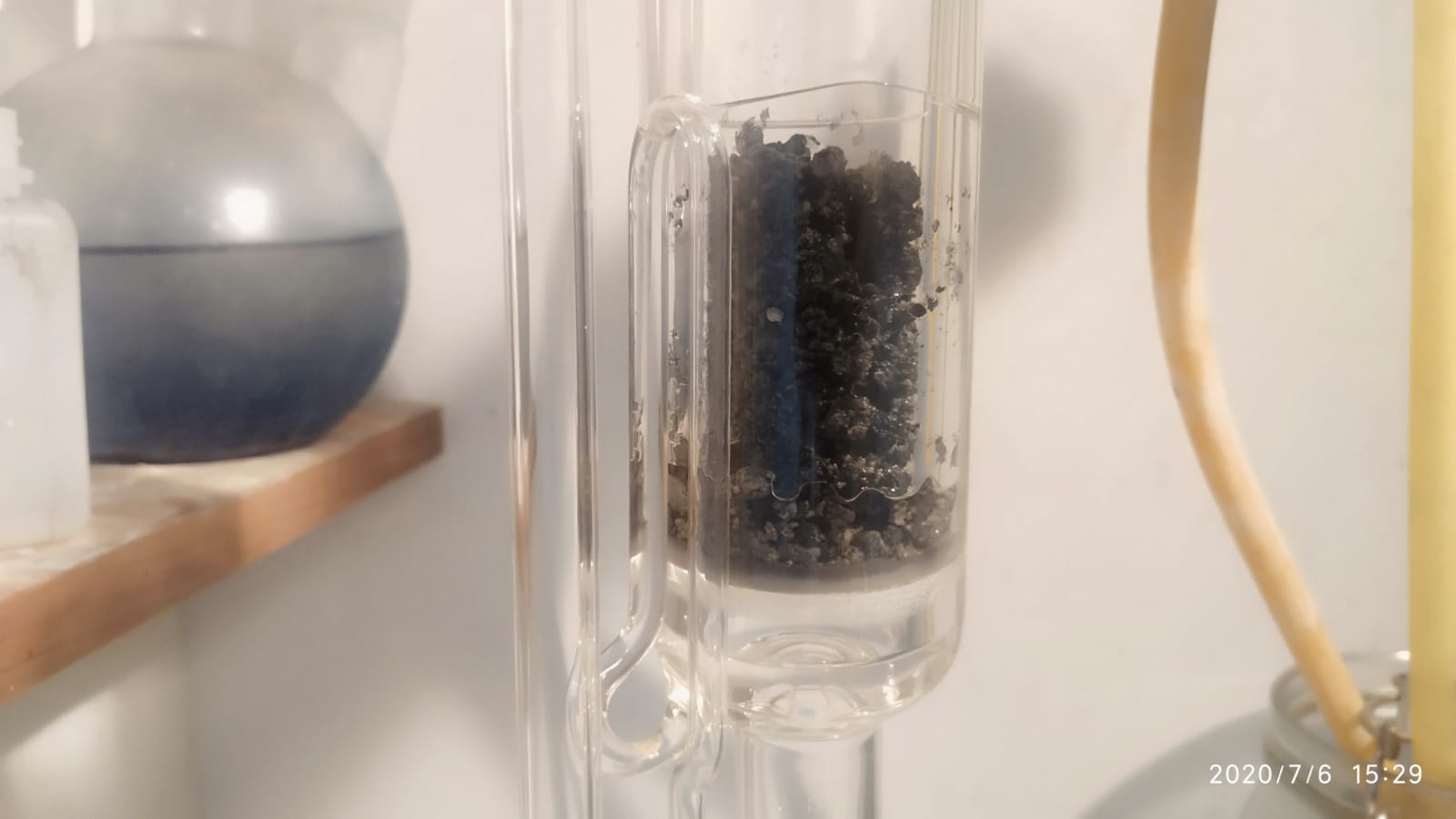

a bit after the beginning:
q1.jpg - 69kB

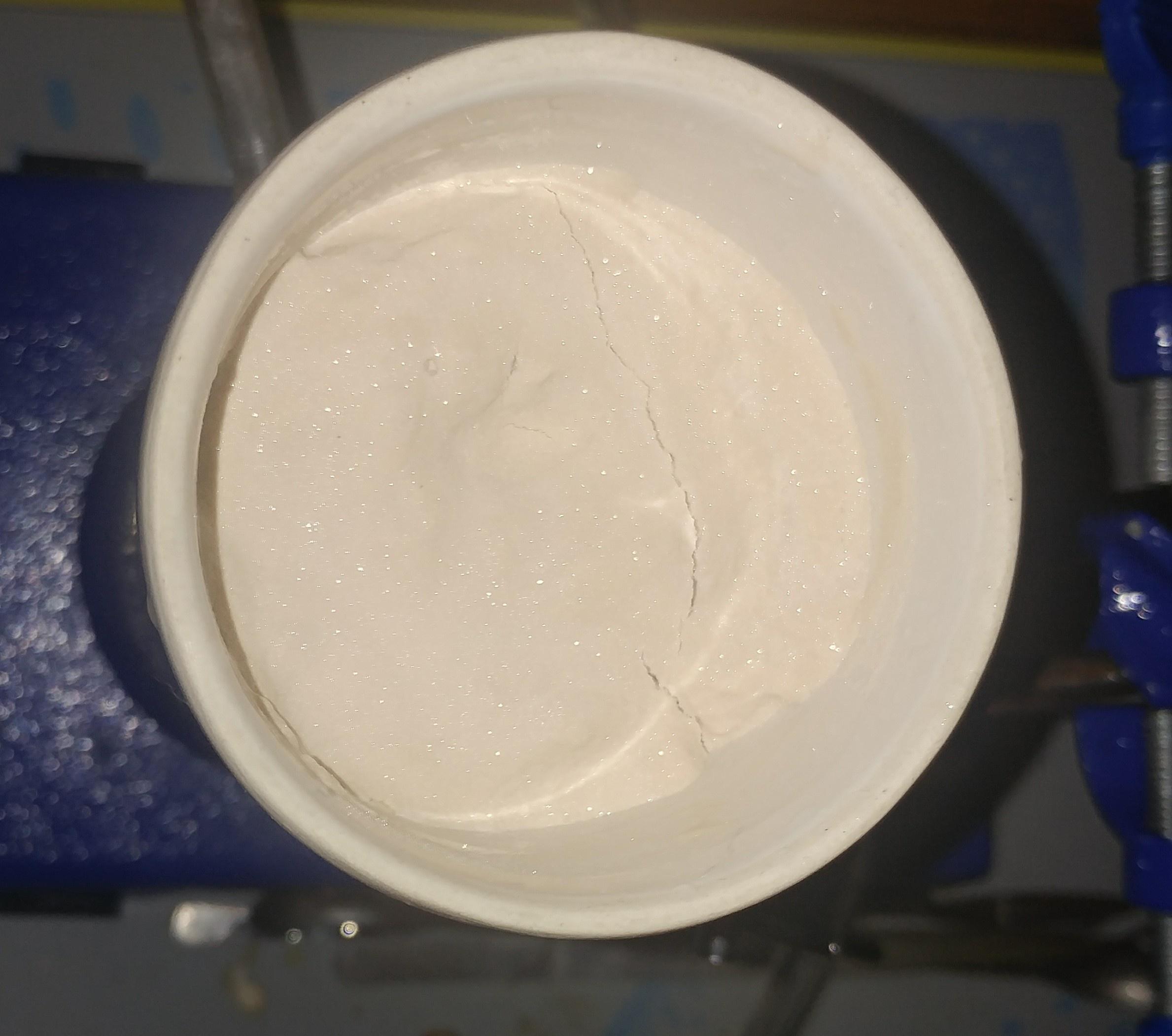

end:
q2.jpeg - 67kB

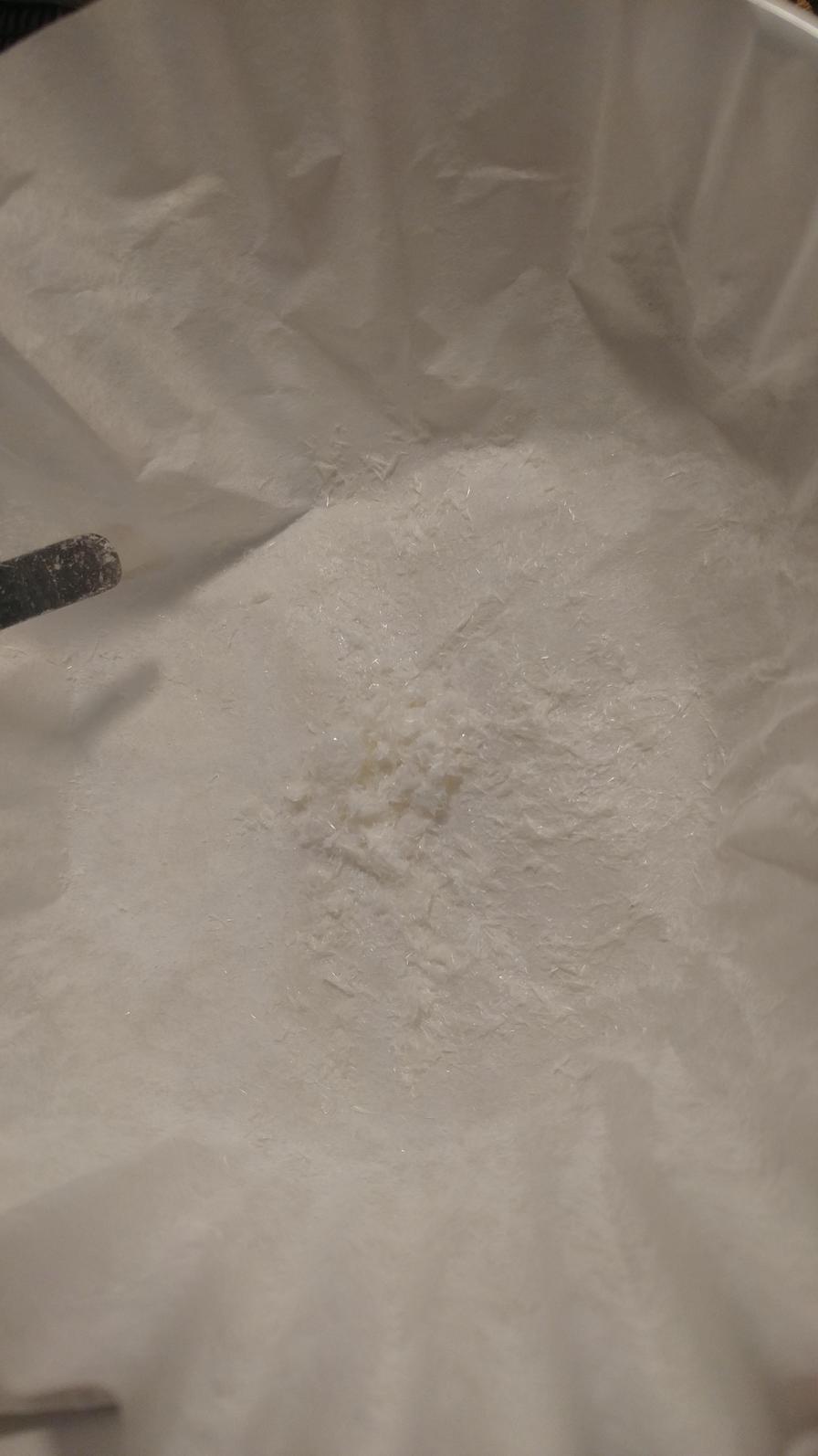

extracted product(after recryst with methanol):
q5.jpeg - 55kB

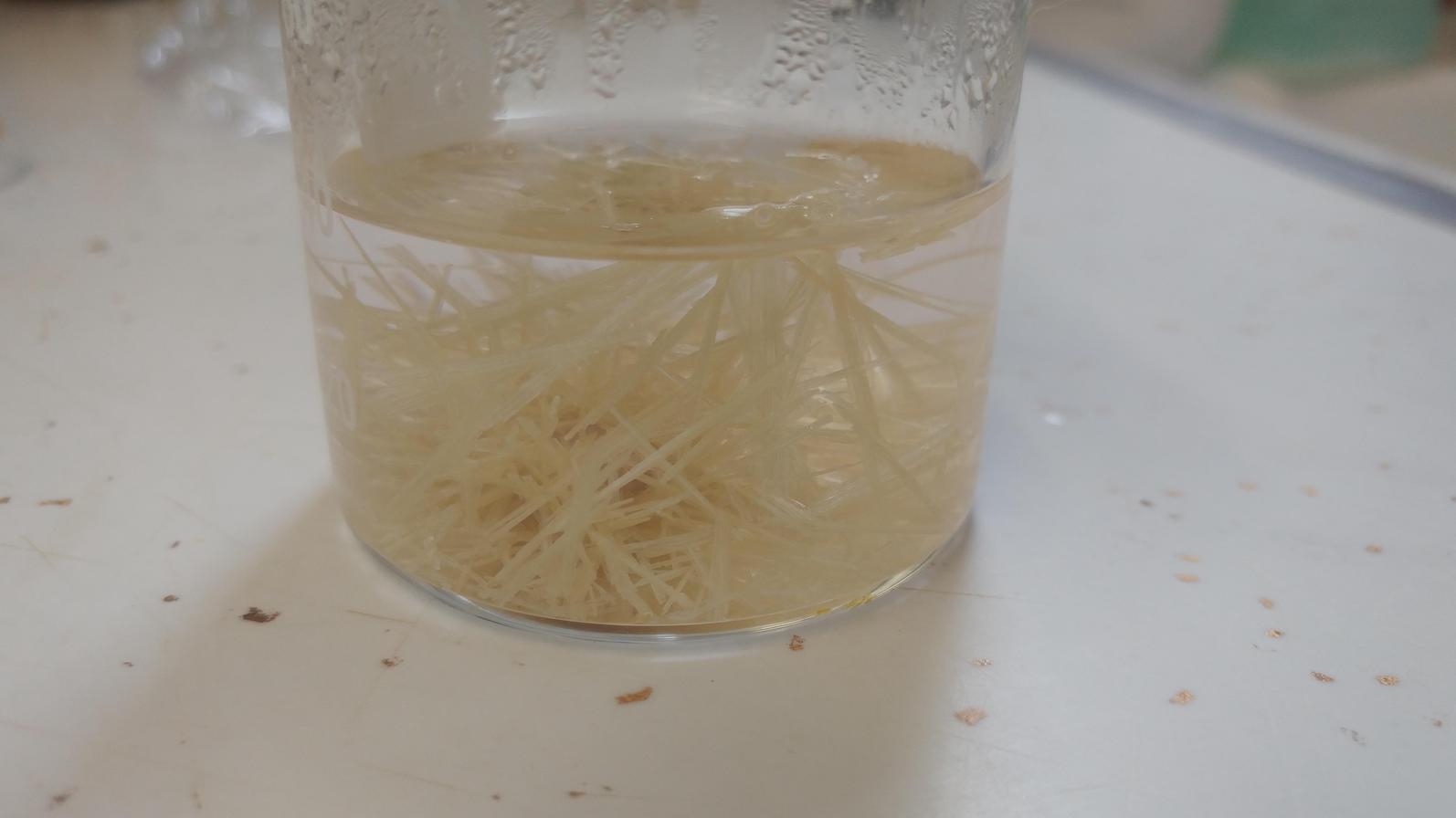

slower evaporation of the methanol:
q3.jpeg - 62kB
---

full disclosure:
a relatively pure product can be obtained straight from the formation of the acid via the Hoffman rearrangement, if done meticulously.

Unfortunately, stuff like traces of phthalic anhydride/acid in your phthalimide, or uncertainty in the concentration of your hypohalite solution, might make it a difficult goal to achieve.

[Edited on 7-7-2020 by B.D.E]




View user's profile View All Posts By User
DavidJR
International Hazard
*****




Posts: 908
Registered: 1-1-2018
Location: Scotland
Member Is Offline

Mood: Tired

[*] posted on 7-7-2020 at 14:19


I'm surprised that works so well. Useful to know.
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 2362
Registered: 20-4-2005
Location: Netherlands
Member Is Offline

Mood: Mood

[*] posted on 8-7-2020 at 00:00


Why would higher boiling alkanes work faster? The actual extraction is cold right? And how did you evaporate the heptane? I found it quit hard to get rid off in the past.
View user's profile View All Posts By User
B.D.E
Hazard to Self
**




Posts: 94
Registered: 5-8-2019
Member Is Offline

Mood: Oscillating

[*] posted on 8-7-2020 at 05:36


Quote: Originally posted by Tsjerk
Why would higher boiling alkanes work faster? The actual extraction is cold right? And how did you evaporate the heptane? I found it quit hard to get rid off in the past.
ummm, I'm pretty sure that some of the product had ppt after the solution was cooled down. I may check on it again later this day just to be sure.

The extraction was carried via a soxhlet apparatus at ~1atm, with rapid refluxing straight into the body of the extractor. Hotplate was set to 380C. So definitely a hot extraction.

As for getting rid of the heptane, I actually didn't had to. I simply added the methanol directly into the heptane until all of the product had dissolved, then boiled off the methanol, let the solution cool and filtered the product with a sinter funnel. The resulting filtrate was pretty much all heptane, with only trace amounts of the product itself.

Also, at least from my experience, getting rid of excess heptane was never an issue. I just heat it to it's boiling point(or slightly below it) and let it evaporate. It also evaporate relatively fast at rt with a fan on it.

[Edited on 8-7-2020 by B.D.E]




View user's profile View All Posts By User
mackolol
National Hazard
****




Posts: 437
Registered: 26-10-2017
Location: Poland
Member Is Offline

Mood: Psychedelic

[*] posted on 8-7-2020 at 06:25


Wow... very useful workup, I will try this for sure with my somewhat crude anthranillic acid. Hydrocarbons sometimes do wonders in terms of purification.
Thanks for sharing B.D.E
One question: should cooling the heptane/AA solution in freezer crash most of the Anthranillic acid from the solution without the need to evaporate excess of solvent?


[Edited on 8-7-2020 by mackolol]
View user's profile View All Posts By User
B.D.E
Hazard to Self
**




Posts: 94
Registered: 5-8-2019
Member Is Offline

Mood: Oscillating

[*] posted on 8-7-2020 at 08:06


Quote: Originally posted by mackolol
...

Glad to hear you find it useful :)

As for your question, I just want to clarify that anthranilic acid is only very slightly soluble in heptane(roughly 1-2 grams per liter at ~80C). (this is also why a soxhlet extractor is an absolute must-have for this workup).

So as long as you don't mind having a powdered end-product, you can just filter the heptane out at rt, right after the extraction is complete, without a significant lost of yield.

[Edited on 8-7-2020 by B.D.E]




View user's profile View All Posts By User
mackolol
National Hazard
****




Posts: 437
Registered: 26-10-2017
Location: Poland
Member Is Offline

Mood: Psychedelic

[*] posted on 8-7-2020 at 09:19


Quote: Originally posted by B.D.E

So as long as you don't mind having a powdered end-product, you can just filter the heptane out at rt, right after the extraction is complete, without a significant lost of yield.
[Edited on 8-7-2020 by B.D.E]

All right, that's what I have thought.
In case of anthranillic acid, I don't see any other point in having bigger crystals, than just aesthetic matter.
View user's profile View All Posts By User
B.D.E
Hazard to Self
**




Posts: 94
Registered: 5-8-2019
Member Is Offline

Mood: Oscillating

[*] posted on 8-7-2020 at 12:54


Quote: Originally posted by mackolol
In case of anthranillic acid, I don't see any other point in having bigger crystals, than just aesthetic matter.

yes, that's about it.
I just wanted a trophy :D




View user's profile View All Posts By User
Heptylene
National Hazard
****




Posts: 319
Registered: 22-10-2016
Member Is Offline

Mood: No Mood

[*] posted on 8-7-2020 at 13:33


Nice, finally a use for my soxhlet apparatus! I remember an attempt at making anthranilic acid which gave me a beige powder, but even recrystallization from ethanol didn't remove the beige color. This looks like it will work well!
View user's profile View All Posts By User
draculic acid69
International Hazard
*****




Posts: 1133
Registered: 2-8-2018
Member Is Offline


[*] posted on 9-7-2020 at 17:09


So is this just a recrystallization of the aa straight out of the reaction of hypohalite and pthalimide? No copper salt purification? If so it seems great bcoz the copper salt thing seems like a hassle.this seems like a great way to clean up a hard to clean product.apart from the glassware requirement
View user's profile View All Posts By User
mackolol
National Hazard
****




Posts: 437
Registered: 26-10-2017
Location: Poland
Member Is Offline

Mood: Psychedelic

[*] posted on 10-7-2020 at 00:37


And this is another reason to buy soxhlet exctractor, which I wanted to do for a long time but I'm always forgetting :)
View user's profile View All Posts By User
Benignium
Hazard to Self
**




Posts: 87
Registered: 12-6-2020
Member Is Offline

Mood: Quasi-catatonic

[*] posted on 5-9-2020 at 04:30


Great find and awesome writeup! Thank you!
View user's profile View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 17-1-2021 at 16:19


I have about 65g of phthalimide and am planning on converting it to anthranilic acid as soon as I get the chance. Benignium suggested your soxhlet extractor purification technique, seems like a great idea. Did you put the crude anthranilic acid right into the soxhlet extractor? Or did you purify it with boiling water first, then follow up with the soxhlet extraction?

P.S. From the looks of the product, I assume it was the crude anthranilic acid, but I thought I would confirm before doing it myself.

[Edited on 18-1-2021 by SuperOxide]
View user's profile View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 8-2-2021 at 14:13


Quote: Originally posted by B.D.E
[...]
If larger crystals are desired, you can add a bit of methanol(after the extraction is over) and slowly boil it off. But keep in mind that some of the acid will react to form methyl anthranilate(evident by a grapy odor). Adding ether might be a better choice.
[...]


How about chloroform instead? Anthranilic acid is "very soluble" chloroform, whereas it's only "soluble" in ethanol and ethyl ether (src Pubchem), but the specific solubility isn't detailed.
View user's profile View All Posts By User
Texium (zts16)
Administrator
********




Posts: 3394
Registered: 11-1-2014
Location: Salt Lake City
Member Is Offline

Mood: Triturated

[*] posted on 8-2-2021 at 15:32


This is fantastic, B.D.E. That is the cleanest looking anthranilic acid I have ever seen, even compared to commercial samples. I will definitely be doing this with mine once I resume home chemistry.

Edit: one thing that would be good to include is your percent recovery. If the process is particularly lossy, it may not be worth using in most cases, though if the losses are minimal then this would be really great.

[Edited on 2-8-2021 by Texium (zts16)]




View user's profile Visit user's homepage View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 8-2-2021 at 18:08


Quote: Originally posted by Texium (zts16)
This is fantastic, B.D.E. That is the cleanest looking anthranilic acid I have ever seen, even compared to commercial samples. I will definitely be doing this with mine once I resume home chemistry.

Edit: one thing that would be good to include is your percent recovery. If the process is particularly lossy, it may not be worth using in most cases, though if the losses are minimal then this would be really great.

[Edited on 2-8-2021 by Texium (zts16)]


I agree. Maybe include how long you ran the soxhlet extractor for as well, and how much crude anthranilic acid you were processing for that run time?
View user's profile View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 11-2-2021 at 17:44


I was doing another anthranilic acid synthesis today, getting enough so that I can get enough to put in my soxhlet extractor whenever I get the time to try this out, and after I dropped the pH to 3.5 and the AA precipitated out, I couldn't believe the color, it was the best color I've gotten thus far! Just a very light beige (I think I could get by calling it "off white" even).

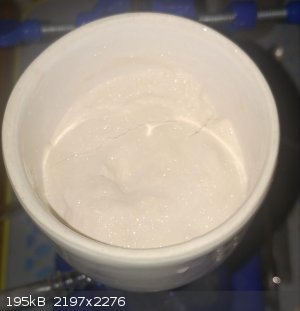

AA-run3-precipitate-filter-1.jpg - 195kB AA-run3-precipitate-filter-2.jpg - 241kB

I was thinking that maybe I wouldn't have to do the soxhlet extraction using heptane... Instead, I could just give it a quick recryst with some boiling water...
AA-run3-recryst-filtered-1.jpg - 326kB

This stuff is so damn touchy :mad: How the hell does it get darker in the recryst??

Looks like I'll be trying this out after all. I might even skip the recryst on some of the runs and go right to the soxhlet trick detailed above.


P.S. Here's the other pictures I took, if anyones curious. And some other photos of the previous synthesis runs.

[Edited on 12-2-2021 by SuperOxide]
View user's profile View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 7-3-2021 at 18:58


@B.D.E - Can you tell me how much crude anthranilic acid you processed and for how long you refluxed? I'm doing this right now, and I planned on sharing my results. On the run I'm doing right now, I'm processing 10g of anthranilic acid with about 120mL of heptane (probably not n-heptane, since it mostly distilled over at 91 °C, but it seems to work regardless).
I ran the soxhlet for probably about 7 hours straight, and while it's obvious that it worked by the amount of solids that were precipitating out in the bottom flask (once the heptane got saturated), it wasn't as much as I had hoped. Did you just let it run for a full 24 hours or something?

Edit: And I think that if the goal is purity, then a recryst after the soxhlet/heptane treatment is definitely important. The crystals were a light brown when they were in the soxhlet, and when they were precipitating out in the flask they were a weird looking yellow color:
20210307_183924.jpg - 184kB
Now they're pretty close to white (I think real chemists would call it "off white"):
20210307_193616.jpg - 243kB

Definitely an improvement :-)

[Edited on 8-3-2021 by SuperOxide]
View user's profile View All Posts By User
Texium (zts16)
Administrator
********




Posts: 3394
Registered: 11-1-2014
Location: Salt Lake City
Member Is Offline

Mood: Triturated

[*] posted on 7-3-2021 at 19:33


What was your percent recovery?



View user's profile Visit user's homepage View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 8-3-2021 at 07:33


Quote: Originally posted by Texium (zts16)
What was your percent recovery?
Unfortunately, not very much (wasn't able to weigh it yet)... And I had to cut it short, so I need to process the heptane/methanol recryst solution before weighing, but once that's done I will weigh the crystals I get from it then share the details.
View user's profile View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 18-4-2021 at 18:16


Just an update - I gave this a go again yesterday, and while it technically works, it takes a loooooooong... long time.. Honestly it's not worth it unless you can set it and forget it for like 24 or 48 hours, or you just need a small sample of a nice white crystalline anthranilic acid sample to test something out on.

Procedure

I added 20g of anthranilic acid (which was made via the Hofmann rearrangement of phthalimide, then recrystallized in boiling H2O) to my 150mL soxhlet extractor, added the heptanes (extracted from Super Tech Starting Fluid, which distilled over at 91 °C - 93 °C, suggesting it's not n-heptane) and cranked up the temperature. I ran it for a little over 12 hours. I timed how long it took to cycle in the soxhlet extractor, and it was aprox 7 min and 20 sec, so that means it cycled approximately 100 times (give or take a couple considering as the anthranilic acid got extracted, there was more room for solvent in the soxhlet apparatus and less room for it in the flask)

20g of recrystallized anthranilic acid
20g-anthranilic-acid.jpeg - 53kB

Acid placed in the soxhlet extractor (in a coffee filter to prevent clogging, which was a problem before)
soxhlet-apparatus.jpeg - 139kB


At the end of the 12 hours, there was a yellow solid that was forming in the boiling flask, which was sticking to the stir bar pretty strongly.

The light yellow solid that precipitated out and clung to the stir bar
boiling-flask-1.jpeg - 89kB
boiling-flask-2.jpeg - 108kB

Flask with yellow solid from a different angle (notice there seems to be quite a bit on the sides)
boiling-flask-3.jpeg - 24kB


I took the remaining anthranilic acid out of the soxhlet apparatus, dried it and weighed it at 15.69g - meaning only 4.31g was extracted over 12 hours. Thats about 0.359g extracted every hour. Even if one were to assume that the extracted solid was pure enough to use (which it seems to need a recryst, so not likely), this is still a pitiful yield. Obviously this means the soxhlet is absolutely required if you want to use this route.

From here I kinda messed up a bit. I decided to just filter off the yellow solid and do a recryst with water, which was a bad idea. The crystals were also yellow, as opposed to white (or slightly off white) that I expected to see from my previous smaller scale shorter run (also mentioned in a previous post above).

Recrystallizing the yellow anthranilic acid in boiling H2O seems to yield long needle like crystals, still light yellow in color

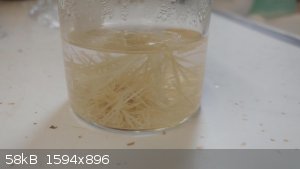

anthranilic-acid-h2o-recryst-2.jpeg - 58kB
anthranilic-acid-h2o-recryst.jpeg - 79kB

Filtered off (still slightly wet, but they looked the same when dried)
anthranilic-acid-h2o-recryst-dried.jpeg - 71kB


I did another recryst with MeOH which seems to have cleaned it up a bit more (though it's still in solution), but not as colorless as I was hoping.

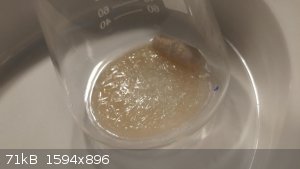

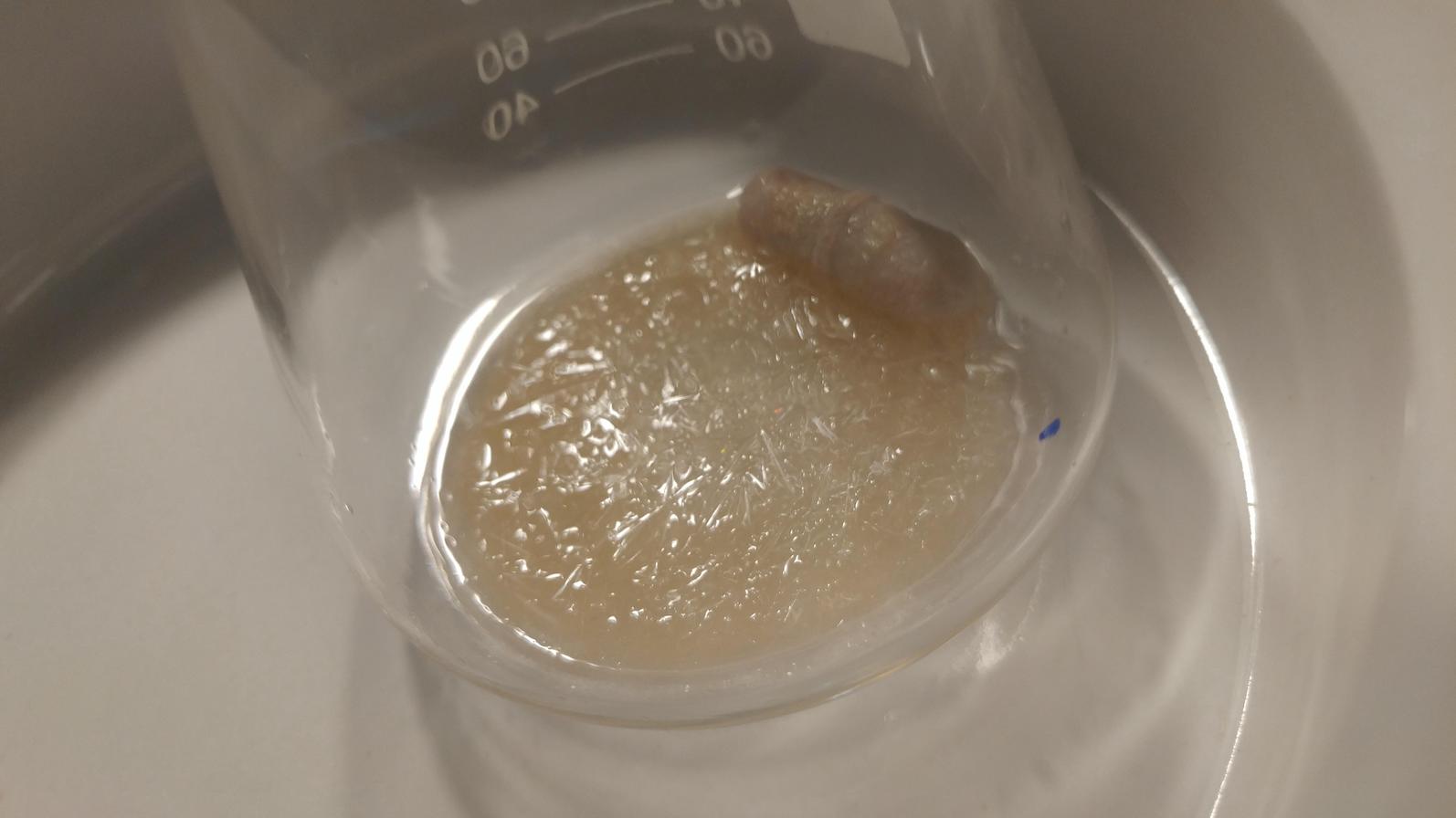

Crystals of anthranilic acid starting to form in the MeOH as it cools
anthranilic-acid-meoh-recryst.jpeg - 71kB

Same flask, but you can see some of the color seems to come off when the flask is tilted on its side and the solvent is allowed to settle to the side (gives me hope it may clean up once filtered and dtried)
anthranilic-acid-meoh-recrys-3.jpeg - 73kB
anthranilic-acid-meoh-recryst-2.jpeg - 64kB

If anyones interested, I may post some photos of the filtered/dried crystals if they're any lighter in color.


This doesn't mean that a white solid can't be attained, since on a smaller scale, I added MeOH directly to the heptane/anthranilic acid mixture, then heated it up with strong stirring and this yielded perfectly white crystals:
Crystals NOT from this run, just used as a comparison.
anthranilic-acid-purified-white.jpeg - 82kB

The fact that I was just messing up the recryst seems to be evident in that whenever I dissolve the anthranilic acid in MeOH, then pour it into a different container after heating it up, the dribble that runs down the outside always turns out pure white!

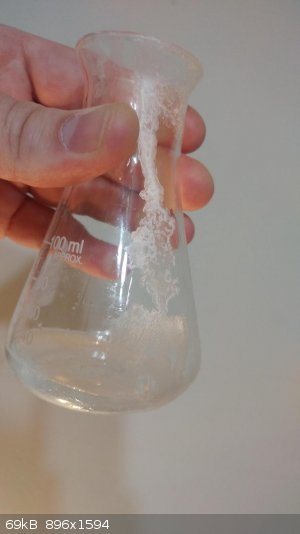

anthranilic-acid-MeOH-recryst-white-dribble.jpeg - 69kB
anthranilic-acid-MeOH-recryst-white-dribble-2.jpg - 164kB

So basically I messed up the recryst on this longer run by not just adding the MeOH directly to the heptane/anthranilic acid solution. Somehow that yielded a much cleaner product - Perhaps the recryst from boiling H2O caused some oxidation due to the higher temperature? Not sure about that.

Two things I may try next before running away with my tail between my legs:

  1. Running the soxhlet extraction using hexane instead of heptane - Will this be better? I have no idea. But the boiling point is much lower than heptane (69 °C instead of ~93 °C). Perhaps lower BP = more cycles = more extraction? no idea.
  2. Try a multi-solvent recryst (of the brown crystals right from the Hofmann rearrangement of phthalimide) with heptane and diethyl ether - Anthranilic acid is basically insoluble in heptanes, but very soluble in ether, so I'm just curious what will happen if I dissolve it in some ether and crash it out with heptane.



Question for B.D.E: How long did you let the soxhlet extractor run? What was your yield? How long was your vacation you took in the interim? (I'm assuming a month).

[Edited on 19-4-2021 by SuperOxide]
View user's profile View All Posts By User
draculic acid69
International Hazard
*****




Posts: 1133
Registered: 2-8-2018
Member Is Offline


[*] posted on 19-4-2021 at 03:02


Water seems to be a no go for this substance. Going off everyone's before and after pictures water seems to make the stuff worse not better.
View user's profile View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 19-4-2021 at 08:01


Quote: Originally posted by draculic acid69
Water seems to be a no go for this substance. Going off everyone's before and after pictures water seems to make the stuff worse not better.

Yep... I'm now convinced of that, 100%. I wish I could go back in time and slap myself before I made the stupid decision to use water (I tried to wash the product with ice cold water, since it's much less soluble in ice cold water - still didn't work well). That's 12 hours, wasted, lol.

I may actually just try the whole synthesis again, and instead of using water when I recryst the crude product, I may use MeOH. The crude product in my experience is almost white:
AA-run3-precipitate-filter-1.jpg - 195kB

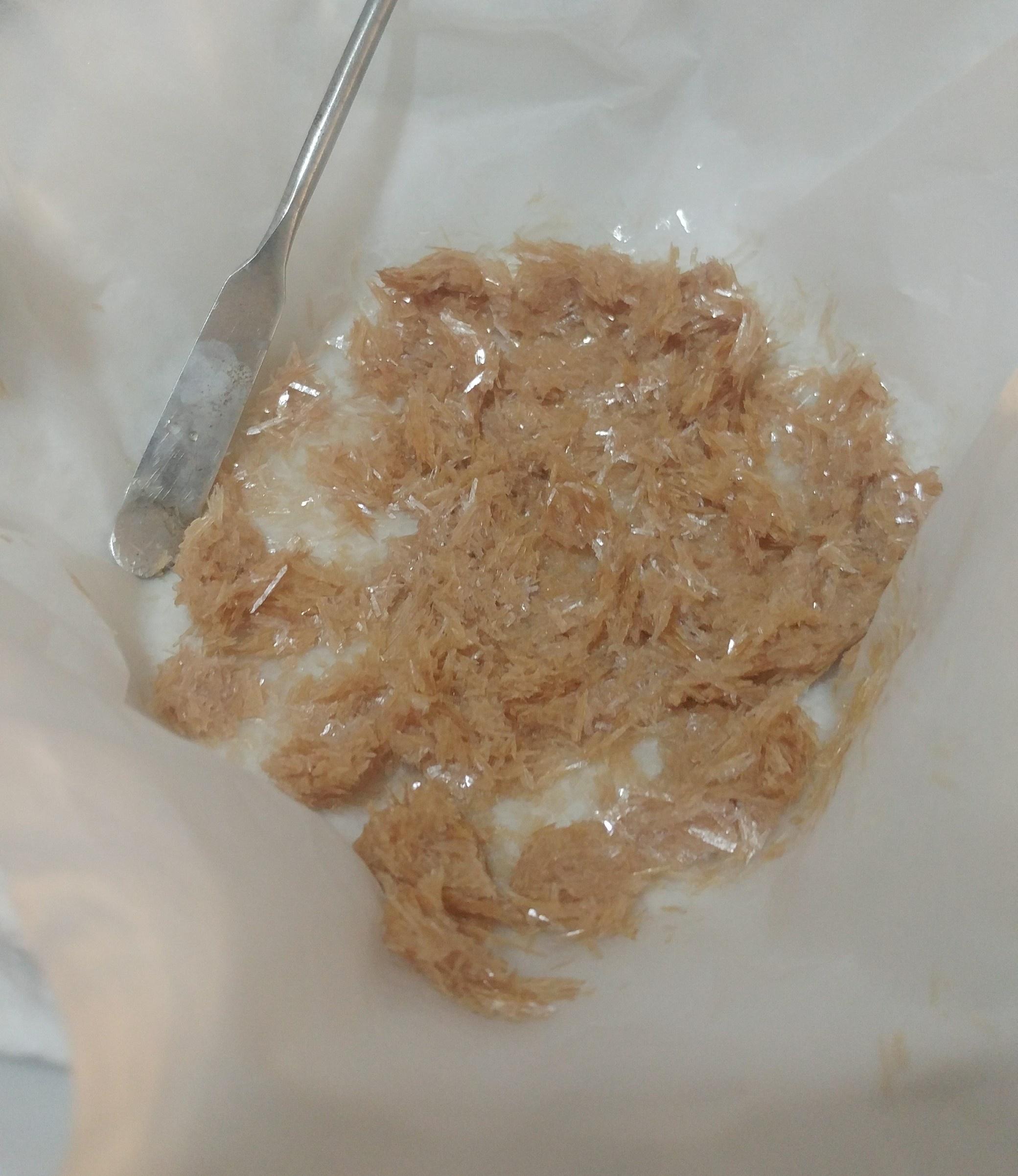

But when I use boiling water for the recryst, this is the same product:
AA-run3-recryst-filtered-1.jpg - 326kB

So yeah, lets see if it keeps its color using MeOH as the solvent, keeping water out of it entirely.
View user's profile View All Posts By User
draculic acid69
International Hazard
*****




Posts: 1133
Registered: 2-8-2018
Member Is Offline


[*] posted on 19-4-2021 at 19:33


Just a quick question; was tap or distilled water used? Maybe that's a factor maybe not.anyone have experience doing this with distilled vs tap water my tap water has lots (LOTS) of crap in it. Maybe it's the water causing decomposition or oxidation
maybe it's gunk in the water? I mean cl2, fluoride substances, flocculant, carbonates of mg+ca, other minerals,copper steel or plastic traces from piping etc are all
possibilities.

[Edited on 20-4-2021 by draculic acid69]

[Edited on 20-4-2021 by draculic acid69]
View user's profile View All Posts By User
SuperOxide
Hazard to Others
***




Posts: 167
Registered: 24-7-2019
Member Is Offline


[*] posted on 20-4-2021 at 10:49


Quote: Originally posted by draculic acid69
Just a quick question; was tap or distilled water used? Maybe that's a factor maybe not.anyone have experience doing this with distilled vs tap water my tap water has lots (LOTS) of crap in it. Maybe it's the water causing decomposition or oxidation
maybe it's gunk in the water? I mean cl2, fluoride substances, flocculant, carbonates of mg+ca, other minerals,copper steel or plastic traces from piping etc are all
possibilities.

Great question - Yes, I tried it with both, no difference. I usually always use distilled water for recryst or any chemistry, and tap for cleaning stuff. But I made sure to clean the beaker out with IPA and then use distilled water - still happened.

I just got some fresh bleach, I plan on making some anthranilic acid today or tomorrow, then trying out the recryst with a few different solvents (MeOH, chloroform, ether, etc).
View user's profile View All Posts By User
 Pages:  1

  Go To Top
