graphite anode pH buffered chlorate cell test


doing a test on whether or not graphite can work in a chlorate cell buffered by CaCl2 like my previous post.
electrolyte:
NaCl with added CaCl2 10% as buffer
Current density:
37ma/cm^2
voltage:
5.3v
electrodes:
graphite anode
graphite cathode

https://youtu.be/xJ-px3rNBE8

white insoluble Ca(OH)2 will precipitate on cathode as the cell runs pref using stainless steel for that.
low chloride = errosion will occur as an indicator for end of run.

[Edited on 31-8-2020 by mysteriusbhoice]

graphite chlorate cell.jpg - 61kB

[Edited on 31-8-2020 by mysteriusbhoice]
View user's profile View All Posts By User
mysteriusbhoice
Hazard to Others
***




Posts: 230
Registered: 27-1-2016
Member Is Offline

Mood: A little above sanity...

[*] posted on 31-8-2020 at 07:02


current got too high and some errosion occured will test if this continues
View user's profile View All Posts By User
mysteriusbhoice
Hazard to Others
***




Posts: 230
Registered: 27-1-2016
Member Is Offline

Mood: A little above sanity...

[*] posted on 2-9-2020 at 09:22


Electrodes after 3 days of running..
slight pitting on one due to uneven current distribution probably due to bad connection causing errosion!!
Other electrode looks pristine!!
efficiency of cell = pretty bad due to low temp 37 Celsius which means lots of escaping chlorine which is obvious by the horrid smell.

the uneven current distribution is the majority cause of the errosion probably due to partial or complete failure of connection as they were just makeshift and not proper.
One pair of anodes are super pitted while the other has minimal errosion and still shiny and pristine in majority of the spots which shows how delicate graphite can be since the cell was run assuming they will all recieve 37ma/cm^2 current distribution.

Recommendations when running graphite:
pH control is not that good due to lower temps causing a lot of chlorine to escape so secondary tank with heating would probably solve it but overcomplicate the design.
Connections must be really good and if not run it at half the max current density at around 20ma/cm^2.

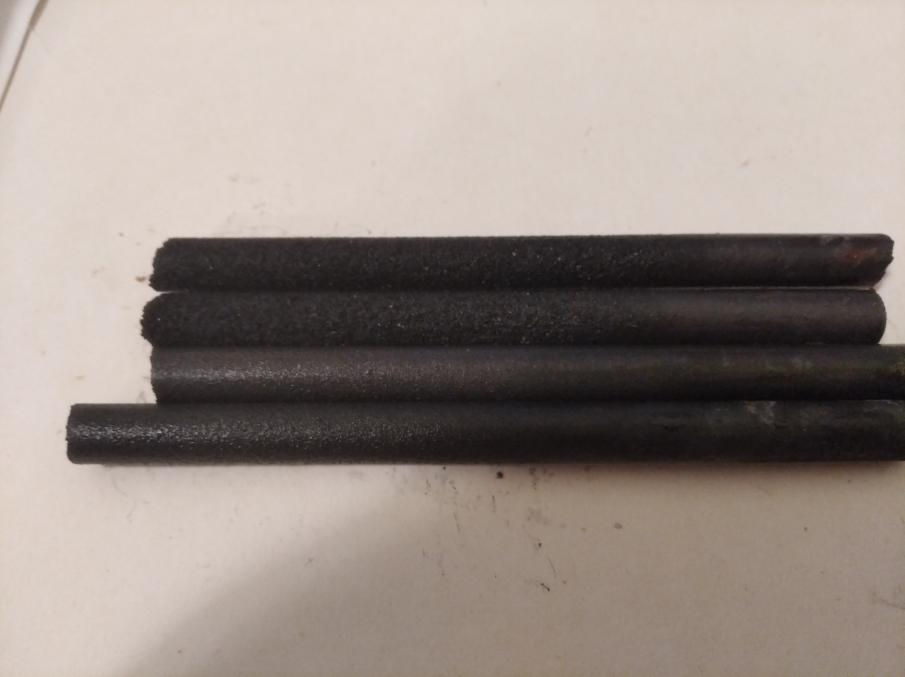

anodes finish.jpg.png - 341kB

[Edited on 2-9-2020 by mysteriusbhoice]
View user's profile View All Posts By User
Alkoholvergiftung
Hazard to Self
**




Posts: 66
Registered: 12-7-2018
Member Is Offline


[*] posted on 2-9-2020 at 09:42


You need an stir bar. I had the same problem with higher calciumchloride solutions the top of the cell had an ph of 6 the bottom of 12. I you stir it the chlorine disolves better and you should have no or very little loses.Oh and the closer the electrodes the better the yield i made some holders and they are only 5mm apart.

[Edited on 2-9-2020 by Alkoholvergiftung]
View user's profile View All Posts By User
mysteriusbhoice
Hazard to Others
***




Posts: 230
Registered: 27-1-2016
Member Is Offline

Mood: A little above sanity...

[*] posted on 2-9-2020 at 09:50


Quote: Originally posted by Alkoholvergiftung
You need an stir bar. I had the same problem with higher calciumchloride solutions the top of the cell had an ph of 6 the bottom of 12. I you stir it the chlorine disolves better and you should have no or very little loses.Oh and the closer the electrodes the better the yield i made some holders and they are only 5mm apart.

[Edited on 2-9-2020 by Alkoholvergiftung]

I dont need to if I just run the cell at 65 Celsius using MMO not graphite!
in that cell the pH remains constant due to turbulence and high temp means solubility of chlorine is very high!!.
The overall current efficiency of that setup is 68% based on yield of NaClO3 and the current running through that setup is 25 amps.
The goal of this experiment is not to make chlorate but to see the effects of pH control conditions on graphite.
View user's profile View All Posts By User
