Author: Subject: Cutting with primary
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 21-10-2021 at 06:56
Cutting with primary

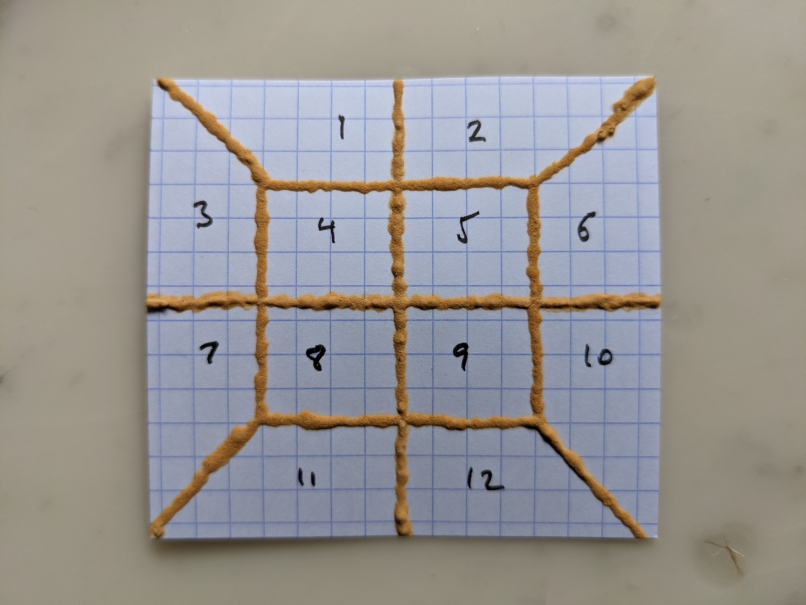

Cutting test of bristol board with a primary explosive.The primer is nitrobenzenediazonium perchlorate, with a linear density of 4.5 mg per cm.

Unfortunately, other than Edmund Herz's 1911 patent and its mention in COPAE, there are no studies of this primer that I know of. It has not found use because diazonium salts have a bad reputation for instability, and also because it is said to be hygrometric. I dispute this last point: I have kept samples of it for more than twenty years without noticing any hygrometry, nor any degradation except a darkening of its color.

It was used routinely in the laboratory by Henri Muraour (a French explosives researcher in the 1930s and 1940s) when he needed a particularly powerful primer. In my own tests, I estimate its priming power against PETN and RDX to be about twice that of AgN3 of equal weight.

I do not know its VOD.As for its sensitivity to mechanical actions, I tend to subjectively equate it to that of Hg(CNO)2. DDT is immediate, with no perceivable induction time.



PXL_20211021_142610575-00.02.19.249.jpeg - 194kB PXL_20211021_142610575-00.02.19.282.jpeg - 114kB PXL_20211021_142610575-00.02.19.315.jpeg - 77kB

Edit(woelen): Fixed issue with one of the pictures on request of user pdb.

[Edited on 2-12-21 by woelen]
View user's profile View All Posts By User
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 21-10-2021 at 07:36


Next try with a 41 cm path. Photo quality is poor due to lack of light.


PXL_20211021_151404849-00.01.09.650.jpeg - 61kB PXL_20211021_151404849-00.01.09.684.jpeg - 43kB


Edit(woelen): Fixed issue with one of the pictures on request of user pdb.

[Edited on 2-12-21 by woelen]
View user's profile View All Posts By User
Brightthermite
Hazard to Others
***




Posts: 124
Registered: 26-6-2019
Member Is Offline


[*] posted on 21-10-2021 at 09:51


These are so cool
View user's profile View All Posts By User
Fulmen
International Hazard
*****




Posts: 1577
Registered: 24-9-2005
Member Is Offline

Mood: Bored

[*] posted on 21-10-2021 at 10:32


Bravo!



We're not banging rocks together here. We know how to put a man back together.
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 21-10-2021 at 13:13


Finally someone with Art of primary compounds. Sometimes the VoD is not so important a like results. And this is the case.
Great work...:cool:
Maybe try use thin Copper plate. 0,1 mm I estimate. Detonography
is very interest art.


D1.jpg - 435kB




Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
Brightthermite
Hazard to Others
***




Posts: 124
Registered: 26-6-2019
Member Is Offline


[*] posted on 21-10-2021 at 16:46


Quote: Originally posted by Laboratory of Liptakov
Finally someone with Art of primary compounds. Sometimes the VoD is not so important a like results. And this is the case.
Great work...:cool:
Maybe try use thin Copper plate. 0,1 mm I estimate. Detonography
is very interest art.




Beautiful!! Once I find something to act as a backing that is my next project!
View user's profile View All Posts By User
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 21-10-2021 at 22:59


Quote: Originally posted by Laboratory of Liptakov
Finally someone with Art of primary compounds. Sometimes the VoD is not so important a like results. And this is the case.
Great work...:cool:
Maybe try use thin Copper plate. 0,1 mm I estimate. Detonography
is very interest art.





Yes, I have done detonography with a sheet of plexiglass to transmit the detonation wave. But your method with a water balloon is much easier and effective!

By the way, could you please check in the Russian literature if there is a study on nitrobenzenediazonium perchlorate? Some years ago someone found a paper in Russian about dinitrobenzenediazonium perchlorate, but this compound is of no interest because it only deflagrates: even priming it with another primer, I couldn't get it to detonate.

Speaking of art, I have a "work" that I could call "entanglement". Look at the pictures



P1110411 (small).jpg - 137kB P1110414 (small).jpg - 238kB P1110478 (small).JPG - 280kB
View user's profile View All Posts By User
katyushaslab
Hazard to Self
**




Posts: 81
Registered: 19-1-2021
Member Is Offline

Mood: precipitating

[*] posted on 22-10-2021 at 02:46


nitrobenzenediazonium perchlorate? Is that the one where you start with 3-nitroaniline, dissolve it in HClO4/HCl mixture and add NaNO2 to perform diazonation? I vaguely recall reading yourself and Microtek posts about it many years ago.

I also cannot for the life of me remember if HClO4 was strictly needed, or if a perchlorate salt worked fine.

Edit: Also, what are you using to "bind" your material here? Painting it on while wet and allowing to dry, or nitrocellulose/similar as a binder? I wonder if a thin layer of this material, bound with NC or similar painted onto an object such as a leaf, affixed to a metal plate could work for making artwork?

[Edited on 22-10-2021 by katyushaslab]

[Edited on 22-10-2021 by katyushaslab]
View user's profile View All Posts By User
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 22-10-2021 at 07:29


Quote: Originally posted by katyushaslab
nitrobenzenediazonium perchlorate? Is that the one where you start with 3-nitroaniline, dissolve it in HClO4/HCl mixture and add NaNO2 to perform diazonation? I vaguely recall reading yourself and Microtek posts about it many years ago.


Yes !

Quote: Originally posted by katyushaslab
I also cannot for the life of me remember if HClO4 was strictly needed, or if a perchlorate salt worked fine.


Never tried. It should work with an excess HCl.

Quote: Originally posted by katyushaslab
Edit: Also, what are you using to "bind" your material here?


I didn't bother, I just added about 10% flour.

Quote: Originally posted by katyushaslab
I wonder if a thin layer of this material, bound with NC or similar painted onto an object such as a leaf, affixed to a metal plate could work for making artwork?


You must first find a material that can produce "art" after being subjected to a shock wave. Ideas welcome !
View user's profile View All Posts By User
Herr Haber
International Hazard
*****




Posts: 1037
Registered: 29-1-2016
Member Is Offline

Mood: No Mood

[*] posted on 22-10-2021 at 09:40


Could you guys elaborate on the water balloon, the plexiglass or point me to other topics that I might have missed where you talk about that ?
You made me curious :)




The spirit of adventure was upon me. Having nitric acid and copper, I had only to learn what the words 'act upon' meant. - Ira Remsen
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 22-10-2021 at 11:40
detonography


Yes, ballon water works
https://www.youtube.com/watch?v=zeAEwi04PoI


feather.jpg - 687kB

[Edited on 22-10-2021 by Laboratory of Liptakov]




Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 23-10-2021 at 01:39


The plexiglass assembly consists, from top to bottom, of a sheet of explosive (PETN preferable because the critical thickness is very low) with a centered detonator, then a plexiglass disk of about 1cm thickness to homogenize the shock wave, then the object to be engraved (a vegetable leaf), and finally a polished copper or brass plate.

It works, but it is more complicated than the water balloon method.
View user's profile View All Posts By User
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 26-10-2021 at 02:02
Cutting with AgN3


The same cutting experiment with AgN3 does not work well: the size of the crystals (much larger than the nitrobenzenediazonium perchlorate crystals) and especially their high density prevent them from remaining suspended in the water + flour mixture. So it is difficult to spread the mixture on the cardboard.

Another detail: I never managed to capture a nice flame from an AgN3 explosion, whereas nitrobenzenediazonium perchlorate always gives great pictures with sparks all over the path.

Attachment: PXL_20211026_080654359-00.02.16.046-00.02.22.544.mp4 (5MB)
This file has been downloaded 159 times
View user's profile View All Posts By User
Herr Haber
International Hazard
*****




Posts: 1037
Registered: 29-1-2016
Member Is Offline

Mood: No Mood

[*] posted on 26-10-2021 at 06:02


Thank you both.
Your solutions are way better than anything I have thought of so far.
The water balloon contraption is art in itselft.




The spirit of adventure was upon me. Having nitric acid and copper, I had only to learn what the words 'act upon' meant. - Ira Remsen
View user's profile View All Posts By User
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 2-11-2021 at 08:36
Trial with (NCN3)3


This time I tried to form a trail of CTA (cyanuric triazide) by melting (m.p. 94°).But once liquid, the CTA soaked the cardboard, in which it diffused giving it a certain translucence, like an oil stain.


As a result, the behavior in the flame is quite strange: I put two extracts in the video. You can see that the CTA crackles, without continuity in the detonation, but with continuity in the crackling.

It is in a way halfway between nitrobenzene diazonium perchlorate which detonates in one go, and AgN3 which detonates in segments, without continuity between the successive detonations

Attachment: PXL_20211102_153733429-cut-merged-1635869700052-00.00.00.233-00.00.12.070.mp4 (7.9MB)
This file has been downloaded 119 times

[Edited on 2-11-21 by pdb]
View user's profile View All Posts By User
Bert
Super Administrator
*********




Posts: 2744
Registered: 12-3-2004
Member Is Offline

Mood: " I think we are all going to die. I think that love is an illusion. We are flawed, my darling".

[*] posted on 4-11-2021 at 11:08


Quote: Originally posted by pdb
The same cutting experiment with AgN3 does not work well: the size of the crystals (much larger than the nitrobenzenediazonium perchlorate crystals) and especially their high density prevent them from remaining suspended in the water + flour mixture. So it is difficult to spread the mixture on the cardboard


I theorize a small additional % guar gum or xanthan gum would provide a stiffer gel capable of keeping your larger/denser crystals suspended.

Prepared wallpaper paste might be better with heavy crystals than plain than flour/water

Or maybe COOK the flour/water mixture? Brinnng it to a simmer while stirring and allow to cool before adding primary? Explosive gravy...

I keep food grade xanthan and guar gums on hand. Useful for everything from making hot sauce that doesn't run off your ribs & wings to making cut stars.

[Edited on 11-4-2021 by Bert]




Rapopart’s Rules for critical commentary:

1. Attempt to re-express your target’s position so clearly, vividly and fairly that your target says: “Thanks, I wish I’d thought of putting it that way.”
2. List any points of agreement (especially if they are not matters of general or widespread agreement).
3. Mention anything you have learned from your target.
4. Only then are you permitted to say so much as a word of rebuttal or criticism.

Anatol Rapoport was a Russian-born American mathematical psychologist (1911-2007).

View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 4-11-2021 at 12:33


pdb:
Spectacular video with paper. Great work. Magic paper. A like shooting into paper from invisible laser 1000W. Or beams of death. All others important for better results said Bert...:cool:




Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 24-11-2021 at 14:03


Again, the nitrobenzenediazonium perchlorate provides a beautiful image, captured at 240 fps. I think this is due to the recombination of the detonation products, from the raw formula C6H4ClN3O6, which lasts longer than the detonation itself (which, as a thin trail, must be quite low, maybe 2000 to 3000 m/s... however enough to travel about a meter per image). By the way, the smell of the explosion is very pleasant... well, I think so.

With inorganic azides, or fulminates, the detonation products are too simple to cause a recombination. So it is rare to capture the detonation at 240 fps, and at best you just see a white flash.

PXL_20211124_101928704-00.01.25.046.jpg - 29kB PXL_20211124_101928704-00.01.25.080.jpg - 26kB PXL_20211124_101928704-00.01.25.113.jpg - 19kB
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

[*] posted on 24-11-2021 at 15:27


Mad perchlorate. Exotic formula. Spectacular photos...:cool:



Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
MineMan
International Hazard
*****




Posts: 858
Registered: 29-3-2015
Member Is Offline

Mood: No Mood

[*] posted on 24-11-2021 at 16:20


That paper video was so so cool. Please do more experiments for that. It’s like a detonating fuse. There has to be a use for it.
View user's profile View All Posts By User
pdb
Hazard to Self
**




Posts: 67
Registered: 8-4-2004
Member Is Offline

Mood: No Mood

[*] posted on 30-11-2021 at 02:32

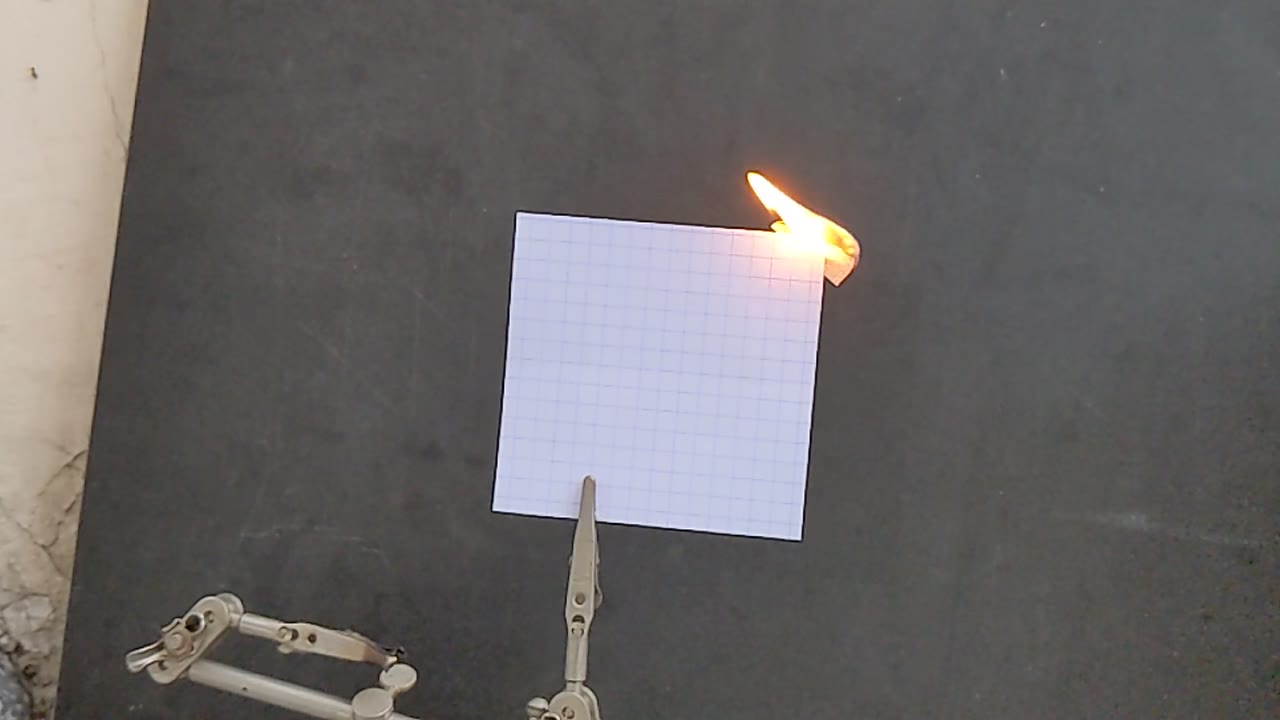

This time I shot the back of the Bristol to avoid the camera being blinded by the flash of the detonation. I also put a black background screen to avoid any reflection of the light.

Too bad, the detonation was captured on 2 frames. On the first one, the detonation occurred at the half of the sensor scan. And the second one is particularly nice. However, I hope next time to capture the entire detonation on a single frame.

PXL_20211126_000x.jpg - 315kB PXL_20211130_001.jpeg - 40kB PXL_20211130_002.jpeg - 42kB PXL_20211130_003.jpeg - 42kB PXL_20211130_004.jpeg - 34kB PXL_20211130_006x.jpg - 279kB
View user's profile View All Posts By User
Laboratory of Liptakov
International Hazard
*****




Posts: 1069
Registered: 2-9-2014
Member Is Offline

Mood: cool.gif

thumbup.gif posted on 5-12-2021 at 07:04


Incredible art work...Hat off....:cool:



Safety explosive Alfred Nobel 1867. Safety ecologic detonator Dr. Liptakov 2015, inventor CHP and Lithex
View user's profile View All Posts By User
Mateo_swe
National Hazard
****




Posts: 346
Registered: 24-8-2019
Location: Within EU
Member Is Offline


[*] posted on 2-6-2022 at 04:11


Wow, really cool.
I liked the different types of leaf on the metal plates, looks like the ancient fossils they find enbedded in stone.
I really have to try this some time.

Does other explosives work too if one work out how big charge to use by some trials?
The waterballon method seem very good.
View user's profile View All Posts By User
simply RED
Hazard to Others
***




Posts: 201
Registered: 18-8-2005
Location: noitacoL
Member Is Offline

Mood: booM

[*] posted on 2-6-2022 at 10:01


Really beautiful, should be published in some scientific-popular journal.
