My new blasting machine 2


this is my new electric blasting machine!
Medium power.
Firing Voltage: 270 VDC Maximum
Firing Energy: 4.2 Joule (w/s)
Power Source: 6v,4AA battery
Charge time:about 5s.
Compact and useful device.

D39B5003-FE83-4BD1-8647-9C10BE906B94.jpeg - 328kB35DD818D-9396-455B-9A46-669AE29EC638.jpeg - 346kB
View user's profile View All Posts By User
Rainwater
National Hazard
****




Posts: 834
Registered: 22-12-2021
Member Is Offline

Mood: indisposition to activity

[*] posted on 7-1-2022 at 16:37


I love the size. Mines as big as a shoe box and has 6 heavy d cells in side. Use it for cadweld charges and the occasional trench blast. Got a little use a few days ago with the new years.



"You can't do that" - challenge accepted
View user's profile View All Posts By User
specialactivitieSK
Hazard to Self
**




Posts: 94
Registered: 21-10-2014
Member Is Offline

Mood: No Mood

[*] posted on 3-2-2022 at 08:50

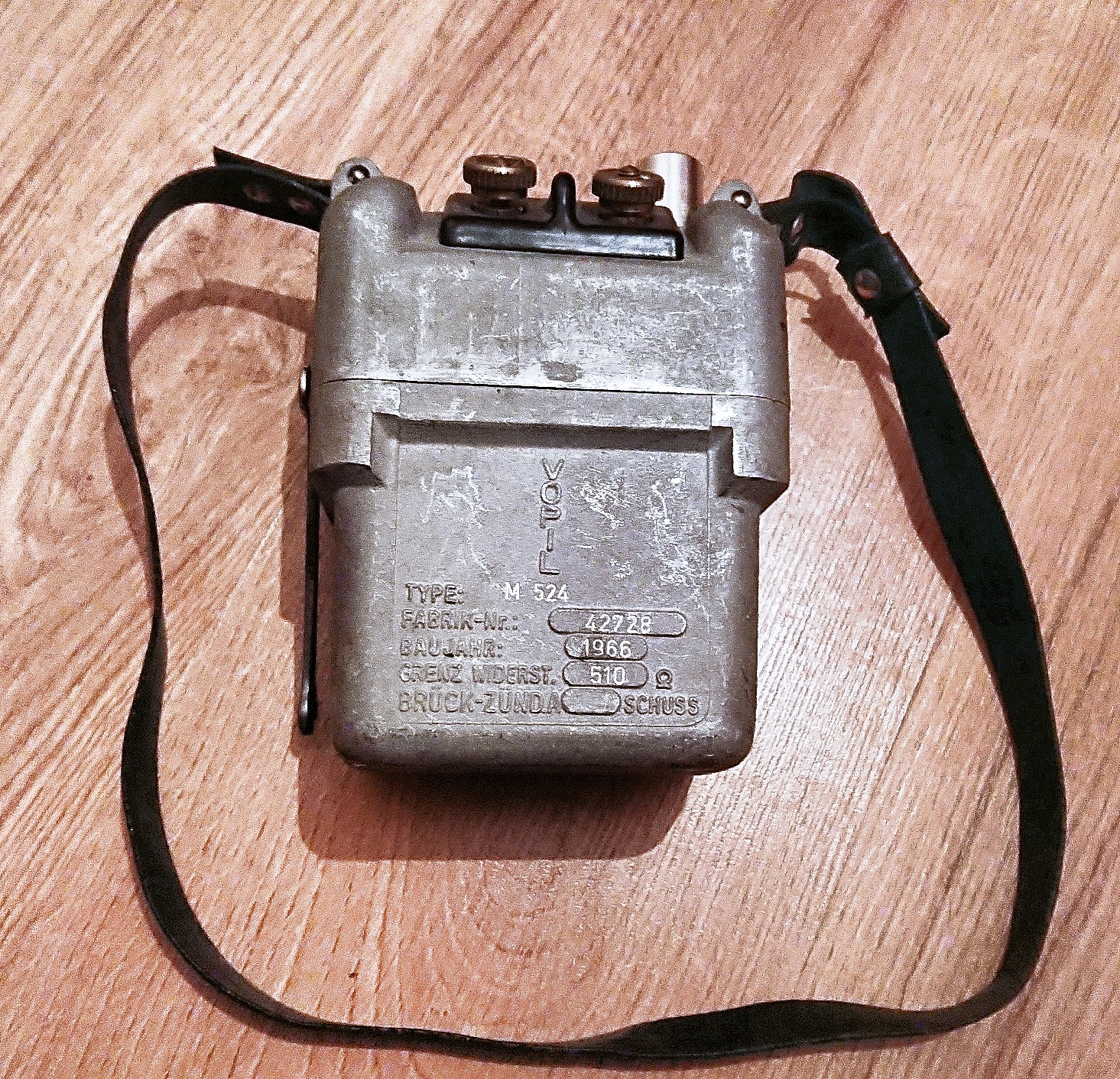

New toy VOPIL M524

2022-02-03-17-47-24-862.jpg - 1.3MB2022-02-03-17-48-42-216.jpg - 1.4MB
View user's profile View All Posts By User
specialactivitieSK
Hazard to Self
**




Posts: 94
Registered: 21-10-2014
Member Is Offline

Mood: No Mood

[*] posted on 6-2-2022 at 09:46

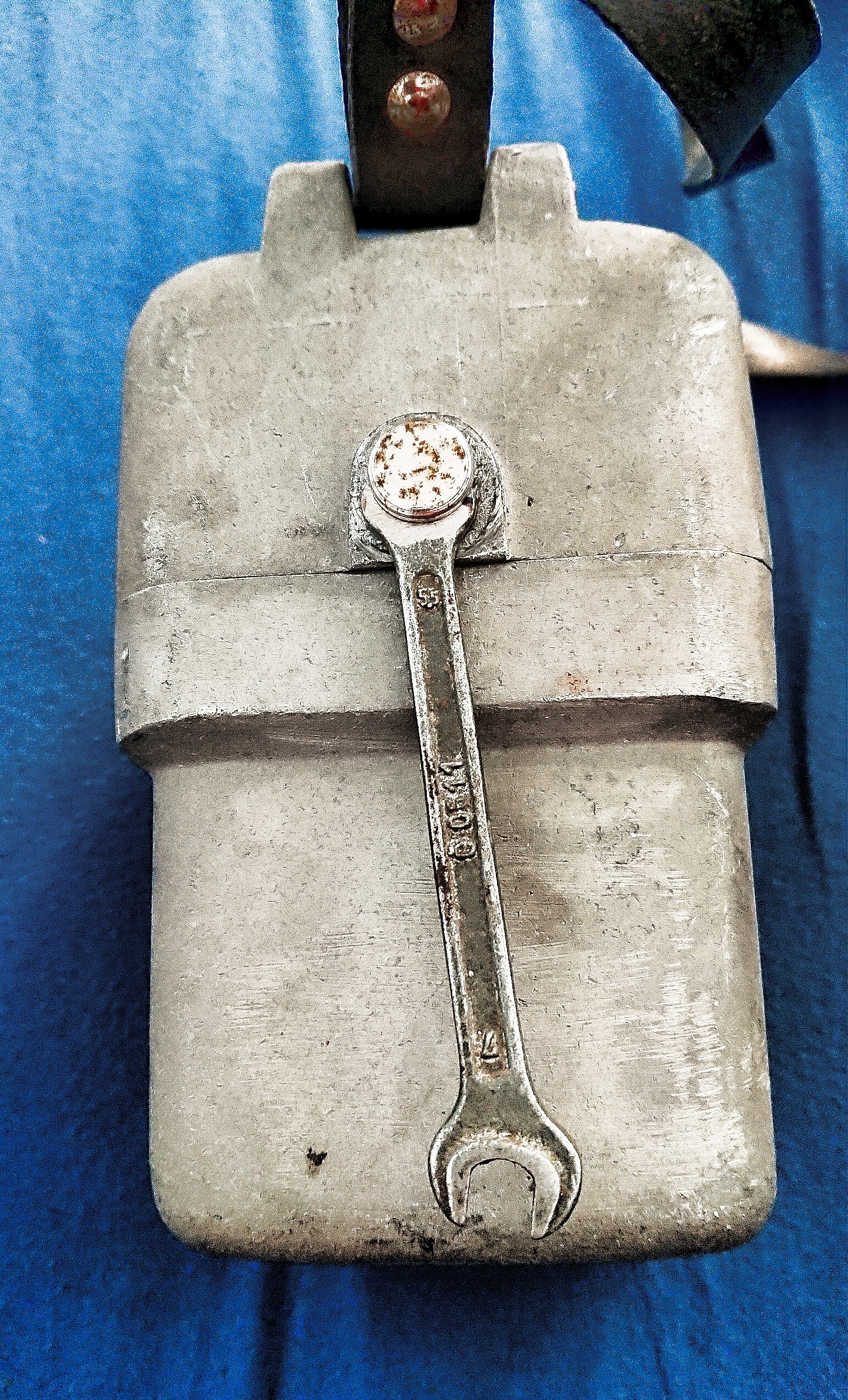

Upgrade
