Author: Subject: Best way to extract sodium hypochlorite?
Crazy_Chemist
Harmless
*




Posts: 19
Registered: 22-7-2019
Location: Europe
Member Is Offline

Mood: Radioactive

[*] posted on 9-3-2022 at 22:36
Best way to extract sodium hypochlorite?


Detergents with 2.4% sodium hypochlorite are sold here, and I need to extract it. I tried to boil it and got a powder, which developed chlorine when I dripped hydrochloric acid on it.

But it says on Wikipedia that it decomposes at 101 ° C, so what did I get in the jar?

If I let it stand and evaporate, should it work? How stable is sodium hypochlorite really?

https://en.wikipedia.org/wiki/Sodium_hypochlorite




Amateur chemist, just for fun!
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 3025
Registered: 20-4-2005
Location: Netherlands
Member Is Online

Mood: Mood

[*] posted on 9-3-2022 at 22:54


You made a mixture of sodium chloride and sodium chlorate. Upon heating hypochlorite decomposes into these two compounds.
View user's profile View All Posts By User
Texium
Administrator
Thread Moved
9-3-2022 at 23:04
B(a)P
International Hazard
*****




Posts: 1128
Registered: 29-9-2019
Member Is Offline

Mood: Festive

[*] posted on 10-3-2022 at 00:01


You can buy 20 to 30 percent sodium hypochlorite as pool chlorinator. Or you can make it by mixing solutions of sodium sulfate and calcium hypochlorite and filtering out the calcium sulfate leaving a sodium hypochlorite solution.
Concentrating sodium hypochlorite is not easy.
View user's profile View All Posts By User
sauveurdumonde
Harmless
*




Posts: 33
Registered: 13-7-2021
Location: Canada
Member Is Offline


[*] posted on 10-3-2022 at 04:20


I recall reading that hypochlorite powders tend to have sensitive explosive tendencies. It may not be very easy to store anhydrous.



"There is a shadow of a nation behind you, the hope of a people... yet it may not matter. The Divide still stands against us."
View user's profile View All Posts By User
unionised
International Hazard
*****




Posts: 5109
Registered: 1-11-2003
Location: UK
Member Is Offline

Mood: No Mood

[*] posted on 10-3-2022 at 04:48


Quote: Originally posted by Crazy_Chemist
I need to extract it.


Why?
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3599
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 10-3-2022 at 05:27


swimming pool chlorine powders or ground up tablets with HCl are good for a chlorine gas generator



CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
Fantasma4500
International Hazard
*****




Posts: 1677
Registered: 12-12-2012
Location: Dysrope (aka europe)
Member Is Offline

Mood: dangerously practical

[*] posted on 10-3-2022 at 07:50


trichloroisocyanuric acid sold as chlorine shock or quick chlorine, tablets/granules react with NaOH to form sodium hypochlorite
calcium hypochlorite cannot be bought in europe- GENERALLY.
depending on the use you may also electrolyse NaCl to form it in situ




~25 drops = 1mL @dH2O viscocity - STP
Truth is ever growing - but without context theres barely any such.

https://en.wikipedia.org/wiki/Solubility_table
http://www.trimen.pl/witek/calculators/stezenia.html
View user's profile View All Posts By User
Crazy_Chemist
Harmless
*




Posts: 19
Registered: 22-7-2019
Location: Europe
Member Is Offline

Mood: Radioactive

[*] posted on 11-3-2022 at 00:28


Quote: Originally posted by unionised
Quote: Originally posted by Crazy_Chemist
I need to extract it.


Why?

Well, need and need, I just like to produce new chemical to have in my homelab :) But...

Quote: Originally posted by sauveurdumonde
I recall reading that hypochlorite powders tend to have sensitive explosive tendencies. It may not be very easy to store anhydrous.

I dont think Im going to store it at ahome...

So, I think I'm going to the pool-store instead.

When I need chlorine gas, I usually use HCl and KMnO4.




Amateur chemist, just for fun!
View user's profile View All Posts By User
woelen
Super Administrator
*********




Posts: 7981
Registered: 20-8-2005
Location: Netherlands
Member Is Offline

Mood: interested

[*] posted on 11-3-2022 at 02:14


NaClO is quite unstable. It never is sold as a solid. The solid does exist though, but it only is a lab curiousity, which fairly quickly decomposes.
Commercial solutions are limited to appr. 15%, usually less (12...13%). If the concentration is raised, then you see two competing decomposition reactions. In one reaction there is disproportionation into NaCl and NaClO3, and in the other there simply is decomposition with production of O2. The latter reaction can be enhanced severely by transition metal impurities. E.g. if you add a few drops of a cobalt salt solution to a concentrated solution of NaClO, then the solution starts bubbling/foaming (production of O2).




The art of wondering makes life worth living...
Want to wonder? Look at https://woelen.homescience.net
View user's profile Visit user's homepage View All Posts By User
chornedsnorkack
National Hazard
****




Posts: 536
Registered: 16-2-2012
Member Is Offline

Mood: No Mood

[*] posted on 11-3-2022 at 02:23


Quote: Originally posted by woelen
NaClO is quite unstable. It never is sold as a solid. The solid does exist though, but it only is a lab curiousity, which fairly quickly decomposes.
Commercial solutions are limited to appr. 15%, usually less (12...13%). If the concentration is raised, then you see two competing decomposition reactions. In one reaction there is disproportionation into NaCl and NaClO3, and in the other there simply is decomposition with production of O2. The latter reaction can be enhanced severely by transition metal impurities.


Disproportionation is promoted by heating. How do strong NaClO solutions behave on cooling - gentle cooling (deep freeze) and harsh cooling (like liquid nitrogen)?
What would happen if frozen NaClO solution is allowed to stand at low temperature with but out of direct contact with a strong desiccant like CaO?
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3599
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 11-3-2022 at 05:26


I like problem solving challenges,
lateral, diagonal and upside-down thinking.

But potentially explosive substances in glassware is a poor choice.
(in my opinion)




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
Tsjerk
International Hazard
*****




Posts: 3025
Registered: 20-4-2005
Location: Netherlands
Member Is Online

Mood: Mood

[*] posted on 11-3-2022 at 06:28


Sodium hypochlorite pentahydrate is stable at refrigerator temperatures according to wiki.
View user's profile View All Posts By User
Texium
Administrator
********




Posts: 4536
Registered: 11-1-2014
Location: Salt Lake City
Member Is Offline

Mood: PhD candidate!

[*] posted on 11-3-2022 at 11:47


Quote: Originally posted by Crazy_Chemist
When I need chlorine gas, I usually use HCl and KMnO4.
That's not a very efficient way of generating chlorine. You'd be much better off finding either trichloroisocyanuric acid (TCCA), sodium dichloroisocyanurate (NaDCC) or calcium hypochlorite at a hardware or pool store, and using that in combination with HCl to generate chlorine. At least one of those should be readily available for you and cheap. Save your permanganate for better things.



Come check out the Official Sciencemadness Wiki
They're not really active right now, but here's my YouTube channel and my blog.
View user's profile Visit user's homepage View All Posts By User
woelen
Super Administrator
*********




Posts: 7981
Registered: 20-8-2005
Location: Netherlands
Member Is Offline

Mood: interested

[*] posted on 11-3-2022 at 12:46


I fully agree with Texium. KMnO4 is way to valuable for making Cl2.

Best is TCCA or Na-DCCA. I do not like Ca(ClO)2, because the resulting Cl2 is not very pure. It also produces ClO2 (you can see that the solution gets a more intense color than one should expect from Cl2 alone). The ClO2 most likely is due to chlorate impurity of the Ca(ClO)2, which almost always is present, especially if the material is somewhat older. A similar thing I also observed with somewhat older bleach as a source of Cl2.

The major disadvantage of using TCCA or Na-DCCA is that poorly soluble cyanuric acid is formed in the reaction, which easily leads to excessive foaming. The Cl2-gas, however, is very pure (disregarding water vapor).

[Edited on 11-3-22 by woelen]




The art of wondering makes life worth living...
Want to wonder? Look at https://woelen.homescience.net
View user's profile Visit user's homepage View All Posts By User
S.C. Wack
bibliomaster
*****




Posts: 2419
Registered: 7-5-2004
Location: Cornworld, Central USA
Member Is Offline

Mood: Enhanced

[*] posted on 11-3-2022 at 15:45


Quote: Originally posted by chornedsnorkack
How do strong NaClO solutions behave on cooling - gentle cooling (deep freeze) and harsh cooling (like liquid nitrogen)?
What would happen if frozen NaClO solution is allowed to stand at low temperature with but out of direct contact with a strong desiccant like CaO?


The hydrates are made by cooling etc. Frozen bleach would have a hard time evaporating.

Quote: Originally posted by Texium
That's not a very efficient way of generating chlorine.


I did the math and don't see it...more efficient based on HCl maybe, but HCl is really cheap. Permanganate generates more Cl per gram of oxidant and the cost per gram of Cl is pretty much the same, not that TCCA has ever been sold locally outside of pool specialists. Permanganate (sold in about half the hardware stores here since forever) has no storage issues, very much unlike the others.

Quote: Originally posted by woelen
I do not like Ca(ClO)2, because the resulting Cl2 is not very pure.


The product(s) of the reaction depends on the amount and strength of acid (and sometimes temperature).

[Edited on 12-3-2022 by S.C. Wack]




"You're going to be all right, kid...Everything's under control." Yossarian, to Snowden
View user's profile Visit user's homepage View All Posts By User
karlos³
International Hazard
*****




Posts: 1520
Registered: 10-1-2011
Location: yes!
Member Is Offline

Mood: oxazolidinic 8)

[*] posted on 11-3-2022 at 18:09


Quote: Originally posted by Antiswat

calcium hypochlorite cannot be bought in europe- GENERALLY.

Uh what?
You mean OTC or what?




verrückt und wissenschaftlich
View user's profile View All Posts By User
chornedsnorkack
National Hazard
****




Posts: 536
Registered: 16-2-2012
Member Is Offline

Mood: No Mood

[*] posted on 12-3-2022 at 04:30


Quote: Originally posted by S.C. Wack
Quote: Originally posted by chornedsnorkack
How do strong NaClO solutions behave on cooling - gentle cooling (deep freeze) and harsh cooling (like liquid nitrogen)?
What would happen if frozen NaClO solution is allowed to stand at low temperature with but out of direct contact with a strong desiccant like CaO?


The hydrates are made by cooling etc. Frozen bleach would have a hard time evaporating.


The vapour pressure of water is:
at +20 Celsius - 2339 Pa
at 0 Celsius - 611 Pa
ice at -20 Celsius - 103 Pa

So when a frozen hydrate is stored in a closed vessel but out of contact with a powerful desiccant, like CaO, P4O10 or concentrated H2SO4 (all of whic would react with NaClO if in contact, but are even less volatile than water), then dehydration of hydrates would be one competitive reaction.
View user's profile View All Posts By User
unionised
International Hazard
*****




Posts: 5109
Registered: 1-11-2003
Location: UK
Member Is Offline

Mood: No Mood

[*] posted on 12-3-2022 at 04:47


Quote: Originally posted by S.C. Wack


The hydrates are made by cooling etc. Frozen bleach would have a hard time evaporating.


That would be a serious disappointment to those who make freeze dryers.
View user's profile View All Posts By User
S.C. Wack
bibliomaster
*****




Posts: 2419
Registered: 7-5-2004
Location: Cornworld, Central USA
Member Is Offline

Mood: Enhanced

[*] posted on 12-3-2022 at 08:32


Quote: Originally posted by chornedsnorkack
The vapour pressure of water is:
at +20 Celsius - 2339 Pa
at 0 Celsius - 611 Pa
ice at -20 Celsius - 103 Pa


In other words, it would have a hard time evaporating.

Quote: Originally posted by unionised

That would be a serious disappointment to those who make freeze dryers.


If what we said had anything to do with operating freeze dryers.

[Edited on 12-3-2022 by S.C. Wack]




"You're going to be all right, kid...Everything's under control." Yossarian, to Snowden
View user's profile Visit user's homepage View All Posts By User
Texium
Administrator
********




Posts: 4536
Registered: 11-1-2014
Location: Salt Lake City
Member Is Offline

Mood: PhD candidate!

[*] posted on 12-3-2022 at 10:47


Quote: Originally posted by S.C. Wack
Quote: Originally posted by Texium
That's not a very efficient way of generating chlorine.


I did the math and don't see it...more efficient based on HCl maybe, but HCl is really cheap. Permanganate generates more Cl per gram of oxidant and the cost per gram of Cl is pretty much the same, not that TCCA has ever been sold locally outside of pool specialists. Permanganate (sold in about half the hardware stores here since forever) has no storage issues, very much unlike the others.
I did more math, and I still see it.

Reaction of potassium permanganate with HCl:
2 KMnO4 + 16 HCl —> 2 KCl + 2 MnCl2 + 5 Cl2

2.5 moles of Cl2 per mole of KMnO4. Permanganate is not regularly sold in any hardware store I've been to. The product "Pot Perm Plus" is generally only obtainable by special order. If I wanted to get it from my local Home Depot, I would have to order it to the store to pick up. Other stores don't offer it at all. It was the same case where I lived in Texas. Maybe other locales have it OTC. So that's 794 grams for $30.30, or about $6 per mole, giving us a theoretical yield of $2.41 per mole of chlorine gas. With the caveat that permanganate isn't actually OTC.

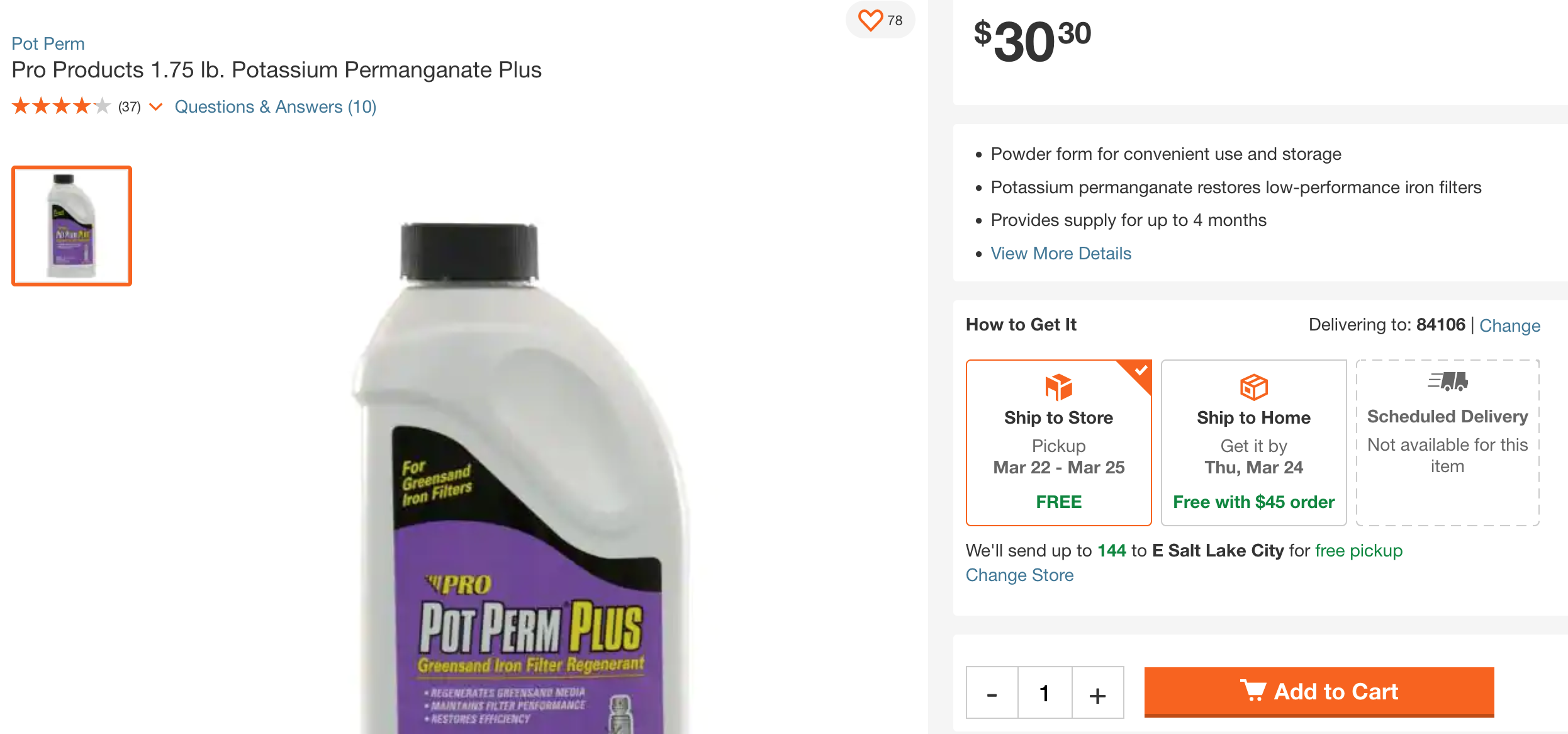

Screen Shot 2022-03-12 at 11.14.08 AM.png - 710kB

Now let's take a look at TCCA:
C3N3O3Cl3 + 3 HCl —> C3N3(OH)3 + 3 Cl2

3 moles of Cl2 per mole of TCCA. I could buy this at my local Lowe's in the store today if I wanted to:

Screen Shot 2022-03-12 at 11.15.03 AM.png - 630kB

While it's much more expensive upfront, that's for 11.34 kg of 94% TCCA, or 10.66 kg of pure TCCA. This comes out to about $3.25 per mole, giving us a theoretical yield of $1.08 per mole of chlorine gas.

While researching this, I was rather surprised to find that pool chemicals seem to be less available now than in years past when I bought them for my lab. I couldn't find NaDCC on any sites, for instance, while I know that I had bought some from Lowe's or Home Depot in-person in 2015 in an affordable 5 lb container of granules. Otherwise I would have included that in the price comparison too. It's always worth keeping in mind that availability of OTC chemicals is constantly shifting, and some things that we take for granted may be phased out for unclear reasons.




Come check out the Official Sciencemadness Wiki
They're not really active right now, but here's my YouTube channel and my blog.
View user's profile Visit user's homepage View All Posts By User
S.C. Wack
bibliomaster
*****




Posts: 2419
Registered: 7-5-2004
Location: Cornworld, Central USA
Member Is Offline

Mood: Enhanced

[*] posted on 12-3-2022 at 13:24


Quote: Originally posted by Texium
So that's 794 grams for $30.30, or about $6 per mole, giving us a theoretical yield of $2.41 per mole of chlorine gas.


My calculations were based on my (half perhaps, I'd have to actually go check) cost, not your needlessly expensive figure (the $20 at amazon is still not the lowest that comes up with a search...their 5# @ $40.34 was used for the 93.6% TCCA)

On topic, I suspect that distillation with a high enough vacuum could concentrate dilute bleaches to a point where a hydrate could be crystallized out by cooling.




"You're going to be all right, kid...Everything's under control." Yossarian, to Snowden
View user's profile Visit user's homepage View All Posts By User
Texium
Administrator
********




Posts: 4536
Registered: 11-1-2014
Location: Salt Lake City
Member Is Offline

Mood: PhD candidate!

[*] posted on 12-3-2022 at 16:25


Quote: Originally posted by S.C. Wack
Quote: Originally posted by Texium
So that's 794 grams for $30.30, or about $6 per mole, giving us a theoretical yield of $2.41 per mole of chlorine gas.


My calculations were based on my (half perhaps, I'd have to actually go check) cost, not your needlessly expensive figure (the $20 at amazon is still not the lowest that comes up with a search...their 5# @ $40.34 was used for the 93.6% TCCA)
My “needlessly expensive figure” was based on what is available at hardware stores, which I used because you seemed to find it important to point out that permanganate is easier to find OTC than TCCA (maybe it is in Cornworld, but here it’s certainly not). The price I quoted is for Home Depots across the US. Maybe you have some special hardware store in Cornworld that sells it for half the price of the competition. Lucky you, if that’s the case.

The best price I can find online for permanganate is this: https://www.fleetfarm.com/detail/filter-mate-potassium-perma... which with the $8 shipping they offer does come out to about half the price of the Home Depot stuff. Still, that only puts it roughly even with TCCA.

Overall, I still think TCCA is a better choice unless you have local access to much cheaper permanganate. TCCA has the advantage of not leaving you with manganese waste to dispose of too.




Come check out the Official Sciencemadness Wiki
They're not really active right now, but here's my YouTube channel and my blog.
View user's profile Visit user's homepage View All Posts By User
Tsjerk
International Hazard
*****




Posts: 3025
Registered: 20-4-2005
Location: Netherlands
Member Is Online

Mood: Mood

[*] posted on 13-3-2022 at 01:53


Quote: Originally posted by S.C. Wack


On topic, I suspect that distillation with a high enough vacuum could concentrate dilute bleaches to a point where a hydrate could be crystallized out by cooling.


My thoughts as well. You might even use a freeze drying apparatus for this.
View user's profile View All Posts By User
S.C. Wack
bibliomaster
*****




Posts: 2419
Registered: 7-5-2004
Location: Cornworld, Central USA
Member Is Offline

Mood: Enhanced

[*] posted on 14-3-2022 at 14:02


Quote: Originally posted by Texium

So that's 794 grams for $30.30, or about $6 per mole, giving us a theoretical yield of $2.41 per mole of chlorine gas. With the caveat that permanganate isn't actually OTC.


Quote: Originally posted by S.C. Wack
My calculations were based on my (half perhaps, I'd have to actually go check) cost, not your needlessly expensive figure


I was off. The OTC product is actually $28.48. For 4.75#. But only until the sale is over, then it'll be $32.

Quote: Originally posted by Texium
The best price I can find online for permanganate is this: https://www.fleetfarm.com/detail/filter-mate-potassium-perma... which with the $8 shipping they offer does come out to about half the price of the Home Depot stuff. Still, that only puts it roughly even with TCCA.


You mean like what I said?

Quote: Originally posted by S.C. Wack
Permanganate generates more Cl per gram of oxidant and the cost per gram of Cl is pretty much the same


That product you found might be the same thing but with a different label, and (getting to the actual point) also be exactly what I have in stock from many years back, magically stable. Now you can put your skepticism to the test?

So how about finding a similar price for TCCA and recalculating, now that you've proven that permanganate is in fact cheaper. Personally if I was going to special order something I'd go with the lowest price, esp. if it was to my door. And I'd buy a lot of it if it was useful and stable for decades. What to do with Mn+2...yeah it's like radioactive waste and can't be isolated from solution, it's totally useless uh huhm, unlike cyanuric acid which is so useful for...stabilizing Cl in pools.

I've used permanganate many times to make calculated amounts of Cl, even hypochlorite. Nothing wrong with it.

[Edited on 14-3-2022 by S.C. Wack]




"You're going to be all right, kid...Everything's under control." Yossarian, to Snowden
View user's profile Visit user's homepage View All Posts By User
unionised
International Hazard
*****




Posts: 5109
Registered: 1-11-2003
Location: UK
Member Is Offline

Mood: No Mood

[*] posted on 14-3-2022 at 14:41


Quote: Originally posted by S.C. Wack

Quote: Originally posted by unionised

That would be a serious disappointment to those who make freeze dryers.


If what we said had anything to do with operating freeze dryers.


It has.

Removal of water, as the vapour from a frozen material is (1) what the plan here was and (2) how a freeze dryer works.

Whether you remove it with a vacuum pump or a desiccant isn't a huge difference.
Obviously the pump works better but, if your idea that cold stuff won't evaporate were true, then freeze dryers wouldn't work.
They do.
It isn't.
View user's profile View All Posts By User
 Pages:  1

  Go To Top
