Author: Subject: carbazole by dehydrogenation of 1,2,3,4-tetrahydrocarbazole on palladium catalyst
Fery
National Hazard
****




Posts: 991
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 21-12-2022 at 06:11
carbazole by dehydrogenation of 1,2,3,4-tetrahydrocarbazole on palladium catalyst


I followed this method:

Attachment: ed054p383.pdf (2.2MB)
This file has been downloaded 144 times



To 50 ml RBF was added:
1,6 g 1,2,3,4-tetrahydrocarbazole (I used the second grade product recovered from mother liquors, not the main pure crop).
0,32 g 10% Pd/C catalyst recovered from 1 of my synthesis and air dried
14,0 g freshly distilled cumene, b.p. 150-152 C (I weighed it, I did not measure its volume, d = 0,862 g/ml that should be 16,2 ml).
No boiling stones added as the catalyst is enough to cause smooth boiling (but later things did not go smoothly).
Air condenser attached (luckily with wide inner diameter circa 25-30 mm).
Refluxed for 9 hours (maybe 2-4 hours could be enough but my catalyst was from sales and certainly older than fresher and produced for unknown purpose for uknown lab / industrial usage). From the beginning nice small bubbles (H2 ?) but soon bumping started and went progressively worse in time. Luckily 50 ml RBF with less than 20 ml content was used and wide tube air back condenser. I can only speculate what caused the bumping but it was very likely H2O by oxidation of H2 ? There were 2 immiscible liquids visible in air condenser, suspected H2O on top part, but some drops flowed down, maybe moisture from not absolutely dry 1,2,3,4 tetrahydrocarbazole?, Pd/C used in this experiment was recovered from 4-phenyl-butan-2-one experiment and air dried. Or maybe cumene hydroperoxide formed? Luckily I at least distilled it before the experiment. Cumene hydroperoxide could help in dehydrogenation reaction as would quickly remove H2 from Pd.
Bumping was about every 5-10 seconds !!! and with time it hit upper and upper parts of the condenser and reached also its top...
I wanted to reflux for 12 hours but let it be after 9 hours. Because I used solvent with lover b.p. than in the reference link (the best solvent I had at hand was cumene) so the reaction needed more time due reduced speed at lower temperature.
The bumping itself was not the worse fact, the worse fact was that water presence reduced dramatically boiling point and thus reflux temperature and thus reaction rate.
Filling flask to not more than 20-25% is recommended and using wide tube condenser. Better if I used 100 ml than 50 ml RBF.
You can also put a small glass funnel on top of condenser to prevent spattering out of the top of the condenser or use longer condenser (mine was only 30 cm long).
I do not know how to simply remove very likely few drops of water from the reaction (maybe drying tube on top of condenser???)
At the end it seemed like circa 5 ml of solvent was lost during reflux??? But I did not measure the difference.
Cooled below b.p. of ethyl acetate and added 25 ml ethyl acetate through top of the condenser drop by drop on walls of condenser which dissolved product and catalyst adhering on walls of condenser so they returned back down into the flask.
Mixture heated to dissolve product which meanwhile crystallized on cooling. Twice gravity filtered hot through hard dense filter paper (after first filtration there was still a little of catalyst in the filtrate).
Ethyl acetate evaporated until product started to crystallize and mixture cooled down to temperature of b.p. of petrolether (60 C). Some product crystallized so a little of boiling ethyl acetate added to dissolve it - if no suspect loses of cumene during bumping, the additional ethyl acetate very likely unnecessary?
Slowly added 15 ml of boiling petrolether (b.p. 60-65 C = isohexanes) and cooled to 0 C (winter temperature outside).
Vacuum filtered on sinter, washed with 5 ml of cold petrolether (0 C) and dried by sucking air through sinter for 15 minutes.
1,3 g of overnight air dried product next day.
Prepared 30 ml 85%vol solution of methanol with water by mixing 25,5 ml methanol + 4,5 ml H2O.
Product magnetically stirred with 25 ml 85%vol methanol in a beaker for 1 hour (to dissolve unreacted 1,2,3,4 tetrahydrocarbazole).
Vacuum filtered on sinter, washed with remaining 5 ml of 85% methanol on sinter, sucked on sinter for 15 minutes, air dried for half a day on a warm place (40 C) until stable weight not decreasing anymore.
1,1 g carbazole obtained, m.p. 245-246 C.
If someone knows how to remove small amounts of water from high boiling organic solvent on the fly, please post here your ideas!



reagents

IMG_20221220_053611_1.jpg - 145kB



apparatus

IMG_20221220_073842_1.jpg - 69kB



beginning of reflux, nice small bubbles (solvent or maybe H2)

IMG_20221220_073921_6.jpg - 95kB



some very likely water (oxidation of H2 with O2 from air?) above condensed cumene - whole condenser on photo

IMG_20221220_075533_3.jpg - 78kB

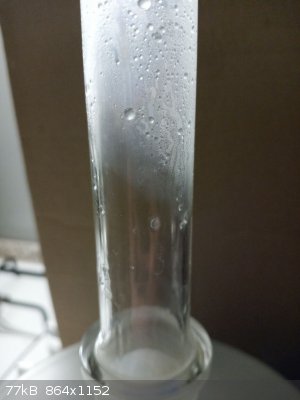

top, middle and bottom part of air condenser with suspected water present

IMG_20221220_075542_0.jpg - 63kB IMG_20221220_075544_7.jpg - 81kB IMG_20221220_075548_8.jpg - 77kB



bumping carried a little of reaction mixture into condenser - here dark Pd/C visible

IMG_20221220_081021_1.jpg - 86kB



with time progression the bumping was getting worse, here top of condenser at the end of reflux, the condenser inner diameter was cca 25-30 mm and length 300 mm, I used this "cap" to reduce spattering from the top of condenser (you can also use small glass funnel inserted into the top joint)

IMG_20221220_152219_7.jpg - 43kB IMG_20221220_152250_3.jpg - 99kB



filtration of hot dissolved product after addition of ethyl acetate, this is second filtration as a little of catalyst passed through filter paper during first filtration

IMG_20221220_181729_3.jpg - 78kB



ethyl acetate evaporated and solution cooled to b.p. of petrolether, some product crystallized so a little of boiling ethyl acetate was added to redissolve it, then boiling petrol ether (b.p. 60-65 C, colorless in smaller beaker on right side) was added into the mixture (bigger beaker on left side with yellowish solution)

IMG_20221220_190918_0.jpg - 63kB



the addition of petrol ether caused quick crystallization of the product, mixture was further cooled down to 0 C

IMG_20221220_191124_7.jpg - 80kB



vacuum filtered on sintered glass funnel

IMG_20221220_213024_4.jpg - 41kB



after drying overnight 1,3 g of crude product obtained which was magnetically stirred for 1 hour with 25 ml of 85%vol methanol

IMG_20221221_053409_7.jpg - 112kB



product vacuum filtered on sinter

IMG_20221221_064932_0.jpg - 40kB

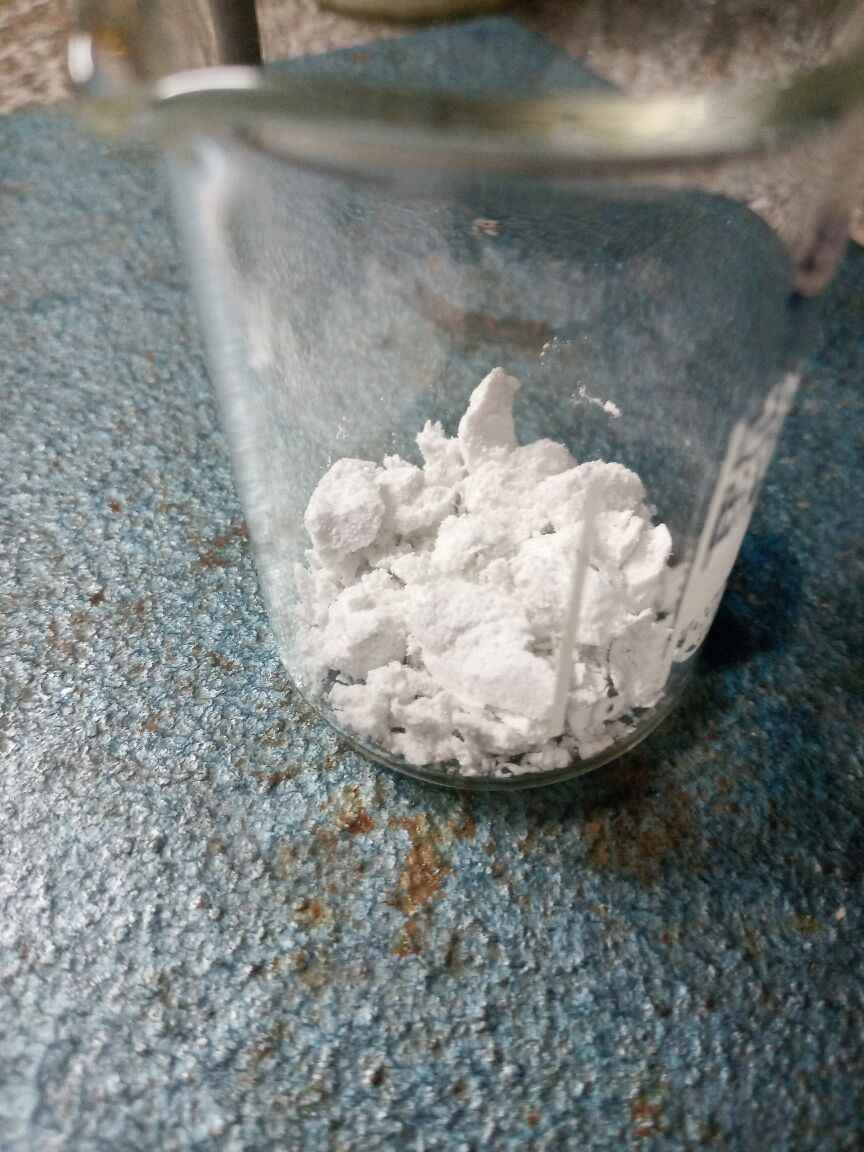

and transferred into a beaker for air drying

IMG_20221221_070943_7.jpg - 169kB
View user's profile Visit user's homepage View All Posts By User
Johnny Windchimes
Hazard to Self
**




Posts: 61
Registered: 28-5-2019
Member Is Offline

Mood: Sorry, it's my chimes~!

[*] posted on 21-12-2022 at 06:46


Always a treat to read your synth lab notes; a picture's worth 1000 words~!:)

[Edited on 21-12-2022 by Johnny Windchimes]




~Incredibly profound and/or wise quote goes here~
