Author: Subject: Preparation of Styrene and Phenylacetylene from Polystyrene
UnintentionalChaos
International Hazard
*****




Posts: 1454
Registered: 9-12-2006
Location: Mars
Member Is Offline

Mood: Nucleophilic

[*] posted on 28-1-2012 at 20:21
Preparation of Styrene and Phenylacetylene from Polystyrene




Introduction:

Phenylacetylene is a flexible organic intermediate with a myriad of potential uses. As a terminal alkyne, it undergoes many of the characteristic reactions undergone by acetylene, but with the convenience of being an easily measured liquid. Terminal acetylenes are weakly acidic and thus, it can be deprotonated by strong bases such as NaNH2 or Grignard reagents for use a nucleophile, such as in the preparation of rubrene (1). Phenylacetylene can be hydrated using strong acids, mercury, gold, or other catalysts to give acetophenone or phenylacetaldehyde (2,3) It can be homocoupled forming diphenyldiacetylene (4) or cross coupled with other alkynes via a Cadiot-Chodkiewicz coupling (5). Phenylacetylene is also amenable to Sonogashira coupling.

Phenylacetylene has been prepared by a relatively small number of methods in the literature. Typically, either (1,2-dibromoethyl)benzene or β-bromostyrene is treated with a strong base, inducing dehydrohalogenation(s) to form phenylacetylene. This can be a solution or melt of alkali hydroxide (6,7) or a solution of sodium amide in anhydrous ammonia (8,9). Molten alkali hydroxide rapidly destroys glassware. Sodium amide is difficult to prepare for the amateur, requiring sodium metal and liquid anhydrous ammonia. The latter is especially difficult to work with, and dangerous without a fume hood. For this reason, a solution of alkali hydroxide was chosen for the production of phenylacetylene.

As an immediate precursor, (1,2-dibromoethyl)benzene can be easily prepared by simple addition of Br2 to styrene (10). β-bromostyrene can be prepared from cinnamic acid by bromination and reflux with an alkali carbonate in aqueous acetone (11). The Takai olefination utilizing CrCl2 and haloforms can also be used to make β-halostyrenes from benzaldehydes (12). As this reaction is very reagent intensive, it is not worthwhile for making unsubstituted phenylacetylene but may be useful for substituted phenylacetylenes. Due to its simplicity and high yield, the bromination of styrene was selected for this preparation.

Styrene can be prepared by a number of methods. Due to the great variety and frequent complexity of the preparations, most will not be discussed here. Cinnamic acid can be decarboxylated to yield styrene, but the preparation takes a long time and yield is poor (13). Direct conversion to β-bromostyrene as mentioned above would be a more efficient use of cinnamic acid. Styrene is present in significant amounts in easily available products such as fiberglass resins (14). This can most likely be easily vacuum distilled from the other components of the resin. Another simple route to styrene is the thermolysis of polystyrene (15). The polymer undergoes thermally induced bond homolysis and styrene distills over. Because the cost of the reagents for this last preparation is negligible, it was selected for production of styrene.

Experimental:

Styrene

A 100ml RB flask (that the experimenter is not emotionally attached to) is charged with 52.08g (0.50mol) of polystyrene. A convenient source of fairly pure and dense polymer is clear, colorless plastic cutlery. Pure polystyrene is brittle and wire cutters easily break the utensils into small pieces. Tapping may be necessary to settle the polystyrene into the flask so that it will all fit. No headspace is necessary. The flask is set up for simple distillation with an air condenser and stopper in the 3-way adapter where a thermometer adapter would usually go. A heat-proof clamp must be used to hold the flask. Do not use keck clips. The receiving flask should be 100ml in volume or larger and submerged as much as possible in an ice bath.

The distillation flask is heated directly with a flame. The polystyrene will begin to melt and a thick white fume will start distilling over. It condenses with astounding efficiency considering the high temp and lack of a water cooled condenser. With continued heating, the polystyrene will form a melt. Apply heat until nearly the entirety of the plastic has decomposed and distilled over. This will only take a few minutes. A very small amount of dark residue remains in the distillation flask and is difficult to remove. As soon as cooled, rinse all parts of the apparatus with acetone or toluene to remove styrene before it polymerizes. The distillate consists of a yellow mobile liquid. If you must stop at this stage, store the crude product in the dark and as cold as possible. A small amount of hydroquinone or other polymerization inhibitor may be added.

The crude product is purified by setting up the flask with a stirbar for simple vacuum distillation with a water aspirator or roughly equivalent vaccum source. Lower pressures will make the styrene difficult to condense efficiently. The styrene cannot be distilled at atmospheric pressure or significant losses due to polymerization will occur. The condenser should be pumped with icewater and the receiving flask (250ml, in preparation for the next step) should be immersed in an ice bath. The flask is heated with stirring in a hot water or air bath. Pure styrene distills over at 47-48°C (32torr) as a clear, colorless mobile liquid. Distillation is ceased when the stillhead temperature exceeds 50°C, yielding 34.96g of styrene (67.1% yield). If the styrene is to be stored at this point, a polymerization inhibitor must be added. It is preferable to make the styrene immediately before use.

(1,2-dibromoethyl)benzene

The styrene from the previous step is diluted with 35ml of dichloromethane and chilled in an ice bath, or preferably a freezer. A seperatory funnel or addition funnel is charged with solution consisting of 53.86g of bromine (1eq) in 35ml of dichloromethane. A stirbar is added to the styrene solution and the funnel set up over it. Bromine is dripped in rapidly with stirring at first. When the solution becomes lukewarm, the addition rate is slowed down and the reaction flask is immersed in an ice bath. Toward the end of the bromine addition, a yellow color will remain in solution. If addition is stopped, it fades. When a pale orange color that does not fade on standing remains in the reaction flask, cease addition. A small amount of bromine solution may remain. Distill or rotovap off the dichloromethane to yield crude (1,2-dibromoethyl)benzene. CAUTION: This material is a fairly potent skin sensitizer. This may be used directly in the preparation of phenylacetylene.

If purification is desired, the crude product is broken up and dissolved in 600g of 67% aqueous isopropanol. Allow to cool to room temperature, then chill in an ice bath. The mass of crystals that forms is stirred into a slurry and vaccum filtered. Air is drawn through the product to help dry it. Removal of solvent is completed by placing in a dessicator over sulfuric acid until constant weight is achieved. The product is a fluffy, pearly white powder weighing 73.17g (82.6% from styrene, 55.4% from polystyrene) and melting at 69-71°C (uncorrected).

Phenylacetylene

A 500ml, 2-neck RBF (WARNING: The flask and thermometer are superficially etched by this procedure) is charged with 250ml of glycerol. A large stirbar is added. One neck is fitted with a thermometer adapter so the bulb is fully immersed in the glycerol. Strong heating is applied to reduce the viscosity of the glycerol and stirring is begun. 40g (1mol) of NaOH is added. At roughly 125°C, the NaOH will be almost fully dissolved forming a pale yellow-tan solution. 65.99g (250mmol) of (1,2-dibromoethyl)benzene is added and the flask set up for simple distillation. Stirring must be efficient. The melted (1,2-dibromoethyl)benzene and intermediate β-bromostyrene are immiscible in the glycerol and good contact between the phases is essential. At ~144°C, the reaction mixture begins boiling vigorously from phenylacetylene distilling. Two phases collect in the receiving flask, clear droplets of water and a cloudy organic phase The temperature is increased gradually until it reaches 200°C. There should be almost no distillate coming over at this point. Heating is ceased.

The distillate is transferred to a small seperatory funnel. The phases do not separate particularly well. The receiving flask is rinsed with 20ml of diethyl ether, and this is added to the distillate. After mixing, the phases readily separate and the lower, aqueous layer is drained off. The organic phase is rinsed with 30ml of distilled water, and the slightly cloudy organic phase transferred to an Erlenmeyer flask along with a small amount of anhydrous MgSO4 to dry it. When the organic phase is clear, it is filtered through a fluted filter paper into a 100ml RBF. The Erlenmeyer is rinsed with 5ml of ether and added to the filter paper. Once the solvent has stopped passing through, the filter paper and dessicant is rinsed with another 5ml of ether to prevent loss. A chaser solvent is added to the flask. 20g of diethylene glycol was used by the author. A stirbar is added and the flask set up for vacuum fractionation. A controllable air bleed is a necessary addition.

The ether is removed first under reduced pressure. It shouldn’t condense, even at ice water temperature due to the reduced pressure. The next fraction to come over is the phenylacetylene. The air bleed should be adjusted so this fraction comes over at ~80°C. When the phenylacetylene is depleted, the stillhead temperature will rise rapidly. The vacuum should be shut off when this occurs, immediately halting the distillation. The distillate is a clear, colorless liquid weighing 15.30g; 59.9% yield from (1,2-dibromoethyl)benzene (49.5% from styrene, 33.2% from polystyrene). Unlike styrene, phenylacetylene is not terribly polymerization prone and does not need a stabilizer added. Store in the dark and cold.




References

1) User Brillantschwarz of Versuchschemie.de’s post at http://www.versuchschemie.de/topic,10433.html; based on Vogel's Textbook of Practical Organic Chemistry, Fifth Edition
2) Organic Syntheses, Vol. 83, p.55 (2006).
3) Synthesis, 2007, 1121-1150
4) Organic Syntheses, Coll. Vol. 5, p.517 (1973)
5) Synthesis, 2011, 1541-1546
6) Modified procedure from Organikum, post on Sciencemadness.org by Garage Chemist Thread ID=14935
7) Organic Syntheses, Coll. Vol. 1, p.438 (1941)
8) J. Am. Chem. Soc., 1934, 56 (10), pp 2120–2122
9) Organic Syntheses, Coll. Vol. 4, p.763 (1963)
10) Vogel, Arthur. A Text-Book of Practical Organic Chemistry, 3rd edition. Pg. 900
11) J. Chem. Educ., 1991, 68 (2), p 161
12) J. Am. Chem. Soc., 1986, 108 (23), pp 7408–7410
13) Organic Syntheses, Coll. Vol. 1, p.440 (1941)
14) www.jamestowndistributors.com/userportal/pdfs/MSDS/bondo/401... accessed 1/28/2012
15) The Chemical Educator, Vol. 8, No. 5, Published on Web 8/30/2003

[Edited on 1-29-12 by UnintentionalChaos]




Department of Redundancy Department - Now with paperwork!

'In organic synthesis, we call decomposition products "crap", however this is not a IUPAC approved nomenclature.' -Nicodem
View user's profile View All Posts By User
plastics
Hazard to Others
***




Posts: 141
Registered: 6-11-2009
Member Is Offline

Mood: No Mood

[*] posted on 28-1-2012 at 23:53


Great post

I have also performed the third step (styrene dibromide/(1,2 dibromoethyl)benzene to phenylacetylene) using potassium hydroxide in methanol according to:

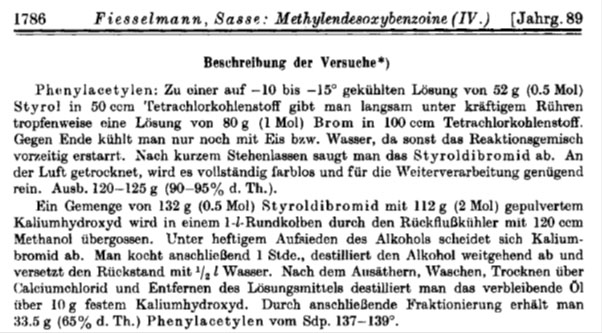

Fiesselmann and Sasse, Chem. Ber., 89, 1775 (1956).



Fiesselmann.jpg - 87kB
View user's profile View All Posts By User
UnintentionalChaos
International Hazard
*****




Posts: 1454
Registered: 9-12-2006
Location: Mars
Member Is Offline

Mood: Nucleophilic

[*] posted on 29-1-2012 at 00:19


Quote: Originally posted by plastics
Great post

I have also performed the third step (styrene dibromide/(1,2 dibromoethyl)benzene to phenylacetylene) using potassium hydroxide in methanol according to:

Fiesselmann and Sasse, Chem. Ber., 89, 1775 (1956).





What did you use the phenylacetylene for? Some of my batch is destined for a small (<50mmol) prep of 9,10-bis(phenylethynyl)anthracene. I want to try out the Sonogashira coupling. Or maybe I'll attempt rubrene. Either way, it's going to glow.




Department of Redundancy Department - Now with paperwork!

'In organic synthesis, we call decomposition products "crap", however this is not a IUPAC approved nomenclature.' -Nicodem
View user's profile View All Posts By User
plastics
Hazard to Others
***




Posts: 141
Registered: 6-11-2009
Member Is Offline

Mood: No Mood

[*] posted on 29-1-2012 at 01:17


Quote: Originally posted by UnintentionalChaos
Quote: Originally posted by plastics
Great post

I have also performed the third step (styrene dibromide/(1,2 dibromoethyl)benzene to phenylacetylene) using potassium hydroxide in methanol according to:

Fiesselmann and Sasse, Chem. Ber., 89, 1775 (1956).





What did you use the phenylacetylene for? Some of my batch is destined for a small (<50mmol) prep of 9,10-bis(phenylethynyl)anthracene. I want to try out the Sonogashira coupling. Or maybe I'll attempt rubrene. Either way, it's going to glow.


Great minds and all that ...

One batch was used to make said 9,10-bis(phenylethynyl)anthracene. I used example one of this patent using half quantities:

http://www.freepatentsonline.com/3911038.html

I'm surprised I got anything as I synthesised the lithium amide myself as well as the anthraquinone and phenylacetylene

The other batch I converted to 1,1,3-triphenylprop-2-yn-1-ol (Vogel 5th ed p539) ready for conversion to rubrene when I have time

I would also like to make some chloro substituted variants of the phenylethynlanthracenes by synthesising chloroanthraquinone via a Friedel-Crafts condensation of phthalyl anhydride and chlorobenzene
View user's profile View All Posts By User
chemx01
Hazard to Self
**




Posts: 54
Registered: 13-6-2010
Member Is Offline

Mood: No Mood

[*] posted on 29-1-2012 at 01:33


I made bis(phenylethynyl)anthracene with same procedure as plastic and I got a crappy yield, but nontheless I got about 2g of this anthracene which is more than enough for my purposes.

I didn't use LiNH2 but I used LiH as a base to make lithium salt of phenylacetylene.

EDIT:
I finally put them on youtube so enjoy!
phenylacetylene: http://www.youtube.com/watch?v=aJkYgRIJDsA
anthracene: http://www.youtube.com/watch?v=kx9Ilfqp8RE

[Edited on 29-1-2012 by chemx01]
View user's profile View All Posts By User
bbartlog
International Hazard
*****




Posts: 1139
Registered: 27-8-2009
Location: Unmoored in time
Member Is Offline

Mood: No Mood

[*] posted on 30-1-2012 at 07:20


Nice writeup. I hadn't realized that heat alone could efficiently depolymerize polystyrene (I thought a catalyst e.g. sulfur was needed)... now I know. Also surprised that phenylacetylene is so stable in storage.



The less you bet, the more you lose when you win.
View user's profile View All Posts By User
Lambda-Eyde
National Hazard
****




Posts: 857
Registered: 20-11-2008
Location: Norway
Member Is Offline

Mood: Cleaved

[*] posted on 1-2-2012 at 09:28


So that's what you were going to use the dibromostyrene for! I didn't realize acetylenes could be prepared so easily - going from plastic cutlery to a very interesting synthetic intermediate which opens for some even more interesting reactions! A very nice write-up, and I'm looking forward to seeing the results of the coming syntheses utilizing the phenylacetylene. Will you post a video of the synthesis? Also, how's your synthetic capsaicin project coming along?

Quote: Originally posted by plastics
Great post

I have also performed the third step (styrene dibromide/(1,2 dibromoethyl)benzene to phenylacetylene) using potassium hydroxide in methanol according to:

Fiesselmann and Sasse, Chem. Ber., 89, 1775 (1956).

What was your yield? It seems weird that people choose to carry out this reaction at 200 degrees and etching their precious flasks if it can be carried out in refluxing methanol. Seeing as I am emotionally attached to most of my flasks, this route would be desirable... :)




This just in: 95,5 % of the world population lives outside the USA
You should really listen to ABBA
Please drop by our IRC channel: #sciencemadness @ irc.efnet.org
View user's profile View All Posts By User
benzylchloride1
Hazard to Others
***




Posts: 299
Registered: 16-3-2007
Member Is Offline

Mood: Pushing the envelope of synthetic chemistry in one's basement

[*] posted on 1-2-2012 at 21:41


Nice synthesis, reminds me of some good times in my own lab several years ago. I used styrofoam as the polystyrene source and an old flat bottomed 24/40 flask for the pyrolysis reaction. I used a mixture of KOH and ethylene glycol for the dehydrohalogenation. I got a decent amount of phenylacetylene, along with one of the partial dehydrohalogenation products. I have IR spectra of these compounds at my lab, but I am at graduate school several hundred miles away currently. I think that I will have to make some more phenylacetylene since I still have about 60 mL of the styrene from the pyrolysis reaction. I am thinking about making some cobalt tetraphenylcyclobutadiene complexes and I will need some phenylacetylene to couple with bromobenzene via a Sonogashira reaction. I could also make some from trans-stilbene which I synthesized during Christmas break from benzaldehyde via a cyanide catalyzed benzoin condensation followed by a Clemmensen Reduction, following some early Organic Syntheses procedures.



Amateur NMR spectroscopist
View user's profile View All Posts By User
UnintentionalChaos
International Hazard
*****




Posts: 1454
Registered: 9-12-2006
Location: Mars
Member Is Offline

Mood: Nucleophilic

[*] posted on 1-2-2012 at 21:57


Quote: Originally posted by benzylchloride1
Nice synthesis, reminds me of some good times in my own lab several years ago. I used styrofoam as the polystyrene source and an old flat bottomed 24/40 flask for the pyrolysis reaction. I used a mixture of KOH and ethylene glycol for the dehydrohalogenation. I got a decent amount of phenylacetylene, along with one of the partial dehydrohalogenation products. I have IR spectra of these compounds at my lab, but I am at graduate school several hundred miles away currently. I think that I will have to make some more phenylacetylene since I still have about 60 mL of the styrene from the pyrolysis reaction. I am thinking about making some cobalt tetraphenylcyclobutadiene complexes and I will need some phenylacetylene to couple with bromobenzene via a Sonogashira reaction. I could also make some from trans-stilbene which I synthesized during Christmas break from benzaldehyde via a cyanide catalyzed benzoin condensation followed by a Clemmensen Reduction, following some early Organic Syntheses procedures.


That sounds fantastic. I am extremely jealous of your equipment, by the way.

I am not sure if you'd have any idea, but I posted a question related to this in the mechanism thread. On the double dehydrohalogenation of the styrene dibromide. The first elimination (benzylic bromide) can go E1 or E2. The trans-beta-bromostyrene should be the dominant product, but this lacks an anti-periplanar Br and H for the second dehydrohalogenation, which is not going to use E1, which would need a vinylic carbocation intermediate. I would normally handwave and suggest a thermal isomerization, but the reaction works at liquid ammonia temperatures as well.

[Edited on 2-2-12 by UnintentionalChaos]




Department of Redundancy Department - Now with paperwork!

'In organic synthesis, we call decomposition products "crap", however this is not a IUPAC approved nomenclature.' -Nicodem
View user's profile View All Posts By User
ThatchemistKid
Hazard to Others
***




Posts: 132
Registered: 2-6-2010
Member Is Offline


[*] posted on 1-2-2012 at 22:17


I preformed this scheme a few months ago, though I stopped at the dibromo compound, grad school now taking up my whole time and having me in a different city than my lab is really puts a damper on things. But I found it useful to dissolve the polystyrene in acetone till the solvent was saturated with the polymer then pour the resulting goop into the pyrolysis flask, much more styrene at once.

the acetone was removed prior to pyrolysis by just setting the flask in a hot water bath for a few hours while working on other things. Anything that was trapped beyond that came over in the beginning of the heating for the pyrolysis step which I believe I actually did using a heating mantle not flame.

excellent write up =D
View user's profile View All Posts By User
UnintentionalChaos
International Hazard
*****




Posts: 1454
Registered: 9-12-2006
Location: Mars
Member Is Offline

Mood: Nucleophilic

[*] posted on 3-2-2012 at 09:52


Here are some nice references that may lead to improved yield of phenylacetylene.

Also, in video form: http://youtu.be/P4FdbhWzvBE

A solid half of the video is discussion, both uses as mentioned above, mechanism, and improvements to the procedure to increase yield.

Attachment: 1241395.pdf (165kB)
This file has been downloaded 1731 times

Attachment: 1458858.pdf (207kB)
This file has been downloaded 3136 times

Attachment: cis-beta-bromostyrene.pdf (270kB)
This file has been downloaded 1982 times

[Edited on 2-4-12 by UnintentionalChaos]




Department of Redundancy Department - Now with paperwork!

'In organic synthesis, we call decomposition products "crap", however this is not a IUPAC approved nomenclature.' -Nicodem
View user's profile View All Posts By User
Waffles SS
Fighter
****




Posts: 998
Registered: 7-12-2009
Member Is Offline


[*] posted on 3-2-2012 at 21:22


Great,
I like to try it and make Rubrene by it.But in final step of making rubrene we need ultra vacuum!How we can provide it?what model of vacuum pump can provide this pressure?

I have JB and Edward vacuum pump but they cant reach enough vacuum for this purpose

[Edited on 4-2-2012 by Waffles SS]
View user's profile View All Posts By User
barley81
Hazard to Others
***




Posts: 481
Registered: 9-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 4-2-2012 at 10:20


In the preparation of styrene, is it possible to distill the crude product at atmospheric pressure (with polymerization inhibitor)? Or, is vacuum distillation required?
View user's profile View All Posts By User
Dr.Q
Harmless
*




Posts: 24
Registered: 18-11-2012
Member Is Offline

Mood: No Mood

[*] posted on 8-9-2013 at 03:10


Great guide explains a lot. But i wonder something. In the Dibromostyrene step , i want to a substitution rather than a elimination with OH . How can i do that to dibromo benzene ?
View user's profile View All Posts By User
DJF90
International Hazard
*****




Posts: 2266
Registered: 15-12-2007
Location: At the bench
Member Is Offline

Mood: No Mood

[*] posted on 18-9-2013 at 13:23


You don't. If you want the vic-diol, its best to hydroxylate the styrene. OsO4 is the "classic" reagent for this, but theres several others, particularly as the terminal alkene means syn and anti dihydroxylation give the same product. I'm pretty sure theres a review somewhere of "Osmium free dihydroxylation" reactions or something...

Found it: http://pubs.rsc.org/en/content/articlelanding/2011/cs/b92388...

Funny paper from someone that actually uses an aweful lot of Osmium! Very clever guy though.

[Edited on 18-9-2013 by DJF90]
View user's profile View All Posts By User
Enkii
Harmless
*




Posts: 2
Registered: 14-2-2014
Member Is Offline

Mood: No Mood

[*] posted on 14-2-2014 at 09:11


would it be possible to use a poly-resin; styrene + maleic anhydride? if so how would one remove the maleic anhydride? and could one possibly retain the MAA for future use?
View user's profile View All Posts By User
UnintentionalChaos
International Hazard
*****




Posts: 1454
Registered: 9-12-2006
Location: Mars
Member Is Offline

Mood: Nucleophilic

[*] posted on 14-2-2014 at 15:20


Quote: Originally posted by Enkii
would it be possible to use a poly-resin; styrene + maleic anhydride? if so how would one remove the maleic anhydride? and could one possibly retain the MAA for future use?


Pol(Styrene-co-maleic anhydride) resin, you mean? I have no idea if the thermal depolymerization will work as smoothly as with pure nonpolar polystyrene. I rather doubt that it will, but you could give it a shot. Probably, extraction of any free maleic anhydride by reaction to dissolve it in aqueous solution is going to be your best bet.




Department of Redundancy Department - Now with paperwork!

'In organic synthesis, we call decomposition products "crap", however this is not a IUPAC approved nomenclature.' -Nicodem
View user's profile View All Posts By User
subsecret
Hazard to Others
***




Posts: 424
Registered: 8-6-2013
Location: NW SC, USA
Member Is Offline

Mood: Human Sadness - Julian Casablancas & the Voidz

[*] posted on 22-6-2015 at 18:17


Sorry to revive an old thread...

Instead of Br2/DCM, could sodium hypochlorite solution be used to give chlorine instead of bromine?




Fear is what you get when caution wasn't enough.
View user's profile View All Posts By User
byko3y
National Hazard
****




Posts: 721
Registered: 16-3-2015
Member Is Offline

Mood: dooM

[*] posted on 22-6-2015 at 19:26


I see no reason why chlorine won't work. Of course you need to acidify the hypochlorite with HCl and wait till all the chlorine moves to the top (non-polar) layer.
Chlorine has solubility of 0.06 mole/L (2g/L) in HCl solution.
View user's profile View All Posts By User
subsecret
Hazard to Others
***




Posts: 424
Registered: 8-6-2013
Location: NW SC, USA
Member Is Offline

Mood: Human Sadness - Julian Casablancas & the Voidz

[*] posted on 22-6-2015 at 20:17


I'm inclined to bubble chlorine straight into the styrene, maybe even styrene in DCM to make the chlorine more soluble. Chlorine is easier to work with than bromine, in my opinion.



Fear is what you get when caution wasn't enough.
View user's profile View All Posts By User
CuReUS
National Hazard
****




Posts: 928
Registered: 9-9-2014
Member Is Offline

Mood: No Mood

[*] posted on 23-6-2015 at 03:06


Quote: Originally posted by subsecret

Instead of Br2/DCM, could sodium hypochlorite solution be used to give chlorine instead of bromine?

actually you don't even need to make Cl2.why waste Cl2 or Br2 when you are going to rip it out in the next step.I read recently that using a strong base(they used soda amide,but I think alc KOH should work),you can make acetylenes from halohydrins.
just react the styrene with HOCl(from bleach) and then react that with base to get phenylacetylene.
I was going to tell UC,but as this thread came up I am putting it here.
View user's profile View All Posts By User
Oscilllator
National Hazard
****




Posts: 659
Registered: 8-10-2012
Location: The aqueous layer
Member Is Offline

Mood: No Mood

[*] posted on 23-6-2015 at 16:30


Quote: Originally posted by byko3y
I see no reason why chlorine won't work. Of course you need to acidify the hypochlorite with HCl and wait till all the chlorine moves to the top (non-polar) layer.
Chlorine has solubility of 0.06 mole/L (2g/L) in HCl solution.

I tried this, and related my experience in a U2U I had with unintentionalChaos. Here's the relevant U2U:

Quote:

Well I performed the chlorination of styrene today, and had some strange observations. The first weird observation is that it appears that styrene is (more or less) insoluble in dichloromethane, which is clearly inconsistent with your video (a problem on my part, I'm sure). I'll describe how I obtained the DCM and styrene, so see if you can spot any potential reasons:

The dichloromethane I obtained yesterday from paint stripper that contained a significant (~15% IIRC) amount of methanol. This I removed with two water washes, and I'm pretty sure the methanol was all removed because I measured the density of the water from the second wash, and it was almost exactly 1g/cm^3. I then dried it over anhydrous MgSO4, then distilled it. The first part of the distillate came over slightly cloudy, so I think there might have been a small amount of water left in the DCM.

The styrene was obtained in exactly the manner you outlined in your video only I used plastic shot glasses with recycling number 6 and a small "PS" on the bottom instead of cutlery. I filled a shoddy 100ml flask twice, then distilled the resulting orange liquid under aspirator vacuum, collecting everything boiling under 100 degrees. the distillate was slightly cloudy, though.

The chlorination went smoothly, with the only unusual observation being that the dischlorostyrene appeared slightly pink. I then went ahead to strip off the DCM under vacuum, however I went a little to far, so a fair amount of the dichloromethane was removed. I did check the mixture periodically though, and found to my immense surprise that the DCM and dichlorostyrene had swapped! the DCM now floated on top of the dichlorostyrene, as oppose to the other way round.

The Dichloromethane is currently sitting in the freezer, but it refuses to solidify, instead oozing about like honey.

Any ideas what could have gone wrong? I might have another crack at it later on, on a larger scale...

View user's profile View All Posts By User
DraconicAcid
International Hazard
*****




Posts: 4278
Registered: 1-2-2013
Location: The tiniest college campus ever....
Member Is Offline

Mood: Semi-victorious.

[*] posted on 23-6-2015 at 19:07


"I did check the mixture periodically though, and found to my immense surprise that the DCM and dichlorostyrene had swapped! the DCM now floated on top of the dichlorostyrene, as oppose to the other way round."

Wait- are you saying dichlorostyrene is not soluble in dichloromethane? That surprises me greatly.




Please remember: "Filtrate" is not a verb.
Write up your lab reports the way your instructor wants them, not the way your ex-instructor wants them.
View user's profile View All Posts By User
mackolol
Hazard to Others
***




Posts: 458
Registered: 26-10-2017
Member Is Offline

Mood: Funky

[*] posted on 11-3-2022 at 02:24


I'm having a little lack of understanding here.
First could phenylacetylene be deprotonated with lithium tert butoxide? Or is it too weak base (after all the lithium is connected with oxygen being much more electronegative than hydrogen or nitrogen in amide). How do I check it? The pKa of the hydride and amide is way higher than that of tert butoxide. Is it all about pKa?

And the second one. Could sodium phenylacetylide be replaced in bis phenylethynyl anthracene synthesis? I mean I'm sure that yields will go down as it will be harder for the sodium rather than the lithium to be replaced, but would it yield anything?
I'm completely new to organometallic chemistry and am aware that electronegativity differences may not work analogical to organic halides here...



[Edited on 11-3-2022 by mackolol]
View user's profile View All Posts By User

  Go To Top
