Growing copper electrolytically
I've been thinking if i can grown copper electrolically.Like copper plating, but instead of a thin layer, i would let it run long enough to form solid
copper blocks.If i put the cathode in the end of a plastic tube, and seal this same end, so the tube is filled with solution, the copper would grow
acquiring the format of the tube.Would this work ?If not, is there any other way to "shape" copper without melting it ?
|
|
|
Metacelsus
International Hazard
Posts: 2531
Registered: 26-12-2012
Location: Boston, MA
Member Is Offline
Mood: Double, double, toil and trouble
|
|
Copper is refined industrially this way. I'm not so sure if you could force it to grow into a shape, though.
http://en.wikipedia.org/wiki/Copper_extraction_techniques#El...
|
|
|
elementcollector1
International Hazard
Posts: 2684
Registered: 28-12-2011
Location: The Known Universe
Member Is Offline
Mood: Molten
|
|
Well, on the one hand, it makes sense. On the other, the shape formed might be incredibly brittle if you grow it too quickly...
Although it'd be an interesting method of making copper pipes.
Elements Collected:52/87
Latest Acquired: Cl
Next in Line: Nd
|
|
|
Vargouille
Hazard to Others
Posts: 380
Registered: 16-4-2012
Member Is Offline
Mood: No Mood
|
|
You would be able to shape it, sure, but it's not like it would be a little ingot in the shape of a test tube. Ignoring the fact that, as you suggest
it, it would eventually slow to a stop because of the loss of charge neutrality, you would just get a bunch of copper "crystals" packed into the shape
of a test tube. My best guess is that they would be quite fragile and wouldn't look nor act much like the bulk metal.
EDIT: If you've ever seen electrolytic copper, you'd see what I mean. This video, a little less than a minute in, shows what that looks like.
[Edited on 5-4-2013 by Vargouille]
|
|
|
Godspeed429
Harmless
Posts: 11
Registered: 24-3-2013
Member Is Offline
Mood: +2
|
|
Yes you can. its called Electroforming
http://en.wikipedia.org/wiki/Electroforming
I did see on another site a guy who made little copper cones this way.
I wasn't trying to form a shape but i did deposit 41 grams of copper onto another piece of copper.
The piece is solid and not fragile at all
|
|
|
elementcollector1
International Hazard
Posts: 2684
Registered: 28-12-2011
Location: The Known Universe
Member Is Offline
Mood: Molten
|
|
What was the original shape?
Elements Collected:52/87
Latest Acquired: Cl
Next in Line: Nd
|
|
|
Godspeed429
Harmless
Posts: 11
Registered: 24-3-2013
Member Is Offline
Mood: +2
|
|

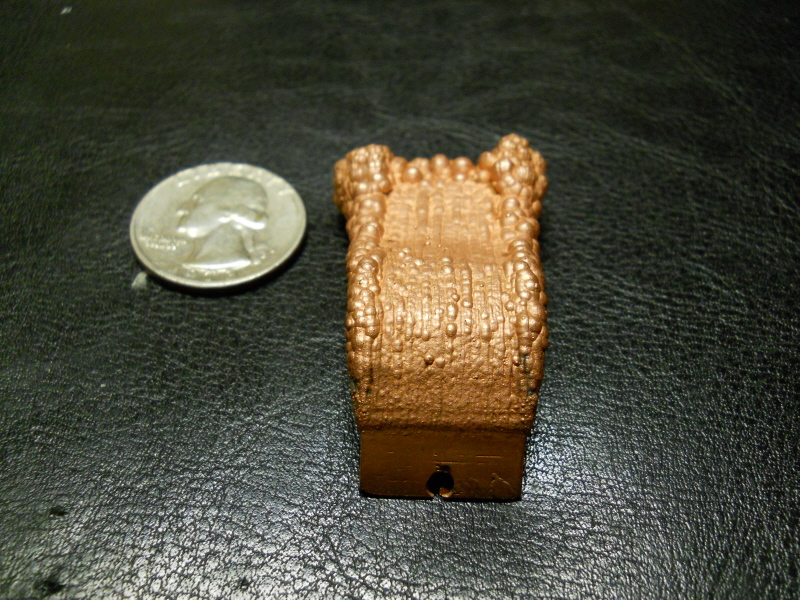

A semi-curved rectangle, roughly 2''x.500''x.062 ''
The Cauliflower looking bulbs are the corners.
its a piece of tubing cut in half a straightened
|
|
|
12AX7
Post Harlot
Posts: 4803
Registered: 8-3-2005
Location: oscillating
Member Is Offline
Mood: informative
|
|
I've done sizable quantities before:
I was purifying bars of probably 95% material I had salvaged and cast into bars.
Thiourea (as found in Tarn-X) provides enough leveling for a matte finish, but heavy deposits grow with a botrydial habit. A stronger leveler (and
brightener) is needed for a solid block. Trade secrets are tightly kept, but they're usually based on thio- and xantho- chemicals.
Tim
|
|
|
itb
Harmless
Posts: 2
Registered: 6-4-2013
Member Is Offline
Mood: No Mood
|
|
I believe SPS is one of the professional brightners used. I believe it's called bis (3-sulfopropyl)-disulfide but it seems to have many more names
too. If someone could show how to synthesize this and try it out with results that would be awesome...as I havn't actually tried it yet. Google sps
and electroplating plenty of info will pop up and get you in the right direction with brightners that is.
|
|
|
