PID Controlled Cheap 'Homemade' Hotplate


I recently inherited a very old ceramic resistance type hot plate. Its a very good condition functioning unit, and I would like to put it to use, but unfortunately, the controls consist of the wide temperature range of ON and OFF as seen below:



So I began thinking about mounting a relatively thick Aluminum plate onto the existing surface with a thermocouple drilled deep into the side of it to get a relatively accurate reading and controlling it using a PID and Solid State Relay for the switching. Here's a link to what I'm thinking of using:

http://www.aliexpress.com/item/Digital-PID-Temperature-contr...

I have a full machine shop, so making/drilling the aluminum plate is no concern. I just wanted to see if anyone could find a flaw in my idea before I ordered the PID, SSR, and Thermocouple Probe.

Thank you,
Bob
View user's profile Visit user's homepage View All Posts By User
Magpie
lab constructor
*****




Posts: 5939
Registered: 1-11-2003
Location: USA
Member Is Offline

Mood: Chemistry: the subtle science.

[*] posted on 12-4-2013 at 10:29


Hi Bob,

That's a ludicrously low cost for a PID + SSR. ;)

I use a PID to control the temperature of heating baths (water, silicone oil, molten metal, etc). By using the auto-tune feature it gives very close temperature control (1-2°C).

I think your plan will work.




The single most important condition for a successful synthesis is good mixing - Nicodem
View user's profile View All Posts By User
ElectroWin
Hazard to Others
***




Posts: 224
Registered: 5-3-2011
Member Is Offline

Mood: No Mood

[*] posted on 12-4-2013 at 10:41


dont you want to control this based on the measured temperature of the stuff you're cooking, rather than the temperature of the aluminum plate?
View user's profile View All Posts By User
BobD1001
Hazard to Others
***




Posts: 182
Registered: 29-3-2013
Member Is Offline

Mood: No Mood

[*] posted on 12-4-2013 at 13:24


Electrowin, ill probably get an extra probe so that I can either control the plate temperature, or use the additional probe to control the temp of whatever is actually on the plate. All I would need to do is disconnect the one probe from the PID, and then connect the other. Of course I could also wire in a switch to change it from monitoring the one probe to the other.
View user's profile Visit user's homepage View All Posts By User
BobD1001
Hazard to Others
***




Posts: 182
Registered: 29-3-2013
Member Is Offline

Mood: No Mood

[*] posted on 12-4-2013 at 14:17


Well I just ordered the PID 'kit' with the SSR, K type thermocouple, and also I grabbed a big heat sink for the SSR just in case. As soon as I get it Ill update this thread and detail the building of the homemade temperature controlled hotplate so that others may be able to do the same.

[Edited on 13-4-2013 by BobD1001]
View user's profile Visit user's homepage View All Posts By User
Steve_hi
Hazard to Others
***




Posts: 196
Registered: 4-12-2010
Member Is Offline

Mood: No Mood

[*] posted on 12-4-2013 at 16:04


Please let us know if you get the material and if the items are described. unbelievable price.

Good luck with your project.
Hope it works out
View user's profile View All Posts By User
BobD1001
Hazard to Others
***




Posts: 182
Registered: 29-3-2013
Member Is Offline

Mood: No Mood

[*] posted on 11-9-2013 at 23:20
One Long Post.... Coming up!


Ok, so the PID controlled Hotplate has been a pretty incredible success! Its not 100% done. Still adding the variable voltage control for the stirrer, it needs some rework to make it a bit more compact, and of course another thermocouple so that instead of just measuring plate temp, one could also control the temp of solutions or baths.

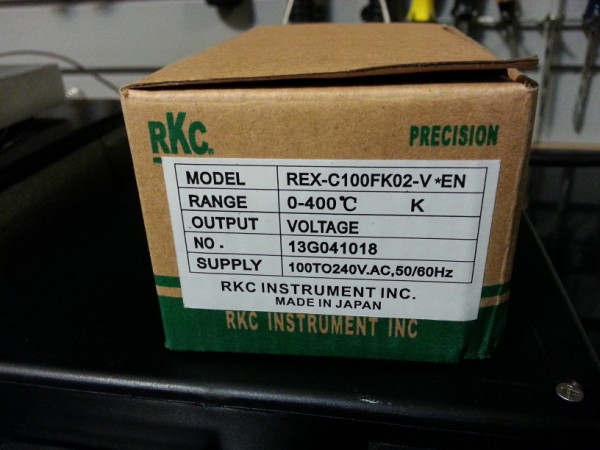

Here was the PID box as recieved from China... I was worried something might have broken, but it all was in perfect condition!

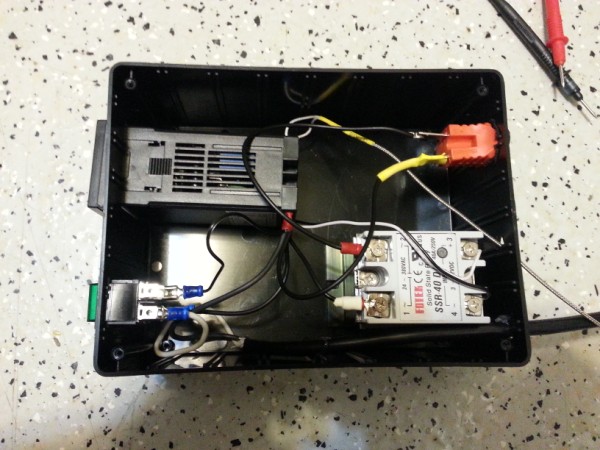

Here's the contents of the box:

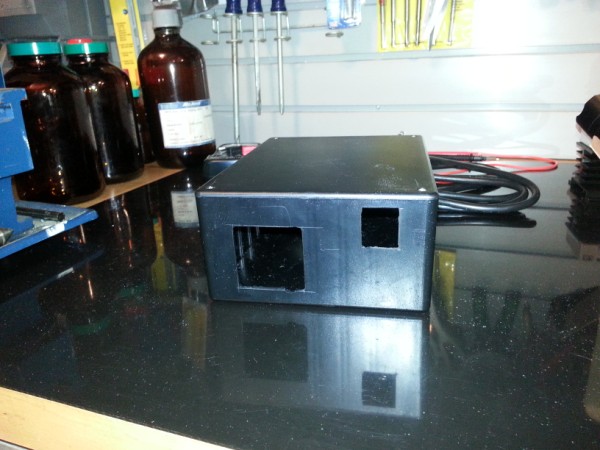

I got a project box from radioshack, and cut some holes in it, then fit in the elctronics:

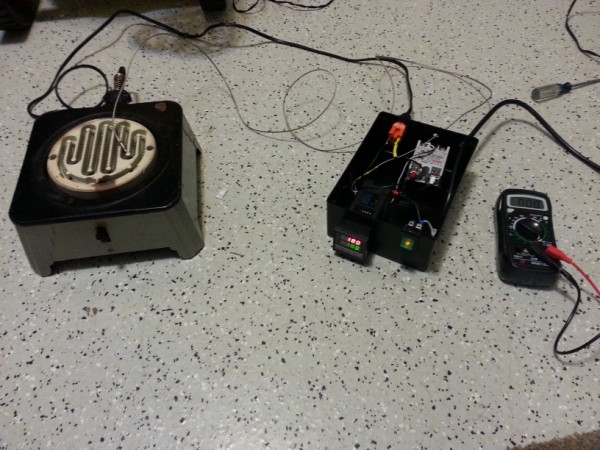

Here was one of the preliminary tests just making sure it all worked, and could properly monitor temp and switch the old hot plate properly:

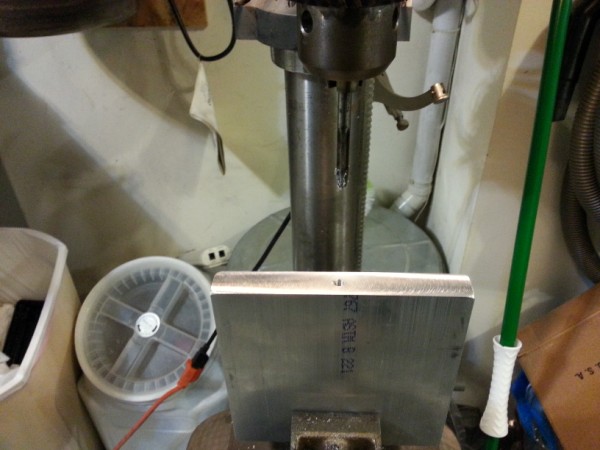

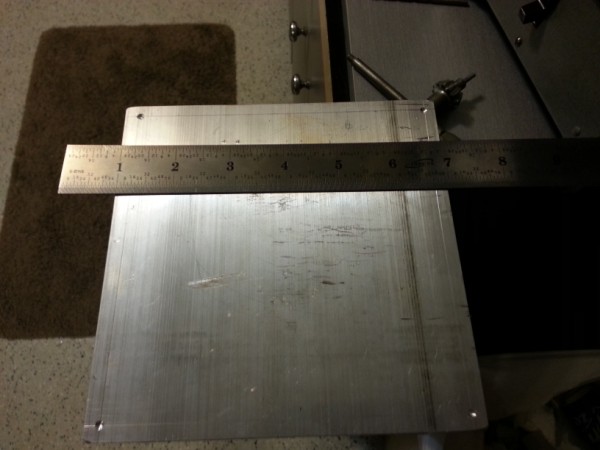

Drilling and tapping the aluminum plate for the thermocouple:

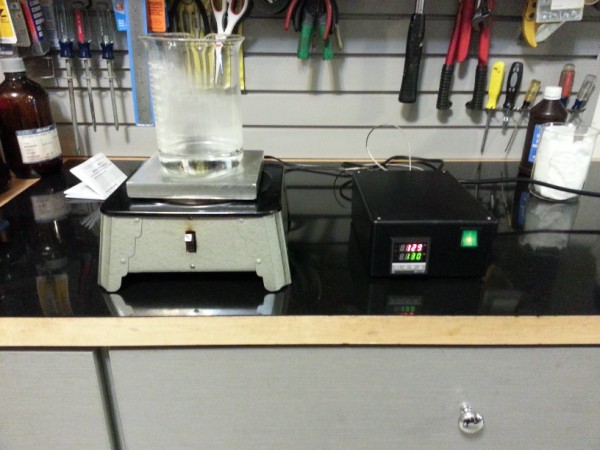

First real life action shot! :D

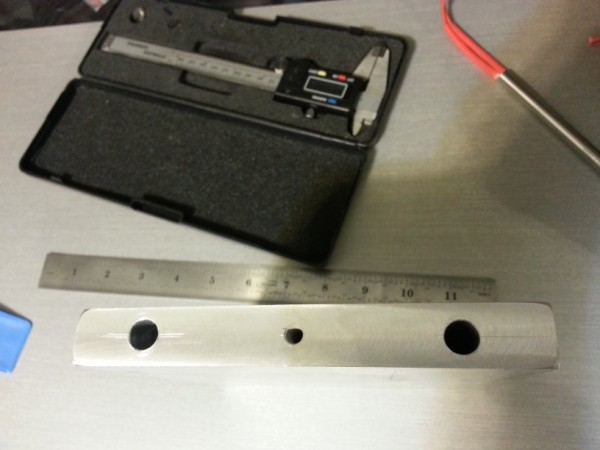

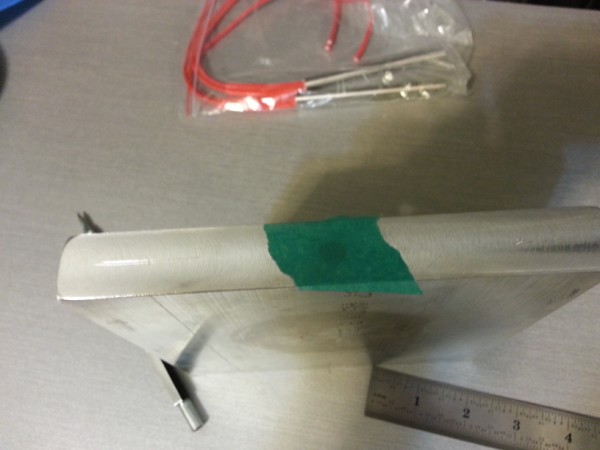

I quickly determined I didn't like the old hot plate being used as my heater, so I ordered 2 400 watt ceramic heating cartridges for dirt cheap on ebay. I also have the thermocouple hole taped off here so that when drilling the heater cartridge holes no chips get stuck in there.







Perfect fit. As always. :cool:

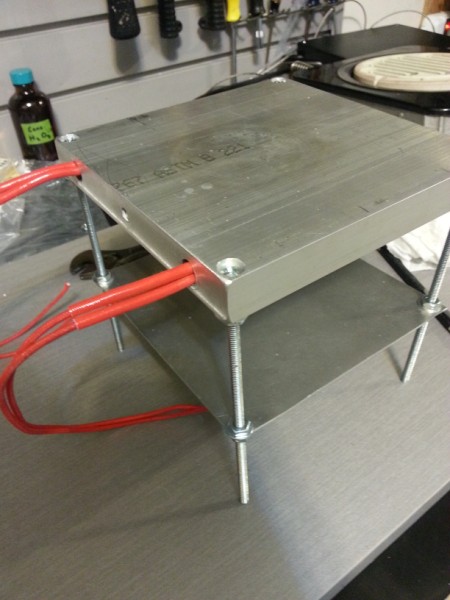

Now for the stand: Laid out the drill points making sure not to impede upon the heating cartridge holes, and then proceeded to drill away.



Some long bolts, washers, and nuts finish the structure nicely.



Then I decided I needed an electronic stirrer as well, so I made a nice cylindrical aluminum heatsink on my lathe, centered it upon an old CPU fan, and epoxied. Next I found the center of mass of a large old hard drive Nd magnet and used high temp epoxy to fix it to the top of the heatsink. Ill get some better pictures of it up shortly.

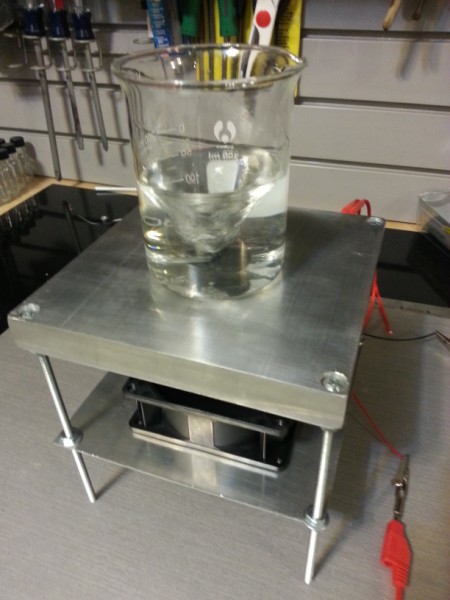

As you can see, it works wonderfully...



More updates on the electronic stirrer control board and pictures of the cpu fan setup as well.

And as for the hotplate.... IT WORKS GREAT! The max temp programmed into the PID is at 400C which I may raise a couple hundred degrees since its a breeze to change.
