Author: Subject: Mystery Glassware Identification Thread
j_sum1
Administrator
********




Posts: 6310
Registered: 4-10-2014
Location: At home
Member Is Offline

Mood: Most of the ducks are in a row

[*] posted on 30-10-2022 at 15:07


That last one is particularly weird. Some kind of jacketed reaction vessel. But I can't imagine what the connections are. The orientation of the ground joints seems strange. Maybe rotate 90° to the left. Powder input on the side and then stoppered. Addition of liquid and temperature measurement via the ground joints. Excess solvent or liquid product drains through stopcock. But these are just guesses.

First one looks like a gas drying tube. Bubble chlorine etc through H2SO4. Setup allows for system to be drained without disassembly. But I am not sure what the spherical bulb is for.

Middle one is a kind of jacketed beaker. But the wide ground glass opening is a bit interesting. Maybe just a lid. Maybe designed to work with another equally strange piece of glassware.

View user's profile View All Posts By User
Rainwater
National Hazard
****




Posts: 915
Registered: 22-12-2021
Member Is Offline

Mood: indisposition to activity

[*] posted on 25-11-2022 at 06:25

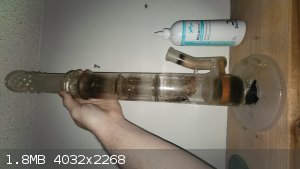

Visited an estate sale this morning. Seen this broken item

It looks like a plate still, with 1 ground glass joint at the base and an open top
Bottom plate has a glass mesh, middle and top plates are bubblers.
Not sure if its just a gas scrubber or if they went all out making a bong
20221125_083452.jpg - 1.8MB 20221125_083520.jpg - 1.7MB 20221125_083556.jpg - 2.3MB

20221125_092143.jpg - 2.1MB




"You can't do that" - challenge accepted
View user's profile View All Posts By User
pneumatician
Hazard to Others
***




Posts: 411
Registered: 27-5-2013
Location: Magonia
Member Is Offline

Mood: ■■■■■■■■■■ INRI ■■■■■■■■■■ ** Igne Natura Renovatur Integra **

[*] posted on 19-12-2022 at 19:31


Quote: Originally posted by unionised
I was surfing eBay and came across this. The description is "Distillation apparatus reflux Quickfit CB11ND4X"
https://www.ebay.co.uk/itm/Distillation-apparatus-reflux-Qui...

Any suggestions?


A Hell to clean it!
View user's profile View All Posts By User
Texium
Administrator
********




Posts: 4568
Registered: 11-1-2014
Location: Salt Lake City
Member Is Offline

Mood: PhD candidate!

[*] posted on 19-12-2022 at 20:36


Quote: Originally posted by Rainwater
Not sure if its just a gas scrubber or if they went all out making a bong
I do believe you bought yourself a very dirty bong!



Come check out the Official Sciencemadness Wiki
They're not really active right now, but here's my YouTube channel and my blog.
View user's profile Visit user's homepage View All Posts By User
Raid
Hazard to Everyone
***




Posts: 202
Registered: 14-11-2022
Location: N/A
Member Is Offline

Mood: School

[*] posted on 13-2-2023 at 08:04


100% bong
View user's profile View All Posts By User
esquizete_electrolysis
Harmless
*




Posts: 11
Registered: 9-10-2018
Location: N.C. RT
Member Is Offline


[*] posted on 18-2-2023 at 19:21

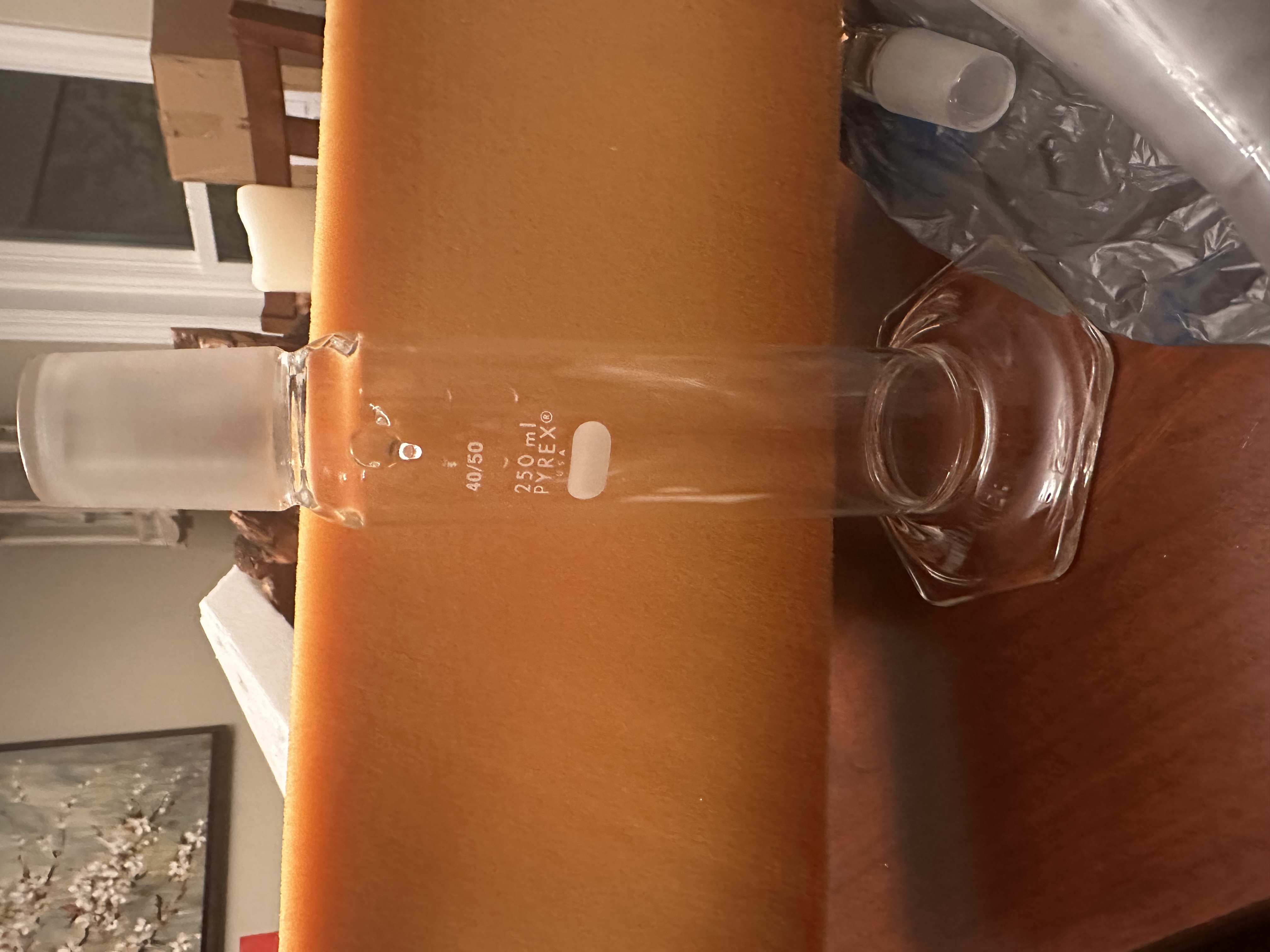

Very odd piece


Don’t know exactly what this is. I got it in a lot for a Soxhlet extractor. It looks like a mixing cylinder but it has a make joint.

B0AE4514-FF06-405E-94A0-EE7C0B419DDD.jpeg - 1.6MBB0AE4514-FF06-405E-94A0-EE7C0B419DDD.jpeg - 1.6MB
View user's profile View All Posts By User
Dr.Bob
International Hazard
*****




Posts: 2725
Registered: 26-1-2011
Location: USA - NC
Member Is Offline

Mood: No Mood

[*] posted on 18-2-2023 at 19:28


That is the bottom of a gas washing tube. The tops get broken easily, and have a fritted tube (and an outlet tube) on a female jointed top. You would fill the part shown with some liquid or solid to wash the gas in.
View user's profile View All Posts By User
Raid
Hazard to Everyone
***




Posts: 202
Registered: 14-11-2022
Location: N/A
Member Is Offline

Mood: School

[*] posted on 21-2-2023 at 11:15


did the gas inlet and outlet come with it?



View user's profile View All Posts By User
arkoma
Redneck Overlord
*******




Posts: 1761
Registered: 3-2-2014
Location: On a Big Blue Marble hurtling through space
Member Is Offline

Mood: украї́нська

[*] posted on 21-2-2023 at 16:56


Here is a similar gas washing bottle base:

eBay link

*edit*

The male joint kind of threw me a bit too.

[Edited on 2-22-2023 by arkoma]




"We believe the knowledge and cultural heritage of mankind should be accessible to all people around the world, regardless of their wealth, social status, nationality, citizenship, etc" z-lib

View user's profile View All Posts By User
DocX
Hazard to Others
***




Posts: 179
Registered: 22-10-2015
Member Is Offline

Mood: No Mood

[*] posted on 24-4-2023 at 02:03


Don't know what it's intended to be, but I would sure use it as a drying tube.

Quote: Originally posted by Konduktor
Hi there,
Came across this strange piece when looking for glassware on my local auction site. Could anyone identify this mysterious part?



Cheers!
View user's profile View All Posts By User
Rainwater
National Hazard
****




Posts: 915
Registered: 22-12-2021
Member Is Offline

Mood: indisposition to activity

[*] posted on 27-4-2023 at 00:22

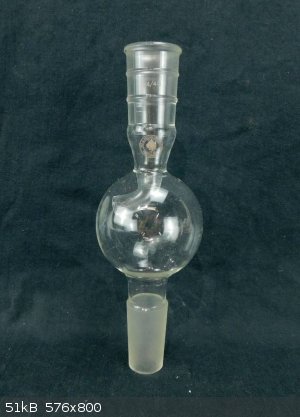

Is this a Kjeldahl bulb or a Chromotography Reservoir? Or both


20352469.jpg - 51kB




"You can't do that" - challenge accepted
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3684
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 27-4-2023 at 04:45


It is a bump trap, (old design, before rotovaps became commonplace)
Normally fitted above a boiling pot to prevent splashes caused by bumping from reaching the condenser.




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
Ormarion
Hazard to Self
**




Posts: 54
Registered: 19-12-2017
Location: France
Member Is Offline

Mood: Alkylating her DNA

[*] posted on 3-9-2023 at 13:37

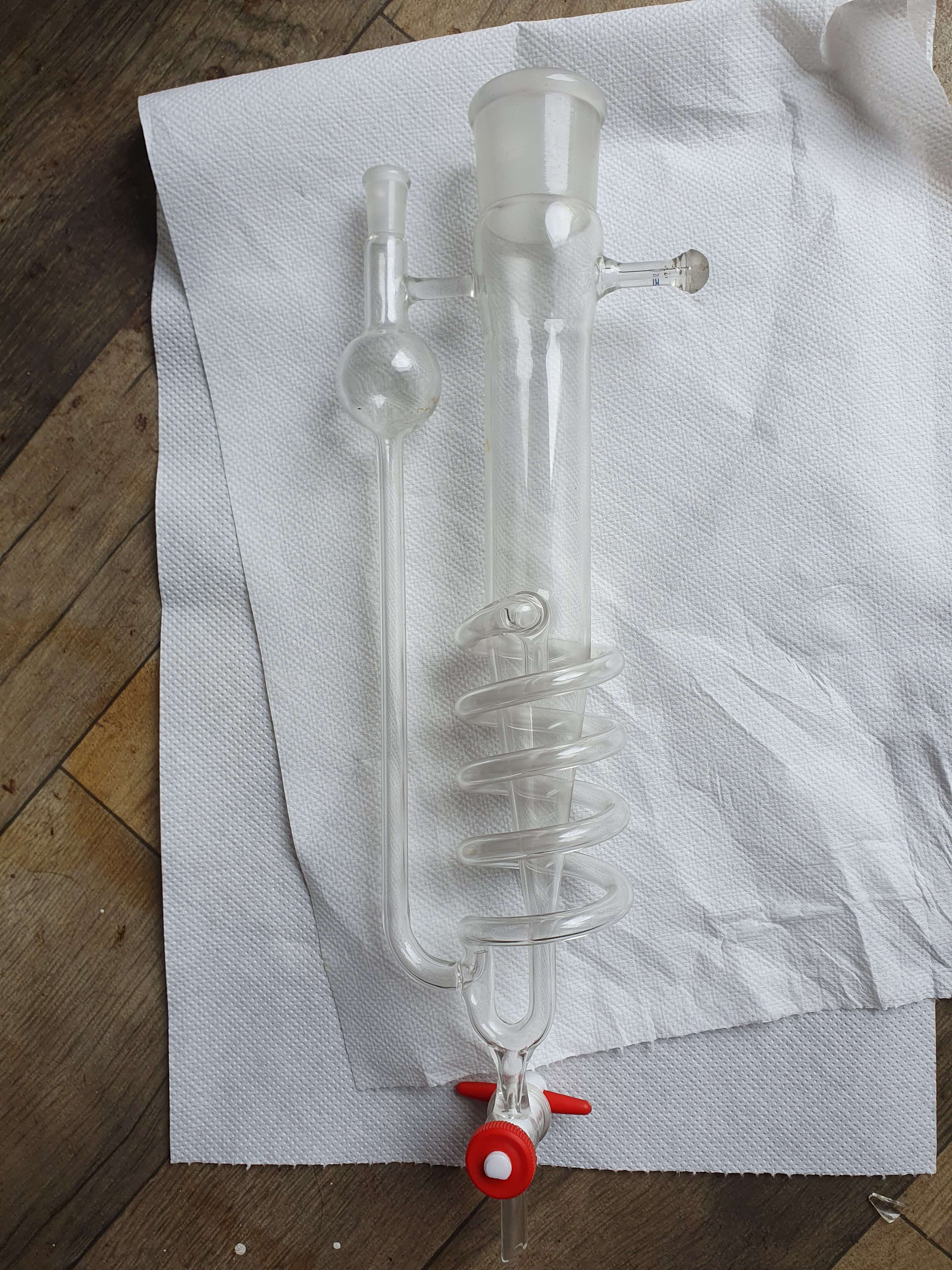

Recently got this extremely weird piece of glassware for wich i have no idea of its use, i believe the coil would be to make the volume of liquid in it larger or something but i cant find much else

Any idea?

1.jpg - 1.4MB 2.jpg - 1.3MB
View user's profile View All Posts By User
B(a)P
International Hazard
*****




Posts: 1139
Registered: 29-9-2019
Member Is Offline

Mood: Festive

[*] posted on 3-9-2023 at 14:10


Quote: Originally posted by Ormarion
Recently got this extremely weird piece of glassware for wich i have no idea of its use, i believe the coil would be to make the volume of liquid in it larger or something but i cant find much else

Any idea?



Very interesting looking piece of kit! Could it be used for the separation of aqueous and non-aqueous liquids?
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3684
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 3-9-2023 at 19:46


Looks like someone's brilliant idea
that didn't actually work.

OR maybe just a lamp work test/practice piece?




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
Parakeet
Hazard to Self
**




Posts: 74
Registered: 22-12-2022
Location: Japan
Member Is Offline

Mood: V (V)

[*] posted on 2-11-2023 at 05:57


Found this piece of glassware in a garbage area in my school. Does anyone know what this is?

IMG_3617.JPG - 5.4MB
View user's profile View All Posts By User
Rainwater
National Hazard
****




Posts: 915
Registered: 22-12-2021
Member Is Offline

Mood: indisposition to activity

[*] posted on 2-11-2023 at 09:30


That goes into the top of a kipps apparatus...




"You can't do that" - challenge accepted
View user's profile View All Posts By User
Fery
International Hazard
*****




Posts: 1011
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline


[*] posted on 2-11-2023 at 19:17


Also could be used as a fermentation tube.
https://sklep-chemland.pl/en/lejek-fermentacyjny.html
View user's profile Visit user's homepage View All Posts By User
yobbo II
National Hazard
****




Posts: 762
Registered: 28-3-2016
Member Is Offline

Mood: No Mood

[*] posted on 1-12-2023 at 17:01



It's not glassware but I hope that is OK.

What is the extra stuff on this vacuum pump?

on ebay here:
https://www.ebay.co.uk/itm/145441349355?chn=ps&norover=1...

s-l16000.jpg - 157kB
View user's profile View All Posts By User
Cathoderay
Hazard to Self
**




Posts: 54
Registered: 29-1-2023
Location: US-Texas
Member Is Offline


[*] posted on 2-12-2023 at 08:02


My guess is that the small gray cylinder near the pump input is a vacuum switch. When the vacuum gets down to a low enough value it switches on the assembly on the left end.
The assembly on the left end with the fins is probably a diffusion pump, a very small one.
The diffusion pump is air cooled. On top of the diffusion pump is maybe a butterfly valve that is controlled by the lever with the black ball handle. I think there is some sort of plug or reducer on the diffusion pump inlet.

[Edited on 12/2/2023 by Cathoderay]
View user's profile View All Posts By User
yobbo II
National Hazard
****




Posts: 762
Registered: 28-3-2016
Member Is Offline

Mood: No Mood

[*] posted on 16-12-2023 at 18:31



Thanks for reply.
I though the piece with the air heat sink might be a diffusion pump but though it was too small!
The electrical boxes say forevac. and highvac so you are correct.

Yob
View user's profile View All Posts By User
steadyhand
Harmless
*




Posts: 8
Registered: 23-11-2018
Member Is Offline

Mood: Puzzled

[*] posted on 24-6-2024 at 12:26


Inherited a bunch of glassware!

Can't figure this one out. Cross between a few things I can think of, but doesn't work in those roles.

IMG_2838.jpeg - 2.7MB
View user's profile View All Posts By User
steadyhand
Harmless
*




Posts: 8
Registered: 23-11-2018
Member Is Offline

Mood: Puzzled

[*] posted on 24-6-2024 at 12:37


Here's another one. Obviously an air lock, but for something needing careful temp control via the jacket. The inlet from the top goes through a frit and then a tiny glass triangle ensures any drip falls straight. Odd access to the sumps via the barbed connectors. Lastly, the base doesn't have any precision fitting to go on a reaction chamber. Maybe o-rings? Any clue what chemistry this might be used for?

IMG_2834.jpeg - 2.8MB
View user's profile View All Posts By User
Organikum
resurrected
*****




Posts: 2337
Registered: 12-10-2002
Location: Europe
Member Is Offline

Mood: frustrated

[*] posted on 4-10-2024 at 14:06


Got this lamp, labeled "Phillips M13", 0,5 ohm and I suspect it might be a spektral lamp producing only a certain part of the lights spectrum.
Could not find anything on the net, what is strange, so I ask here:
What kind of lamp for what spectrum and what application is this?

thx


Phillips M13.jpg - 56kB
