Author: Subject: Easy Route to Acetonedicarboxylic acid?
Sauron
International Hazard
*****




Posts: 5351
Registered: 22-12-2006
Location: Barad-Dur, Mordor
Member Is Offline

Mood: metastable

[*] posted on 25-1-2007 at 03:03
Easy Route to Acetonedicarboxylic acid?


The usual method for preparing this interesting compound, employed in a number of fascinating Mannich condensations, is to oxidize anhydrous citric acid in the cold with fuming sulfuric acid, hardly a very convenient process. For one thing the acetonedicarnoxylic acid product has to be scrupulously washed free from all traces of sulfuric acid, or it will soon decompose.

For another, fuming sulfuric acid isn't cheap.

TCCA is cheap, and selectively oxidizes secondary hydroxyls, so maybe it will work with citric acid's hydroxyl group and thus bring about the decarboxylation to acetonedicarboxylic acid, providing a cleaner, stabler product.,

Worth a try, don't you think?

Some of the Mannich reactions employing this b-ketogluaric acid, its esters or anhydride are doubtless familiar to some of the B's from the Hive as they lead to well known and popular derivatives of tropinone.
View user's profile View All Posts By User
Maya
National Hazard
****




Posts: 263
Registered: 3-10-2006
Location: Mercury
Member Is Offline

Mood: molten

[*] posted on 25-1-2007 at 07:13


I'ved used fuming and that worked fine after washing with ether.

Also used chlorosulfonic followed by MeOH then extarction with CHCl3 and distillation to get the Di-ester.

But never heard or tried of using TCCA, why would you think it would work?




\"Prefiero ser yo extranjero en otras patrias, a serlo en la mia\"
View user's profile View All Posts By User
Sauron
International Hazard
*****




Posts: 5351
Registered: 22-12-2006
Location: Barad-Dur, Mordor
Member Is Offline

Mood: metastable

[*] posted on 25-1-2007 at 07:45


Because the hydroxyl group in citric acid (the alcoholic hydroxyl not the carboxylic ones) is secondary. TCCA is selective for secondary or benzylic hydroxyls, so I see no reason why it should not work on a secondary hydroxyl that is beta to a carboxyl group.

Easy enough to just give it a try. I have plenty citric acid, and will order a few Kg TCCA. I want to try it on glycerine as well. Ought to be a facile way to get 1,3 hydroxyacetone, as the TCCA doesn't oxidize the primary hydroxyls at all (or more precisely the rates are very different, so it's effectively highly selective.)

It's cheap enough from Acros, $50/kg. If I can find a pool supply house it'll be a lot cheaper than that but Bangkok has few swimming pools.
View user's profile View All Posts By User
Nicodem
Super Moderator
*******




Posts: 4230
Registered: 28-12-2004
Member Is Offline

Mood: No Mood

[*] posted on 25-1-2007 at 11:40


Acetone dicarboxylic acid and its esters have two quite acidic methylene groups (pKa of about 10), acidic more than enough to get chlorinated by TCCA extremely easily, even in neutral media, while for sure in acidic reaction media (HCl is a by product of the oxidation step). So there is no way to stop the oxidation of citric acid at the acetone dicarboxylate stage if using trichloroisocyanuric acid. Besides, citric acid is formally a tertiary alcohol and the mechanism of oxidation by fuming H2SO4 is of a particular kind which might not necessarily apply to TCCA as oxidant.



…there is a human touch of the cultist “believer” in every theorist that he must struggle against as being unworthy of the scientist. Some of the greatest men of science have publicly repudiated a theory which earlier they hotly defended. In this lies their scientific temper, not in the scientific defense of the theory. - Weston La Barre (Ghost Dance, 1972)

Read the The ScienceMadness Guidelines!
View user's profile View All Posts By User
Sauron
International Hazard
*****




Posts: 5351
Registered: 22-12-2006
Location: Barad-Dur, Mordor
Member Is Offline

Mood: metastable

[*] posted on 25-1-2007 at 16:45


Oh well, que sera sera. Thanks.
View user's profile View All Posts By User
shadow
Hazard to Self
**




Posts: 52
Registered: 17-10-2007
Member Is Offline

Mood: No Mood

[*] posted on 15-9-2015 at 19:57


This thread may be very old, but there is a Chinese patent out there using hydrogen peroxide to oxidize the citric acid for 1,3 acetonedicarboxylic acid.

[Edited on 16-9-2015 by shadow]
View user's profile View All Posts By User
Boffis
International Hazard
*****




Posts: 1722
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 16-9-2015 at 14:48


@shadow, do you ahve some more details of the patent like a number etc.?
View user's profile View All Posts By User
Crowfjord
National Hazard
****




Posts: 390
Registered: 20-1-2013
Location: Pacific Northwest
Member Is Offline

Mood: Ever so slowly crystallizing...

[*] posted on 16-9-2015 at 17:45


Found it. The patent is CN 103288628. The following is copied from the google translation:

[0021] Example 1

Equipped with a reflux condenser, a stirrer, a thermometer, 500ml round bottom flask was added citric acid monohydrate 210g (lmol), 50ml of water was added, raising the temperature to 55 ° C, then began a 30% solution of hydrogen peroxide an aqueous solution of 136g (1.2mol), was observed to bubble out uniformly, with the addition of an aqueous solution of hydrogen peroxide, the reaction temperature is gradually increased, after the completion of the dropwise addition, at 95 ° C for 3 hours, water was evaporated to dryness under reduced pressure Weighing, the products of 1,3-acetone dicarboxylic acid 141g (0.97mol), yield %% 97% purity, mp I35O (decomposition).


I don't know much about this reaction, does it seem weird that no catalyst (acid, base, metal) is employed?
View user's profile View All Posts By User
Waffles SS
Fighter
*****




Posts: 992
Registered: 7-12-2009
Member Is Offline


[*] posted on 16-9-2015 at 21:56


Interesting If it work !

I searched this compound in reaxys for all possible way for synthesis


Attachment: Acetonedicarboxylic acid.pdf (246kB)
This file has been downloaded 1228 times



[Edited on 18-9-2015 by Waffles SS]
View user's profile View All Posts By User
shadow
Hazard to Self
**




Posts: 52
Registered: 17-10-2007
Member Is Offline

Mood: No Mood

[*] posted on 17-9-2015 at 17:31


Here is the site:
Crow has it right.
Various examples are given

http://www.google.com/patents/CN103288628A?cl=en

shad
View user's profile View All Posts By User
nlegaux
Hazard to Self
**




Posts: 93
Registered: 28-11-2014
Location: East Tennessee
Member Is Offline

Mood: No Mood

[*] posted on 21-9-2015 at 11:16


Would it be possible to create acetonedicarboxylic acid by reacting formaldehyde and a haloacetic acid?

nlegaux
View user's profile View All Posts By User
byko3y
International Hazard
*****




Posts: 721
Registered: 16-3-2015
Member Is Offline

Mood: dooM

[*] posted on 21-9-2015 at 11:21


nlegaux, no.
View user's profile View All Posts By User
gdflp
Super Moderator
*******




Posts: 1320
Registered: 14-2-2014
Location: NY, USA
Member Is Offline

Mood: Staring at code

[*] posted on 21-9-2015 at 11:47


Quote: Originally posted by nlegaux
Would it be possible to create acetonedicarboxylic acid by reacting formaldehyde and a haloacetic acid?

nlegaux

How are you suggesting the two carbon-carbon bonds are formed?




View user's profile View All Posts By User
Boffis
International Hazard
*****




Posts: 1722
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

biggrin.gif posted on 22-9-2015 at 18:01


nlegaux's idea above set me thinking, instead of formaldehyde how about nitromethane?

Treat nitromethane with a base to generate a nitrolic acid salt and then react with sodium chloroacetate to get the Na salt of 3-nitropropanoic acid. Then again base catalysed condensation of this compound with sodium glyoxylate to get either 3-nitro-2-pentenedioic acid or 2-hydroxy-3-nitropentanedioic acid depending on whether or not dehydration occurs. Sound plausible anybody?

If it works this far the next step should be easy, after all the conversion of alpha-hydroxy-nitroalkanes or conjugate nitro alkenes to ketones are probably the two most extensively discussed topics on this forum! :)

Not quite as simple as the hydrogen peroxide route I admit but somewhere on this forum a paper was once posted about the oxidation of citric acid with hydrogen peroxide and I seem to recall that the products were complex so just because its in a patent doesn't necessarily mean its going to work. I think this is the paper as best I recall:

Attachment: Oxidation of quinic acid- to citric acetone dicarboxylic and malonic acids JExBot Hulmes & Arthington 1953.pdf (743kB)
This file has been downloaded 437 times
View user's profile View All Posts By User
PHILOU Zrealone
International Hazard
*****




Posts: 2880
Registered: 20-5-2002
Location: Brussel
Member Is Offline

Mood: Bis-diazo-dinitro-hydroquinonic

[*] posted on 25-9-2015 at 16:14


Just thinking out loud:
CH3-CO-CH3 + Cl2 --> Cl-CH2-CO-CH2-Cl (lacrymogen and probably carcinogen/ strong alkylating agent)
Cl-CH2-CO-CH2-Cl + 2 Na-C#N --> N#C-CH2-CO-CH2-C#N + 2 NaCl
N#C-CH2-CO-CH2-C#N + 2 H2O -heat/mild acid-> NH4O2C-CH2-CO-CH2-CO2NH4




PH Z (PHILOU Zrealone)

"Physic is all what never works; Chemistry is all what stinks and explodes!"-"Life that deadly disease, sexually transmitted."(W.Allen)
View user's profile View All Posts By User
Waffles SS
Fighter
*****




Posts: 992
Registered: 7-12-2009
Member Is Offline


[*] posted on 27-9-2015 at 10:13


I tried to make Acetonedicarboxylic acid according to CN103288628 but i got unchanged Citric acid.

After adding H2O2 at 60c to Citric acid solution no bubble released and temp did not increase.

I got clear crystal after refluxing solution for 3-4 Hour at 94c and evaporating the solution at reduced pressure. according to FTIR spectra that is Citric acid.

Someone has tried this method ?



[Edited on 27-9-2015 by Waffles SS]
View user's profile View All Posts By User
PHILOU Zrealone
International Hazard
*****




Posts: 2880
Registered: 20-5-2002
Location: Brussel
Member Is Offline

Mood: Bis-diazo-dinitro-hydroquinonic

[*] posted on 27-9-2015 at 11:45


Another possible way:

HO2C-CH2-C(-CO2H)(-OH)-CH2-CO2H + halogenating agent --> HO2C-CH2-C(-CO2H)(-X)-CH2-CO2H
HO2C-CH2-C(-CO2H)(-X)-CH2-CO2H + AgNO2 --> HO2C-CH2-C(-CO2H)(-NO2)-CH2-CO2H + AgCl (s)
(part of the nitro enters as nitrite ester!)
HO2C-CH2-C(-CO2H)(-NO2)-CH2-CO2H -spontaneous decarboxylation-> HO2C-CH2-CH(-NO2)-CH2-CO2H + CO2

Then usual conversion of secondary nitrocompound to ketonic group.

[Edited on 27-9-2015 by PHILOU Zrealone]




PH Z (PHILOU Zrealone)

"Physic is all what never works; Chemistry is all what stinks and explodes!"-"Life that deadly disease, sexually transmitted."(W.Allen)
View user's profile View All Posts By User
Waffles SS
Fighter
*****




Posts: 992
Registered: 7-12-2009
Member Is Offline


[*] posted on 27-9-2015 at 21:55


Thanks PHILOU Zrealone,that is good idea but little expensive

In reaxys search(i put PDF file of it above) there is interesting reaction.


Quote:

H2O + Citric acid + Mn2(SO4)3 + K2SO4 = Acetonedicarboxylic acid + Acetone

Reaktion des Trinatriumcitrats beim BelichtenMacMahon; Srivastava; Journal of the Indian Chemical Society; vol. 23; (1946); p. 262; Current Science; vol. 15;(1946); p. 249; ; (1947); p. 1921


it seems reference is not available :(

also another reaction of this reference used FeCl3 instead of K2SO4.

I think oxidation of Citric acid to Acetonedicarboxylic acid is possible even with alone KMnO4 but there is no guarantee that over oxidation do not happen


View user's profile View All Posts By User
Sydenhams chorea
Harmless
*




Posts: 29
Registered: 16-8-2009
Member Is Offline

Mood: No Mood

[*] posted on 2-10-2015 at 03:01


Quote: Originally posted by Waffles SS
Quote:

H2O + Citric acid + Mn2(SO4)3 + K2SO4 = Acetonedicarboxylic acid + Acetone

Reaktion des Trinatriumcitrats beim BelichtenMacMahon; Srivastava; Journal of the Indian Chemical Society; vol. 23; (1946); p. 262; Current Science; vol. 15;(1946); p. 249; ; (1947); p. 1921


it seems reference is not available :(


Current Science is available for free online, but that last one (1947) p 1921 is wrong, the volume only +- 300 pages, and nowhere is a Srivastava to be found, neither in other volumes.

I attached volume 15 (1946) p 249. In ithe author says that he examined photochemical reactions of I2 in aq. KI on sodium citrate in light (1000W incandescent) and he added that addition of Mn(II) and Cr(III) salts are most effective. There's not much else he says.

Quote:

also another reaction of this reference used FeCl3 instead of K2SO4.

I think oxidation of Citric acid to Acetonedicarboxylic acid is possible even with alone KMnO4 but there is no guarantee that over oxidation do not happen


KMnO4 oxidation is described in Comptes Rendus 130 (1900) p 32-34. It used to be available to download from the Bibliothèque Nationale de France (Gallica) but they changed their format to tablet style and it seems a lot of functions are not working. So I'll post the link: http://gallica.bnf.fr/ark:/12148/bpt6k3086n/f34.item.r=Denig...

Overoxidation to acetone and CO2 is unavoidable unless the acetonedicarboxylic acid is precipitated immediately as it forms. The author used mercuric sulfate for that, from which acetonedicarboxylic acid can be recovered with a stream of H2S:

(from French) 10g citric acid was dissolved in 20ml hot water and 3g KMnO4 was dissolved in 100ml hot water. Both solutions were brought to 15°C and the permanganate solution was added to the citric acid solution in a water-bath taking care that the temperature didn't rise above 30-35°C. After a couple of hours of standing, the liquid, which had now attained a yellow colour, was added to 100ml of a hot HgSO4 solution previously brought to a boil. A great amount of white precipitate was recovered by filtration, washed with water, and suspended in water where it is decomposed with a stream of H2S. After filtrating the mixture was extracted with ether, from which acetonedicarboxylic acid was recovered.

Attachment: article_id_015_09_0249_0250_0.pdf (148kB)
This file has been downloaded 434 times

EDIT:
I also added "Effect of metal ions on acetone dicarboxylic acid catalyzed peroxomonosulphate reactions", Journal of Molecular Catalysis A Volume 390, August 2014, Pages 22–28., where the oxidation of oxidation of Fe(III), Ni(II) and Co(II) citrates by peroxomonosulphate (PMS, Oxone) in the pH range 3.0–6.0 is examined.

"Conclusion The oxidation of citric acid by peroxomonosulphate in the pH range 3.0–6.0 (citric acid buffer) occurs only in the presence of a metal ion. The Fe(III), Co(II) and Ni(II) citrates follow auto catalyzed mechanism. Acetone dicarboxylic acid is the product which catalyzes the oxidation of metal citrate. In the absence of meta lions, acetone dicarboxylic acid catalyzes the decomposition of PMS at pH 3.0–6.0 as in ketone catalyzed one at neutral or weak alkaline pH. However, the complexation with metal ion changes the mechanism to the acetone dicarboxylic acid catalyzed oxidation of metal–citrate by PMS."

[Edited on 2-10-2015 by Sydenhams chorea]

Attachment: ragukumar2014.pdf (690kB)
This file has been downloaded 524 times

[Edited on 2-10-2015 by Sydenhams chorea]




Il n'y a point de sots si incommodes que ceux qui ont de l'esprit.
François de La Rochefoucauld.
View user's profile View All Posts By User
Waffles SS
Fighter
*****




Posts: 992
Registered: 7-12-2009
Member Is Offline


[*] posted on 2-10-2015 at 03:26


Thanks @Sydenhams chorea,

That is great.

Maybe we can use Barium or Calcium salts instead of Mercury sulfate for precipitating Acetonedicarboxylic salt.This need to know which salt of Acetonedicarboxylic is insoluble in water.



[Edited on 2-10-2015 by Waffles SS]
View user's profile View All Posts By User
Sydenhams chorea
Harmless
*




Posts: 29
Registered: 16-8-2009
Member Is Offline

Mood: No Mood

[*] posted on 2-10-2015 at 17:55


Quote: Originally posted by Waffles SS
Thanks @Sydenhams chorea,

That is great.

Maybe we can use Barium or Calcium salts instead of Mercury sulfate for precipitating Acetonedicarboxylic salt.This need to know which salt of Acetonedicarboxylic is insoluble in water.

[Edited on 2-10-2015 by Waffles SS]


I am more concerned about generating H2S. Although soluble mercury salts have to be handled with care, I feel more comfortable carefully handling solid then setting up a H2S-generator. For 10g of citric acid the equimolar amount of acetonedicarboxylic acid is 7.61g (assuming full conversion) so that would require about 16g of HgSO4, which is not such a great amount. Besides, after precipitating with H2S, all mercury is recovered as the sulfide (cinnaber).

HgSO4 decomposes in water into HgSO4.2HgO (mercuric subsulfate) and H2SO4. The subsulfate is a yellow insoluble compound, but does dissolve in a hot diluted sulfuric acid.After isolating and washing the Hg(II) complex I would suggest to suspend it in dilute HCl and carefully add the equivalent amount of ammonium sulfide required to generate the necessary amount of H2S in situ.

As for trying other metals, better to chose those with a high atomic mass who also can be recovered as insoluble sulfides such as lead, bismuth, tin, zinc, antimony.

Attached is another method of oxidation of citric acid with Mn(III), an aqueous suspenion of freshly precipitated Mn2O3, which they prepared by mixing warm aqueous solutions of 50g MnSO4 and 20g KMnO4, filtering the precipitate and washing with water. It is probably the gamma-polymorph analoguous to the gamma-polymorph of MnO2 prepared in this manner with twice the amount of permanganate, and known as the most active, desired form for use in organic synthesis. Two polymorphs of Mn2O3 are known, alpha- and gamma-. The paper doesn't specify any mount, they just state that citric acid is added to the stirring suspension of oxidant.

Attachment: Mn2O3_Chem.Zentr.1917.pdf (568kB)
This file has been downloaded 471 times





Il n'y a point de sots si incommodes que ceux qui ont de l'esprit.
François de La Rochefoucauld.
View user's profile View All Posts By User
shadow
Hazard to Self
**




Posts: 52
Registered: 17-10-2007
Member Is Offline

Mood: No Mood

[*] posted on 8-10-2015 at 19:24


@Waffles
I tried CN103288628 last year, my first sample melted at 139, and I got excited, but subsequent samples were higher around the mp of citric acid. I set the product aside, but I'm looking for something that one or the other, but not both is soluble in.
View user's profile View All Posts By User
Waffles SS
Fighter
*****




Posts: 992
Registered: 7-12-2009
Member Is Offline


[*] posted on 8-10-2015 at 23:02


I had no success by this method too.

No bubble and no heat after adding H2O2.

It seems registration of bullshit patent is not difficult in china!
View user's profile View All Posts By User
Boffis
International Hazard
*****




Posts: 1722
Registered: 1-5-2011
Member Is Offline

Mood: No Mood

[*] posted on 9-10-2015 at 07:15


@shadow and Waffles; I know it is not mentioned in the chinese patent but in every case that I have used H2O2 as an oxidising agent in organic systems there is always a catalyst such a tungstate (amino to nitro groups), ferric nitrate (substituted N-heterocylics to heterocyclic carboxylic acids), ferrous acetate (carbohydrates to sacchric acid or similar) etc.

With citric acid forming remarkably stable stable complexes with ferric iron I think that iron based catalyst probably will not work but tungstate or heteropoly tungstophorphoric acid and similar derivatives may be better. Also give the reference to the use of hydrated Mn3+/Mn4+ oxide a manganese compound may also work.

I am not at home at present but when I am I may look into these possibilities.
View user's profile View All Posts By User
ronstark
Harmless
*




Posts: 37
Registered: 10-10-2016
Member Is Offline

Mood: No Mood

[*] posted on 5-6-2017 at 11:39


10g Citric Acid was dissolved in 20mL boiling dH2O.
Solution #1 was cooled to 15°C.

3g KMnO4 was dissolved in 100mL boiling dH2O.
Solution #2 was cooled to 15°C.

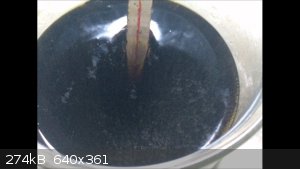

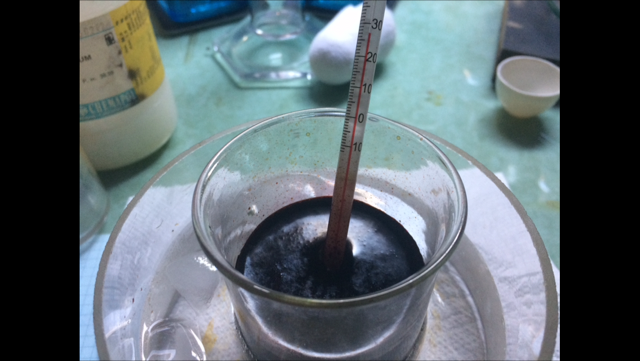

Solution #1 was added dropwise over solution #2.
The temperature was kept between 30°C - 35°C upon addition (10 minutes).

Fizzing and bubbling indicating the evolution of CO2.

The smell is reminiscent of Coca-Cola.

After 2h on standing, the liquid, which had now attained a yellow colour, was esterified with NaOH and EtOH.
Let's see in the morning if something precipitates out.

IMG_8745.PNG - 274kB IMG_8745.PNG - 274kB IMG_8746.PNG - 274kB IMG_8747.PNG - 275kB IMG_8748.PNG - 266kB IMG_8749.PNG - 260kB IMG_8751.PNG - 292kB IMG_8750.PNG - 294kB IMG_8752.PNG - 290kB IMG_8753.PNG - 302kB IMG_8754.PNG - 274kB IMG_8755.PNG - 273kB IMG_8756.PNG - 299kB IMG_8757.PNG - 298kB

[Edited on 5-6-2017 by ronstark]
View user's profile View All Posts By User
 Pages:  1    3

  Go To Top
