Green's function


Has anyone ever tried using the Green's function treatment to solve an unsteady ode? Usually I would step it out either with an Euler or runge kutta method, or implicitly if it wasn't too bad. But I was looking at this method below for solving the generalized problem of Lu=f where f is a forcing function, L is a generalized operator like species concentration or electronic linear equations, and u is the unsteady response. I don't know how I know I'm capturing all the eigenvector space for creating the Green's function. Imagine a 1D unsteady ode of a chemical species concentration in a tube with boundary conditions for the species on each end. The ode tells me how the species migrates from the boundaries onto the domain. Can anyone think through this problem with me?

https://en.m.wikipedia.org/wiki/Green's_function
View user's profile View All Posts By User
wg48
International Hazard
*****




Posts: 821
Registered: 21-11-2015
Member Is Offline

Mood: No Mood

[*] posted on 21-6-2018 at 04:43


Quote: Originally posted by roXefeller
Has anyone ever tried using the Green's function treatment to solve an unsteady ode? Usually I would step it out either with an Euler or runge kutta method, or implicitly if it wasn't too bad. But I was looking at this method below for solving the generalized problem of Lu=f where f is a forcing function, L is a generalized operator like species concentration or electronic linear equations, and u is the unsteady response. I don't know how I know I'm capturing all the eigenvector space for creating the Green's function. Imagine a 1D unsteady ode of a chemical species concentration in a tube with boundary conditions for the species on each end. The ode tells me how the species migrates from the boundaries onto the domain. Can anyone think through this problem with me?

https://en.m.wikipedia.org/wiki/Green's_function



I have used the impulse response of analogue and digital electronics, mechanical and optical systems to solve the response of a system to a time dependent input both analytically and numerically (simulation).

I am not very experienced in partial differential equations or eigenvectors. You appear to use different nomenclature than I am unfamiliar with, but perhaps I can help if you expand on the problem. Are you trying to determine the concentration of something diffusing along a tube as a function of time and position along the tube given the concentration at one or bothends of the tube as functions of time?

Do you have MathCad?




View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 21-6-2018 at 05:47


I know I can skin this cat in other ways. I'm hoping to learn a new tool that might assist me when those other methods are unusable. And the subject of species diffusion is simple enough to discuss.

Let's posit that I have a one-end-closed tube which is long and narrow enough to be one dimensional. Initially it has a steady concentration of oxygen and argon. Then I introduce new unsteady boundary conditions at the open end which induce a diffusion of additional argon or oxygen into the tube. So I can solve this easily with the unsteady diffusion equation, and let's assume I have done this already in numerous cases with different initial conditions and boundary conditions. Assume now that I have these cases, which were integrated numerically, stored in array structures over the dimension and time.

The generalization of the problem says that I know f and u of the equation Lu=f where u=u(x,t) is the argon concentration at location x and time t, and f=f(t) is the concentration at the open end at time t . And over the space of (u,f) pairs that I've previously computed, I can quantify either L or its eigenvector decomposition. From this decomposition then I can create a numerical surface G(x,s) that will let me solve for a new u using a new f which I haven't previously considered. That's the problem I'm hoping to consider. In some cases the Green's function convolution is cheaper to solve than the integration, which is the motivation to this method.
View user's profile View All Posts By User
wg48
International Hazard
*****




Posts: 821
Registered: 21-11-2015
Member Is Offline

Mood: No Mood

[*] posted on 21-6-2018 at 13:41


If the equations describing diffusion are inhomogeneous linear differential equations then the supposition principal applies. Which means if you know the green functions of u(x,t) ( u(x,t) of an impulse f(t)) then the u(x,t) can be calculated by convolving the green functions with the particular f(t) for which you require the u(x,t) .

Your question was “I don't know how I know I'm capturing all the eigenvector space” How does that relate to my first paragraph?

My understanding is that the eigenvector space can be frequency space ie the FT of the Green functions. Is that what you mean?

I think about these types of problems in terms of input, output and transfer functions of networks. f(t) is the input, the output is u(x,t) and the transfer function is the impulse response of the network ie the frequency response or what you call Green functions.
View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 21-6-2018 at 15:09


One technique for developing the Green's function surface is to establish the space of normalized eigenfunctions or vectors of the operator L. Then the summation of X*X'/m will approach the Green's function where X is an eigenvector X' is the conjugate eigenvector and m is the eigenvalue of that eigenvector. It is similar to FT since it has a spectral quality about it. You can see this better on the wiki page. I'm not good with LaTex formatting, but I should look it up.

I look at the eigenvector decomposition because an array structure of concentrations u and inputs f should make for a matrix L operator.
View user's profile View All Posts By User
aga
Forum Drunkard
*****




Posts: 7028
Registered: 25-3-2014
Member Is Offline


[*] posted on 21-6-2018 at 15:13


Go LaTeX !

Those formulae are beautiful.

Edit:
$$e=mc^2$$

$$f(x)=\integ{2x^3+x^2+1}$$

Bugger. I forgot too.

[Edited on 21-6-2018 by aga]




View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 21-6-2018 at 16:16


Ok so Green's function G is the sum over the eigenvector/values for
\begin{aligned}
n&=1\ldots\infty\\
G(x,x^\prime) &= \sum \frac{\Psi_n^\dagger(x)\times\Psi_n(x^\prime)}{\lambda_n}
\end{aligned}

Not bad for an iPad. Still can't figure out the inline code.
View user's profile View All Posts By User
aga
Forum Drunkard
*****




Posts: 7028
Registered: 25-3-2014
Member Is Offline


[*] posted on 22-6-2018 at 03:13


Impressive !

No idea what it means, but it looks super skookum.

How would you apply it to the gases-diffusing-in-a-tube problem ?




View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 22-6-2018 at 05:14


Well as I was reading and thinking about the method I realized that the currently posited tube is still a homogeneous boundary value problem, Lu=0. So let's add a twist on it. Let's make the tube out of a slightly permeable ceramic that allows argon to pass. But due to variability in sintering the it permeates differently along its points. And it is unsteady still. So the problem is Lu=h, where h=h(x,t). f(t) is still for the tube boundary condition.
\begin{aligned}
u(x,t) &= \int G(x,x^\prime,t,t^\prime)h(x^\prime,t^\prime)dx^\prime dt^\prime
\end{aligned}
View user's profile View All Posts By User
wg48
International Hazard
*****




Posts: 821
Registered: 21-11-2015
Member Is Offline

Mood: No Mood

[*] posted on 23-6-2018 at 01:08


Apparently diffusion in 1D can be modelled by a RC transmission line. Which means a step function increase concentration at the open in will propagate down the tube with some velocity and be reflected at the closed end. So the concentration at any point along the tube will be the sum of the forward and reflected waves. So in the frequency domain that means the response is in infinite series of pole and zeros separated by a frequency interval that is a function of the diffusion length of the tube. My limited understanding of eigenvectors suggests they represent the poles and zeros. So the number of vectors you require is determined by how a high a frequency you want to consider.

A leaky tube could probably be modelled as a series R and parallel R and C transmission line which would add decaying terms (tanh) to the wave propagation.

So what is the relation between poles/zeros and eigenvectors??? Can we explore that please.



[Edited on 23-6-2018 by wg48]




Borosilicate glass:
Good temperature resistance and good thermal shock resistance but finite.
For normal, standard service typically 200-230°C, for short-term (minutes) service max 400°C
Maximum thermal shock resistance is 160°C
View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 23-6-2018 at 03:47


I agree that it is similar to an RC in that it is first order with time
\begin{aligned}
\frac{\partial u}{\partial t} + k\frac{\partial^2 u}{\partial x^2} &= F\\
\end{aligned}
But the reflection behavior sounds much more wavelike and I would think requires inductance and a second order in time to act like a wave.
\begin{aligned}
\frac{\partial^2 u}{\partial t^2} + k\frac{\partial^2 u}{\partial x^2} &= F\\
\end{aligned}

When I've used Fourier methods to solve the diffusion equation in the past, the time solution from separation of variables was always a decaying exponential and the spatial variable was the solution requiring a sum of sinusoids that were spatially periodic. Their magnitudes were always linked to the exponential and decreasing.

\begin{aligned}
u &= e^{-\lambda t}\sum ( A_n sin\frac{n\pi x}{L} +B_n cos\frac{n\pi x}{L} )\\
\end{aligned}
View user's profile View All Posts By User
wg48
International Hazard
*****




Posts: 821
Registered: 21-11-2015
Member Is Offline

Mood: No Mood

[*] posted on 24-6-2018 at 04:51


Its standard nomenclature in transmission line theory to refer to the movement of disturbances as the propagation of a wave and to describe what happens at a change in impedance as reflection (the closed end of the tube is modelled as an open circuit).

Your are correct that an infinitesimal section of the transmission line is a first order RC. Do you consider two such sections cascaded to be first order?
What about an infinite number cascaded sections would that still be first order?
A first order system cannot have a phase shift greater than 90deg while a transmission line can have any phase shift.

Yes the response of a transmission line (linear system) to a step input can be can be calculated be summing the response to each frequency component (sin wave) of the step input. That’s true of the spatial function too.

I made an error. The transfer function (frequency response) at a point along the tube is an infinite series of poles and zeros but they are separated by an interval that is a function of the distance from that point to the closed end of the tube not the length of the tube because there is no reflection at the driven end.

I should also add that due to the frequency dispersion of a RC transmission the step at the input is distorted as it propagates down along the line. Apparently a RC transmission line is an accurate model of 1D diffusion in a tube or putting it an other way the equations are identical in both cases.

If you want the complicated details you can search for “transmission line model of diffusion” and “telegraphic equations”
For example https://en.wikipedia.org/wiki/Telegrapher%27s_equations.

PS I will attempt to explain the the last part of your last post later. The equations in your last post were missing when I first viewed it.




Borosilicate glass:
Good temperature resistance and good thermal shock resistance but finite.
For normal, standard service typically 200-230°C, for short-term (minutes) service max 400°C
Maximum thermal shock resistance is 160°C
View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 24-6-2018 at 17:42


I must admit my laziness. While I've had formal education for poles and zeros, they aren't a technique I use and so I'm quite rusty. The last time I was trying to solve for transmission line behavior (January last) I took the shortcut and time stepped it with RK4 or euler implicit. I know other valid theories exist for it, but I also wanted to know the transient behavior during a capacitive discharge into the transmission line and a nonlinear load at the end.

I keep wondering if I can study this diffusion problem with a blocky discretization, such that it is easy to visualize. But I wonder if the discretization error would be a stumbling block before I even got started. I need to look for a paper that I've heard about on this topic.

Attachment: greensfunctions-logan.pdf (539kB)
This file has been downloaded 78 times

Attachment: Greensfunctionchapterpdf (95kB)
This file has been downloaded 83 times
View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 25-6-2018 at 09:38


Quote:

So what is the relation between poles/zeros and eigenvectors???


Bear with me, I'm rusty on my transfer functions. This is all probably review for you but I'll provide my understanding and maybe you can fill in where I'm lacking, I'm certainly not telling you what is what.

What we are looking for with a pole/zero analysis is the root locus where we seek to know the roots of the transfer function. We want to know the roots because they are the real/imaginary/complex power of the exponential. And that exponential is based on the trial solution to the equation. If I were to take the same ode and attempt an alternate solution using separation of variables, I would achieve an eigenvalue problem where the derivative of the eigenfunction needs to be a multiple of the same function Df=lamba f. So what is the physical reality of the eigenfunction? In one way, its a coordinate transformation to diagonalize a system of equations to become a number of independent equations. They don't need solved as a system. It can also be seen as a basis for a function space where all possible solutions are linear combinations of all of the functions. In the idea of transfer function roots, the eigenfunctions are the assumed exponential function while the eigenvalue is the root that defines the behavior of the function.

Obviously two ways to core the apple and get to the same answer. Why would I choose one over the other. The root locus method, which I'm assuming is why you are interested in poles and zeros, provides a rich understanding of where the eigenvalues/roots will appear. It provides a strong intuition on this. But in it you consider the eigenfunction, e^x, only in passing and as a carrier of the more important root.

In eigenfunction/eigenvector analysis it isn't usually assumed that the exponential is the answer. Often it isn't, depending on the boundary conditions, like with the erf function, and something more complex is expressed along with a number that is considered spectrally. So I would choose an eigenfunction decomposition when I want to understand the building blocks of the possible solutions. You mentioned the tanh function. Is that because it was derived from two eigenfunctions that produced the hyperbolic exponentials? From reflective boundary conditions on the far end?

I just read about using the step function with ode integration to derive the Green's function. I should consider that as something to compare the eigenvector combination.
View user's profile View All Posts By User
battoussai114
Hazard to Others
***




Posts: 234
Registered: 18-2-2015
Member Is Offline

Mood: Not bad.... Not bad.

[*] posted on 25-6-2018 at 14:36


Some words of caution:
First, I'm no mathematician, my background is in engineering and I haven't used linAlg for years.
Second, I actually left this post written in the quick reply box for a few days before posting, so it might not be relevant anymore.



My understanding regarding how many eigenfunctions you would need to find so that you can span all your space is as follows:
Assuming that my rusty linear algebra still applies you'd have infinite eigenfunctions, since any scalar multiple of an eigenvalue or function would still be a a valid one for your transformation, only by adding some sort of condition like a bounded space you'd limit the actual number of eigenvectors/functions that are possible. The thing is how many associated eigenvalues you can find for your problem, which I think is a value that has an upper bound depending on the size of your transformation matrix though it can be any natural number from zero to this upper bound. You'd be trying to find enough so that your eigenfunctions can satisfy the requisite that they form a basis for your space.
For eivenvectors this would be as simple as proving they're linearly independent, for eigenfunctions the requisites may be a little more complex, can't really say I remember that.

So the first step would probably be build your eigenvalue problem and see how many roots your characteristic polynomial has, from there you'd see how many forms your eigenfunctions can take based on each eigenvalue you got. Then you'd check wether these functions form a basis for your space and finally integrate over them to get your answer.

I feel like this would be all nice and good as long as your model is well formulated. It still leaves one loophole, this whole crap I wrote basically dances around the problem of figuring how many eigenvalues you'd need to figure the problem out by assuming the ones you will find actually are enough. I fell that might not really be the case though. Which would leave us with one important question: how would you determine the dimensions of your function space so that you can figure how many eigenfunctions you need in order to span it all? Maybe getting some clues from your modeling? I sincerely have no clue...




Battoussai.
View user's profile View All Posts By User
wg48
International Hazard
*****




Posts: 821
Registered: 21-11-2015
Member Is Offline

Mood: No Mood

[*] posted on 26-6-2018 at 05:12


roXefeller:

While swotting up on RC transmission lines I found a paper that calculates the step response of a open ended RC transmission line using the diffusion equation. See http://journals.plos.org/plosone/article/file?id=10.1371/jou...

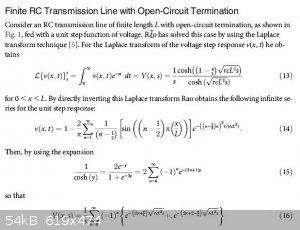

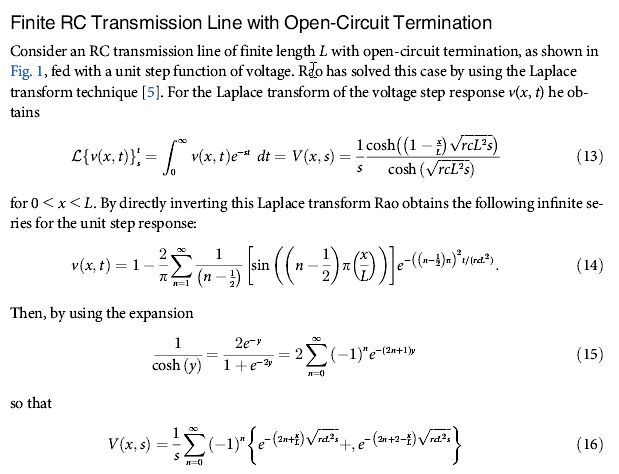

Below is a screen copy of the relevant equations. The Laplace transfer function is shown on the first line. The s roots of the denominator are the poles and the s roots of numerator are the zeros for a given position.

I am unable to equate your x,t solution with the one. shown. But neither one has the form I was expecting. In general I thought transmission line problems have hyperbolic functions in them because of the way amplitude varies along a lossey transmission line and a section of a transmission line with discontinuities at the end can have repeating poles or/and zeros unless damping factor is greater than critical ie two solutions depending on the damping factor which I neglected.

Yes you can use the root locus method to adjust the stability, bandwidth or step response, but the position of the poles and zeros also give insight in to the form of the transfer function and its response.

rctrans22_18_48.jpg - 54kB

battoussai114:

Unfortunately I am no mathematician either. Most of my maths are vaguely connected patches of knowledge from my old engineering life. Your post was helpful in helping me link Laplace to eigenvectors I am still digesting it.

PS: Its probably obvious that the Laplace transfer function is the right hand term of the first equation less the 1/s which is the step function.

[Edited on 26-6-2018 by wg48]

[Edited on 26-6-2018 by wg48]




Borosilicate glass:
Good temperature resistance and good thermal shock resistance but finite.
For normal, standard service typically 200-230°C, for short-term (minutes) service max 400°C
Maximum thermal shock resistance is 160°C
View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 26-6-2018 at 11:00


As for pde classifications, the transmission line is hyperbolic as you said. That class, like a traveling fluid wave, admits a solution that isn't necessarily informed by the boundary conditions, unless they are within the zone of influence. Interestingly, in compressible fluid flow we can see supersonic flow where the characteristic lines all point backwards, leaving the forward field completely unaware of the approaching wave. The diffusion problem is a parabolic type of pde, which like the elliptic type, requires solutions that are simultaneously informed by the boundary conditions. Examples of other elliptic equations are potential fluid flow and material elasticity. There might be some cases in electromagnetics, like electric field potential, but that's only speculation on my part. The term that causes a parabolic to become hyperbolic is the time derivative. For rigid body or electric circuits, this requires an inertial term (mass or inductance) which seeks to maintain a velocity. No such quantity exists in heat diffusion because it would violate the laws of thermodynamics. Hence time derivatives limit out at the first order derivative.

Do you really leave inductance out of your transmission line problems? Or is that just a case of implied vernacular?
View user's profile View All Posts By User
roXefeller
National Hazard
****




Posts: 404
Registered: 9-9-2013
Member Is Offline

Mood: 220 221 whatever it takes

[*] posted on 27-6-2018 at 17:49


So I had a chance to write down the finite difference equations to convert the partial operators into linear algebra form.
\begin{aligned}
u_t + k u_{xx} &= h (x,t) \\
u_t &= \frac{u_i^{n+1}-u_i^n}{\Delta t}\\
u_{xx} &= \frac{u_{i+1}^{n+1}-2u_i^{n+1}+u_{i-1}^{n+1}}{\Delta x^2}\\
\frac{u_i^{n+1}-u_i^n}{\Delta t} + k\frac{u_{i+1}^{n+1}-2u_i^{n+1}+u_{i-1}^{n+1}}{\Delta x^2} &= h_i^n\\
\end{aligned}
This is obviously with an implicit euler integration. The thing to note is the stencil, where the n index of h is related to n and n+1 (possibly even n-1 in general depending on any other schemes to approximate the first partial derivative), and the same for each i index related to i, i-1, and i+1. If u and h are both spatio-temporal where column n is the instantaneous solution at time n, then they are both matrices. The L operator operates on a matrix and produces a matrix, but in this way it isn't standard linear algebra since that operates vector by vector and this stencil has to operate between columns. No L would take the 4th order form:
\begin{aligned}
L_{jkmn}u_{mn} &= h_{jk}
\end{aligned}
Or multilinear algebra. Sadly after Einstein, it has only had sporadic work done because of the computational cost until most recently with big data mining. I'm currently reading some recent articles to find what modern mathematicians are writing about multilinear spaces.
View user's profile View All Posts By User
wg48
International Hazard
*****




Posts: 821
Registered: 21-11-2015
Member Is Offline

Mood: No Mood

[*] posted on 28-6-2018 at 03:39


Quote: Originally posted by roXefeller


Do you really leave inductance out of your transmission line problems? Or is that just a case of implied vernacular?


An odd question. What I can say is it depends on the details of the particular problem and what I was trying to achieve with the analysis and or simulations

When dealing with audio signals or slow digital transitions signals the resistance capacitance and inductance of the interconnects (transmission lines) between components on a printed circuit board could be assumed to have no resistance, capacitance or inductance because the propagation time was small compared to the period of the maximum signal frequency. Longer connections would be modelled as a lumped capacitance ignoring only the inductance. These days with GHz bandwidth semiconductors even interconnects on the same board have to be treated as transmission line with L and C. On one project with miles of coax even the dispersion had to be considered.

Signal lines within in a small integrated circuit that are very short in electrical length compared to the signal wave length can be analysed with sufficient accuracy by assuming the inductance is zero. Similar to the example I gave.

In a different scenario helical resonators with sufficiently large end capacitive load are analysed by ignoring the distributed capacitances and resistance ie a Tesla coil secondary with a capacitive top load significantly larger than the distributed capacitance of the coil.

In short you ignore the terns you can and don’t when you cannot. But you must have known that already. Well you did ask.




Borosilicate glass:
Good temperature resistance and good thermal shock resistance but finite.
For normal, standard service typically 200-230°C, for short-term (minutes) service max 400°C
Maximum thermal shock resistance is 160°C
View user's profile View All Posts By User
MJ101
Hazard to Self
**




Posts: 82
Registered: 14-6-2018
Member Is Offline

Mood: Always Sunny

[*] posted on 28-6-2018 at 05:21


@roXefeller: I haven't tinkered with this stuff in many years. :)

Maybe this might help?
http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.445...


https://www.researchgate.net/figure/The-influence-of-the-str...

@wg48: As you pointed out. In some cases, it matters. Otherwise, what would we do with all of those cute little ferrite beads
and nifty snubbers. :D
View user's profile View All Posts By User
wg48
International Hazard
*****




Posts: 821
Registered: 21-11-2015
Member Is Offline

Mood: No Mood

[*] posted on 28-6-2018 at 05:41


Quote: Originally posted by roXefeller
So I had a chance to write down the finite difference equations to convert the partial operators into linear algebra form.
\begin{aligned}
u_t + k u_{xx} &= h (x,t) \\
u_t &= \frac{u_i^{n+1}-u_i^n}{\Delta t}\\
u_{xx} &= \frac{u_{i+1}^{n+1}-2u_i^{n+1}+u_{i-1}^{n+1}}{\Delta x^2}\\
\frac{u_i^{n+1}-u_i^n}{\Delta t} + k\frac{u_{i+1}^{n+1}-2u_i^{n+1}+u_{i-1}^{n+1}}{\Delta x^2} &= h_i^n\\
\end{aligned}
This is obviously with an implicit euler integration. The thing to note is the stencil, where the n index of h is related to n and n+1 (possibly even n-1 in general depending on any other schemes to approximate the first partial derivative), and the same for each i index related to i, i-1, and i+1. If u and h are both spatio-temporal where column n is the instantaneous solution at time n, then they are both matrices. The L operator operates on a matrix and produces a matrix, but in this way it isn't standard linear algebra since that operates vector by vector and this stencil has to operate between columns. No L would take the 4th order form:
\begin{aligned}
L_{jkmn}u_{mn} &= h_{jk}
\end{aligned}
Or multilinear algebra. Sadly after Einstein, it has only had sporadic work done because of the computational cost until most recently with big data mining. I'm currently reading some recent articles to find what modern mathematicians are writing about multilinear spaces.


I think you are talking about state space techniques or it’s related to state space technique. It’s used in control theory, target tracking, and error correction in for example inertial navigation system. Lots of papers and books have been written on the subject.





Borosilicate glass:
Good temperature resistance and good thermal shock resistance but finite.
For normal, standard service typically 200-230°C, for short-term (minutes) service max 400°C
Maximum thermal shock resistance is 160°C
View user's profile View All Posts By User

  Go To Top
